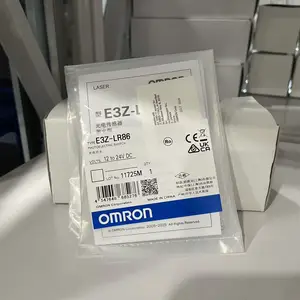

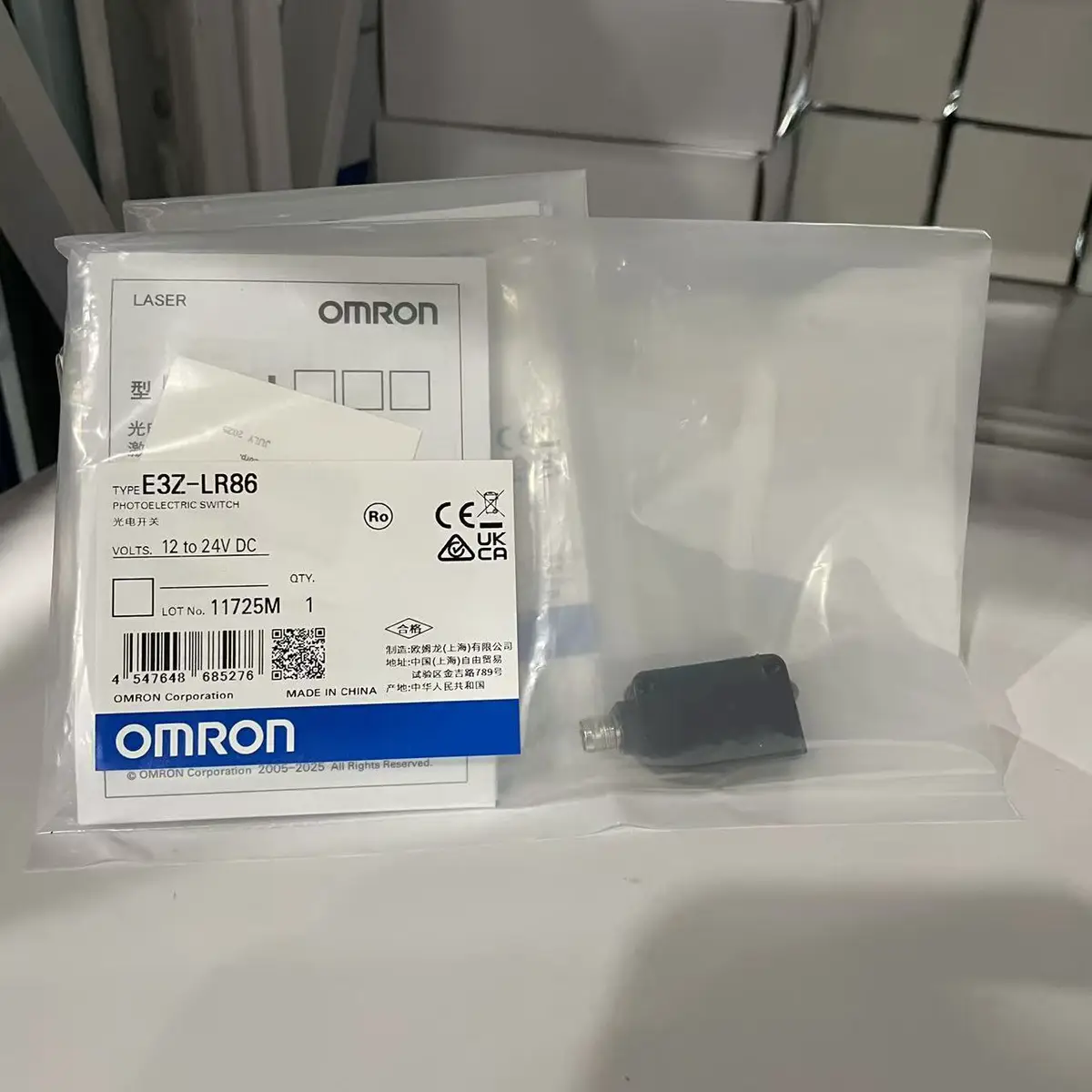

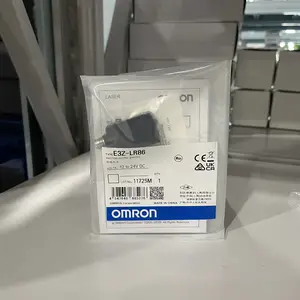

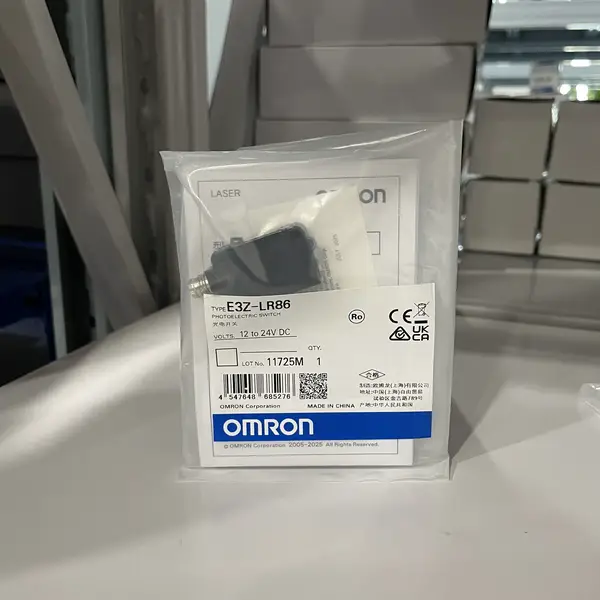

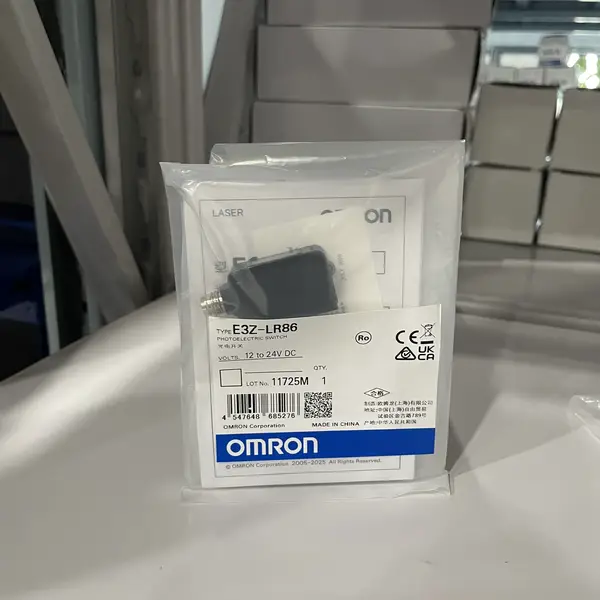

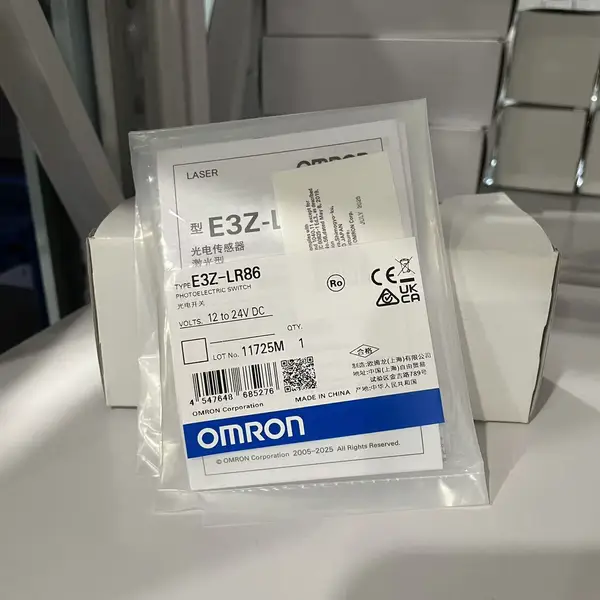

Omron E3Z-LR86 — Laser Retro Sensor, MSR, PNP, M8
SKU: E3Z-LR86USD 103.00
E3Z-LR compact laser retro-reflective sensor with MSR, 15 m with E39-R1, PNP open collector, M8 4-pin connector, IP67.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron E3Z-LR86 is a compact retro-reflective photoelectric sensor with a visible red laser Class 1 source for where LED retro-reflective sensors are not precise enough. The M.S.R. (Mirror-Surface Rejection) optical filter ignores the polarised reflection from shiny foil labels, metal surfaces, and gloss cartons, so only the diffuse target signal is detected. It works with the E39-R1 reflector at a 15 m range and produces a small 5 mm spot at 3 m for precise alignment on small parts. The PNP open-collector output drives a sourcing PLC input directly, with Light-ON / Dark-ON selectable on the rear switch. The M8 4-pin connector drops onto any standard patch cord. It is the standard pick on high-speed packaging and assembly lines where small objects, shiny labels, or metal surfaces need to be detected reliably at a long distance.
Where it fits in the E3Z family
The E3Z family splits by function. E3Z-D is diffuse-reflective up to 1 m with an LED. E3Z-T is through-beam up to 30 m with an LED. E3Z-R is polarised LED retro-reflective with MSR up to 4 m. E3Z-LL is BGS laser up to 300 mm. E3Z-LR is laser retro-reflective with MSR up to 15 m. E3Z-LT is laser through-beam up to 60 m. Within E3Z-LR, the '86' suffix is PNP M8 connector; '81 2M' is PNP pre-wired 2 m; '61 2M' is NPN pre-wired 2 m; '66' is NPN M8. Pick the E3Z-LR86 when laser retro with MSR, PNP output, and an M8 connector are the goal.
Why laser retro rather than LED retro
A standard E3Z-R86 LED retro sensor produces a wide beam that misses small features and can be fooled by shiny-label flashes. The E3Z-LR86 laser source produces a 5 mm spot at 3 m — small enough to fit between features on a small part — and pairs with MSR optics to ignore polarised reflection from shiny surfaces.
Before ordering
Pair with an E39-R1 reflector for the 15 m range. Use E39-R2 or E39-R6 for a smaller 200 mm spot at 7 m. Keep line-of-sight between sensor and reflector clear. For transparent objects the E3Z-B PET-bottle sensor is the right pick instead.
Key Features
- E3Z-LR compact laser retro-reflective sensor with M.S.R.
- 15 m sensing distance with E39-R1 reflector (5 mm spot at 3 m)
- Visible red laser Class 1 source (660 nm typical)
- M.S.R. (Mirror-Surface Rejection) for shiny-label and metal targets
- PNP open-collector output, 100 mA at 26.4 VDC max.
- Light-ON / Dark-ON selectable on rear switch
- M8 4-pin connector
- 12-24 VDC ±10 % supply, 30 mA current draw
- IP67 PBT housing, -25 to +55 °C operating
- SKU: E3Z-LR86
- Series: E3Z-LR compact laser retro-reflective sensor
- Voltage: 12-24 VDC
- I/O: 100 I/O
Best-Fit Applications
- Shiny-label and foil-wrap detection on a cosmetic or food line
- Small-part presence check on an electronics pick-and-place infeed
- Long-distance trigger for boxes or totes on a warehouse conveyor
- Detecting metal-can or polished-surface inventory on a stack line
- Triggering a label applicator on a clear-glass bottle line
Buying Checklist
- Choose E3Z-LR86 for laser retro with MSR, PNP, and M8 connector.
- Choose E3Z-LR81 2M for the same sensor with a pre-wired 2 m cable.
- Choose E3Z-LL86 for BGS laser detection at 20-300 mm range.
- Choose E3Z-R86 for standard LED retro at 4 m without laser precision.
- Choose E3Z-T86 for through-beam up to 30 m on dusty or steamy lines.
- Confirm the E39-R1 reflector is within 15 m and oriented square to the sensor.
Technical Specifications
| Series | E3Z-LR compact laser retro-reflective sensor |
|---|---|
| Sensing Method | Retro-reflective with M.S.R. (Mirror-Surface Rejection) |
| Sensing Distance | 15 m with E39-R1 (300 mm spot at 3 m); 7 m with E39-R2 / E39-R6 (200 mm spot) |
| Light Source | Red laser Class 1 (660 nm), 5 mm spot @ 3 m |
| Standard Target | Opaque, 75 mm minimum diameter at 15 m |
| Supply Voltage | 12-24 VDC ±10 %, ripple 10 % p-p max. |
| Current Consumption | 30 mA max. |
| Output | PNP open collector, Light-ON / Dark-ON selectable, 100 mA at 26.4 VDC |
| Response Time | 1 ms operate / 1 ms release |
| Connection | M8 4-pin connector |
| Operating Temperature | -25 to +55 °C (no condensation or icing) |
| Protection Rating | IEC IP67 (PBT housing) |
Resources & Downloads
FAQ for E3Z-LR86
What is the difference between E3Z-LR86 and E3Z-R86?
Both are compact MSR retro-reflective sensors with PNP and M8 connector. The E3Z-LR86 uses a laser source for a 5 mm spot at 3 m and a 15 m range; the E3Z-R86 uses a red LED for a 4 m range. Pick the LR86 for small parts, shiny labels, or long distances where the laser spot is needed; pick the R86 for general-purpose retro at a lower price.
What reflector does the E3Z-LR86 need?
Use the standard E39-R1 reflector for a 15 m range. For a smaller 200 mm spot at half the range, use the E39-R2 or E39-R6 reflector. Allow at least 100 mm between the sensor and the reflector for stable detection, and clean the reflector face on the same schedule as the line belt to avoid false drops from contamination.
Why does the E3Z-LR86 use M.S.R. optics?
M.S.R. (Mirror-Surface Rejection) is an optical filter that ignores the polarised reflection from shiny surfaces such as foil labels, polished metal, or gloss cartons. Without it, a shiny target reflects the laser back to the sensor and is detected as a fault (light received through the polarised filter). With M.S.R., only the diffuse signal from the actual target reaches the detector, so shiny-label applications detect reliably.
