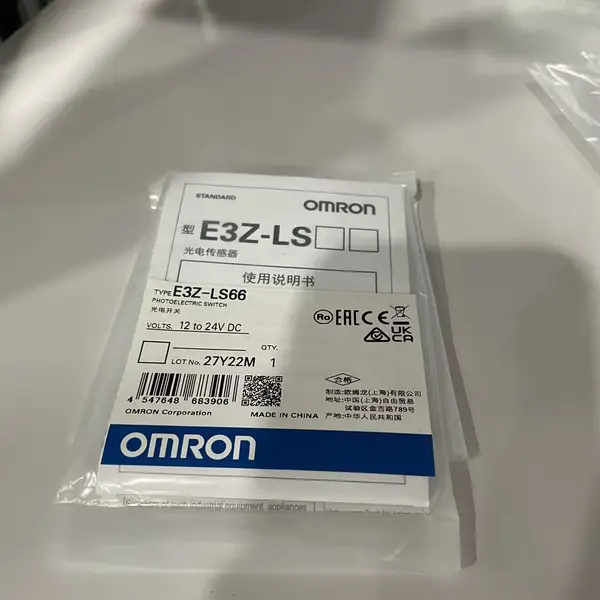

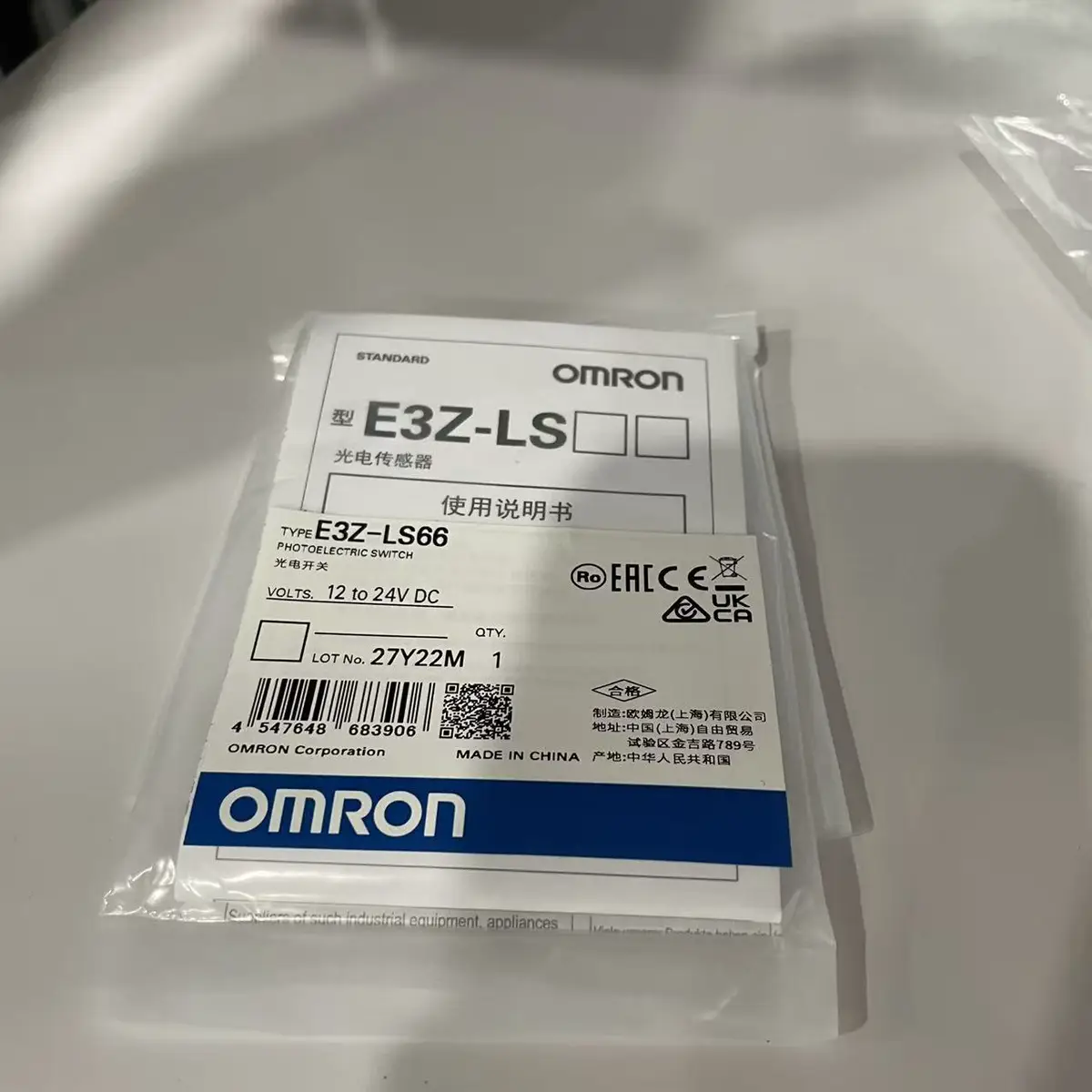

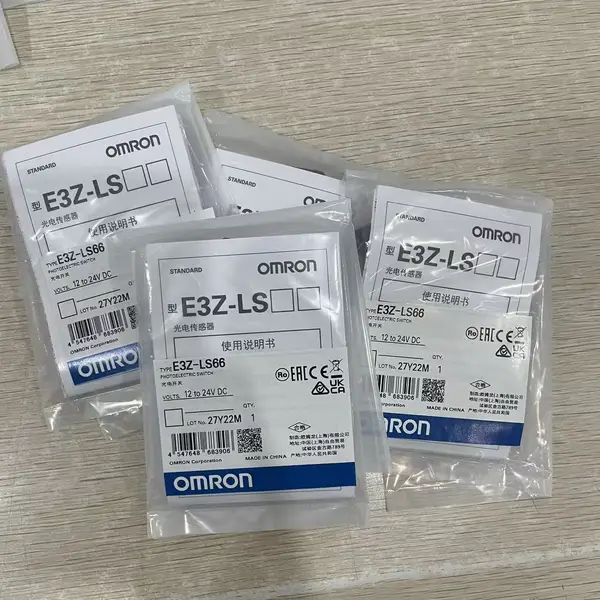

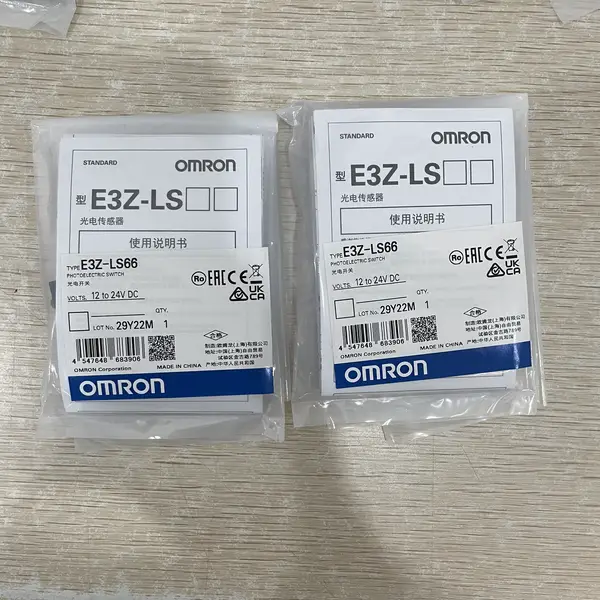

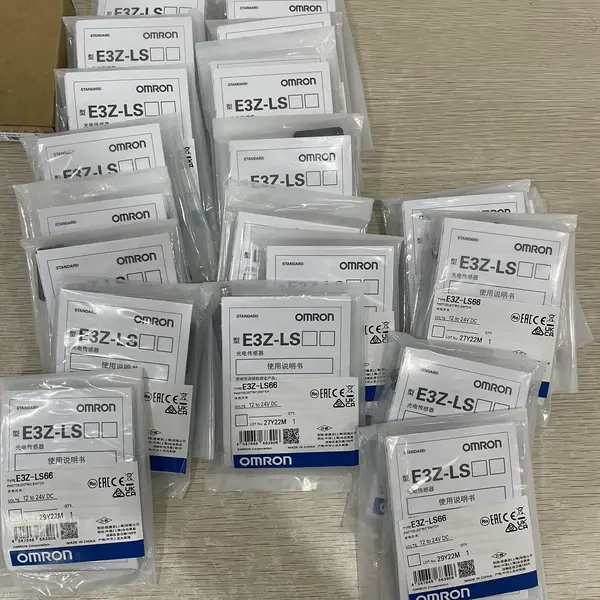

Omron E3Z-LS66 — Distance-Settable Sensor, NPN, M8
SKU: E3Z-LS66USD 31.00
BGS-reflective distance-settable photoelectric sensor, 20-200 mm range on white paper, NPN output, M8 4-pin connector, IP67.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron E3Z-LS66 is the M8 4-pin connector version of the E3Z-LS distance-settable BGS-reflective sensor. The optical cutoff focuses the receiver on a set distance, so the sensor sees a target only inside a 20-200 mm band and ignores anything beyond it. The 5-turn pot sets the cutoff anywhere from 40 mm to 200 mm on white paper (40-160 mm on black paper) -- useful on a conveyor or fixture where the next part moves between black, white, and shiny finishes and the background drifts between scans.
What the BGS cutoff actually does
A plain diffuse-reflective sensor (E3Z-D61 2M at 1 m) ignores the background only by range limit, not by optical cutoff. The E3Z-LS uses BGS / FGS optics to actually suppress anything beyond the set distance, so a black part on a bright aluminum conveyor reads the same as a white part on a black belt. For applications where the background can drift or the target color varies from lot to lot, that BGS behaviour is the main reason to pay the small step up from E3Z-D to E3Z-LS.
Why LS6x instead of LS8x
The LS6 family is NPN (sinking) and the LS8 family is PNP (sourcing). Pick the LS66 when the PLC or controller expects a sinking input -- common on CP1 / CP2 / CJ-series input cards set for NPN. For a sourcing input, pick the E3Z-LS86 (the PNP twin in the same M8 connector). The last two digits pick the cable: 1 = pre-wired 2 m, 3 = M8 pigtail 0.3 m, 6 = M8 4-pin connector, 8 = M12 4-pin connector.
Before ordering
Match the NPN / PNP choice to the controller input card. Confirm the supply is 12 to 24 VDC, not 5 V or 100 VAC. On multi-sensor installs, leave at least the rated spacing or use the mutual-interference prevention mode so side-by-side sensors do not false-trigger. The visible red LED is around 680 nm -- not a laser, so there is no Class 1 safety paperwork.
Key Features
- E3Z-series compact rectangular distance-settable BGS-reflective sensor with built-in amplifier
- 20-200 mm sensing range (BGS 20 mm to set distance, FGS set distance to 200 mm on white paper 100x100 mm)
- Setting range 40-200 mm on white paper, 40-160 mm on black paper, 5-turn endless sensitivity pot
- Visible red 680 nm LED source -- not a laser, no Class 1 safety paperwork
- NPN open-collector output, 100 mA max at 26.4 VDC, residual voltage 1 V or less
- Light-ON / Dark-ON switch on the rear face, 1 ms or less response time
- 12-24 VDC +/- 10% supply at 30 mA or less, ripple 10% or less
- Built-in mutual-interference prevention for side-by-side installs
- M8 4-pin connector on the rear face for quick-disconnect harness swap
- Orange operation + green stability LEDs, IP67 ABS housing, -25 to +55 C operating
- SKU: E3Z-LS66
- Series: E3Z-LS66
- Voltage: 12-24 VDC
- I/O: 100 I/O
Best-Fit Applications
- Conveyor part detection where the next part moves between black, white, and shiny finishes
- Small-part presence check on an indexing table with a fixed background
- Multi-color label edge detection on a packaging line
- Bottle cap or closure detection with a fixed background surface
- SMT feeder empty / part present check on a pick-and-place machine
Buying Checklist
- Pick E3Z-LS66 for a 20-200 mm distance-settable BGS-reflective sensor with NPN output and M8 4-pin connector.
- Pick E3Z-LS86 instead when the controller expects a PNP sourcing input (same M8 4-pin connector).
- Pick E3Z-LS61 2M instead when a 2 m pre-wired lead is preferred over a quick-disconnect M8 harness.
- Pick E3Z-LL86 for a laser BGS sensor (20-300 mm range) in the same M8 housing when a smaller spot is required.
- Pick E3Z-D61 2M for a 1 m standard diffuse-reflective NPN sensor when the background is far enough away not to matter.
- Confirm the supply is 12-24 VDC, not 5 V or 100 VAC, and the input card is NPN sinking to match the LS66 output.
Technical Specifications
| Sensing Method | Distance-settable BGS-reflective (BGS / FGS) |
|---|---|
| Sensing Range | 20-200 mm on white paper 100x100 mm; 40-160 mm on black paper |
| Light Source | Red 680 nm LED (visible spot, not laser) |
| Output Type | NPN open collector, 100 mA max at 26.4 VDC, residual 1 V or less |
| Connection | M8 4-pin connector on the rear face |
| Supply Voltage | 12-24 VDC +/- 10%, ripple 10% or less |
| Current Draw | 30 mA or less |
| Response Time | 1 ms or less (operate and reset) |
| Sensitivity Adjustment | 5-turn endless potentiometer |
| Operating Mode | Light-ON / Dark-ON switch on the rear face |
| Indicators | Orange operation LED + green stability LED |
| Protection / Operating Temp | Mutual-interference prevention, IP67 ABS, -25 to +55 C |
Resources & Downloads
FAQ for E3Z-LS66
Is the E3Z-LS66 a laser sensor?
No. The E3Z-LS66 is a red LED distance-settable BGS-reflective sensor with a visible 680 nm spot. The E3Z-LL family is the laser BGS sensor (20-300 mm range, Class 1 laser). The E3Z-LS66 has no laser-class safety paperwork and can be aimed by eye. Pick the E3Z-LS for color-independent presence detection on a fixed background; pick the E3Z-LL when you need a smaller spot for a small target or a longer BGS range.
What is the difference between E3Z-LS66 and E3Z-LS86?
Output polarity. The E3Z-LS66 is NPN (sinking) and the E3Z-LS86 is PNP (sourcing). Both share the same 20-200 mm BGS range, M8 4-pin connector, IP67 ABS housing, 12-24 VDC supply, and 1 ms response. Pick the LS66 for a sinking input card (CP1 / CP2 / CJ-series NPN mode); pick the LS86 for a sourcing input card. The last two digits set the connector on both: 1 = 2 m pre-wired, 6 = M8 4-pin, 8 = M12 4-pin.
Does the E3Z-LS66 need a separate amplifier?
No. The E3Z-LS66 is a self-contained photoelectric sensor with the emitter, receiver, amplifier, and output transistor built into one housing. The M8 4-pin connector on the rear face carries the 12-24 VDC supply and the NPN output. You do not need an E3X-NA / E3X-SD / E3X-HD amplifier and you do not need an E32 fiber-optic cable -- the LS66 is a complete sensor in one housing.
What cable do I need for the M8 connector on the E3Z-LS66?
A 4-pin M8 female sensor harness with straight or right-angle connector. Omron's XS3F-M321 series (PVC) or XS3W-M321 series (angled) are the matching 4-wire M8 cables in 2 m, 5 m, and 10 m lengths. Pin 1 = brown (V+), pin 3 = blue (0 V), pin 4 = black (NPN output), pin 2 = white (not used on the E3Z-LS66). Use a 4-core M8 cable; a 3-core cable will work for the supply and output but leaves the white wire unterminated at the sensor end.
