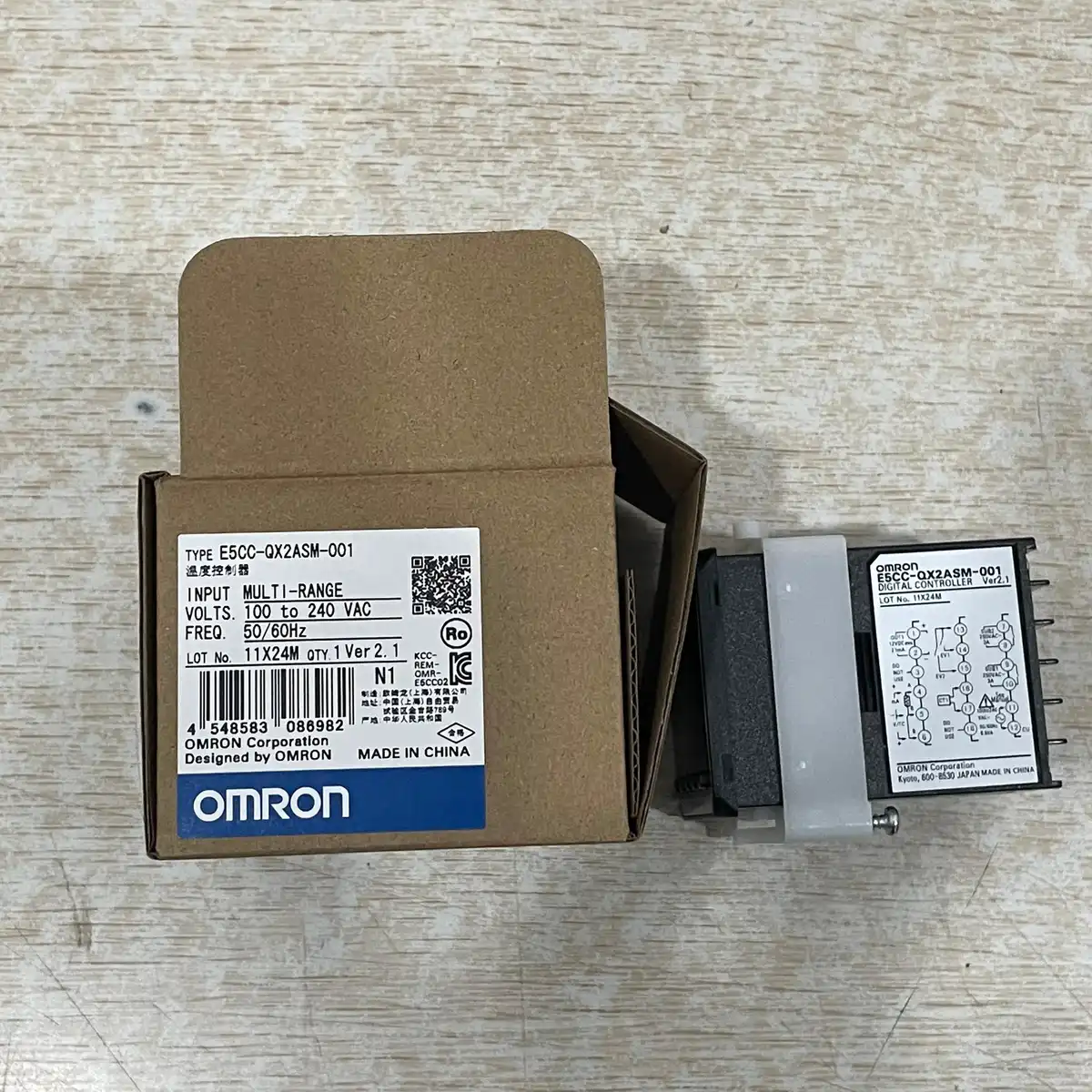

Omron E5CC-QX2ASM-001 — E5CC PID Controller, SSR Drive

SKU: E5CC-QX2ASM-001

USD 100.00

Omron E5CC-QX2ASM-001 48x48 mm PID temperature controller, 100-240 VAC, SSR drive output, universal input. In stock.

1-Year Warranty Full manufacturer warranty
Global Shipping Worldwide delivery available
Genuine Omron 100% authentic product
Ready to Ship Usually ships within 24h
In Stock

This item is available for immediate shipment from our warehouse.

Request Quote

Contact for pricing, bulk discounts, and shipping

Product Overview

The Omron E5CC-QX2ASM-001 is a 48 x 48 mm digital temperature controller from the E5CC family, manufactured by Omron Corporation. Hengyixin Automation stocks this controller in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.

The unit runs on 100 to 240 VAC at 50/60 Hz, 6.5 VA, and samples the input at 50 ms. The input is universal: thermocouple K / J / T / E / L / U / N / R / S / B / W / PLII, Pt100, JPt100, ES1B infrared sensor, and 4-20 mA / 0-20 mA / 1-5 V / 0-5 V / 0-10 V analog. Control is ON/OFF or 2-PID with auto-tuning.

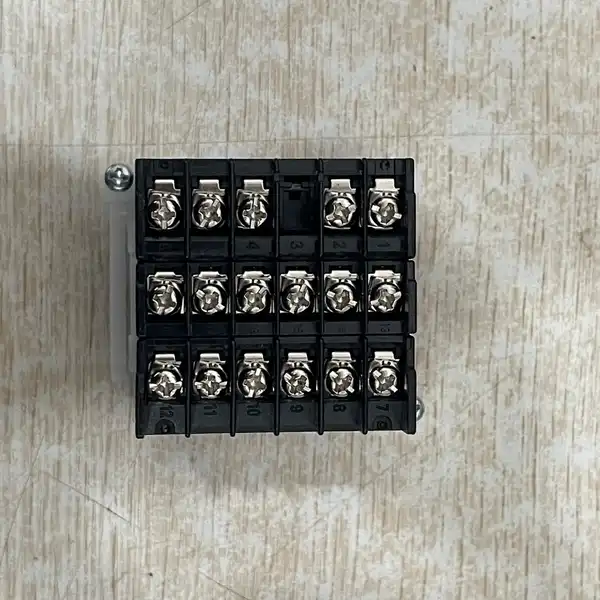

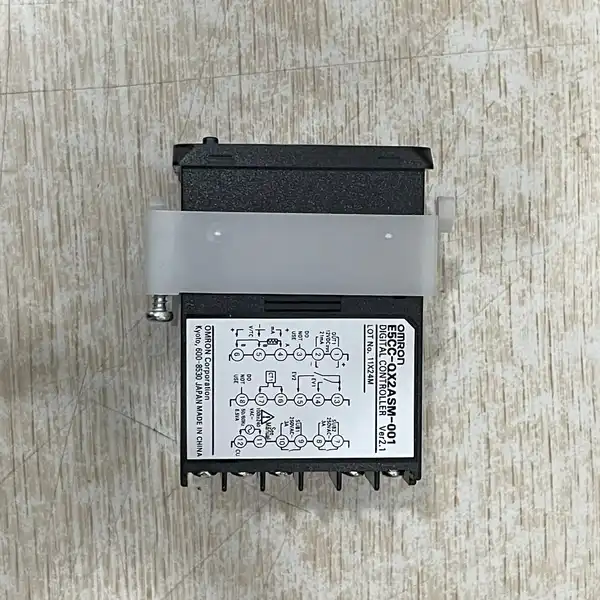

Output 1 is a 12 VDC +/- 20 % voltage pulse for driving an external SSR. Two auxiliary relay outputs (SPST-NO 250 VAC 3 A) drive alarms. Two event inputs and one heater-burnout alarm input complete the I/O. Front face is IP66, rear IP20. Panel cutout 45 x 45 mm. About 210 g, -10 to 55 degC. For a relay sibling, pick the E5CC-RX2ASM-802.

Key Features

  • E5CC 48 x 48 mm digital temperature controller, 100-240 VAC, 6.5 VA
  • Universal input: thermocouple, Pt100, ES1B infrared and 4-20 mA / 0-10 V analog
  • Voltage output (SSR driver) plus 2 auxiliary relay outputs and 1 HB/HS alarm input
  • ON/OFF or 2-PID with auto-tuning, 50 ms sample, IP66 front, -10 to 55 degC
  • SKU: E5CC-QX2ASM-001
  • Series: Omron E5CC-series digital temperature controller
  • Voltage: 100 TO 240 VAC

Best-Fit Applications

  • Heater band on a packaging sealing bar where the SSR voltage drive pulses a 25 A solid state relay on a 1 s cycle
  • Oven profile control on a heat-treat furnace where the universal input reads a Type K thermocouple and the PID holds +/- 1 degC across the ramp
  • Spare drop-in for a 48x48 cutout where the old E5CN controller failed and the E5CC-QX2ASM-001 takes the same screw terminals and PT input

Buying Checklist

  • Pick the E5CC-QX2ASM-001 for a 48x48 mm PID controller with SSR voltage drive output and universal sensor input on 100-240 VAC.
  • Pick the E5CC-RX2ASM-802 instead when the panel needs a relay output on the same 48x48 body.
  • Pick the E5EC-PR2ASM-804 instead when the cutout is 48x96 mm and the application needs a larger display.

Technical Specifications

Manufacturer Omron Corporation (Japan)
Series Omron E5CC-series digital temperature controller
Model / SKU E5CC-QX2ASM-001
Panel Size 48 x 48 mm (1/16 DIN), 45 x 45 mm cutout
Power Supply 100 to 240 VAC, 50/60 Hz, 6.5 VA max
Input Universal TC, Pt100, JPt100, ES1B infrared, 4-20 mA / 0-10 V analog
Sampling 50 ms
Control Output Voltage pulse 12 VDC +/- 20 % for SSR drive
Auxiliary Outputs 2 x SPST-NO relay, 250 VAC 3 A
Event Inputs 2 contact / non-contact inputs
Alarm Input 1 heater-burnout / SSR-failure (HB / HS) input
Operating Temperature -10 to 55 degC, front IP66, rear IP20

FAQ for E5CC-QX2ASM-001

What sensors work with the E5CC-QX2ASM-001?
All common thermocouple types (K, J, T, E, L, U, N, R, S, B, W, PLII), Pt100 and JPt100 RTDs, the ES1B non-contact infrared sensor and 4-20 mA / 0-20 mA / 1-5 V / 0-5 V / 0-10 V analog inputs. The sensor type is selected in the menu.
What is the HB / HS alarm input for?
It monitors the heater current through an external CT (current transformer). HB detects a heater burnout; HS detects an SSR short. The CT is the E54-CT1 or E54-CT3 accessory, sold separately.
How do I tune the PID on the E5CC-QX2ASM-001?
Use AT (auto-tune) from the front panel. The 40 % AT and 100 % AT modes set the size of the disturbance the controller applies during tuning. For noisy processes, switch to robust tuning or self-tuning after the first AT pass.
Can I configure it from a PC?
Yes. With the E58-CIFQ1 USB-to-serial cable plus CX-Thermo (free download), the project loads without powering the controller. The same software manages recipe sets across multiple E5CC units.
