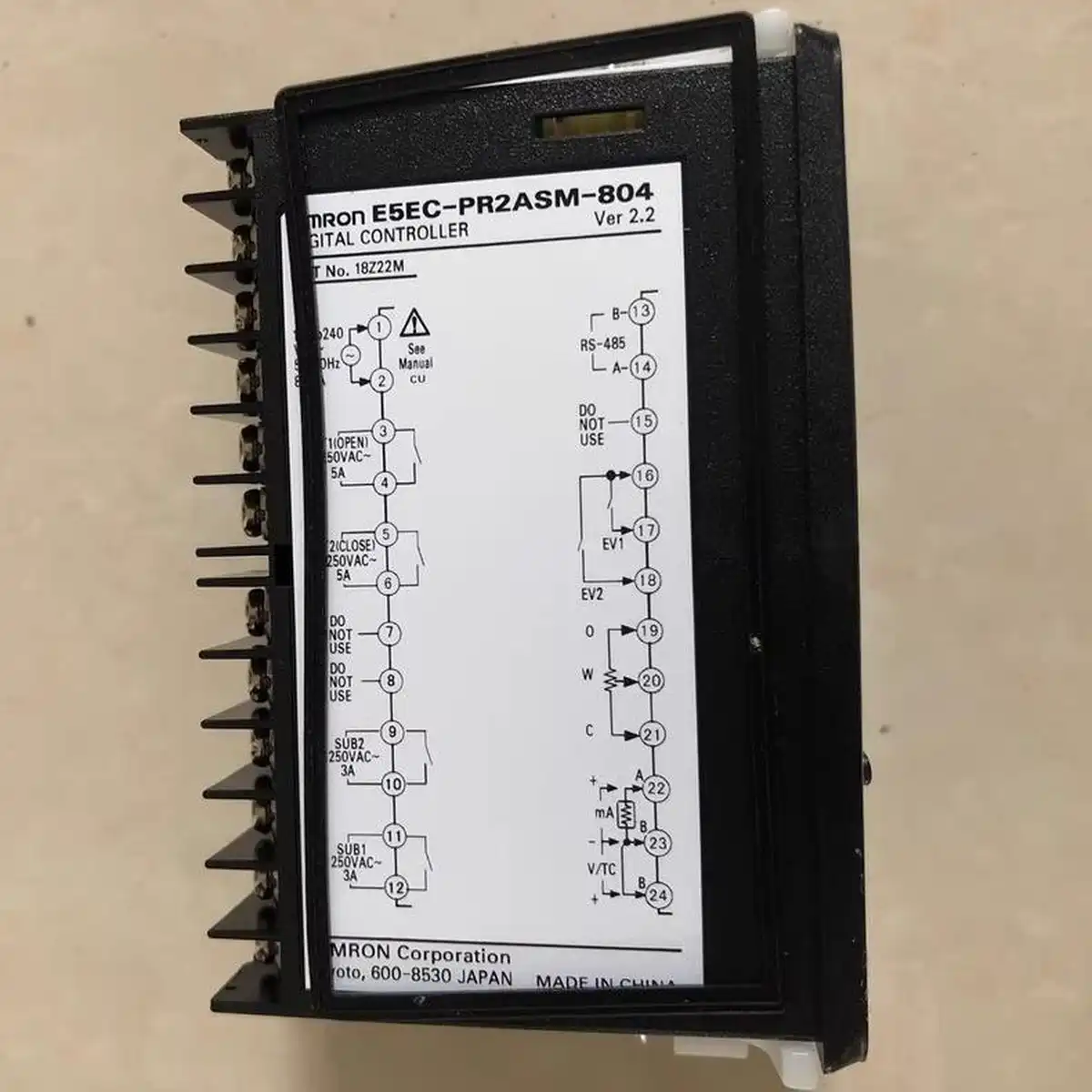

Omron E5EC-PR2ASM-804 — 1/8 DIN PID Controller
SKU: E5EC-PR2ASM-804USD 55.00
Omron E5EC-PR2ASM-804 48 x 96 mm process / temperature controller, PID, 4 relay outputs, RS-485. In stock.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron E5EC-PR2ASM-804 is a 1/8 DIN (48 x 96 mm) process / temperature controller from the E5EC family, manufactured by Omron Corporation. Hengyixin Automation stocks this controller in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.
The controller accepts a universal input: RTD (Pt100 / JPt100), thermocouple (B, E, J, K, L, N, PLII, R, S, T, U, W), current (0-20 mA / 4-20 mA), and voltage (0-5 V / 1-5 V / 0-10 V). Input range is -200 to 2300 C depending on the sensor type. Sampling is 50 ms.
Output is four relays: control output 1, control output 2 (heating + cooling), plus two auxiliary alarm outputs. Two event inputs are included. Serial port is RS-485 supporting CompoWay/F and Modbus. PID or ON/OFF control with auto-tuning. Panel cutout 92 x 45 mm, depth 60 mm, IP66 front face. Operating -10 to 55 C. For analog output in the same body, pick the E5EC-QX2ASM-804; for a 24 VAC/VDC supply, the E5CC-QX2ASM-802.
Key Features
- 1/8 DIN (48 x 96 mm) panel-mount temperature / process controller, 100-240 VAC supply, panel cutout 92 x 45 mm
- Universal input: RTD (Pt100 / JPt100), thermocouple (B, E, J, K, L, N, PLII, R, S, T, U, W), 0-20 mA, 0-10 V, 50 ms sampling
- Four relay outputs (heat / cool + 2 alarms), two event inputs, RS-485 CompoWay/F + Modbus

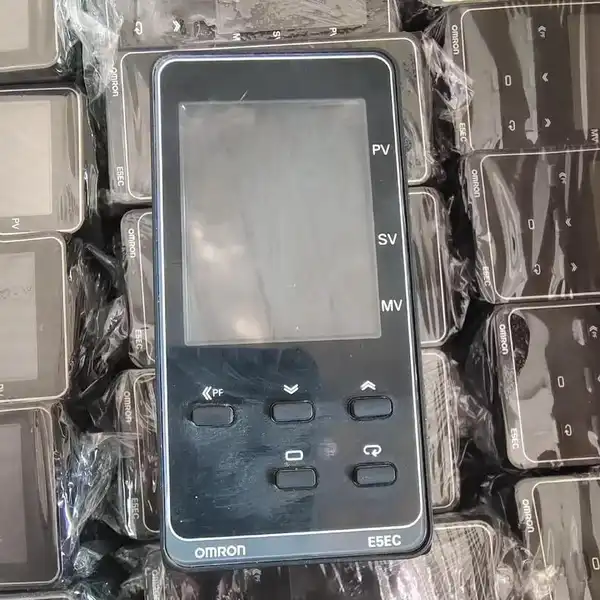

- PID or ON/OFF control with auto-tuning, LCD dual-color display 18 mm + 11 mm character, IP66 front face
- SKU: E5EC-PR2ASM-804
- Series: Omron E5EC 1/8 DIN process / temperature controller
- Voltage: 100 TO 240 VAC
Best-Fit Applications
- Plastics-extruder barrel zone where the E5EC drives a heating element relay and a cooling-fan relay with PID auto-tune
- Pharmaceutical autoclave where an event input switches RUN / STOP and the RS-485 port logs the profile to a SCADA
- Spare replacement on a heat-treat furnace where the existing E5EC has the wrong output type and the same panel cutout
Buying Checklist
- Pick the E5EC-PR2ASM-804 for a 1/8 DIN PID controller with four relay outputs and an RS-485 port.
- Pick the E5EC-QX2ASM-804 instead when the panel needs analog output (4-20 mA) rather than relay outputs.
- Pick the E5CC-QX2ASM-802 instead when the panel needs a 48 x 48 mm (1/16 DIN) body with 24 VAC/VDC supply.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron E5EC 1/8 DIN process / temperature controller |
| Model / SKU | E5EC-PR2ASM-804 |
| Supply Voltage | 100 to 240 VAC, 50/60 Hz |
| Sensor Input | RTD Pt100 / JPt100, thermocouple B / E / J / K / L / N / PLII / R / S / T / U / W, 0-20 mA / 4-20 mA, 0-5 V / 1-5 V / 0-10 V |
| Input Range | -200 to 2300 C depending on sensor type |
| Sampling | 50 ms |
| Outputs | 4 relay (control 1 + control 2 / heat-cool + 2 auxiliary alarm), 250 VAC / 3 A resistive |
| Event Inputs | 2 event inputs (RUN / STOP, AUTO / MAN, etc.) |
| Communication | RS-485 CompoWay/F + Modbus |
| Control Method | PID with auto-tuning or ON/OFF |
| Protection / Environment | IP66 front face, panel cutout 92 x 45 mm, depth 60 mm, -10 to 55 C, 210 g |
FAQ for E5EC-PR2ASM-804
What sensors work with the E5EC-PR2ASM-804?
Any standard thermocouple (B, E, J, K, L, N, PLII, R, S, T, U, W), Pt100 or JPt100 RTD, plus 0-20 mA or 4-20 mA current and 0-5 V / 1-5 V / 0-10 V voltage process signals. Sensor type is selected in the initial setup menu.
Can the E5EC-PR2ASM-804 control both heating and cooling?
Yes. Relay output 1 is the heating output and relay output 2 is the cooling output. With PID auto-tune enabled, the controller balances both for stable temperature around the setpoint.
How do I configure the E5EC-PR2ASM-804?
Front-panel keys select the parameter menus. For offline configuration, connect CX-Thermo via the front-panel tool port (USB cable E58-E2532 or RS-232C conversion cable) and download the configuration from a PC.
What is the difference between E5EC-PR2ASM-804 and E5EC-QX2ASM-804?
PR means 4 relay outputs (control 1 + control 2 + 2 auxiliary alarms). QX means analog outputs (4-20 mA or 0-10 V) for direct SSR drive or valve control. Both share the same 48 x 96 mm body, panel cutout, and 100-240 VAC supply.
