Omron E5CC-QX2ASM-802 — front view of the 48×48 mm black housing showing the 15.2 mm-tall white PV display, the secondary SV row, the four front keys, and the model label

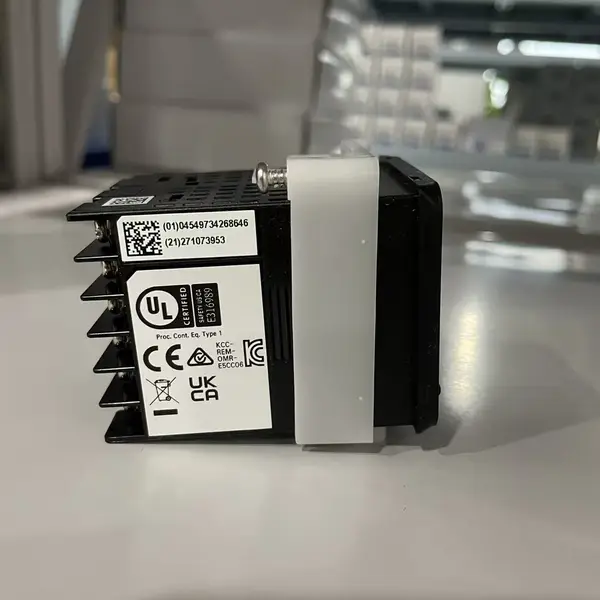

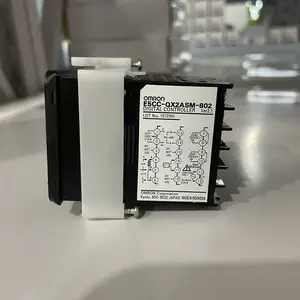

Omron E5CC-QX2ASM-802 — 48×48 PID Controller, SSR Drive

SKU: E5CC-QX2ASM-802

USD 44.00

E5CC 48×48 mm PID temperature controller, universal input, voltage (SSR drive) output, 2 aux, RS-485, event input, AC100-240 V.

1-Year Warranty Full manufacturer warranty
Global Shipping Worldwide delivery available
Genuine Omron 100% authentic product
Ready to Ship Usually ships within 24h
In Stock

This item is available for immediate shipment from our warehouse.

Request Quote

Contact for pricing, bulk discounts, and shipping

Product Overview

The Omron E5CC-QX2ASM-802 is a 48×48 mm digital PID temperature controller in the E5CC family. It fits the standard 1/16 DIN panel cutout used on most compact machine panels and uses a 15.2 mm-tall white PV display so the process value stays readable from across the cabinet. It accepts a universal input — thermocouple, Pt100, ES1B infrared, or analog (4-20 mA, 1-5 V, 0-10 V). Control output 1 drives an SSR (G3PX or G3NA-D series). Two auxiliary outputs handle alarms, one event input accepts a RUN/STOP contact, and RS-485 communication is fitted. It is the standard pick for compact-panel temperature control on packaging, sealing, and small oven zones where an SSR-driven electric heater needs clean PID control.

Where it fits in the E5_C family

The E5_C family splits by size and panel cutout. E5CC is the 48×48 mm body with screw terminals. E5EC is 48×96 mm. E5AC is 96×96 mm. E5DC is the 22.5 mm-wide model that still drops into a 48×48 mm cutout. Within the E5CC-800 family, E5CC-QX2ASM-802 is the voltage-output 2-aux RS-485 + event-input variant on AC100-240 V. E5CC-QX2DSM-802 is the same controller on AC/DC 24 V. The E5CC-RX2ASM-802 sibling swaps the SSR-drive output for a relay. Pick it when an SSR-driven heater, RS-485 to a PLC, and an event-input switch are the goal.

Why voltage (SSR-drive) output rather than relay

A relay output switches ON/OFF, which causes process oscillation on fast electric heaters because of mechanical cycle limits. A voltage output drives the SSR in proportion to PID demand; the G3PX or G3NA-D SSR then switches the load at zero-cross. Use the two auxiliary outputs for upper and lower alarms, not for proportional load switching.

Before ordering

Confirm the input matches the field sensor — TC polarity, 2- or 3-wire RTD, or analog loop. Wire the voltage output to the SSR control input and the event input to a dry contact (no external voltage). Set RS-485 to 9600 bps half-duplex with a unique unit number before connecting to a CP1L / CP2E / NJ PLC. Use CX-Thermo via the front port for setup and auto-tuning.

Key Features

  • E5CC family 48×48 mm PID temperature controller, 1/16 DIN
  • Universal input: TC (K/J/T/E/L/U/N/R/S/B/W), Pt100, ES1B, 4-20 mA, 0-10 V
  • Voltage (SSR-drive) control output for G3PX / G3NA-D type SSRs
  • Two independent auxiliary outputs, one event input
  • RS-485 serial communication, CompoWay/F protocol
  • 50 ms sampling period for fast-loop response
  • 15.2 mm-tall white LCD PV display
  • AC100-240 V supply, 5.2 VA max.

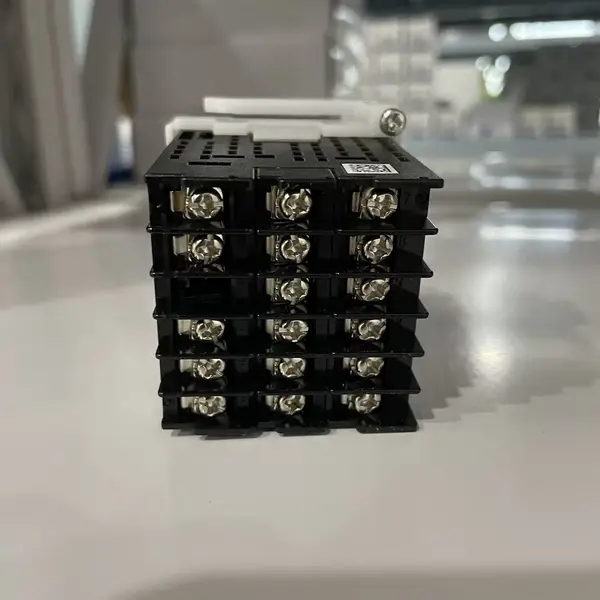

  • 48×48×60 mm body with screw terminals
  • SKU: E5CC-QX2ASM-802
  • Series: E5CC 48×48 mm PID temperature controller
  • Voltage: 240 V
  • I/O: 100 I/O

Best-Fit Applications

  • Heat-seal and impulse-seal temperature zones in packaging machines
  • Compact oven and tunnel zone control in small-batch lines
  • Hot-melt glue pot temperature control on a label and box line
  • Storage-tank and small-vessel temperature control with PID loop tuning
  • PLC link-up for status and setpoint read/write via RS-485

Buying Checklist

  • Choose E5CC-QX2ASM-802 for voltage SSR-drive output and RS-485 on AC100-240 V.
  • Choose E5CC-QX2DSM-802 for the same controller on AC/DC 24 V supply.
  • Choose E5CC-RX2ASM-802 for relay output instead of SSR drive.
  • Choose E5CC-QX2AUM-000 if RS-485 and the event input are not needed.
  • Choose E5AC-CX3ASM-804 for a 96×96 mm body when the larger cutout is open.
  • Confirm the sensor type (TC, Pt100, ES1B, analog) matches the field wiring.

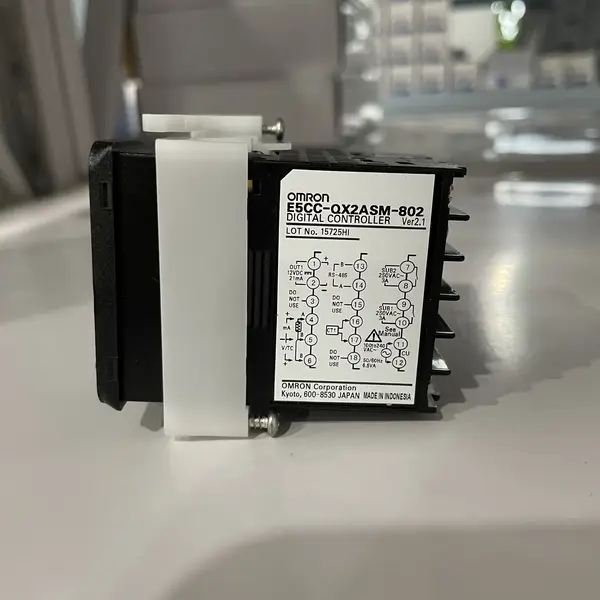

Technical Specifications

Series E5CC 48×48 mm PID temperature controller
Size 48 × 48 × 60 mm (1/16 DIN), panel cutout 45 × 45 mm
Supply Voltage AC100-240 V, 50/60 Hz
Power Consumption 5.2 VA max. at AC100-240 V
Sensor Input Thermocouple (K/J/T/E/L/U/N/R/S/B/W), Pt100 / JPt100, ES1B, 4-20 mA / 0-20 mA / 1-5 V / 0-5 V / 0-10 V
Sampling Period 50 ms
Control Output 1 Voltage output (SSR drive), 12 VDC ±15 % / 20 mA max.
Auxiliary Outputs 2 × SPST-NO independent, AC250 V 1 A resistive
Event Input 1 external contact input (RUN / STOP and similar)
Communication RS-485, CompoWay/F
Control Modes ON/OFF or 2-DOF PID with auto-tuning, standard control
Operating Temperature -10 to +55 °C

FAQ for E5CC-QX2ASM-802

What is the difference between E5CC-QX2ASM-802 and E5CC-RX2ASM-802?
Both are 48×48 mm E5CC-800 controllers with two aux outputs and RS-485 on AC100-240 V. The Q version has a voltage output for driving an SSR; the R version has a relay output for switching the load directly. Pick Q for fast ON/OFF switching with a G3PX / G3NA-D SSR; pick R for a low-cycle direct drive where the relay contact life is acceptable.
What sensor inputs does E5CC-QX2ASM-802 accept?
It accepts any thermocouple in the E5_C list (K, J, T, E, L, U, N, R, S, B, W), Pt100 or JPt100 RTD in 2- or 3-wire, the ES1B non-contact infrared sensor, or a 4-20 mA / 0-20 mA / 1-5 V / 0-5 V / 0-10 V analog signal. Switch between them in the parameter menu, so one controller can run different zones on the same machine.
How does the voltage (SSR-drive) output work?
The voltage output terminal provides a 12 VDC pulsed signal that drives the control input of a zero-cross SSR (G3PX, G3NA-D, etc.). The SSR then switches the load at line frequency zero-cross, which is the right pick for electric heaters where mechanical relay cycling would cause process instability.
