Omron E5CC-QX2DSM-802 — Temp Controller, SSR, RS-485
SKU: E5CC-QX2DSM-802USD 50.00

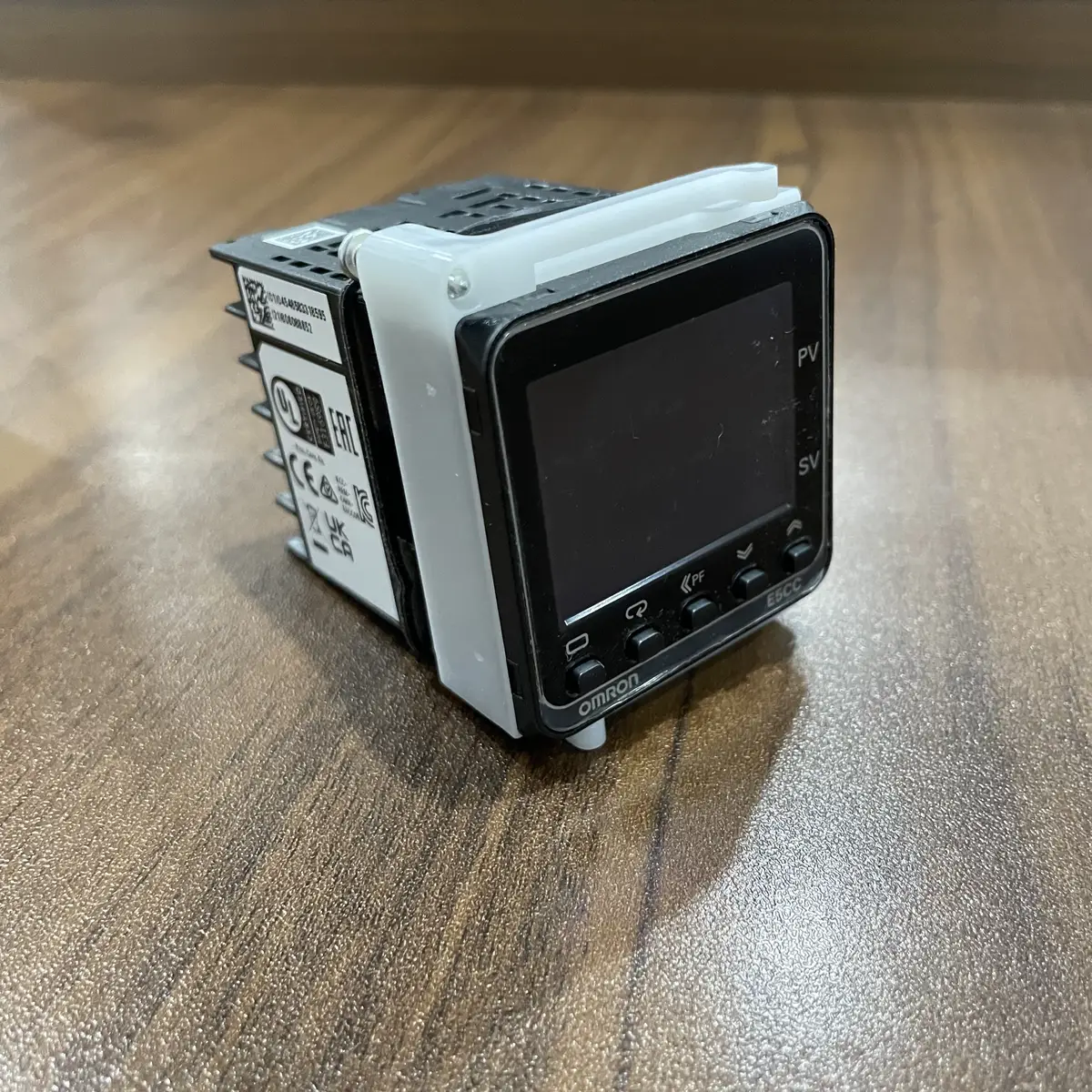

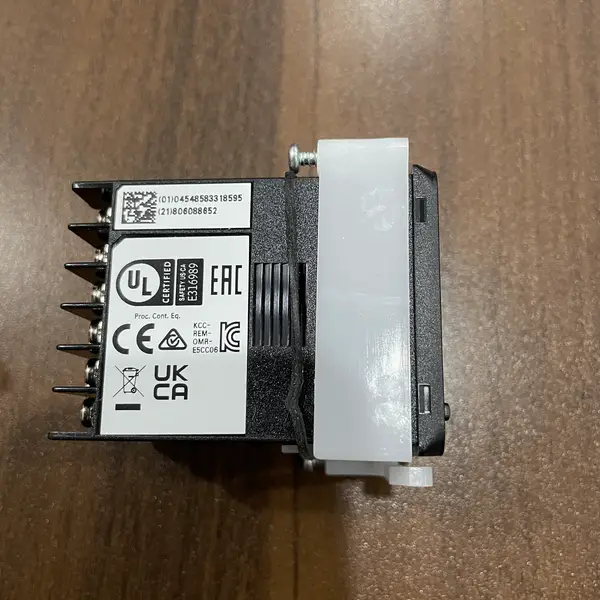

Omron E5CC-QX2DSM-802 48x48 mm temperature controller, SSR output, RS-485, 24 VAC/VDC supply. In stock.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron E5CC-QX2DSM-802 is a 48x48 mm digital temperature controller, manufactured by Omron Corporation. Hengyixin Automation stocks this controller in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.

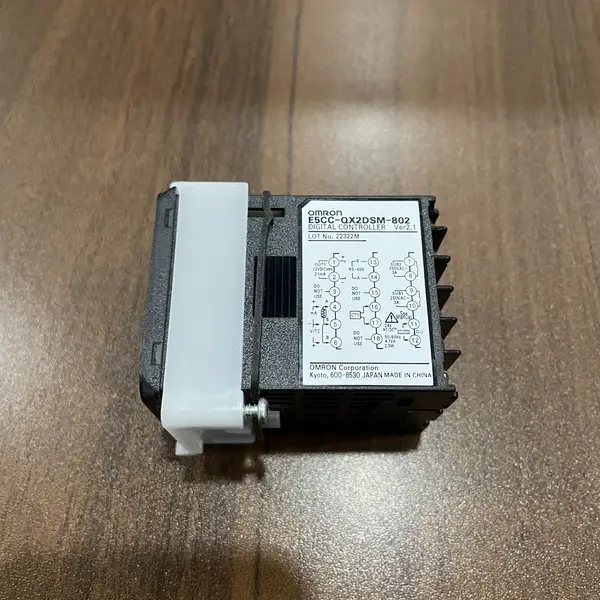

Control output 1 is a 12 VDC voltage output (PNP) designed to drive a solid-state relay, with a 21 mA maximum load. Two auxiliary outputs are SPST-NO relays rated 250 VAC at 3 A for alarms or events. Sampling runs every 50 ms and the universal input accepts thermocouple, Pt100 / JPt100, 4-20 mA, or 0-10 V signals on a single channel.
Communication is RS-485 with CompoWay/F and Modbus. Power supply is 24 VAC or 24 VDC. The front panel is IP66 and the rear case is IP20. For 100-240 VAC versions, use the E5CC-QX2ASM-802. For a relay control output, use the E5CC-RX2DSM-802.
Key Features
- 48x48 mm digital temperature controller, 50 ms sampling, 24 VAC/VDC supply
- Control output 1: 12 VDC PNP voltage output for SSR drive, 21 mA max load
- Two auxiliary SPST-NO relay outputs, 250 VAC 3 A, for alarms and events
- RS-485 CompoWay/F and Modbus, universal input (TC / Pt / 4-20 mA / 0-10 V)
- SKU: E5CC-QX2DSM-802
- Series: Omron E5CC-series digital temperature controller
- Voltage: 24 VAC
Best-Fit Applications
- Plastic-extrusion barrel zone where the SSR drives a 40 A solid-state relay and the RS-485 link feeds the setpoint from an NJ PLC
- Packaging-seal temperature control where the two auxiliary relays run a heater-on and a low-temp alarm into the cabinet stack light
- Spare replacement for an E5CC-QX2ASM-802 in a 24 VDC cabinet where the original AC-powered controller has to be swapped without rewiring the supply
Buying Checklist
- Pick the E5CC-QX2DSM-802 for an SSR-driven output, two relay alarms, and RS-485 on a 24 VAC/VDC supply.
- Pick the E5CC-QX2ASM-802 instead when the cabinet has a 100-240 VAC supply.
- Pick the E5CC-RX2DSM-802 instead when the heater needs a relay output instead of an SSR drive.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron E5CC-series digital temperature controller |
| Model / SKU | E5CC-QX2DSM-802 |
| Size | 48 (H) x 48 (W) x 60 (D) mm, 1/16 DIN |
| Input | Universal TC / Pt100 / JPt100 / 4-20 mA / 0-10 V |
| Control Output 1 | 12 VDC PNP voltage (SSR drive), 21 mA max |
| Auxiliary Outputs | 2 SPST-NO relays, 250 VAC, 3 A |
| Communication | RS-485 CompoWay/F and Modbus |
| Sampling Period | 50 ms |
| Setting Accuracy | Thermocouple +/-0.3% PV, Pt +/-0.2% PV |
| Supply Voltage | 24 VAC or 24 VDC |
| Protection | IP66 front, IP20 rear, 0 to 55 degC |
FAQ for E5CC-QX2DSM-802
What is the difference between E5CC-QX2DSM-802 and E5CC-QX2ASM-802?
The trailing D in -802 marks the 24 VAC/VDC supply version. The -ASM-802 is the same controller on 100-240 VAC. The other letters are identical (Q = voltage SSR output, X2 = two aux outputs, S = RS-485, M = 24 V class).
Can the E5CC-QX2DSM-802 read a 4-20 mA signal?
Yes. The universal input accepts current input in the 4-20 mA or 0-20 mA range, voltage in 0-5 V / 1-5 V / 0-10 V, plus all standard thermocouples and Pt100 / JPt100.
What is the SSR drive output rating?
12 VDC +/-20% at up to 21 mA, PNP. This is designed to switch the input of an external solid-state relay, not to drive the heater directly.
Does the E5CC-QX2DSM-802 support Modbus?
Yes. The RS-485 port runs CompoWay/F or Modbus. Address, baud rate, and parity are set from the front-panel menu. Up to 32 slaves can sit on one RS-485 trunk.
