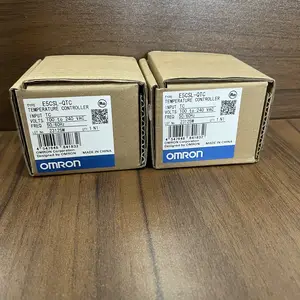

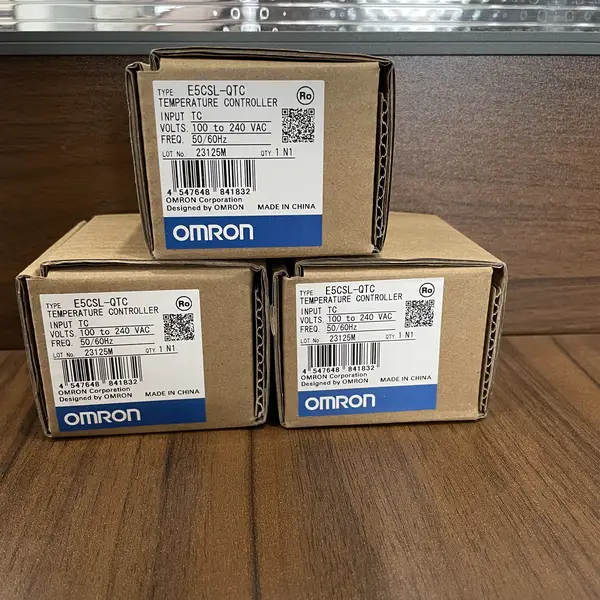

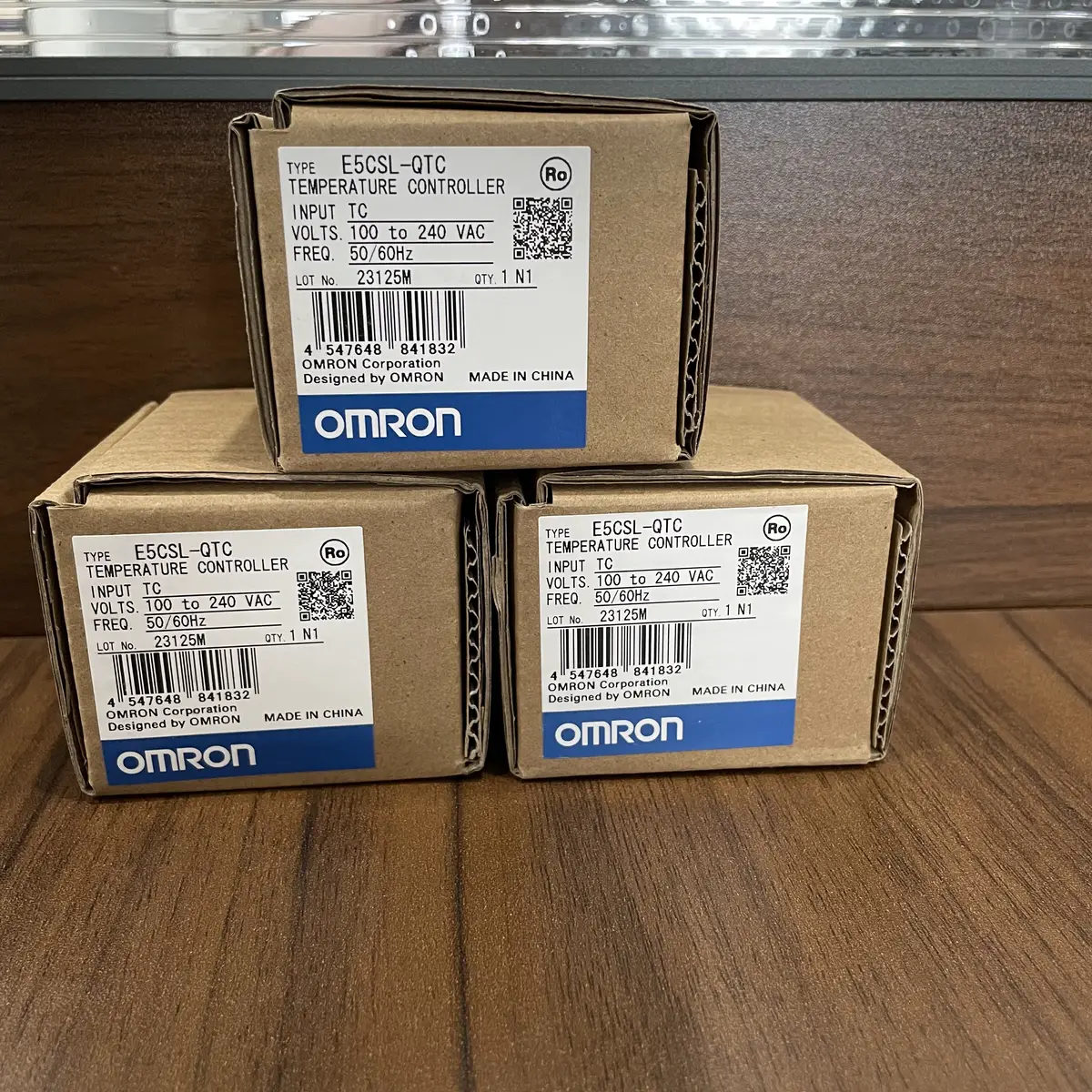

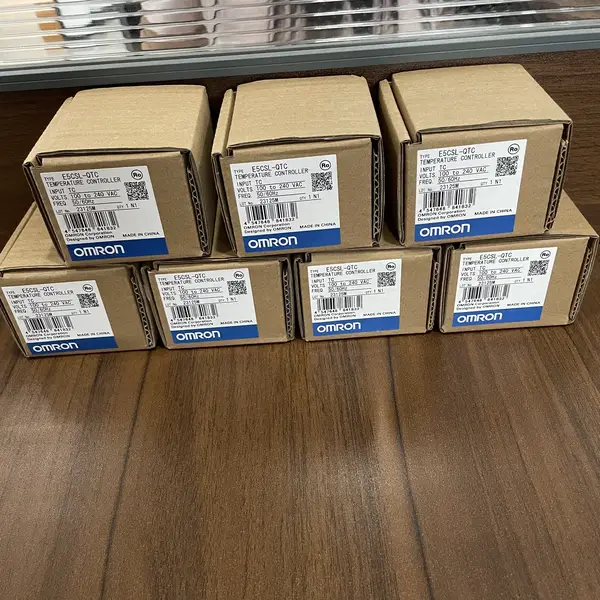

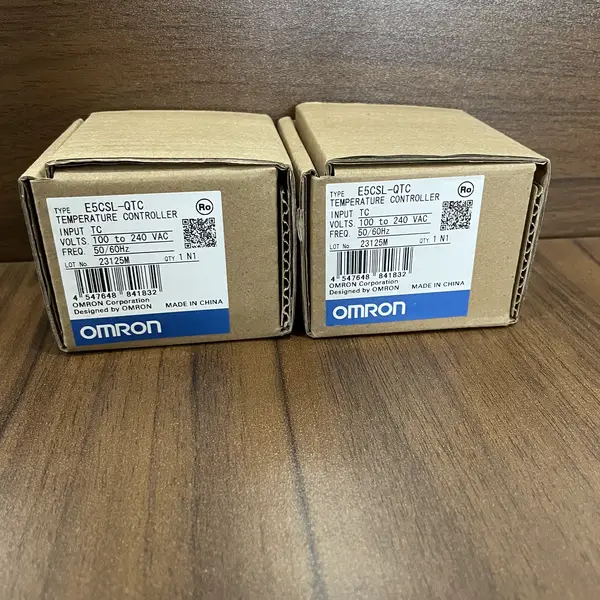

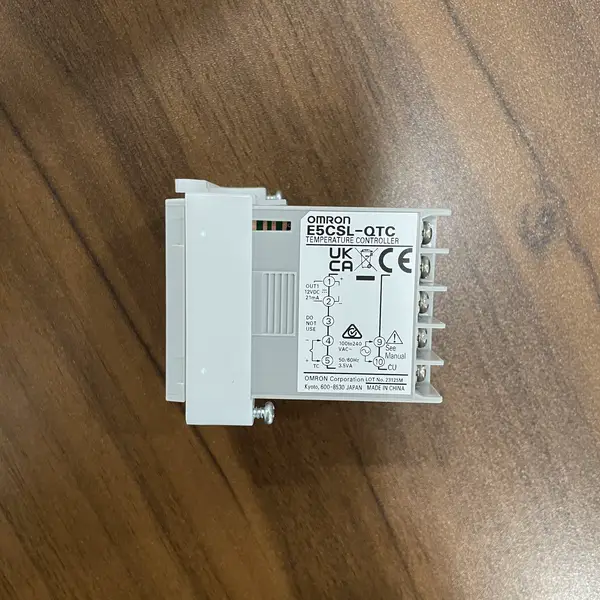

Omron E5CSL-QTC AC100-240 — 48x48 PID, TC, SSR
SKU: E5CSL-QTC AC100-240USD 21.00
Omron E5CSL-QTC AC100-240 1/16 DIN PID temperature controller, thermocouple input, SSR voltage output. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron E5CSL-QTC AC100-240 is the E5CSL compact 1/16 DIN PID temperature controller, manufactured by Omron Corporation. Hengyixin Automation stocks this controller option board in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.
It mounts in a 45 x 45 mm cutout and runs from 100 to 240 VAC at 3.5 VA. The single input accepts thermocouple K, J, T, E, L, U, N, R, S, B, C/W or PLII plus Pt100 / JPt100 RTD. The Q suffix means voltage output for driving an SSR (12 VDC, 21 mA with short-circuit protection). Sampling is 250 ms and the control method is ON/OFF or 2-PID with auto-tuning.
The 21.7 mm PV character height reads from across the cabinet. Front panel is IP50, rear IP20, terminals IP00. For a relay output instead of SSR drive, choose the E5CSL-RP AC100-240V. For relay plus alarm on the same 1/16 DIN body, pick the E5CWL-R1TC.
Key Features
- E5CSL compact 1/16 DIN (48 x 48 x 60 mm) PID temperature controller, panel mount, 45 x 45 mm cutout
- Thermocouple K/J/T/E/L/U/N/R/S/B/C/W/PLII plus Pt100 / JPt100 RTD and ES1B IR thermosensor on the single input
- Voltage output for SSR drive at 12 VDC and 21 mA, ON/OFF or 2-PID control with auto-tuning, 250 ms sampling
- 100-240 VAC supply at 3.5 VA, 21.7 mm PV character height, front-panel IP50, CE / cULus approvals
- SKU: E5CSL-QTC AC100-240
- Series: E5CSL compact 1/16 DIN PID temperature controller
- Voltage: 100 TO 240 VAC
Best-Fit Applications
- Sealing-bar temperature control on a vertical form-fill-seal packaging machine where the SSR drives the heater band directly off the 12 VDC pulse
- Bench-top oven or incubator temperature control where the operator sets one setpoint on the front-panel keys and watches the 21.7 mm PV display
- Spare replacement for a legacy E5CS-QTC on a small plastics extruder where the same 1/16 DIN body fits the existing 45 x 45 mm cutout
Buying Checklist
- Pick the E5CSL-QTC AC100-240 when the panel has a 45 x 45 mm cutout and the heater is driven by an SSR that needs a 12 VDC pulse signal.
- Pick the E5CSL-RP AC100-240V instead when the load is a small mechanical relay or contactor coil instead of an SSR.
- Pick the E5CWL-R1TC instead when the same panel needs both a control output and an independent alarm output on the same 48 x 48 body.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | E5CSL compact 1/16 DIN PID temperature controller |
| Model / SKU | E5CSL-QTC AC100-240 |
| Size | 1/16 DIN, 48 x 48 x 60 mm, panel cutout 45 x 45 mm, depth behind front 60 mm |
| Supply Voltage | 100 to 240 VAC 50/60 Hz; allowable range 85 to 110 percent of rated; power consumption 3.5 VA |
| Input | 1 point; thermocouple K, J, T, E, L, U, N, R, S, B, C/W, PLII plus Pt100 and JPt100 RTD and ES1B IR thermosensor |
| Control Output | Voltage output for driving SSR, 12 VDC +25 / -15 percent, max load 21 mA, with short-circuit protection (PNP common) |
| Control Method | ON/OFF or 2-PID with auto-tuning; sampling period 250 ms |
| Display | 7-segment digital plus individual indicators; PV character height 21.7 mm |
| Auxiliary | No alarm output, no event input, no communications (front-panel digital setting only) |
| Environment | Operating -10 to 55 C (no icing or condensation); storage -25 to 65 C; humidity 25 to 85 percent |
| Protection / Approvals | Front panel IP50, rear case IP20, terminals IP00; CE, EN 61326, EN 61010-1, IEC 61010-1 |
FAQ for E5CSL-QTC AC100-240
What is the Omron E5CSL-QTC AC100-240 used for?
It is the E5CSL compact 1/16 DIN (48 x 48 mm) PID temperature controller for panel mounting. Typical uses are sealing-bar temperature control on packaging machines, bench-top ovens, incubators, and small extruders where a single thermocouple or Pt100 input drives an SSR through the 12 VDC voltage pulse output.
E5CSL-QTC vs E5CSL-RP - what is the difference?
Both are E5CSL compact 1/16 DIN controllers with the same 100-240 VAC supply and same input. The Q suffix means voltage output for driving an SSR (12 VDC, 21 mA). The R suffix means relay output (SPST-NO 250 VAC 3 A). Pick the Q version for an SSR-driven heater loop; pick the R version when the controller must switch a contactor coil directly.
Does the E5CSL-QTC have an alarm output?
No. The E5CSL-QTC has no alarm output, no event input, and no communications. For an alarm output on the same 1/16 DIN body, pick the E5CWL-R1TC. For RS-485 CompoWay/F and alarm on a larger 48 x 48 body, pick the E5CC-QX2ASM-802.
What sensors work with the E5CSL-QTC?
Thermocouples K, J, T, E, L, U, N, R, S, B, C/W and PLII on the thermocouple side; Pt100 and JPt100 on the RTD side; plus the ES1B-series IR thermosensor (10 to 70 C, 60 to 120 C, 115 to 165 C, 140 to 260 C ranges). The single input is software-selectable in the front-panel parameter list.
What is the panel cutout for the E5CSL-QTC?
45 x 45 mm. Recommended panel thickness 1 to 5 mm. Vertical group mounting is not allowed - keep the spacing between adjacent controllers within the spec so the ambient around each unit stays below 55 C.
