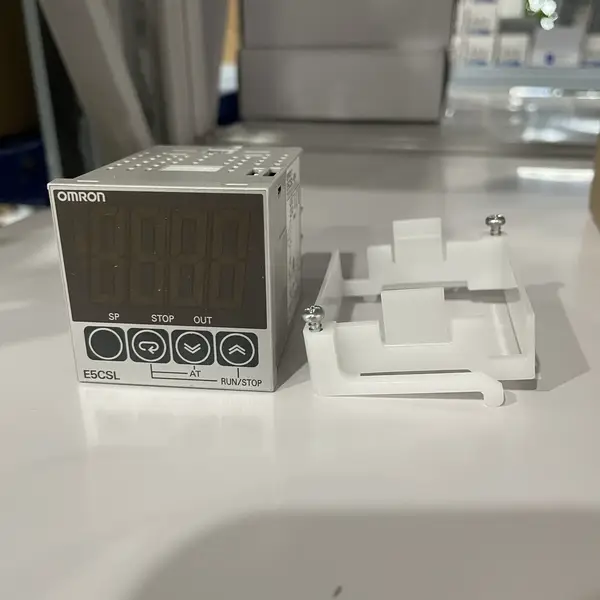

Omron E5CSL-RP AC100-240V — front face of the 48x48 mm E5CSL PID temperature controller showing the white bezel with the 21.7 mm red PV display on the upper left, the green SV display on the upper right, four front-face keys (mode, set, up, down) below the displays, the AUTO/MAN and RUN/STOP indicator LEDs and the E5CSL model label on the lower right

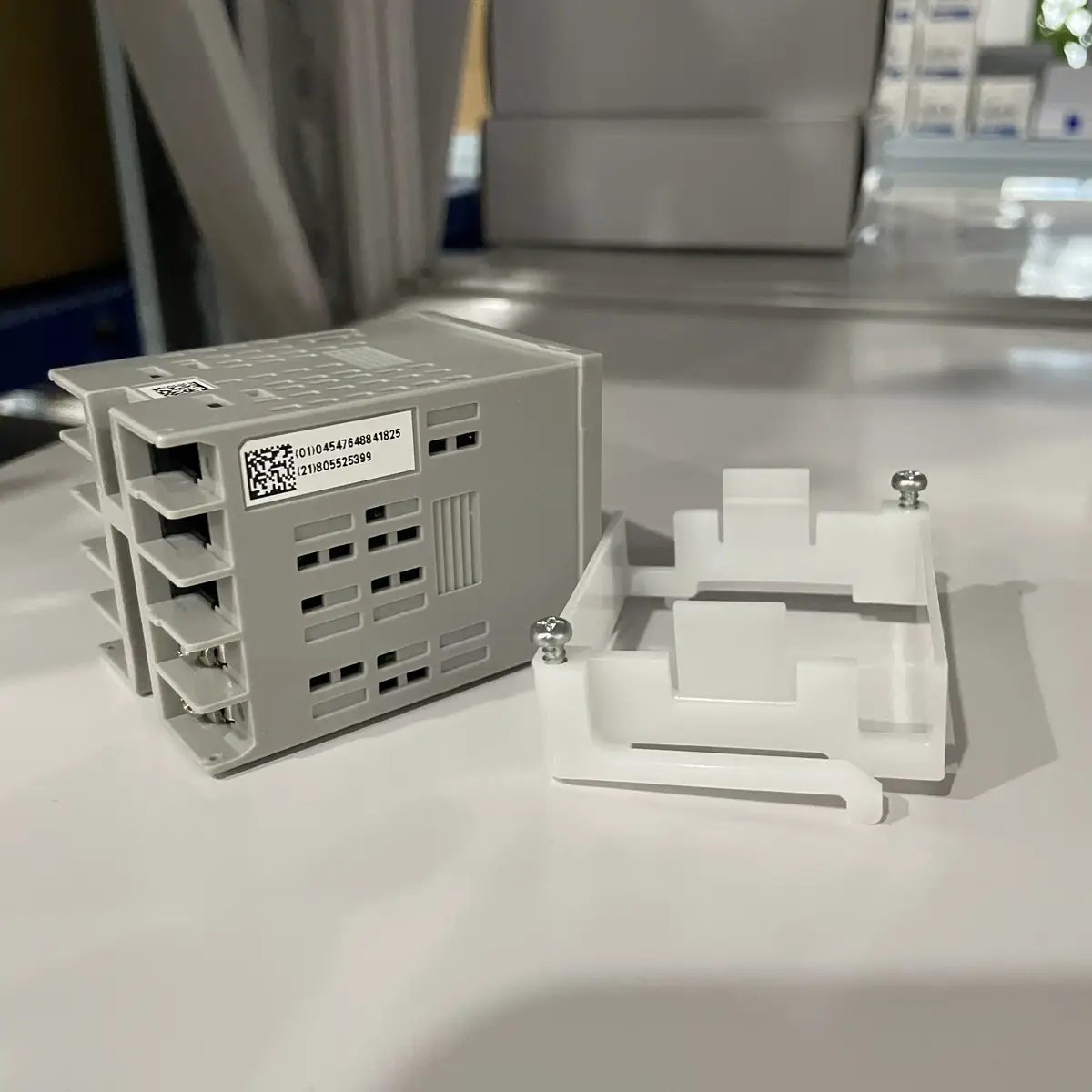

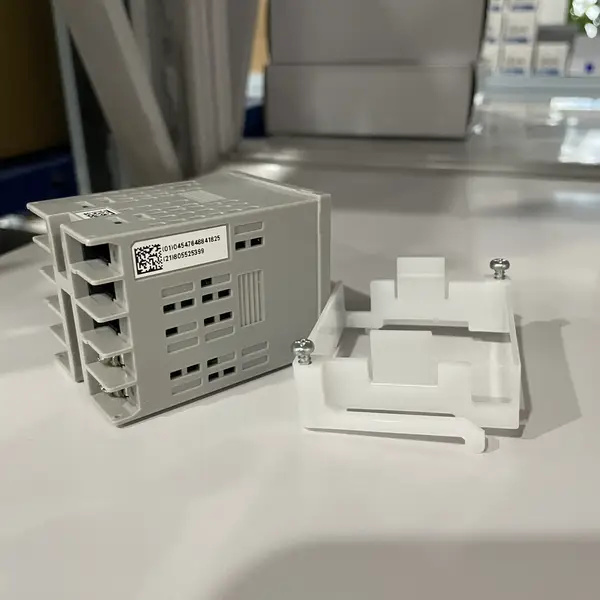

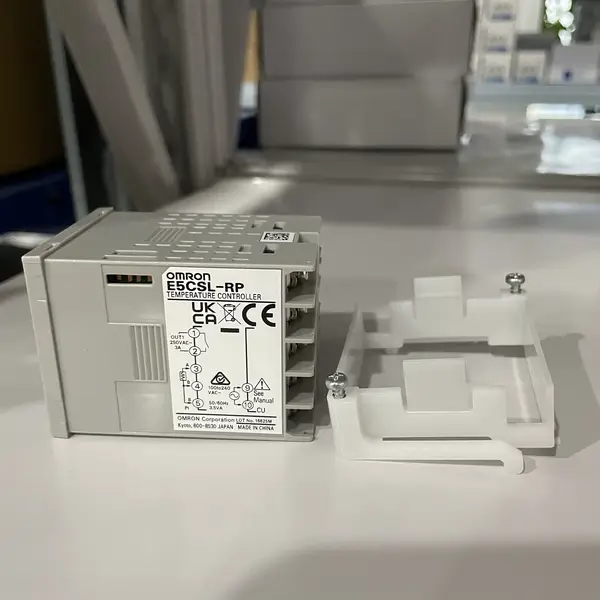

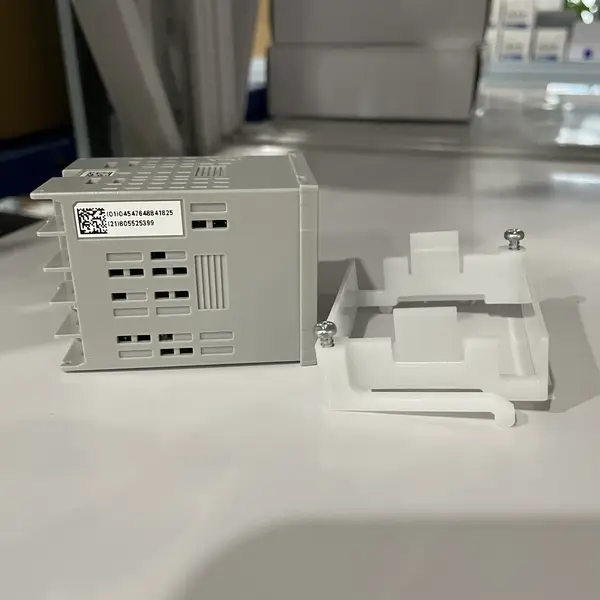

Omron E5CSL-RP AC100-240V — 48x48 PID, Relay

SKU: E5CSL-RP AC100-240V

USD 17.00

Omron E5CSL-RP AC100-240V 48x48 mm PID temp controller, Pt100 input, relay output, 100-240 VAC. In stock, China shipping.

1-Year Warranty Full manufacturer warranty
Global Shipping Worldwide delivery available
Genuine Omron 100% authentic product
Ready to Ship Usually ships within 24h
In Stock

This item is available for immediate shipment from our warehouse.

Request Quote

Contact for pricing, bulk discounts, and shipping

Product Overview

The Omron E5CSL-RP AC100-240V is the E5CSL compact 48x48 mm PID temperature controller, manufactured by Omron Corporation. Hengyixin Automation stocks this controller option board in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.

It accepts a Pt100 RTD input (the RP suffix = RTD input + Relay output) and drives a SPST-NO relay output at 3 A, 250 VAC resistive with 100,000 cycle electrical life. Control is 2-PID with autotune or ON/OFF, sampled at 250 ms. The auxiliary output is SPST-NO at 1 A resistive.

Supply is 100 to 240 VAC at 3.5 VA with an 85 to 110 percent voltage range. The body is 48 x 48 x 60 mm with a 45 x 45 mm cutout. Display is a dual-color 7-segment LED at 21.7 mm character height with IP50 front panel. Operating temperature -10 to 55 C. The sibling cube for thermocouple input is the E5CSL-QTC AC100-240; for 48x48 with TC input pick the E5CWL-R1TC.

Key Features

  • E5CSL 48x48 mm compact PID temperature controller with Pt100 RTD input (RP suffix) and SPST-NO relay output at 3 A, 250 VAC
  • 2-PID control with autotune or ON/OFF, 250 ms sampling period, single alarm auxiliary output (SPST-NO, 1 A)
  • 100 to 240 VAC supply at 3.5 VA, allowable 85 to 110 percent of rated voltage, no communications
  • Dual-color 7-segment LED display with 21.7 mm character height, IP50 front panel, 45 x 45 mm panel cutout
  • SKU: E5CSL-RP AC100-240V
  • Series: E5CSL compact 1/16 DIN PID temperature controller (E5C family)

Best-Fit Applications

  • Sealing-bar temperature control on a vertical form-fill-seal machine where the E5CSL-RP reads a Pt100 and drives a 25 A SSR
  • Oven chamber control on a small batch dryer where the E5CSL-RP holds temperature with 2-PID autotune and relay output
  • Spare replacement on a discontinued E5CSV cutout where a 100-240 VAC Pt100 plus relay PID fits the same hole

Buying Checklist

  • Pick the E5CSL-RP AC100-240V when a 48x48 mm panel cutout needs a Pt100 input plus relay output PID controller on 100-240 VAC supply.
  • Pick the E5CSL-QTC AC100-240 instead when the thermocouple input is required (K, J, T, R or S) with voltage output for SSR drive.
  • Pick the E5CC-QX2ASM-802 instead when the panel needs RS-485 CompoWay/F communications, event input, or a 48x48 PID with universal input.

Technical Specifications

Manufacturer Omron Corporation (Japan)
Series E5CSL compact 1/16 DIN PID temperature controller (E5C family)
Model / SKU E5CSL-RP AC100-240V (suffix: R = relay output, P = Pt100 input)
Size / Cutout 48 x 48 x 60 mm body (1/16 DIN); 45 x 45 mm panel cutout
Input Pt100 RTD only (3-wire); RP suffix = RTD + relay
Control Method 2-PID with autotune, or ON/OFF; standard control (heating or cooling)
Sampling Period 250 ms
Control Output SPST-NO relay, 250 VAC, 3 A resistive, electrical life 100,000 cycles, min load 5 V at 10 mA
Auxiliary Output SPST-NO, 250 VAC, 1 A resistive, 100,000 cycles electrical life, min load 5 V at 10 mA
Display Dual-color 7-segment LED, 4 characters per row, 21.7 mm character height
Supply 100 to 240 VAC, 50/60 Hz, 3.5 VA power consumption; allowable 85 to 110 percent of rated voltage
Environment / Wiring -10 to 55 C operating, 25 to 85 percent humidity (no condensation); 100 g approx; IP50 front panel; screw terminals; EN and IEC standards; Y92F-49 adapter included

FAQ for E5CSL-RP AC100-240V

What is the Omron E5CSL-RP AC100-240V used for?
It is the E5CSL compact 1/16 DIN PID temperature controller with Pt100 RTD input (RP suffix) and a SPST-NO relay output. Typical uses are sealing-bar temperature control on vertical form-fill-seal packaging machines, oven chamber control on small batch dryers, and spare replacement for discontinued E5CSV panels with a 45 x 45 mm cutout.
E5CSL-RP vs E5CSL-QT - what is the difference?
Both are 48x48 mm E5CSL controllers on 100-240 VAC supply. The E5CSL-RP accepts a Pt100 RTD input and has a relay output (3 A, 250 VAC). The E5CSL-QT accepts a thermocouple input (K, J, T, R or S) and has a voltage output for SSR drive (12 VDC +25 / -15 percent, 21 mA). Pick the E5CSL-RP when the sensor is a Pt100 RTD and the load is a contactor; pick the E5CSL-QT when the sensor is a thermocouple and the load is an SSR.
Does the E5CSL-RP AC100-240V have RS-485 communications?
No. The E5CSL-RP AC100-240V has no communications port. For RS-485 CompoWay/F communications, event input, or transfer output, step up to the E5CC series (48 x 48 mm) such as the E5CC-QX2ASM-802 (universal input, RS-485) or the E5CC-RX2ASM-802 (Pt100 input, relay output, RS-485). The E5CSL-RP is the simple, no-Comm variant.
What panel cutout does the E5CSL-RP need?
45 x 45 mm square cutout with 60 mm minimum panel depth. The body is 48 x 48 x 60 mm. The Y92F-49 adapter is included for socket-mount installations where the controller needs to plug into a panel-mount socket for service swap without rewiring.
