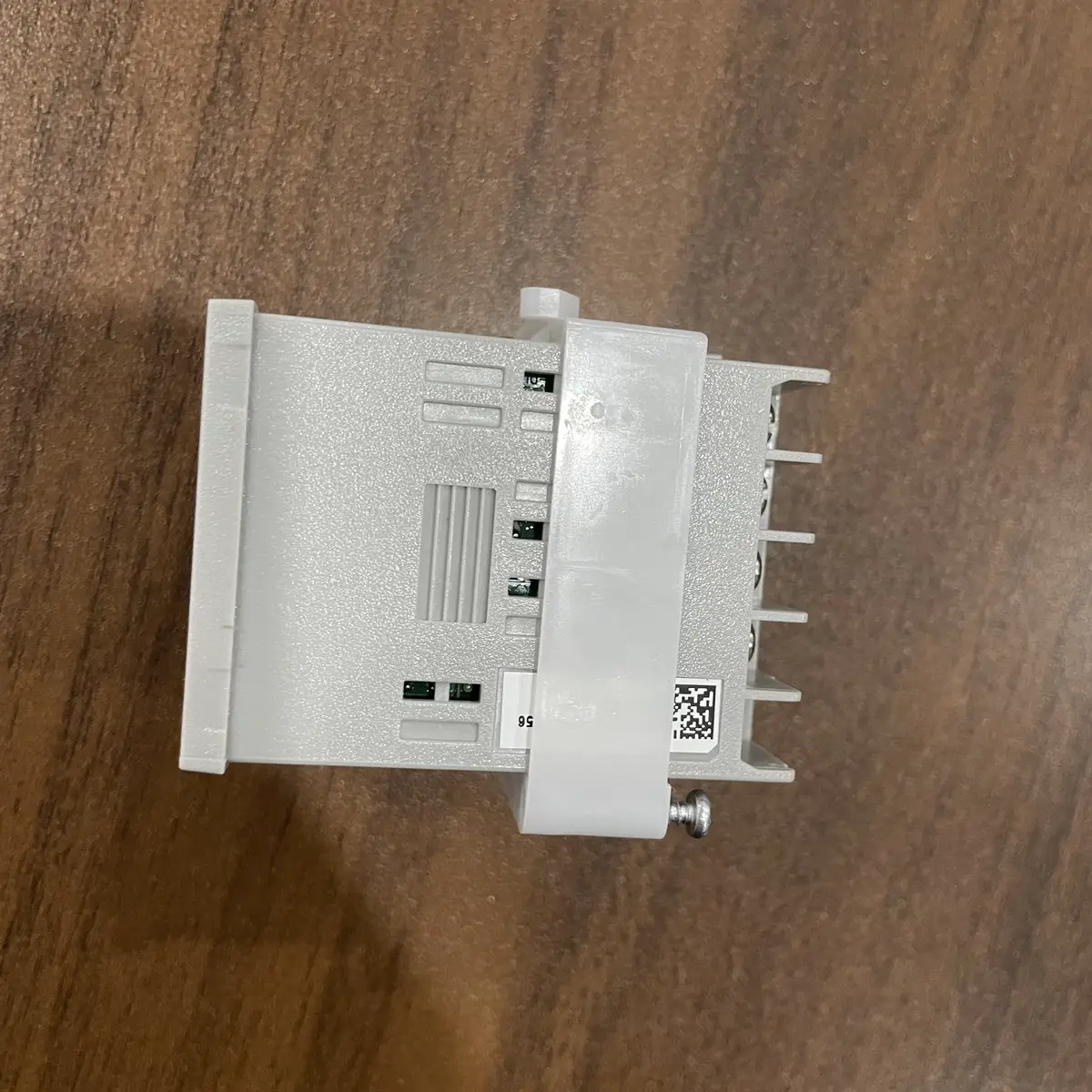

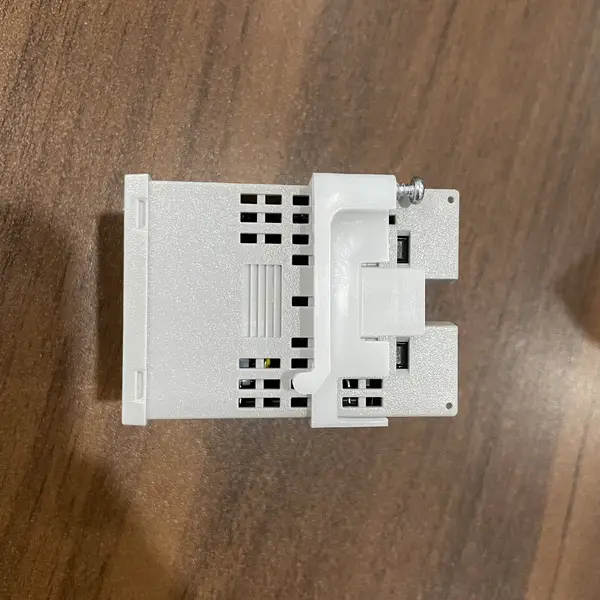

Omron E5CWL-R1TC AC100-240 — 48x48 PID, Relay, TC
SKU: E5CWL-R1TCUSD 26.00
Omron E5CWL-R1TC AC100-240 1/16 DIN PID temperature controller, thermocouple input, SPST-NO relay output + alarm. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron E5CWL-R1TC AC100-240 is the E5CWL compact 1/16 DIN PID temperature controller with a relay control output and an alarm output, manufactured by Omron Corporation. Hengyixin Automation stocks this controller option board in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.
It mounts in a 45 x 45 mm cutout and runs from 100 to 240 VAC at 3.5 VA. The single input accepts thermocouple K, J, T, E, L, U, N, R, S or B. The R1 suffix means one control output (SPST-NO relay, 250 VAC, 3 A) plus one alarm output (SPST-NO relay, 250 VAC, 1 A). Sampling is 250 ms and control is ON/OFF or 2-PID with auto-tuning.
The 16.2 mm PV character height reads from a short distance. Front panel is IP50, rear IP20, terminals IP00. For an SSR-drive voltage output instead of a relay, choose the E5CSL-QTC AC100-240. For RTD input on the same body, pick the E5CSL-RP AC100-240V.
Key Features
- E5CWL compact 1/16 DIN (48 x 48 x 60 mm) PID temperature controller, panel mount, 45 x 45 mm cutout
- Thermocouple K/J/T/E/L/U/N/R/S/B input plus Pt100 / JPt100 RTD and ES1B IR thermosensor on the single input
- One control relay SPST-NO 250 VAC 3 A resistive plus one alarm relay SPST-NO 250 VAC 1 A resistive
- ON/OFF or 2-PID control with auto-tuning, 250 ms sampling, 16.2 mm PV character height, 100-240 VAC at 3.5 VA
- SKU: E5CWL-R1TC
- Series: E5CWL compact 1/16 DIN PID temperature controller
- Voltage: 100 TO 240 VAC
Best-Fit Applications
- Mold-temperature control on a small injection molding machine where the relay drives a heater contactor and the alarm trips on over-temperature
- Benchtop oven or incubator control where the relay switches the heater and the alarm output cuts a second contactor on fault
- Spare replacement for an E5CN-R1TC on a heat-treatment line where the same 1/16 DIN body fits the existing cutout and wiring
Buying Checklist
- Pick the E5CWL-R1TC AC100-240 when the panel needs both a control relay and an independent alarm relay on the same 1/16 DIN body.
- Pick the E5CSL-RP AC100-240V instead when the panel only needs the control relay (no alarm) and accepts the smaller 21.7 mm PV display.
- Pick the E5CSL-QTC AC100-240 instead when the heater is driven by an SSR and needs the 12 VDC voltage pulse output instead of a relay contact.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | E5CWL compact 1/16 DIN PID temperature controller |
| Model / SKU | E5CWL-R1TC AC100-240 |
| Size | 1/16 DIN, 48 x 48 x 60 mm, panel cutout 45 x 45 mm, depth behind front 60 mm |
| Supply Voltage | 100 to 240 VAC 50/60 Hz; allowable range 85 to 110 percent of rated; power consumption 3.5 VA |
| Input | 1 point; thermocouple K, J, T, E, L, U, N, R, S, B plus Pt100 / JPt100 RTD and ES1B IR thermosensor |
| Control Output | 1 point SPST-NO relay, 250 VAC 3 A resistive load, electrical life 100,000 cycles, min load 5 V 10 mA |
| Alarm Output | 1 point SPST-NO relay, 250 VAC 1 A resistive load, electrical life 100,000 cycles |
| Control Method | ON/OFF or 2-PID with auto-tuning; sampling period 250 ms |
| Display | 7-segment digital plus individual indicators; PV character height 16.2 mm |
| Auxiliary Functions | Temperature input shift, run/stop, protection, PV/SV/MV three-step display, PF key for one-touch auto / manual or RUN / STOP |
| Protection / Approvals | Front panel IP50, rear case IP20, terminals IP00; CE, EN 61326, EN 61010-1; approx 100 g |
FAQ for E5CWL-R1TC
What is the Omron E5CWL-R1TC AC100-240 used for?
It is the E5CWL compact 1/16 DIN PID temperature controller with one control relay and one alarm relay. Typical uses are mold-temperature control on small injection molders, benchtop ovens and incubators, and spare-replacement for legacy E5CN-R1TC panels.
E5CWL-R1TC vs E5CSL-QTC - what is the difference?
Both are 1/16 DIN PID controllers with the same 100-240 VAC supply and same thermocouple and RTD input. The E5CWL-R1TC has a relay control output (SPST-NO 250 VAC 3 A) plus an alarm relay (SPST-NO 250 VAC 1 A). The E5CSL-QTC has a voltage output for driving an SSR (12 VDC 21 mA) and no alarm. Pick the E5CWL when you need both a relay and an alarm output; pick the E5CSL for SSR-driven heaters.
Can the E5CWL-R1TC drive a contactor coil directly?
Yes. The control relay is rated SPST-NO 250 VAC 3 A resistive, which covers most small contactor coils (5 to 15 VA pull-in, 1 to 3 VA sealed). The alarm relay is rated 1 A so use it only for an indicator lamp or small signal relay, not a contactor coil.
What thermocouple types does the E5CWL-R1TC accept?
K, J, T, E, L, U, N, R, S and B thermocouples on the thermocouple side; Pt100 and JPt100 on the RTD side; plus the ES1B-series IR thermosensor. Input ranges cover -200 to 1,300 C on K, -100 to 850 C on J, -200 to 400 C on T, and 0 to 1,700 C on R and S. Display accuracy is +/-0.5 percent of PV or +/-1 C, whichever is greater, plus 1 digit.
