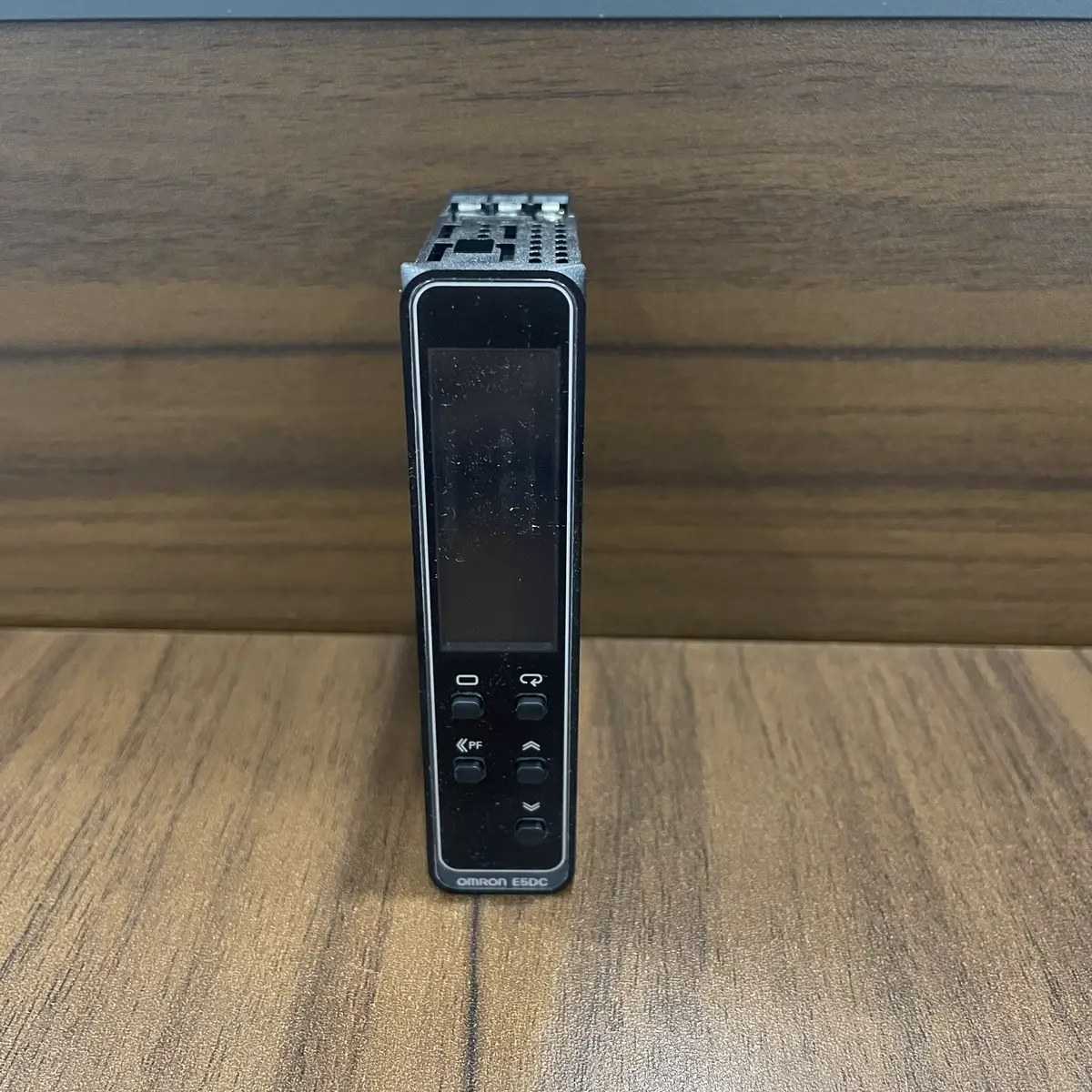

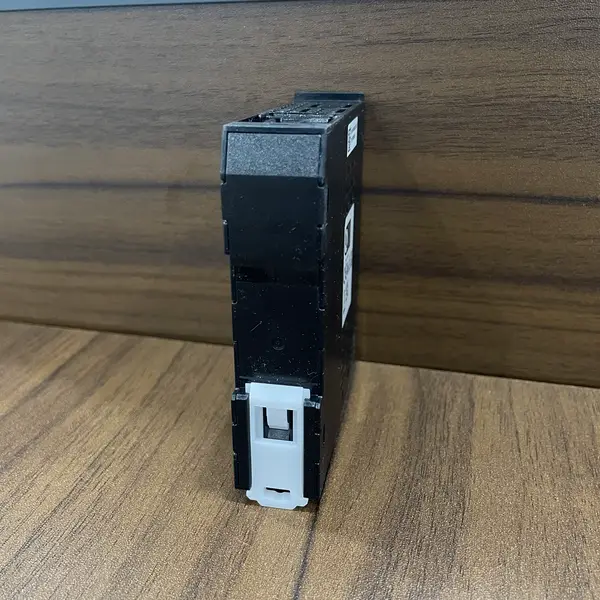

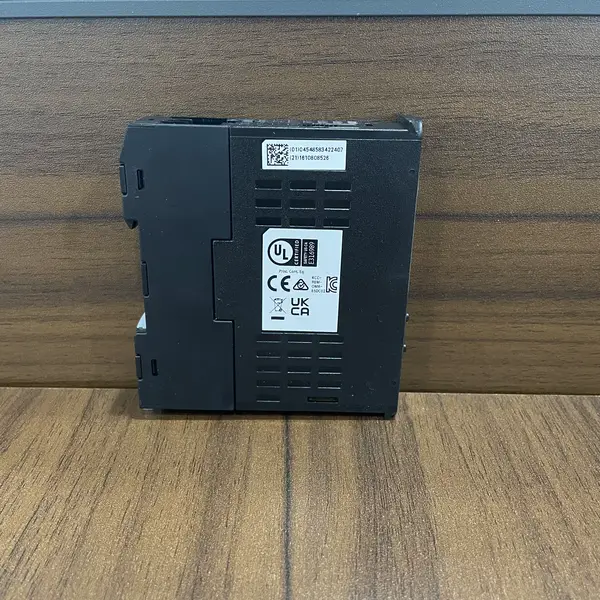

Omron E5DC-QX2ASM-802 — DIN-Rail PID Temp Controller
SKU: E5DC-QX2ASM-802USD 52.00
Omron E5DC-QX2ASM-802 E5DC-800 series DIN-rail temperature controller, 100-240 VAC, dual SSR output, RS-485. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron E5DC-QX2ASM-802 is the E5DC-800 series DIN-rail mounted temperature controller, manufactured by Omron Corporation. Hengyixin Automation stocks this controller in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.
It runs on 100 to 240 VAC at 50/60 Hz, drawing 4.9 VA. Control output 1 is a voltage pulse for driving an SSR, and control output 2 is a second voltage pulse for a second SSR or alarm. Two auxiliary outputs are available. RS-485 CompoWay/F communication is built in for PLC and HMI tie-in.
The multi-range input accepts thermocouples (K, J, T, E, L, U, N, R, S, B, W, PL II), Pt100 / JPt100 RTDs, ES1B infrared thermosensors, and 0 to 10 V / 4 to 20 mA analog signals. Sampling runs at 50 ms for fast heating profiles and the controller runs PID with auto-tuning. The 48 x 48 mm panel-mount sibling is the E5CC-QX2ASM-802. CX-Thermo version 4.0 handles PC setup.
Key Features
- E5DC-800 series DIN-rail mounted temperature controller, 22.5 mm wide, 100 to 240 VAC supply
- Dual SSR pulse voltage output, two auxiliary outputs, RS-485 CompoWay/F serial communication
- Multi-range input: thermocouple, Pt100 RTD, ES1B thermosensor, 0 to 10 V / 4 to 20 mA analog
- 50 ms high-speed sampling period, PID with auto-tuning, CX-Thermo version 4.0 setup
- SKU: E5DC-QX2ASM-802
- Series: Omron E5DC-800 series DIN-rail mounted digital temperature controller
- Voltage: 100 TO 240 VAC
Best-Fit Applications
- Extruder barrel temperature control where the E5DC-QX2ASM-802 fires two SSRs in a cascade heating zone with 50 ms sampling
- Paint line oven control where the E5DC-QX2ASM-802 reads a Pt100 RTD and switches a 25 A SSR through its pulse voltage output
- Spare replacement on a packaging machine where the older E5CC-QX2ASM-802 panel-mount controller is swapped for the DIN-rail E5DC-QX2ASM-802 to fit a slimmer cabinet
Buying Checklist
- Pick the E5DC-QX2ASM-802 for a 22.5 mm DIN-rail mounted temperature controller with dual SSR output and RS-485 CompoWay/F.
- Pick the E5CC-QX2ASM-802 instead when the cabinet needs a 48 x 48 mm panel-mount controller in the same E5_C-800 series with the same dual output setup.
- Pick the E5CC-RX2ASM-802 instead when the load is a mechanical relay contactor and the panel-mount form factor is fine for the application.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron E5DC-800 series DIN-rail mounted digital temperature controller |
| Model / SKU | E5DC-QX2ASM-802 |
| Supply Voltage | 100 to 240 VAC at 50/60 Hz, consumption 4.9 VA |
| Control Output | Output 1 voltage pulse for SSR, output 2 voltage pulse for SSR or alarm |
| Auxiliary Outputs | 2 auxiliary outputs (SUB1, SUB2), 1 event input |
| Input Type | Thermocouple (K, J, T, E, L, U, N, R, S, B, W, PL II), Pt100 / JPt100 RTD, ES1B thermosensor, 0 to 5 V / 1 to 5 V / 0 to 10 V, 0 to 20 mA / 4 to 20 mA |
| Sampling Period | 50 ms high-speed sampling for fast temperature rise profiles |
| Communication | RS-485 CompoWay/F; connects to a PLC or HMI without programming |
| Dimensions / Weight | 85 (D) x 22.5 (W) x 100 (H) mm DIN-rail body, approximately 180 g |
| Environment | -10 to 55 C operating, 25 to 85 percent humidity (no condensation), IP20 screw terminals |
| Software | CX-Thermo version 4.0 or higher for PC setup; CE certified |
FAQ for E5DC-QX2ASM-802
What is the Omron E5DC-QX2ASM-802 used for?
It is the E5DC-800 series DIN-rail mounted temperature controller. It runs on 100 to 240 VAC, drives two SSRs from voltage pulse outputs, and communicates over RS-485 CompoWay/F. Typical uses are extruder barrel temperature control, paint-line oven control, and any slim-cabinet application that needs a 22.5 mm PID controller with high-speed 50 ms sampling.
E5DC-QX2ASM-802 vs E5CC-QX2ASM-802 - what is the difference?
Both belong to the E5_C-800 series with the same multi-range input and dual voltage pulse output. The E5DC-QX2ASM-802 mounts on a 35 mm DIN rail and is 22.5 mm wide; the E5CC-QX2ASM-802 mounts through a panel cut-out and is 48 x 48 mm. Pick the E5DC for slim cabinets; pick the E5CC for panel-door mounting.
Does the E5DC-QX2ASM-802 support heater burnout detection?
Yes. The E5DC-QX2ASM-802 detects single-phase heater burnout and SSR short-circuit, and triggers an alarm output when the heater current falls below the configured threshold. The alarm CT (current transformer) is sold separately.
Can the E5DC-QX2ASM-802 connect to a Sysmac NJ or NX PLC?
Yes, over RS-485 CompoWay/F. The PLC reads the PV, SP, and MV registers and writes the setpoint without ladder programming. For EtherNet/IP tie-in, the E5DC-800 also offers an Ethernet option module that mounts on the side of the controller.
