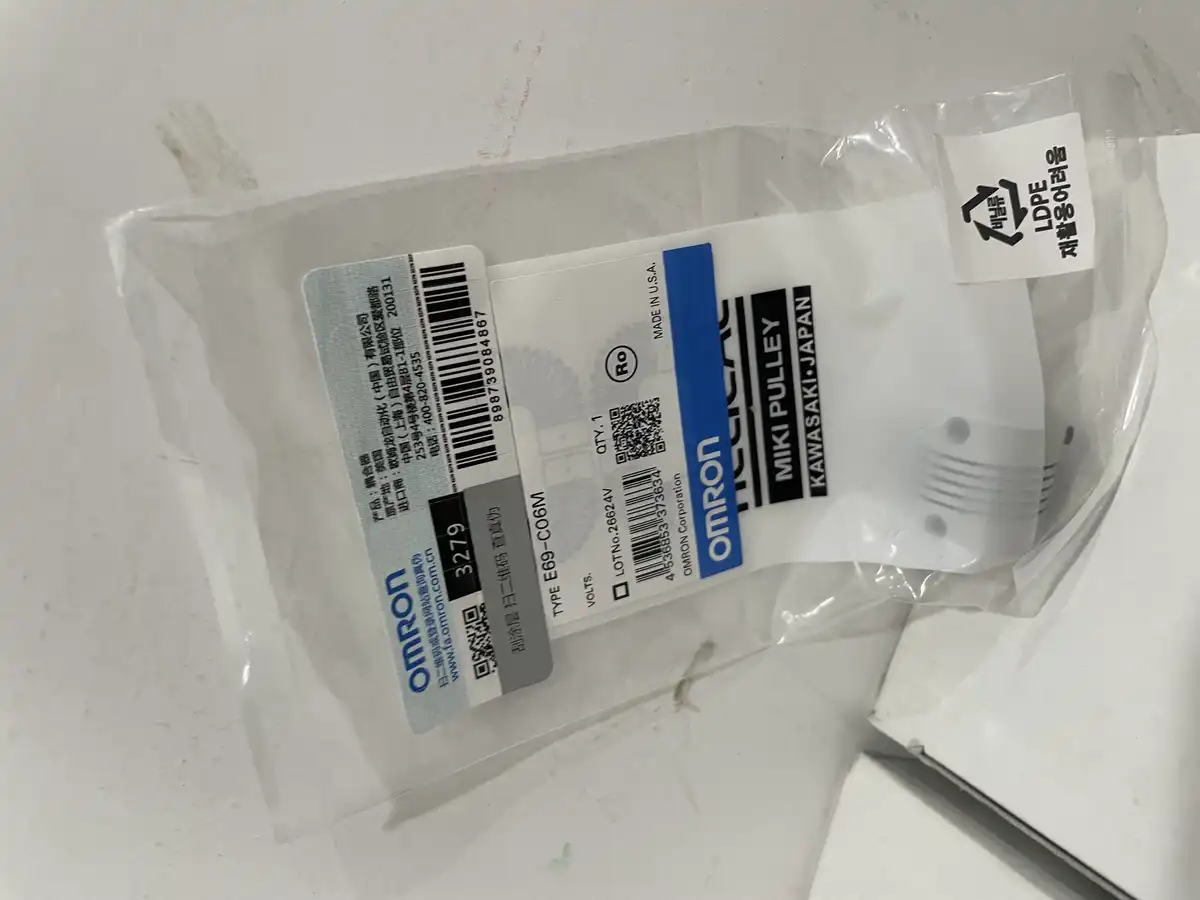

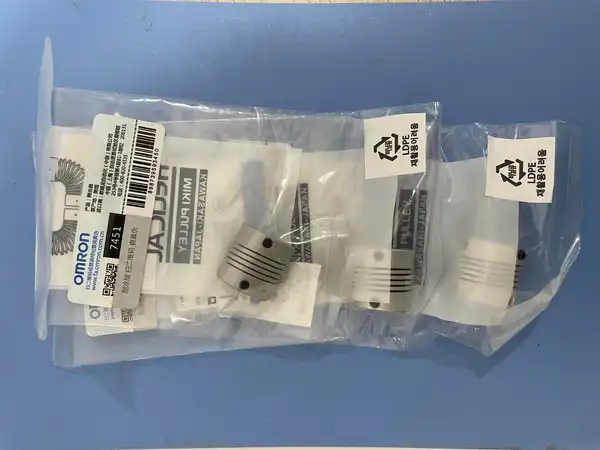

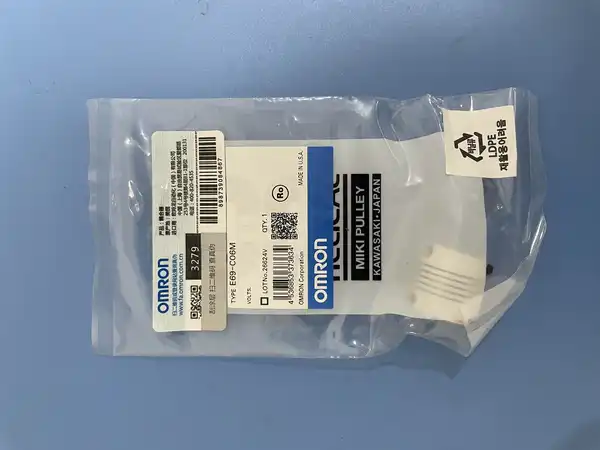

Omron E69-C06M — Metal Encoder Coupling, 6 mm
SKU: E69-C06MUSD 39.00
Metal shaft coupling for E6B2-C / E6C2-C rotary encoders, 6 mm bore, 19.1 mm OD, H8 tolerance, side or flange mount.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron E69-C06M is the metal shaft coupling for E6B2-C and E6C2-C rotary encoders with a 6 mm shaft diameter. It is manufactured by Omron Corporation. Hengyixin Automation ships this sensor from our Xiamen warehouse with a 30-day DOA return window and a datasheet PDF included in the box.
The coupling has a 6 mm bore on the encoder side (H8 tolerance) and a 19.1 mm outer diameter, with helical slots that give the metal bellows its torsional stiffness and small-parallel-offset tolerance. Choose the metal E69-C06M over the resin E69-C06B when the encoder is driven by a motor with rapid acceleration, high starting torque, or significant shaft misalignment.
The E69-C68B and E69-C610B resin variants accept 6/8 mm or 6/10 mm stepped shafts for applications where the drive and encoder shafts are different diameters.
Key Features
- 6 mm bore, 19.1 mm OD, H8 tolerance
- Absorbs 0.1 mm parallel misalignment and 1 degree angular misalignment
- Compatible with all E6B2-C / E6C2-C shaft diameters from 6 to 10 mm
- Metal bellows coupling for E6B2-C and E6C2-C rotary encoders
- SKU: E69-C06M
- Series: E69-series rotary encoder couplings
Best-Fit Applications
- Connecting an E6B2-CWZ6C encoder to a stepper or servo motor shaft.
- Belt-driven encoder mounting on a conveyor with slight shaft offset.
- Hand-off encoder mounting driven by a chain or timing belt.
Buying Checklist
- Confirm the encoder shaft diameter is 6 mm - for 8 mm or 10 mm shafts, choose E69-C08M or E69-C10M respectively.
- Choose E69-C06B (resin) when the encoder sees smooth, low-torque rotation - the resin version is cheaper and adequate for most conveyor applications.
- Allow for radial and angular misalignment up to 0.1 mm / 1 degree - the metal bellows handles small offsets but not gross misalignment.
Technical Specifications
| Model | E69-C06M |
|---|---|
| Series | E69-series rotary encoder couplings |
| Bore Diameter | 6 mm, H8 tolerance |
| Outer Diameter | 19.1 mm |
| Material | Metal bellows with helical slots |
| Compatible Encoders | E6B2-C and E6C2-C rotary encoders with 6 mm shafts |
| Misalignment Tolerance | 0.1 mm parallel max, 1 degree angular max |
| Mounting | M3 set screws on both coupling halves |
| Length | Approx 22 mm engaged length |
| Operating Temperature | -10 to +80 degC (limited by encoder body rating) |
FAQ for E69-C06M
What is the difference between E69-C06M and E69-C06B?
Both are 6 mm bore encoder couplings. The C06M is metal bellows construction, designed for high starting torque, rapid acceleration, and long service life. The C06B is a resin moulding, suitable for smooth low-torque rotation and lower cost. Pick the C06M for servo or stepper applications where the coupling sees torque pulses; pick the C06B for conveyor or fan applications with steady rotation.
Which rotary encoders does the E69-C06M fit?
The E69-C06M fits the E6B2-C and E6C2-C rotary encoders with 6 mm shaft diameters. The E6B2-C family has 40 mm or 50 mm body diameters and 6 mm shafts; the E6C2-C has 50 mm diameter and 6 mm shafts. For other encoder families or shaft diameters, consult the E69-series selection table.
How much misalignment can the E69-C06M absorb?
The metal bellows design absorbs up to 0.1 mm of parallel misalignment and up to 1 degree of angular misalignment between the encoder shaft and the drive shaft. Larger offsets will deform the bellows and cause premature wear. Always measure the alignment with a dial indicator before tightening the set screws.
What torque should the E69-C06M set screws be tightened to?
Tighten the M3 set screws on each coupling half to about 1.0 N.m. Use a calibrated torque driver - hand-tight is usually too loose and a normal screwdriver is usually too tight. After tightening, rotate the encoder shaft by hand to confirm there is no binding.
