Omron E6B2-CWZ6C — front view of the 40 mm incremental encoder showing the 6 mm shaft, the ABZ phase marking, and the model label on the dark grey housing

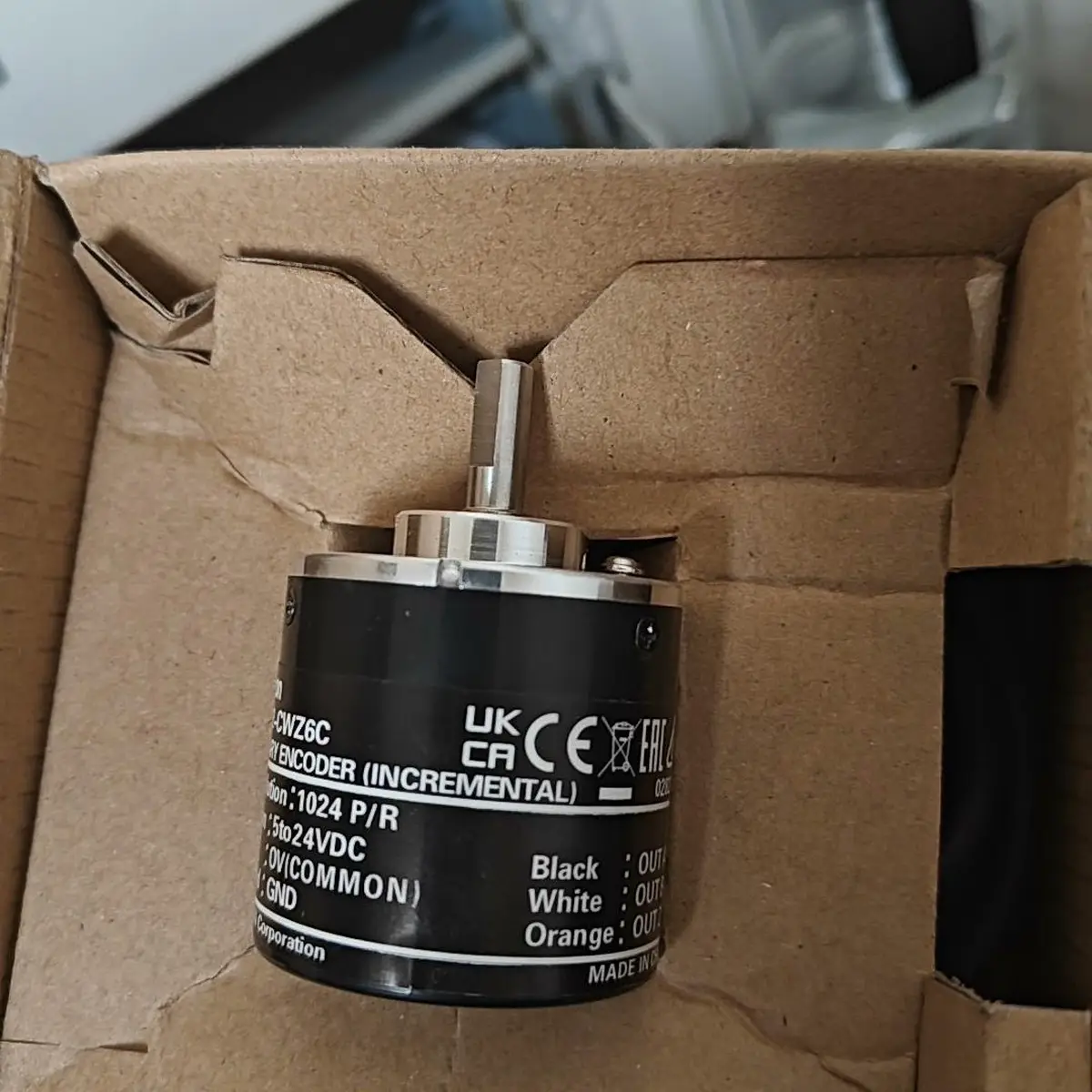

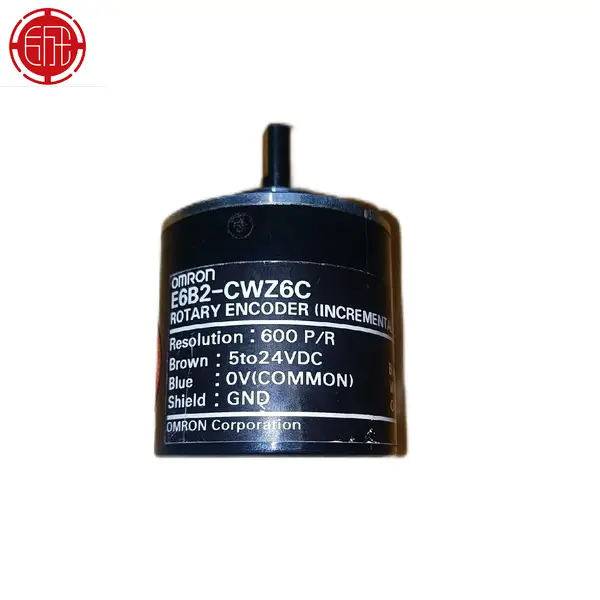

Omron E6B2-CWZ6C — Incremental Encoder, NPN, 2000 P/R

SKU: E6B2-CWZ6C

USD 42.00

E6B2 40 mm incremental rotary encoder, NPN open-collector output, DC5-24 V, A / B / Z phases, 2000 P/R.

1-Year Warranty Full manufacturer warranty
Global Shipping Worldwide delivery available
Genuine Omron 100% authentic product
Ready to Ship Usually ships within 24h
In Stock

This item is available for immediate shipment from our warehouse.

Request Quote

Contact for pricing, bulk discounts, and shipping

Product Overview

The Omron E6B2-CWZ6C is a 40 mm diameter incremental rotary encoder for general position and speed feedback. It delivers A and B quadrature channels plus a Z (origin / index) pulse, with an NPN open-collector output that drops straight into any CJ1W-CT021 high-speed counter or CJ2M / NJ-series encoder input. The 'CWZ6C' suffix means: C = NPN open-collector voltage output, W = ABZ three-phase, Z6C = the Z-phase origin pulse plus the open-collector output stage. The bare base SKU (no P/R suffix) is 2000 pulses per revolution. It runs on DC5-24 V, draws about 80 mA, and the shaft takes up to 30 N radial / 20 N axial load. It is the standard pick for conveyor speed, cut-to-length, and rotary index feedback on packaging and material-handling machines.

Why open-collector NPN at 5-24 V

The E6B2-CWZ6C is one of three E6B2 output styles. CWZ5B is PNP open-collector for sourcing counter inputs; CWZ6C is NPN open-collector for sinking inputs; CWZ3E is voltage output for high-frequency drives. Pick the CWZ6C for Omron CJ / NJ counter cards and most PLC high-speed inputs. For long cable runs or noisy panels, the line-driver version E6B2-CWZ3E / CWZ6C-1 is preferable, but needs a differential receiver input.

Resolution variants

The bare E6B2-CWZ6C is 2000 P/R. Resolution suffixes in this line include 30, 100, 200, 300, 360, 500, 600, 1000, 1200, 1500, 1800, and 2000 P/R. Pick 2000 P/R for fine position feedback, 500-600 P/R for conveyor speed, and 30-100 P/R for simple rotation counting.

Before ordering

Confirm the counter or drive input is rated for NPN open-collector at the encoder supply voltage. Allow for the 80 mA supply current and the shaft load limits when coupling to the driven shaft (use a flexible coupling to absorb misalignment). Ground the cable shield at the panel end only.

Key Features

  • E6B2 40 mm incremental rotary encoder
  • A and B quadrature channels plus Z (index) pulse
  • NPN open-collector output (sinking)
  • DC5-24 V supply, 80 mA current draw
  • 2000 P/R resolution (base SKU)
  • Up to 30 N radial / 20 N axial shaft load
  • IP65 protection rating, 5000 rpm max.
  • SKU: E6B2-CWZ6C
  • Series: E6B2 incremental rotary encoder
  • Voltage: 24 V
  • I/O: 6 I/O

Best-Fit Applications

  • Conveyor belt speed feedback with a measuring wheel on the belt
  • Cut-to-length control on a film or sheet feeding line
  • Rotary index table position feedback with home on Z pulse
  • Wire drawing or winding line speed feedback and counting
  • General-purpose rotation counting on packaging and assembly machines

Buying Checklist

  • Choose E6B2-CWZ6C for NPN open-collector ABZ output at 2000 P/R.
  • Choose E6B2-CWZ5B for PNP open-collector sourcing output.
  • Choose E6B2-CWZ3E for voltage output to high-frequency drives.
  • Choose a lower P/R suffix for conveyor speed; higher P/R for fine position.
  • Confirm the counter input is rated for sinking NPN at 5-24 V.
  • Confirm a flexible coupling sits between the encoder and the driven shaft.

Technical Specifications

Series E6B2 incremental rotary encoder
Output Phases A, B, Z (origin pulse)
Output Type NPN open collector (CWZ6C)
Resolution 2000 P/R (base SKU; suffix variants to 2000 P/R)
Supply Voltage DC5 V (-5 %) to 24 V (+15 %)
Current Draw 80 mA max.
Max Response Frequency 100 kHz
Max Shaft Speed 5000 rpm
Shaft Load 30 N radial / 20 N axial
Starting Torque 0.98 mN.m max.
Protection Rating IP65
Shaft Diameter 6 mm

FAQ for E6B2-CWZ6C

What is the difference between E6B2-CWZ6C and E6B2-CWZ5B?
Both are 40 mm incremental encoders with ABZ phases at 2000 P/R. The CWZ6C is NPN open-collector (sinking); the CWZ5B is PNP open-collector (sourcing). Pick CWZ6C for PLC counter cards that expect a sinking input; pick CWZ5B when the counter expects a sourcing input.
Can the E6B2-CWZ6C drive a CJ1W-CT021 counter?
Yes. The CJ1W-CT021 high-speed counter card accepts NPN open-collector encoder inputs at 24 VDC. The encoder supply is taken from the same 24 VDC rail as the PLC, and the A / B / Z phases wire into the matching counter input terminals. Scaling is done in CX-Programmer.
What cable is recommended for the E6B2-CWZ6C?
Use a shielded twisted-pair cable with the shield grounded at the panel end only. Cable runs over 10 m should use a line-driver version (E6B2-CWZ6C with -1 suffix or the E6B2-CWZ3E) to avoid signal degradation. Avoid running the encoder cable parallel to VFD output cables.
