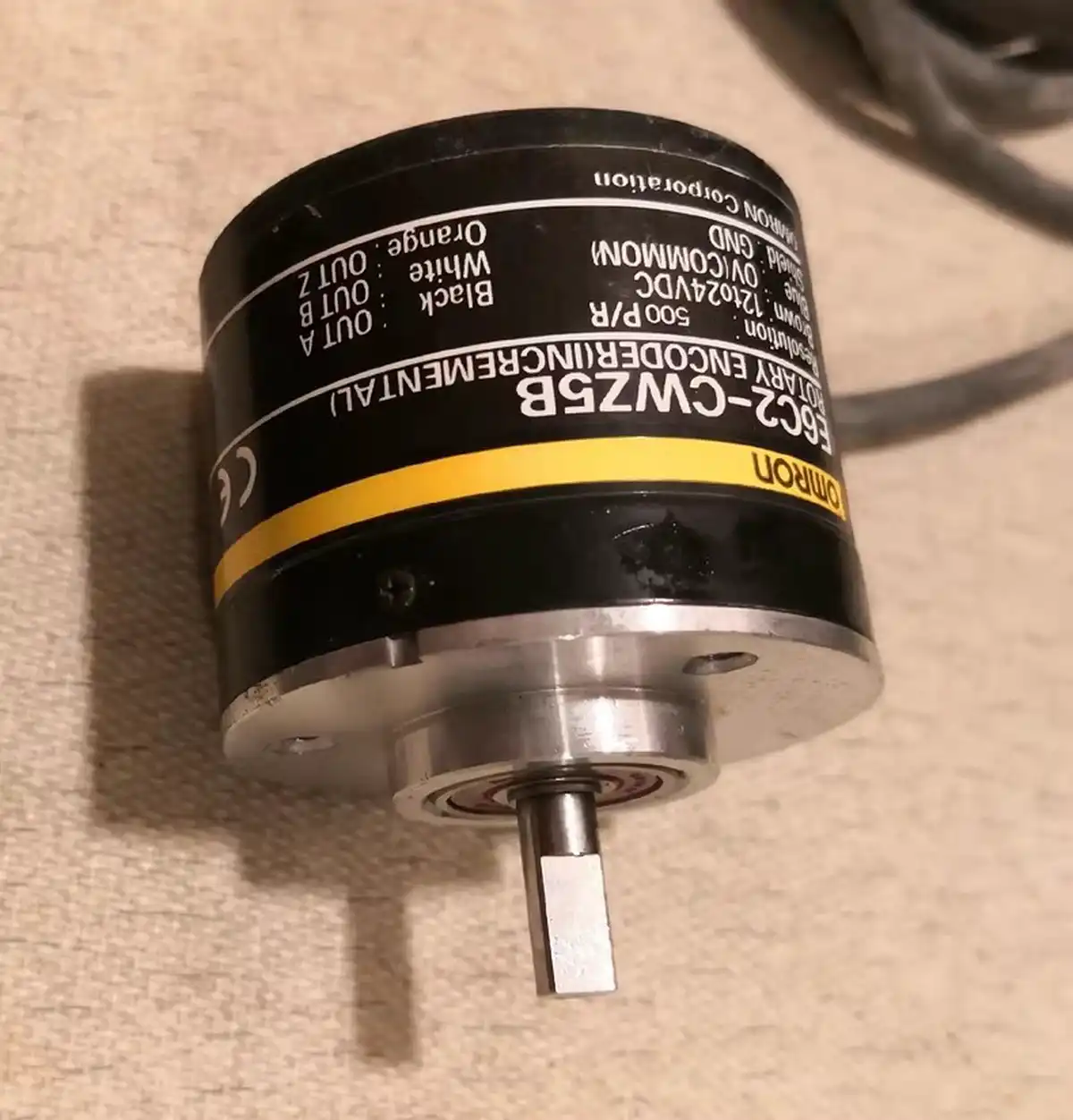

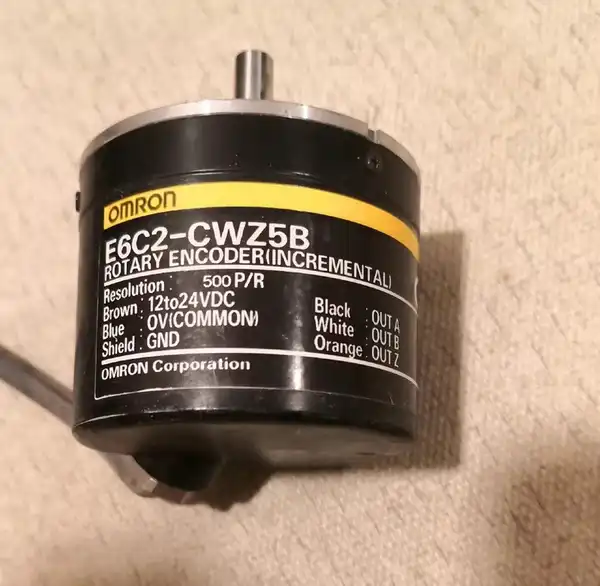

Omron E6C2-CWZ5B 500PR 2M — Encoder, 50 mm, 500 P/R
SKU: E6C2-CWZ5B 500PR 2MUSD 43.00
50 mm incremental rotary encoder, 500 P/R, 12-24 VDC, PNP out. In stock.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron E6C2-CWZ5B 500PR 2M is a 50 mm incremental rotary encoder from the E6C2-C general-purpose series It is manufactured by Omron Corporation. Hengyixin Automation ships this sensor from our Xiamen warehouse with a 30-day DOA return window and a datasheet PDF included in the box.
The encoder delivers 500 pulses per revolution across three output phases (A, B, Z). A and B are quadrature with 90 degree phase shift; Z is the once-per-turn index pulse.
For a smaller 40 mm body at 2000 P/R with NPN output, pick the E6B2-CWZ6C 2000P-R. Key specs: Resolution 500 pulses per revolution; Output Phases A, B, Z; 90 deg +/-45 deg phase difference; Output Type PNP open collector, 30 VDC max, 35 mA source; Supply Voltage 12 to 24 VDC (-10% to +15%), ripple 5% max; Current Consumption 100 mA max; Maximum Response Frequency 100 kHz; Shaft / Speed 6 mm solid shaft; 6000 r/min max; 10 mN.m starting torque; Protection / Connection IP64; pre-wired 2 m PVC cable; zinc-alloy case.
Key Features
- E6C2-C 50 mm incremental rotary encoder with 500 P/R resolution
- Three-phase output (A, B, Z) with 90 degree quadrature on A and B
- PNP open-collector output 30 VDC max, 12 to 24 VDC supply, 100 kHz response
- 6 mm solid shaft, 6000 r/min max, IP64 zinc-alloy case, 2 m pre-wired cable
- SKU: E6C2-CWZ5B 500PR 2M
- Series: Omron E6C2-C-series 50 mm incremental rotary encoder
- Voltage: 12 TO 24 VDC
Best-Fit Applications
- Conveyor length feedback on a cut-to-length line at 2 mm resolution per count per 1 m wheel
- Spindle position feedback on a small CNC where the 6 mm shaft pairs with an E69-C06B coupling
- Spare drop-in for an existing E6C2 cell with the same 12-24 VDC PNP field wiring
Buying Checklist
- Pick the E6C2-CWZ5B 500PR 2M for a 50 mm incremental encoder at 500 P/R with PNP open-collector output.
- Pick the E6C2-CWZ1X 500P/R 2M instead when the cabinet needs a 5 VDC line-driver output for noise immunity on long cable runs.
- Pick the E6B2-CWZ6C 2000P-R instead when the cabinet needs a smaller 40 mm body at 2000 P/R with NPN output.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron E6C2-C-series 50 mm incremental rotary encoder |
| Model / SKU | E6C2-CWZ5B 500PR 2M |
| Resolution | 500 pulses per revolution |
| Output Phases | A, B, Z; 90 deg +/-45 deg phase difference |
| Output Type | PNP open collector, 30 VDC max, 35 mA source |
| Supply Voltage | 12 to 24 VDC (-10% to +15%), ripple 5% max |
| Current Consumption | 100 mA max |
| Maximum Response Frequency | 100 kHz |
| Shaft / Speed | 6 mm solid shaft; 6000 r/min max; 10 mN.m starting torque |
| Protection / Connection | IP64; pre-wired 2 m PVC cable; zinc-alloy case |
| Dimensions / Weight | 50 mm dia. x ~50 mm length; approx. 400 g |
FAQ for E6C2-CWZ5B 500PR 2M
How is the E6C2-CWZ5B 500PR 2M wired?
The pre-wired cable has five conductors: red is 12 to 24 VDC supply, black is 0 V, and the three output wires are A (white), B (green) and Z (yellow). Run the supply and 0 V to a 24 VDC PLC source and the A/B/Z outputs to a CJ2M or CP1L high-speed counter.
What is the maximum cable length for the E6C2-CWZ5B?
Up to 100 m on a shielded twisted-pair cable when the load resistance on each output is at least 1 k ohm. For the cleanest signal at long distances, switch to the line-driver E6C2-CWZ1X instead.
Is the E6C2-CWZ5B 500PR 2M waterproof?
No. The zinc-alloy case is IP64, dust-tight and splash-proof but not waterproof. For wash-down or outdoor use, pick the E6F-C or E6CP-AG5C series, which are IP65.
