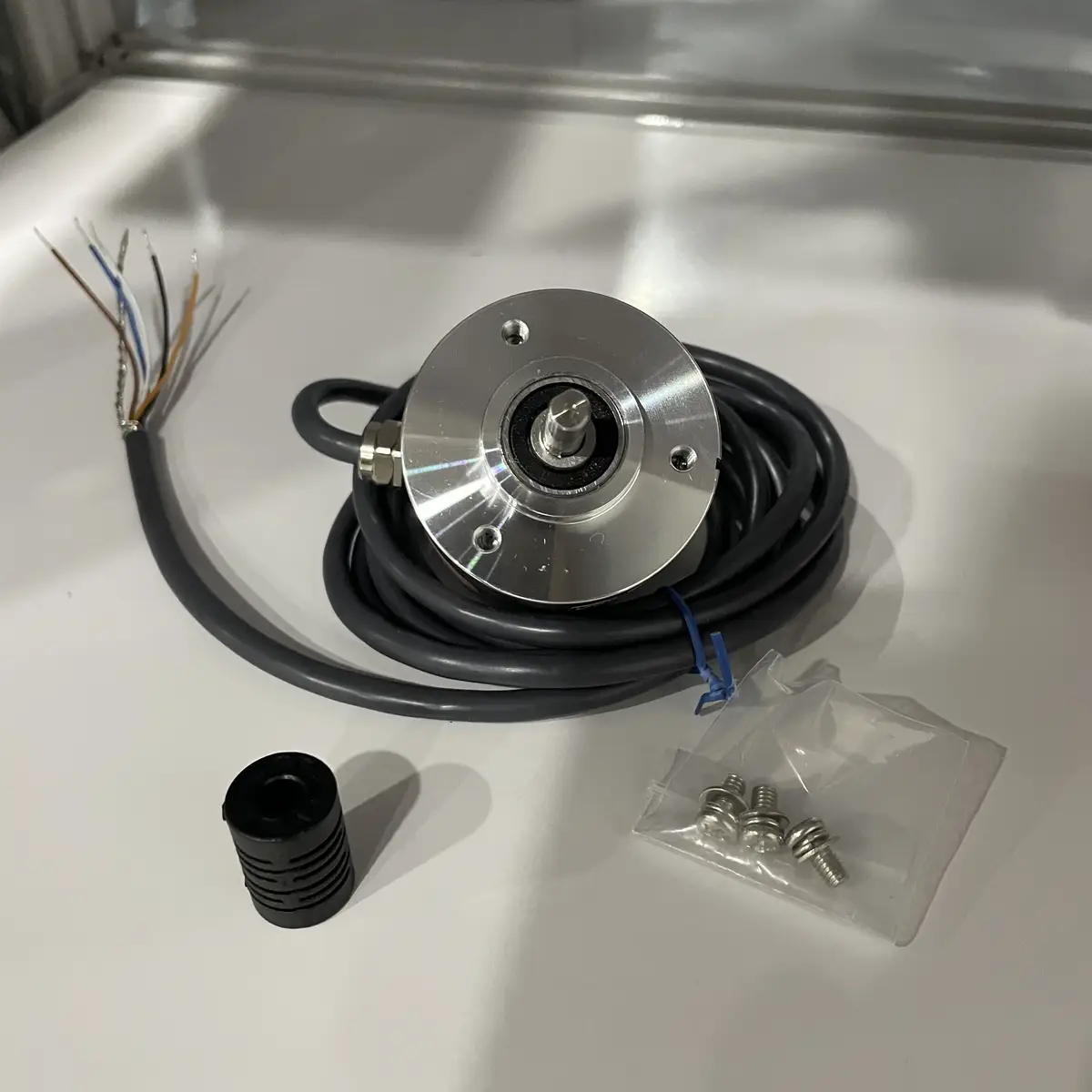

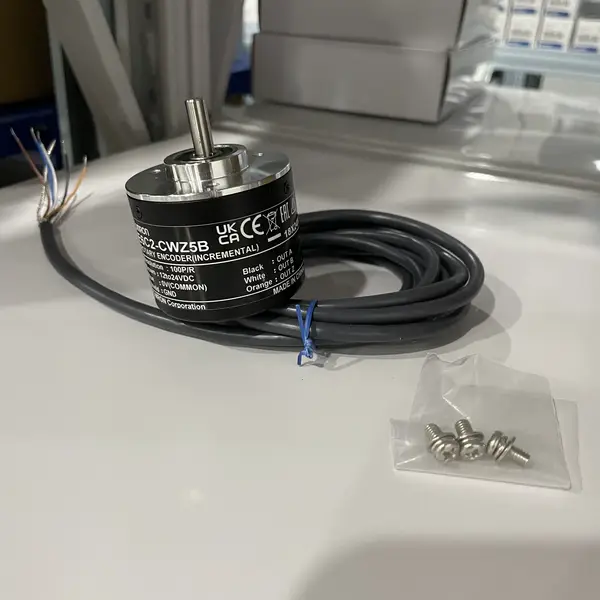

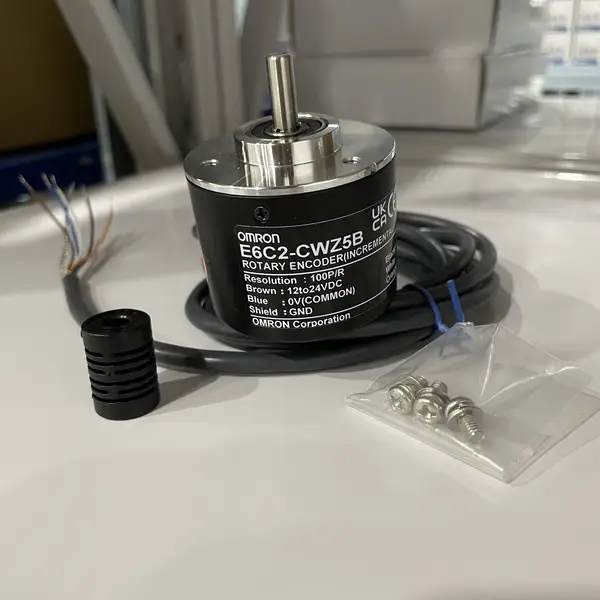

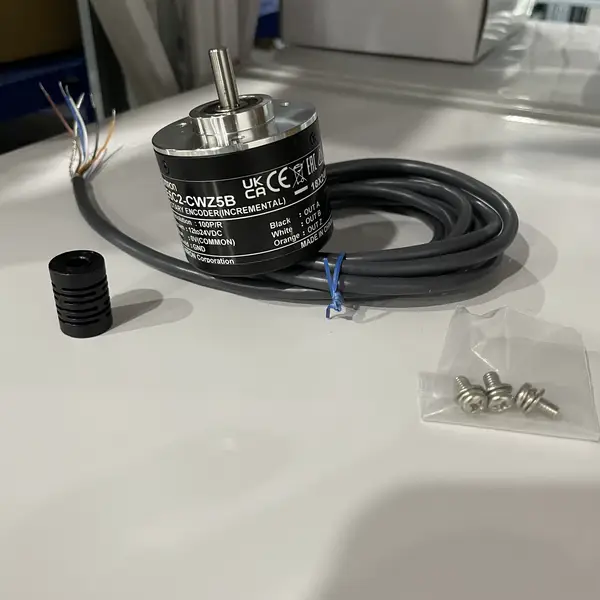

Omron E6C2-CWZ5B 100P-R — 50 mm Encoder, 100 P/R
SKU: E6C2-CWZ5B 100P-RUSD 37.00
Omron E6C2-CWZ5B 100P-R 50 mm slim rotary encoder, 100 P/R, 12-24 VDC, PNP, 2 m cable, IP64. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron E6C2-CWZ5B 100P-R is a slim 50 mm incremental rotary encoder at 100 pulses per revolution, manufactured by Omron Corporation. Hengyixin Automation ships this sensor from our Xiamen warehouse with a 30-day DOA return window and a datasheet PDF included in the box.
It outputs 100 pulses per shaft turn on three channels: A, B, and Z (index). A and B are 90 degrees apart, so a counter reads direction. The Z pulse fires once per turn for home-position reset. The PNP open-collector driver pulls each output to the 12 to 24 VDC rail.
The body is 50 mm in diameter with a 6 mm flatted solid shaft. Maximum rotation is 6000 r/min; maximum response frequency is 50 kHz. The 2 m cable exits at an angle from the side or back of the housing. IP64 rating comes from sealed bearings. The NPN 1024 P/R sibling is the E6C2-CWZ6C 1024P-R 2M; the 500 P/R same-body sibling is the E6C2-CWZ5B 500PR 2M. The E69-C06B coupling and E69-2 servo bracket are sold separately.
Key Features
- E6C2-series slim 50 mm incremental rotary encoder, 100 pulses per revolution, 3 channels A / B / Z
- 12 to 24 VDC supply (allowable -10 to +15 percent), PNP open-collector output, 100 mA max, 30 VDC tolerant
- Maximum response frequency 50 kHz, maximum rotation 6000 r/min, phase-A / phase-B 90 +/-45 degrees apart for quadrature direction
- Pre-wired 2 m PVC cable with index Z pulse, 6 mm flatted solid shaft, sealed bearings for IP64 oil resistance
- SKU: E6C2-CWZ5B 100P-R
- Series: Omron E6C2-C-series slim incremental rotary encoder
- Voltage: 12 TO 24 VDC
Best-Fit Applications
- Cut-to-length control on a film-converting line where the E6C2-CWZ5B 100P-R counts encoder pulses and the Z pulse resets at the seam
- Bottle-indexing on a rotary filler where the 100 P/R signal feeds a CP1E high-speed counter input and the 4x quadrature gives 400 counts per turn
- Spare replacement on a conveyor tachometer where the previous E6B2-CWZ5B 100 P/R 0.5M is upgraded for the longer 2 m cable and the IP64 body
Buying Checklist
- Pick the E6C2-CWZ5B 100P-R for a 50 mm slim incremental encoder at 100 P/R with PNP output and a 2 m pre-wired cable.
- Pick the E6C2-CWZ6C 1024P-R 2M instead when the cabinet needs 1024 P/R and NPN open-collector output on the same 50 mm body.
- Pick the E6B2-CWZ6C 300P-R instead when the panel accepts the smaller 40 mm body and only needs 300 P/R with NPN output.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron E6C2-C-series slim incremental rotary encoder |
| Model / SKU | E6C2-CWZ5B 100P-R |
| Resolution | 100 pulses per revolution (P/R), 4x quadrature decoding = 400 counts per turn to the counter |
| Output Phases | A, B and Z (index), 90 +/-45 degrees phase difference on output (1/4 T +/- 1/8 T), rise/fall 1 us max at 2 m / 10 mA |
| Power Supply | 12 to 24 VDC, allowable -10 to +15 percent, ripple (p-p) 5 percent max, 100 mA max current consumption |
| Output Type | PNP open-collector, starting positional point (Z) equipped, output short-circuit protected, reverse-polarity protected |
| Max Rotation / Frequency | 6000 r/min maximum rotation, 50 kHz maximum response frequency, approx. 9 A inrush for 0.3 ms at power-on |
| Mechanical | Starting torque 10 mN.m max, moment of inertia 3 x 10^-7 kg.m^2 max, radial shaft load 50 N, thrust 30 N |
| Cable | 2 m pre-wired PVC cable, angled exit at side or back of housing |
| Material / Construction | Case zinc alloy, main unit aluminium, shaft SUS420J2 stainless, 6 mm flatted solid shaft |
| Environment / Weight | IP64 (oil-resistant sealed), -10 to 70 C operating, -25 to 85 C storage, 35 to 85 percent humidity (no icing / condensation), approx. 400 g packaged |
FAQ for E6C2-CWZ5B 100P-R
What is the Omron E6C2-CWZ5B 100P-R used for?
It is the E6C2-series slim 50 mm incremental rotary encoder at 100 pulses per revolution with a PNP open-collector output. It is used for shaft-position feedback, length measurement, conveyor tachometry, and rotary-table indexing where 100 P/R is the right resolution. The three channels (A, B and Z) let a PLC counter read direction from the A / B quadrature and reset on the once-per-turn Z pulse.
E6C2-CWZ5B vs E6C2-CWZ6C - what is the difference?
Both share the same 50 mm slim body, 6 mm flatted solid shaft, IP64 oil-resistant sealing, and 2 m pre-wired cable. The -CWZ5B is the PNP open-collector variant on 12 to 24 VDC; the -CWZ6C is the NPN open-collector variant on 5 to 24 VDC. Pick the -CWZ5B for PNP (sourcing) PLC high-speed counter cards; pick the -CWZ6C for NPN (sinking) cards or for legacy 5 VDC logic inputs.
What is the maximum cable length for the E6C2-CWZ5B?
The 100 P/R unit ships with a 2 m cable. Omron's general incremental encoder guidance is to keep the cable short and use a shielded cable where long runs are needed; output rise and fall times are 1 us max at 2 m and 10 mA load, and the 50 kHz max response frequency falls off as cable capacitance rises. For long runs pick the line-driver -CWZ1X variant instead, which supports RS-422 differential transmission over much longer cables.
Does the E6C2-CWZ5B need a pull-up resistor?
No. The E6C2-CWZ5B is a PNP open-collector output, which pulls each signal up to the 12-24 VDC supply rail internally. The load is switched between the output line and the 0 V return; the PLC high-speed counter input sees a clean 24 VDC high and a near-0 V low. For the NPN sibling E6C2-CWZ6C the PLC input also works without an external pull-up because most modern PLC inputs are internally pulled up to 24 VDC.
