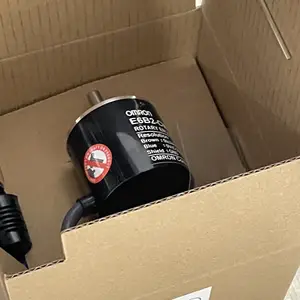

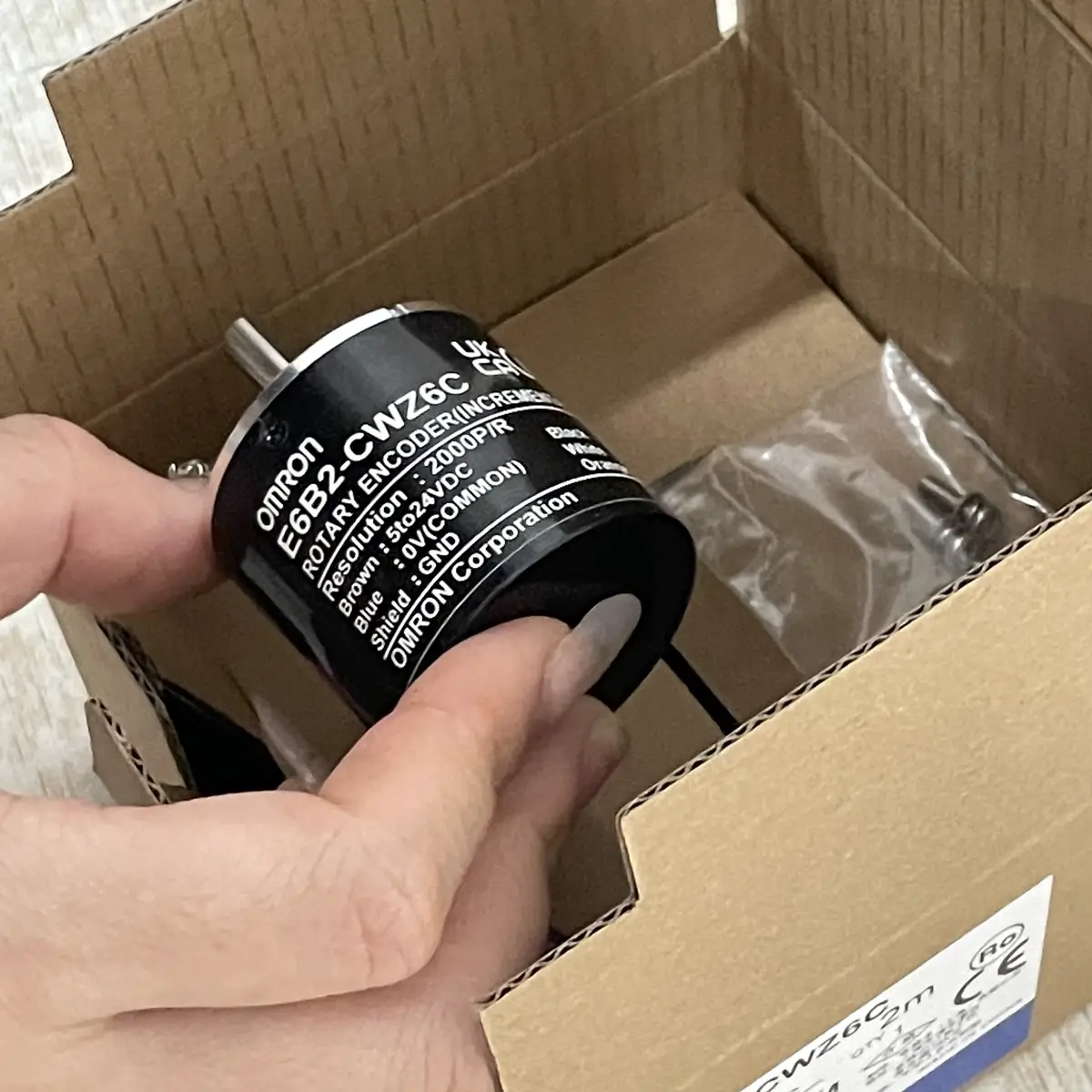

Omron E6B2-CWZ6C 2000P-R — Encoder, 2000 P/R, NPN
SKU: E6B2-CWZ6C 2000P-RUSD 46.00
Omron E6B2-CWZ6C 2000P-R 40 mm incremental rotary encoder, 2000 P/R, 5-24 VDC, NPN open collector. In stock.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron E6B2-CWZ6C 2000P-R is a 40 mm incremental rotary encoder from the E6B2-C general-purpose series, manufactured by Omron Corporation. Hengyixin Automation ships this sensor from our Xiamen warehouse with a 30-day DOA return window and a datasheet PDF included in the box.
The encoder delivers 2000 pulses per revolution across three output phases (A, B, Z). A and B are quadrature with 90 degree phase shift, so the effective resolution in quadrature decoding is 8000 counts per revolution. Z is the once-per-turn index pulse for origin reference.
Output is NPN open-collector rated 30 VDC max at 35 mA. Supply is 5 to 24 VDC. The 6 mm shaft accepts a standard E69-C06B coupling. Maximum mechanical speed is 6000 r/min and electrical response is 100 kHz. The ABS case is IP50 and ships with a 0.5 m pre-wired cable. For a line-driver output instead of NPN, pick the E6B2-CWZ1X 2000P/R.
Key Features
- E6B2-C 40 mm incremental rotary encoder with 2000 P/R resolution
- Three-phase output (A, B, Z) with 90 degree quadrature on A and B
- NPN open-collector output 30 VDC max, 5 to 24 VDC supply, 100 kHz response
- 6 mm solid shaft, 6000 r/min max, IP50 ABS case, 0.5 m pre-wired cable
- SKU: E6B2-CWZ6C 2000P-R
- Series: Omron E6B2-C-series 40 mm incremental rotary encoder
- Voltage: 5 TO 24 VDC
Best-Fit Applications
- Conveyor speed feedback on a packaging line where the 6000 r/min ceiling covers the take-up reel and the 2000 P/R resolution is enough for cut-to-length
- Spindle position feedback on a CNC where the 6 mm shaft pairs with an E69-C06B coupling and the NPN output feeds a CJ2M counter input
- Spare drop-in for an existing E6B2 cell where the previous encoder failed and the field wiring is 5-24 VDC with NPN open collector
Buying Checklist
- Pick the E6B2-CWZ6C 2000P-R for a 40 mm incremental encoder at 2000 P/R with NPN open-collector output.
- Pick the E6B2-CWZ1X 2000P/R instead when the cabinet needs a 5 VDC line-driver output for noise immunity on long cable runs.
- Pick the E6C2-CWZ5B 1000P/R 2M instead when a 50 mm body with IP65 sealing and a 2 m cable is needed.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron E6B2-C-series 40 mm incremental rotary encoder |
| Model / SKU | E6B2-CWZ6C 2000P-R |
| Resolution | 2000 pulses per revolution |
| Output Phases | A, B, Z (reversible); 90 deg +/-45 deg phase difference |
| Output Type | NPN open collector, 30 VDC max, 35 mA sink |
| Supply Voltage | 5 to 24 VDC (allowable 4.75 to 27.6 VDC) |
| Current Consumption | 80 mA max |
| Maximum Response Frequency | 100 kHz |
| Shaft / Speed | 6 mm solid shaft; 6000 r/min max |
| Starting Torque / Inertia | 0.98 mNm max; 1 x 10^-6 kgm^2 max |
| Protection / Connection | IP50; 0.5 m pre-wired cable; ABS case, aluminium body |
FAQ for E6B2-CWZ6C 2000P-R

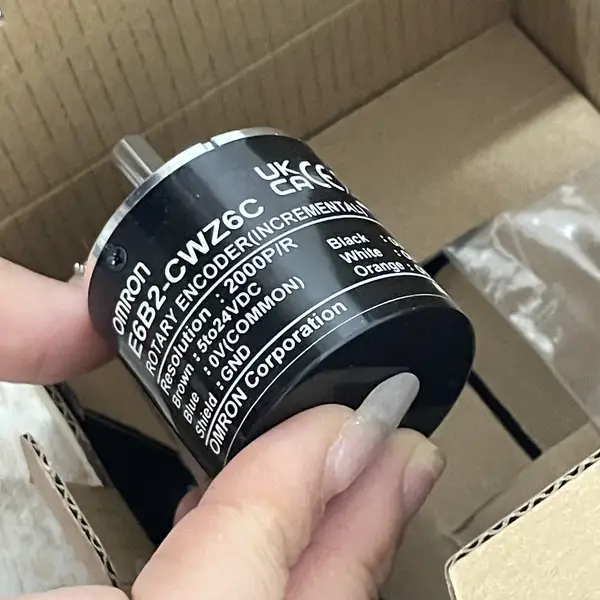

How is the E6B2-CWZ6C 2000P-R wired?
The pre-wired cable has five conductors: red is 5 to 24 VDC supply, black is 0 V, and the three output wires are A (white), B (green) and Z (yellow). Run the supply and 0 V to a 24 VDC PLC source and the A/B/Z outputs to a CJ2M or CP1L high-speed counter.
What is the maximum cable length for the E6B2-CWZ6C?
Up to 100 m on a shielded twisted-pair cable when the load resistance on each output is at least 1 k ohm. For the cleanest signal at long distances, switch to the line-driver E6B2-CWZ1X instead.
Is the E6B2-CWZ6C 2000P-R waterproof?
No. The ABS case is IP50, dust-protected but not waterproof. For wash-down or outdoor use, pick the E6C2-C or E6F-C series instead, which are IP65.
