Omron E6C2-CWZ6C 1024P-R 2M — 1024 P/R Encoder
SKU: E6C2-CWZ6C 1024P-R 2MUSD 41.00
Omron E6C2-CWZ6C 1024P-R 2M 50 mm incremental rotary encoder, 1024 P/R, NPN open-collector, 5-24 VDC, 2 m cable. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron E6C2-CWZ6C 1024P-R 2M is a 50 mm incremental rotary encoder for industrial position and speed feedback, manufactured by Omron Corporation. Hengyixin Automation ships this sensor from our Xiamen warehouse with a 30-day DOA return window and a datasheet PDF included in the box.
It outputs 1024 pulses per revolution across phases A, B, and Z from an NPN open-collector stage on a 5 to 24 VDC supply, drawing 80 mA or less. Maximum response frequency is 100 kHz and maximum rotational speed is 6,000 r/min. Starting torque is 10 mN.m or less and moment of inertia is 1 x 10^-6 kg.m^2.

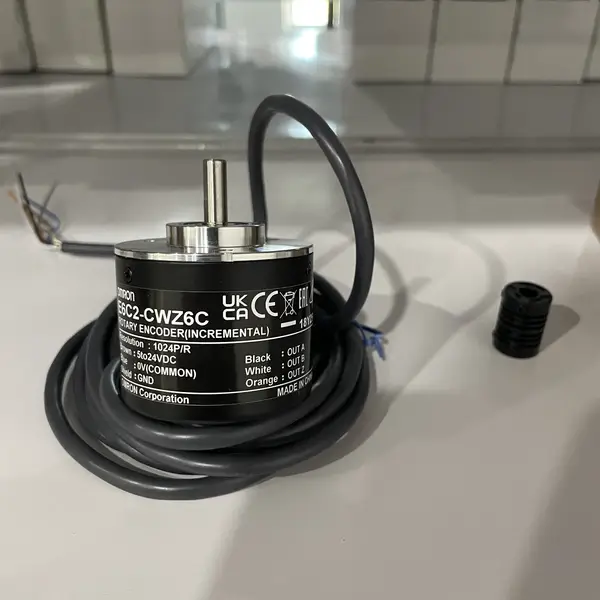

The 50 mm aluminum body carries a SUS420J2 stainless steel 6 mm shaft and seals to IP64. The 2 m oil-resistant PVC cable exits via a diagonal pullout. For a coarser 100 P/R version pick the E6C2-CWZ5B 100P-R. For a smaller 40 mm body use the E6B2-CWZ6C 300P-R.
Key Features
- E6C2-C-series 50 mm incremental rotary encoder, 1024 pulses per revolution, 5 to 24 VDC supply
- NPN open-collector output on phases A, B, Z, maximum response frequency 100 kHz, maximum speed 6,000 r/min
- IP64 oil-proof body with sealed bearing, 6 mm SUS420J2 stainless steel shaft, 10 mN.m starting torque
- 2 m oil-resistant PVC pre-wired cable with side or rear diagonal pullout, 80 mA current draw
- SKU: E6C2-CWZ6C 1024P-R 2M
- Series: E6C2-C-series general-purpose incremental rotary encoder, 50 mm body diameter
- Voltage: 5 TO 24 VDC
Best-Fit Applications
- Spindle speed feedback on a CNC lathe where the E6C2-CWZ6C 1024P-R 2M feeds 1024 P/R to the servo drive position loop
- Conveyor length tracking on a packaging line where the encoder pulses multiply into meters per shift for the operator dashboard
- Spare replacement on a rotary table where the older E6B2-CWZ6C 300P-R is upgraded to the 1024 P/R E6C2-CWZ6C for finer index resolution
Buying Checklist
- Pick the E6C2-CWZ6C 1024P-R 2M for a 50 mm incremental encoder at 1024 pulses per revolution with NPN open-collector output and a 2 m cable.
- Pick the E6C2-CWZ5B 100P-R instead when the controller only needs 100 P/R and the cabinet can use the smaller 50 mm body on a slow conveyor.
- Pick the E6B2-CWZ6C 300P-R instead when the existing mount is a 40 mm encoder body and the spare shaft coupling is already E69-C04B size.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | E6C2-C-series general-purpose incremental rotary encoder, 50 mm body diameter |
| Model / SKU | E6C2-CWZ6C 1024P-R 2M |
| Resolution | 1024 pulses per revolution (P/R) |
| Supply Voltage | 5 to 24 VDC (5 -5 percent to 24 +15 percent V, ripple 5 percent peak-to-peak or less) |
| Output | NPN open collector on phases A, B, Z; 30 VDC applied voltage max, 35 mA sink current max, 0.4 V residual at 35 mA |
| Response / Speed | 100 kHz maximum response frequency, 6,000 r/min maximum rotational speed |
| Shaft / Body | 6 mm SUS420J2 stainless steel shaft, aluminum 50 mm housing, IP64 oil-proof sealed bearing |
| Starting Torque | 10 mN.m or less; moment of inertia 1 x 10^-6 kg.m^2 or less |
| Cable | 2 m pre-wired oil-resistant PVC, side or rear diagonal pullout, 5 cores shielded |
| Current Draw | 80 mA or less at 5 to 24 VDC (inrush about 9 A for 0.3 ms at power-on) |
| Environment | -10 to +70 C operating, -25 to +85 C storage, 35 to 85 percent humidity (no condensation); approximately 400 g packed |
FAQ for E6C2-CWZ6C 1024P-R 2M
What is the Omron E6C2-CWZ6C 1024P-R 2M used for?
It is a 50 mm incremental rotary encoder for industrial position and speed feedback. It outputs 1024 pulses per revolution across phases A, B, and Z from an NPN open-collector stage. Typical uses are spindle speed feedback on a CNC, conveyor length tracking on a packaging line, and rotary table indexing where fine resolution is needed on a 50 mm body.
E6C2-CWZ6C 1024P-R vs E6B2-CWZ6C 300P-R - what is the difference?
Both are Omron incremental rotary encoders with NPN open-collector output. The E6C2-CWZ6C 1024P-R is the 50 mm body at 1024 P/R with IP64 oil-proof sealing; the E6B2-CWZ6C 300P-R is the smaller 40 mm body at 300 P/R. Pick the E6C2-C for higher resolution and harsher environments; pick the E6B2 when the cabinet already has a 40 mm mount and the existing coupling is the E69-C04B.
Does the E6C2-CWZ6C 1024P-R need a line-driver receiver?
Yes, on long cable runs. The E6C2-CWZ6C is NPN open-collector only. For runs above 10 m on a noisy panel, add a pull-up resistor to 24 VDC at the receiver input or switch to the line-driver E6C2-CWZ6C 1024P/R 2M variant for RS-422A differential signaling.
What shaft coupling pairs with the E6C2-CWZ6C 1024P-R 2M?
E69-C06B (plastic) or E69-C06M (metal). The 6 mm shaft on the encoder mates to either coupling on the driven shaft, with parallel offset up to 0.1 mm and angular offset up to 1 degree. The couplings are sold separately from the encoder.
What is the maximum cable length for the E6C2-CWZ6C 1024P-R?
The factory cable is 2 m. For longer runs the rise/fall time of the open-collector output limits practical distance to about 10 m at 24 VDC with a 1 kOhm load. For longer runs or noisy environments, use the line-driver E6C2-CWZ6C 1024P/R variant and a shielded twisted-pair cable up to 100 m.
