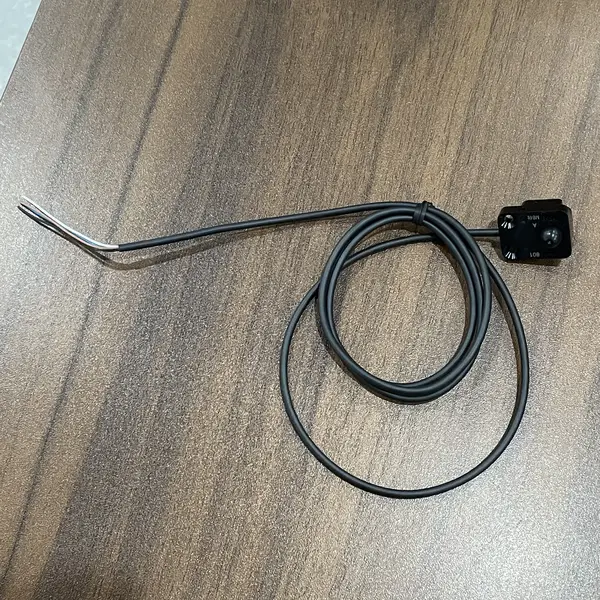

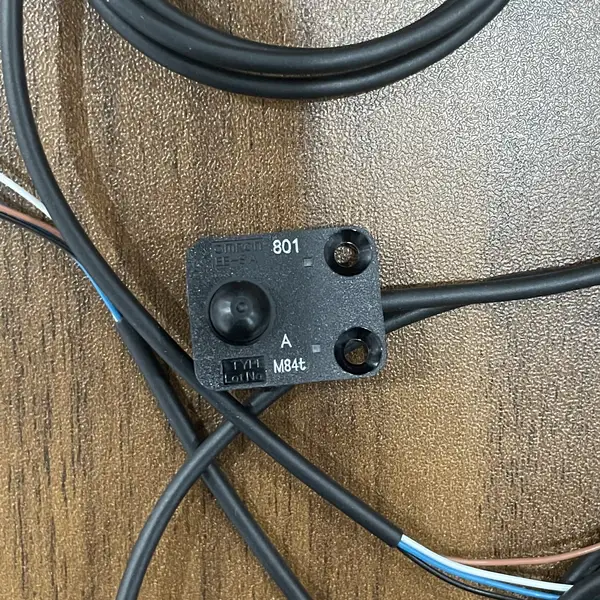

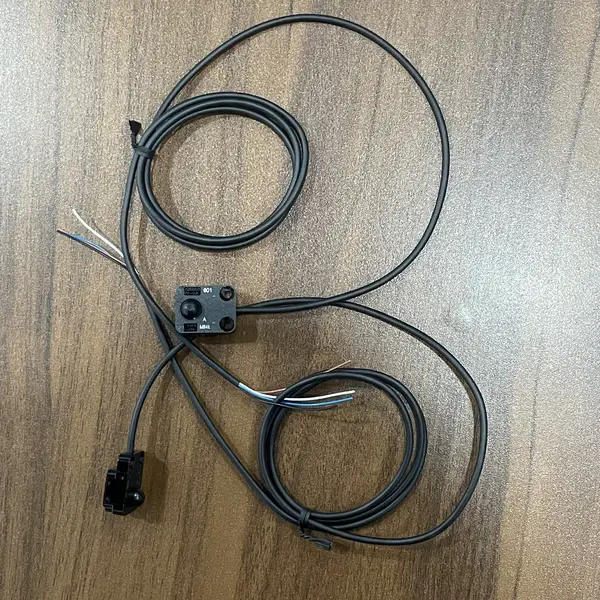

Omron EE-SA801A — Pushbutton Photomicrosensor, NPN
SKU: EE-SA801AUSD 40.00
Omron EE-SA801A pushbutton photomicrosensor, NPN, 3.5 mm operating position, 12-24 VDC, 1 m pre-wired. In stock.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron EE-SA801A is a pushbutton-type photomicrosensor, manufactured by Omron Corporation. Hengyixin Automation ships this sensor from our Xiamen warehouse with a 30-day DOA return window and a datasheet PDF included in the box.
The sensor uses a GaAs infrared LED emitter and a silicon photo-IC receiver. Operating position is 3.5 to 4.5 mm with a free position of 5.0 mm and 0 mm total travel. Operating load is 3 N max, 0.5 N typical. It runs from a 12 to 24 VDC supply at 35 mA max and outputs NPN open-collector up to 50 mA with 0.4 V residual.
Response time is 1 ms and the polarity protection diode is built in. Operating temperature is -25 to +55 C. The case is polycarbonate, the actuator is polyacetal, and the 1 m pre-wired cable ends in bare leads. The EE-SA801R is the PNP sibling. For a slot-style optical switch with the same family heritage, pick the EE-SX674.
Key Features
- Pushbutton-type photomicrosensor, GaAs infrared LED + Si photo-IC, 940 nm
- Operating position 3.5 to 4.5 mm, free position 5.0 mm, total travel 0 mm max, 3 N max operating load
- 12 to 24 VDC supply, 35 mA max, NPN open-collector output 50 mA / 0.4 V residual, 1 ms response

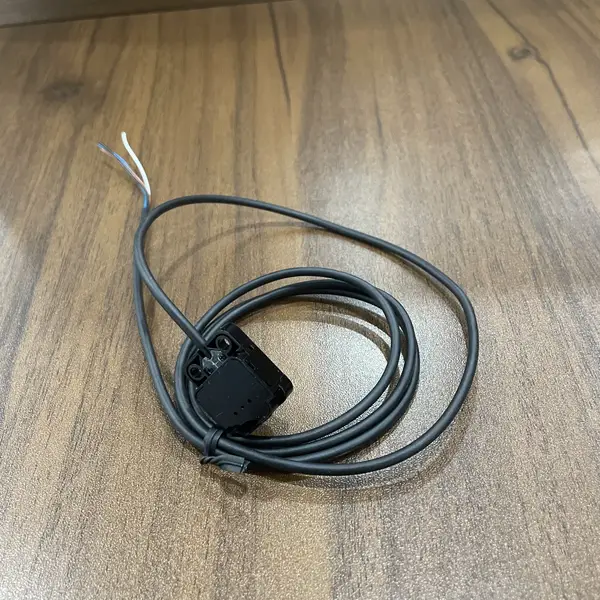

- 1 m pre-wired standard cable, polycarbonate case, polyacetal actuator, IP40, 16.1 g
- SKU: EE-SA801A
- Series: Omron EE-SA701 / 801 pushbutton photomicrosensor family
- Voltage: 12 TO 24 VDC
Best-Fit Applications
- FOUP cassette seating check on a semiconductor loader where the pushbutton confirms the pod is down regardless of bottom colour or reflectance
- Lightweight tray presence check on a small pick-and-place station where 0.5 N operating load protects the tray from damage
- End-of-arm tool position check on a transfer arm where the 1 ms response catches arrival before the next motion
Buying Checklist
- Pick the EE-SA801A for a pushbutton photomicrosensor with NPN output on 12 to 24 VDC.
- Pick the EE-SA801R instead when the cabinet needs a PNP output instead of NPN.
- Pick the EE-SX674 instead when the line needs a slot-style through-beam optical switch with the same 5 V to 24 V supply range.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron EE-SA701 / 801 pushbutton photomicrosensor family |
| Model / SKU | EE-SA801A |
| Sensing Method | Pushbutton (mechanical plunger + optical detection) |
| Operating Position | 3.5 to 4.5 mm (FP 5.0 mm, TTP 0 mm max) |
| Operating Load | 3 N max (typical 0.5 N) |
| Supply Voltage | 12 to 24 VDC +/- 10%, ripple p-p 10% max, 35 mA max |
| Control Output | NPN open collector, 5 to 24 VDC, 50 mA max, 0.4 V residual |
| Response Time | 1 ms max |
| Protection | Reversed power-supply polarity protection, IP40 |
| Operating Temperature | -25 to +55 C, 5 to 85 percent RH |
| Mechanical Durability | 5,000,000 operations min |
FAQ for EE-SA801A
Is the EE-SA801A a fiber amplifier?
No. The EE-SA801A is a pushbutton-type photomicrosensor with a built-in GaAs infrared LED and Si photo-IC. It does not need a fiber cable or external amplifier.
What is the sensing distance of the EE-SA801A?
Output is ON with no load (FP = 5.0 mm). When the actuator is pressed, the output reverses between 3.5 and 4.5 mm. Total travel is 0 mm max.
What cable does the EE-SA801A ship with?
A 1 m pre-wired standard vinyl cable with bare leads on the user end. For a 1 m robot cable, pick the EE-SA701R-R.
Is the EE-SA801A PNP or NPN?
NPN. The EE-SA801R is the PNP sibling with the same housing, supply, and 1 m pre-wired cable.
