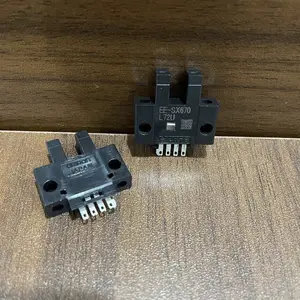

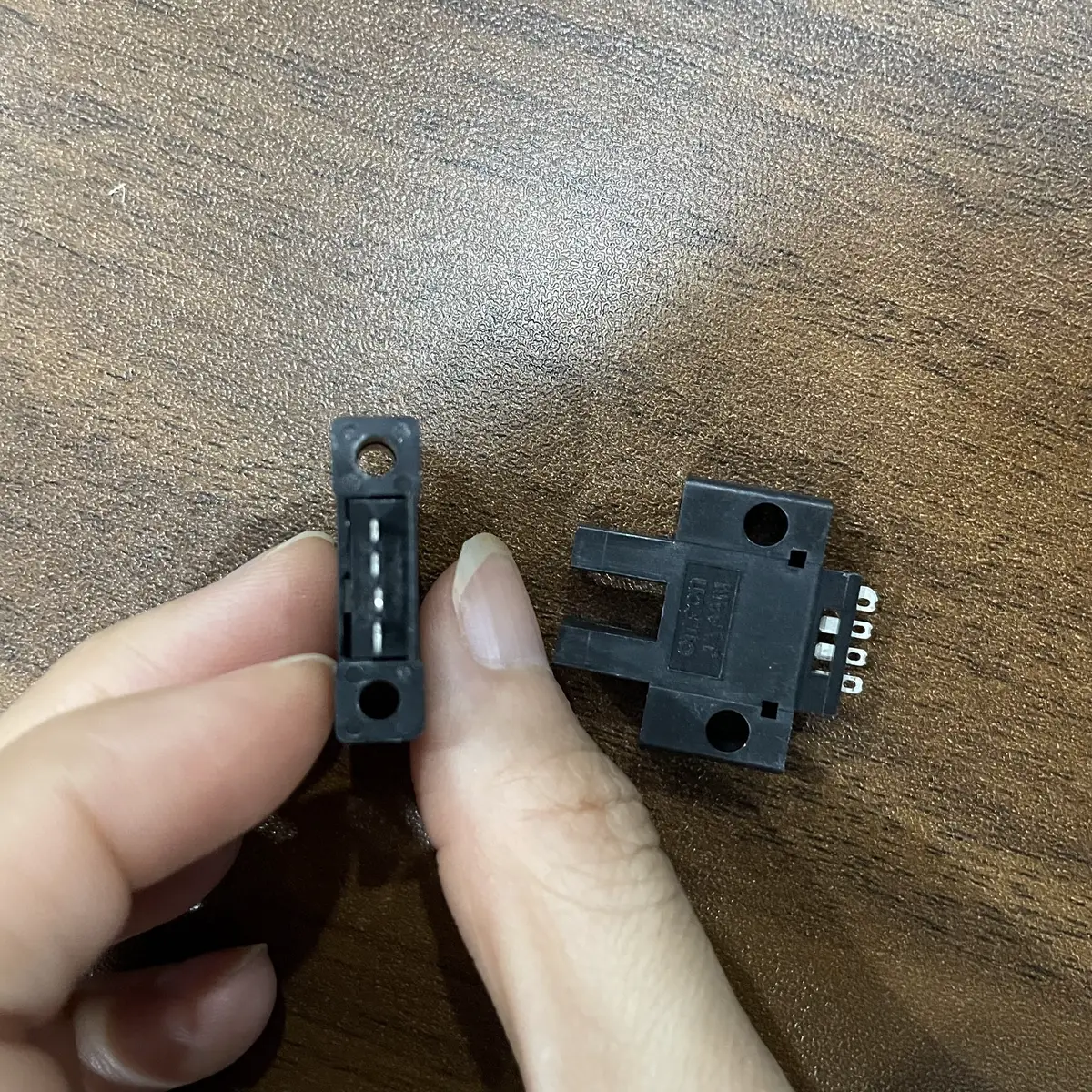

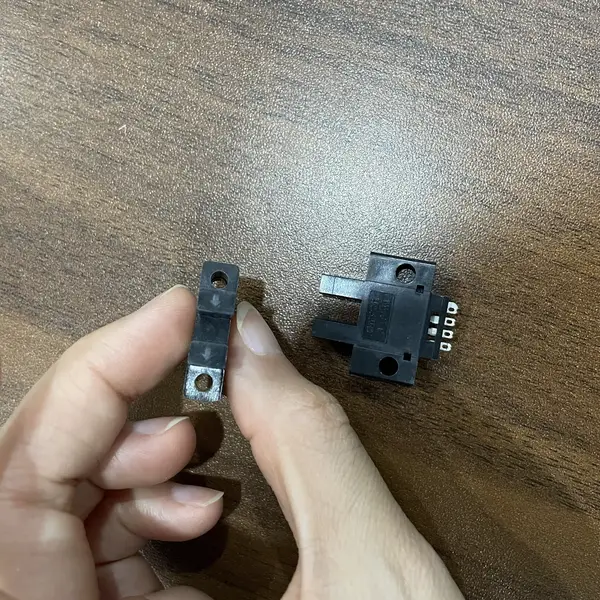

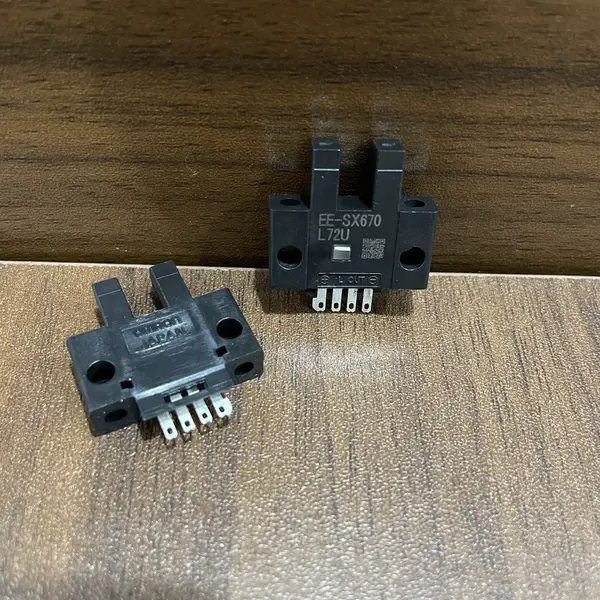

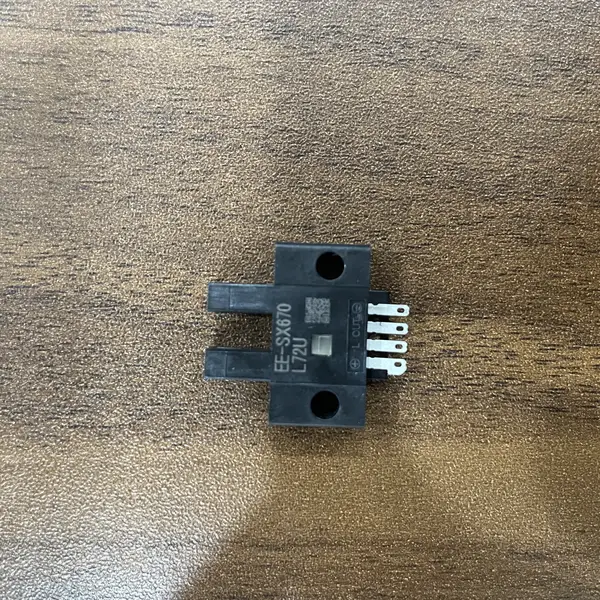

Omron EE-SX670 slot photomicrosensor — standard U-shape body with 5 mm slot width and connector on rear face

Omron EE-SX670 — Slot Sensor, 5 mm NPN Connector

SKU: EE-SX670

USD 5.00

EE-SX67 standard-shape slot photomicrosensor, 5 mm slot, NPN Dark-ON/Light-ON selectable, 100 mA direct switching, EE-1001 connector harness — for fixed-gap part detection.

1-Year Warranty Full manufacturer warranty
Global Shipping Worldwide delivery available
Genuine Omron 100% authentic product
Ready to Ship Usually ships within 24h
In Stock

This item is available for immediate shipment from our warehouse.

Request Quote

Contact for pricing, bulk discounts, and shipping

Product Overview

The EE-SX670 is the standard-body model of Omron's EE-SX67 family — a fixed-gap slot photomicrosensor with a U-shaped body, 5 mm slot width, and a system connector on the rear of the unit. The slot houses an infrared LED on one side and a phototransistor on the other; any opaque part passing through the slot blocks the beam and toggles the output. The 25.4 × 22.2 mm rectangular PBT body has 2 mm mounting holes on each side and snaps directly to the EE-1001 connector harness — the wiring is field-replaceable without re-stripping or re-soldering.

Where the standard body fits vs L-shaped and T-shaped

The EE-SX67 family offers four body shapes for different mechanical layouts: standard (SX670), L-shaped (SX671), T-shaped with slot center 7 mm (SX672), and T-shaped with slot center 10 mm (SX674). The standard SX670 body is used where the sensor mounts to a flat bracket and the part passes through perpendicularly to the mounting surface — the most common configuration in feeder bowls, label applicators, and small parts counters. The L-shaped SX671 turns 90° to fit where depth is constrained.

Connector harness family and pre-wired option

The EE-SX670 (this SKU) terminates in an Omron EE-1001-style connector on the rear. Use the EE-1001 harness for a 1 m pre-wired lead — the harness has four colour-coded wires: brown = +V (5 to 24 VDC), blue = 0 V, black = output (NPN open collector), and pink/orange = L/D (Light-ON / Dark-ON select — leave open for Light-ON, tie to 0 V for Dark-ON). For other lengths: EE-1001 (1 m), EE-1001-1 (500 mm). For a pre-wired integral cable, skip the connector and order the EE-SX670-WR or EE-SX670-WR 1M which have the cable moulded in.

Key Features

  • 5 mm slot width for small-part detection
  • Standard-body EE-SX67 family — flat-mountable on brackets with 2 mm side holes
  • NPN open collector output, 100 mA direct switching
  • Dark-ON / Light-ON mode select via pink/orange wire on EE-1001 harness
  • 0.17 ms response time — adequate for high-speed counting up to 1 kHz
  • 5 to 24 VDC ±10 % supply, compatible with 5 V and 24 V logic
  • EE-1001 connector-system wiring harness
  • PBT housing, IEC IP50
  • SKU: EE-SX670
  • Series: EE-SX47 / EE-SX67 (EE-SX67 family, 50–100 mA direct switching)
  • Voltage: 5 TO 24 VDC
  • I/O: 670 I/O

Best-Fit Applications

  • Edge / position detection on feeders and label applicators where a tab passes through the 5 mm slot
  • Tape end-of-reel detection in automated tape feeders where the splice triggers an alarm
  • Part-out detection on vial or syringe counters in pharmaceutical assembly
  • Small parts counting on feeders for pick-and-place machines

Buying Checklist

  • Pick the EE-SX670 when you need a connector harness so you can unplug and service without cutting wires
  • Pick the EE-SX670-WR when you want a 1 m integral pre-wired cable
  • Pick the EE-SX671 when the sensor must mount with the slot axis parallel to the bracket surface
  • Pick the EE-SX672 when you need to mount the sensor mid-air with a 7 mm slot center
  • Pick the EE-SX674 when the slot center must be 10 mm for larger tabs or wider parts
  • Pick the EE-SX670-P when you need PNP source output to feed a 24 V sourcing-input card without inversion

Technical Specifications

Model EE-SX670
Series EE-SX47 / EE-SX67 (EE-SX67 family, 50–100 mA direct switching)
Sensing Method Through-beam slot (U-shaped fixed-gap)
Slot Width 5 mm
Slot Depth 9 mm (each arm)
Output Configuration NPN open collector, Dark-ON / Light-ON selectable
Direct Switching Capacity 100 mA at 30 VDC (drives small relays)
Supply Voltage 5 to 24 VDC ±10 %
Current Consumption Average ≤ 25 mA at 24 VDC
Operating Temperature -25 to +55 °C (no icing)
Body Dimensions 25.4 (W) × 22.2 (H) × 10 (D) mm
Mounting Holes 2 × 2.3 mm holes on 15 mm centres
Compatible PLC Inputs All Omron DC input cards via NPN open-collector; for PNP source use the EE-SX670-P suffix
Certifications UL, CE

FAQ for EE-SX670

What's the difference between the EE-SX670 and the EE-SX670-WR?
The SX670 (this SKU) has a connector system on the rear that mates with the EE-1001 (1 m) or EE-1001-1 (500 mm) harness. The SX670-WR has a 1 m PVC cable moulded directly into the housing with the same colour code. Pick the SX670 + EE-1001 when the cable route has a service loop or a kink point where you want the option to unplug the sensor without cutting the cable.
Can the EE-SX670 drive a relay coil directly?
Yes. The NPN output sinks up to 100 mA at 30 VDC, so it can drive small 24 VDC relay coils (G2R-1-S DC24 for example) or 24 VDC indicators directly. With the G2R-1-S-DC24 coil, the 24 VDC supply goes to the brown wire, blue to 0 V, and black to the relay coil positive (negative to 0 V).
How do I select Dark-ON vs Light-ON on the EE-SX670?
Use the pink (or orange, depending on harness revision) wire on the EE-1001 harness. Leaving the wire open (not connected) selects Light-ON — the output transistor is ON when the slot is clear and turns OFF when a part enters the slot. Tie the wire to 0 V (blue) to select Dark-ON — output is OFF when clear and ON when a part enters.
What's the smallest part the EE-SX670 can detect?
0.5 mm opaque material at high speed (sub-millisecond response) — but for reliable 5 ms response in industrial conditions target at least 1.4 × 5 mm opaque material. Translucent or thin coloured objects may need the EE-SX670-P (PNP with stronger IR drive) or the EE-SX970 visible-red LED slot sensor which can see red and amber translucent targets.
