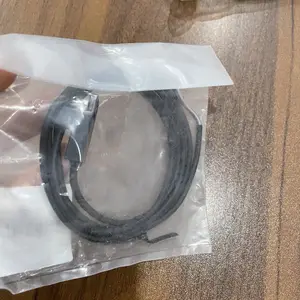

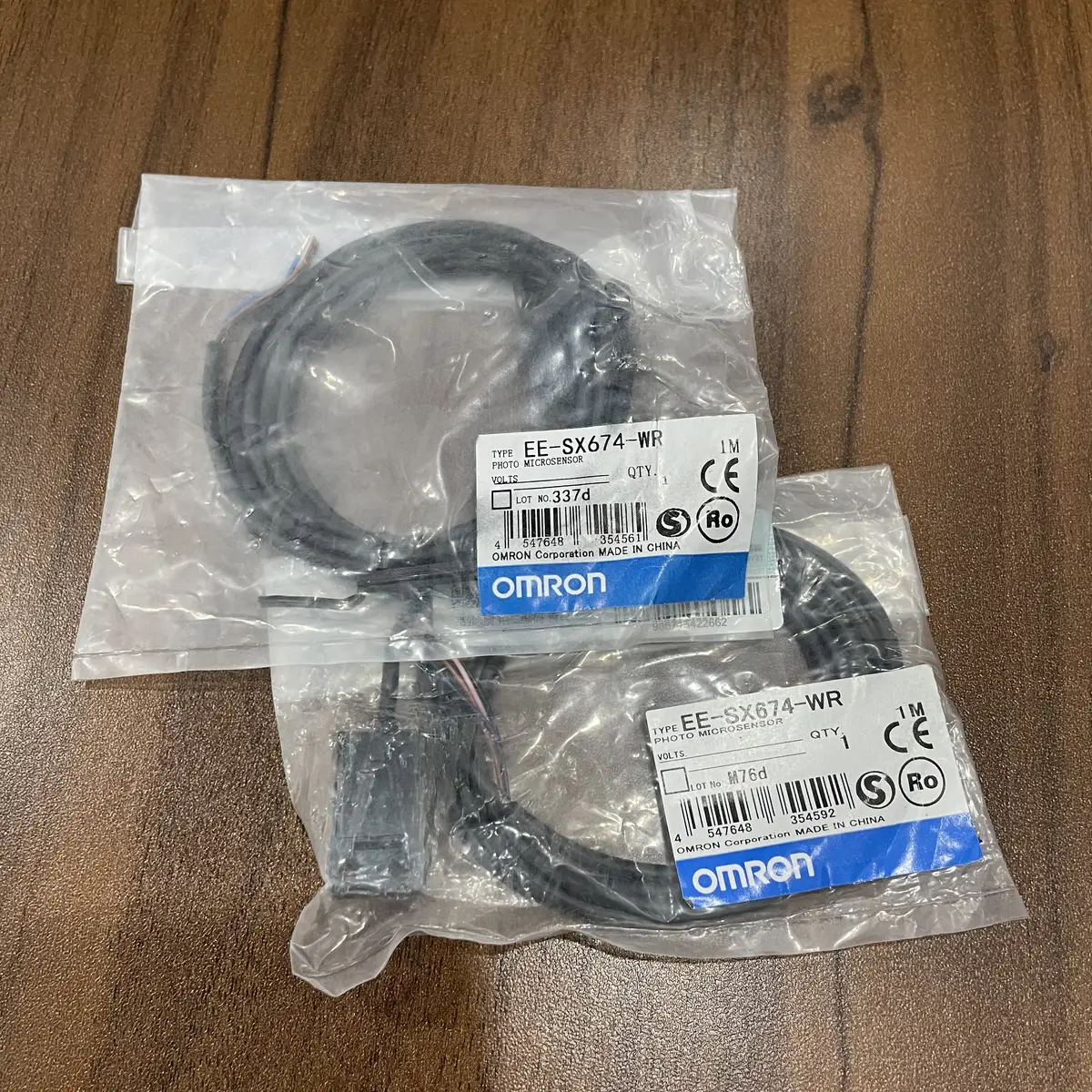

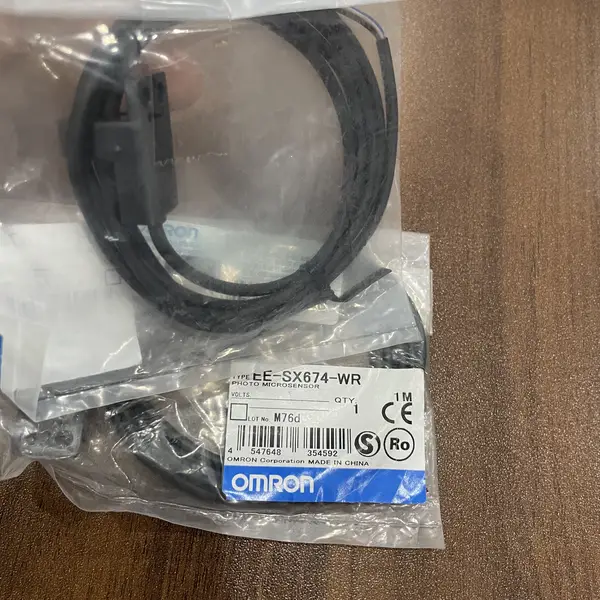

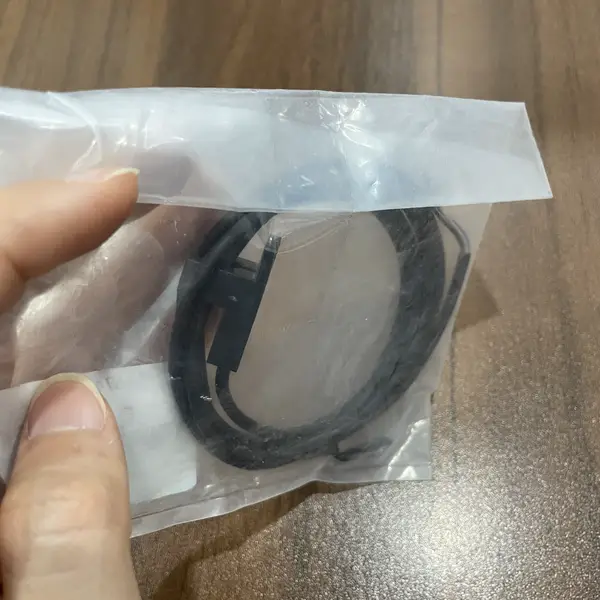

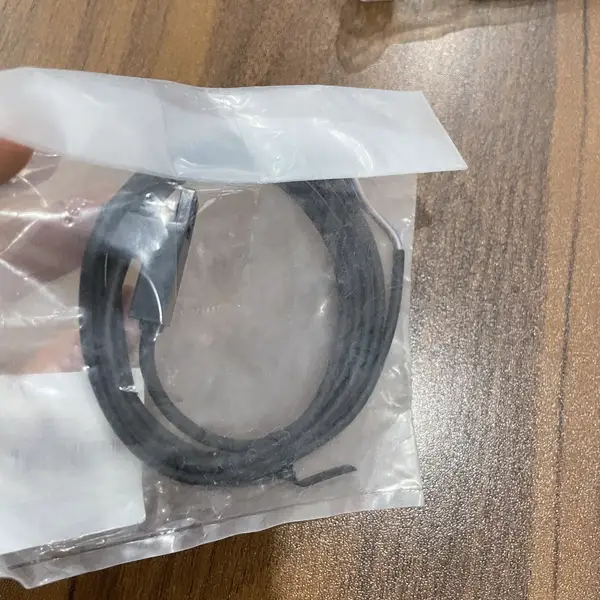

Omron EE-SX674-WR — T-Slot Sensor, 5 mm, NPN, Pre-Wired 1 m
SKU: EE-SX674-WRUSD 6.00
T-shaped close-mounting slot photomicrosensor with 1 m robotic cable, 5 mm slot width / 9 mm depth, NPN open-collector output (100 mA), Dark-ON/Light-ON selectable via L terminal, 5-24 VDC, 0.17 ms response.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The EE-SX674-WR is the pre-wired sibling of the EE-SX674 slot photomicrosensor — same T-shaped close-mounting body with 5 mm slot width and 9 mm slot depth, but with a permanently attached 4-conductor robotic cable instead of a 4-pin system connector. This makes the EE-SX674-WR the right pick when the sensor head is mounted in a location where a separate harness would be at risk of vibration loosening (presses, stamping machines, robotic weld cells) or when a sealed cable entry through a control cabinet wall is preferred to a removable connector.
Where the EE-SX674-WR fits in the EE-SX47 / SX67 family
The EE-SX47 / SX67 family is split along three axes: profile (standard / L-shaped / T-shaped 7 mm / T-shaped 10 mm), output (NPN or PNP), and connection (connector model or pre-wired -WR). The "674" identifies the T-shape slot center 10 mm profile; the "-WR" identifies the pre-wired cable connection. The full T-shape 10 mm lineup: EE-SX674 (connector model, NPN), EE-SX674P (connector model, PNP), EE-SX674A (Dark-ON fixed), EE-SX674R (Light-ON fixed), EE-SX674-WR (pre-wired NPN, this SKU), EE-SX674P-WR (pre-wired PNP), EE-SX674-WR 1M / 2M / 5M / 7M (pre-wired cable length variants).
Wire colours, L terminal, and Dark/Light-ON switching
The EE-SX674-WR has 4 colour-coded wires moulded into the cable: brown = Vcc (5 to 24 VDC), pink = L (Light/Dark select), blue = GND (0 V), black = OUTPUT (NPN open-collector). For Dark-ON (output ON when the beam is broken by a target entering the slot — the typical setup for end-of-stroke detection): connect brown to +V, blue to 0 V, black to the PLC input, and either leave pink disconnected or connect it to 0 V.
Mounting, response, and installation notes
The EE-SX674-WR body is 15.5 mm wide × 13.6 mm high × 13.6 mm deep and weighs approximately 17 g with the 1 m cable. Mount the sensor with two M3 screws through the 3.5 mm clearance holes in the body, tightened to 0.4-0.5 N·m torque — over-tightening will crack the PBT housing. The slot is set back 10 mm from the mounting face (the close-mounting feature), which means the moving target can come within 10 mm of the sensor face without mechanical interference — useful for short-stroke pneumatic cylinders and compact linear slides.
Key Features
- T-shaped close-mounting slot photomicrosensor, slot center 10 mm
- 5 mm slot width, 9 mm slot depth
- Pre-wired 1 m robotic cable
- NPN open-collector output, 100 mA switching current
- Dark-ON / Light-ON logic selectable via pink L terminal
- Operating voltage 5 to 24 VDC ±10 %
- Current consumption 12 mA max
- Response time 0.17 ms
- SKU: EE-SX674-WR
- Series: EE-SX47 / SX67 (Slot-type photomicrosensor, non-modulated)
- Voltage: 24 VDC
- I/O: 100 I/O
Best-Fit Applications
- End-of-stroke detection on a pneumatic cylinder where vibration risks loosening a connector — the pre-wired cable eliminates that failure mode
- Label-presence detection on a packaging line where the sensor head is mounted inside the machine frame and the cable routes.
- Pulse counting from a slotted disc on a rotary indexing table — up to 1 kHz counting rate, the 1.
- Home-position detection on a linear slide where the sensor body sees direct cable flex — the EE-SX674-WR robotic cable is.
Buying Checklist
- Pick EE-SX674-WR for a pre-wired T-shape 10 mm slot sensor with selectable Dark/Light-ON
- Pick EE-SX674 if you need a removable EE-1006 / EE-1010 connector harness — easier field replacement
- Pick EE-SX674P-WR for PNP sourcing output
- Pick EE-SX674A for Dark-ON fixed — cannot be accidentally switched to Light-ON
- Pick EE-SX674R for Light-ON fixed — typical for fail-safe absence detection
- Pick EE-SX672-WR for T-shape slot center 7 mm — narrower target engagement
Technical Specifications
| Model | EE-SX674-WR 1M |
|---|---|
| Series | EE-SX47 / SX67 (Slot-type photomicrosensor, non-modulated) |
| Type | T-shaped close-mounting slot sensor, pre-wired |
| Sensing Method | Through-beam (with 5 mm slot) |
| Slot Width | 5 mm |
| Slot Depth | 9 mm |
| Slot Center Position | 10 mm from mounting face (close-mounting) |
| Light Source | Red LED (660 nm), non-modulated |
| Output Type | NPN open-collector transistor |
| Output Current | 100 mA max (sink) |
| Output Voltage Rating | 24 VDC max |
| Residual Voltage | 0.8 V max (at 100 mA load) |
| Leakage Current | 0.1 mA max |
| Operating Voltage | 5 to 24 VDC ±10 % |
| Current Consumption | 12 mA max (NPN version) |
Resources & Downloads
FAQ for EE-SX674-WR
What's the difference between EE-SX674-WR and EE-SX674?
The only functional difference is the connection method. EE-SX674 (this SKU's connector sibling) ships as a bare sensor body with 4 PCB pins on the rear and requires a separate EE-1006 (1 m / 2 m) or EE-1010 (1 m / 2 m / robot-cable) connector harness. EE-SX674-WR (this SKU) ships with a 1 m robotic cable permanently attached to the sensor body — no separate harness to buy, no connector to loosen over time.
What are the four wire colors and what does each do?
The EE-SX674-WR has 4 colour-coded wires moulded into the robotic cable: brown = Vcc (5 to 24 VDC supply), pink = L (Light/Dark select terminal), blue = GND (0 V supply), black = OUTPUT (NPN open-collector output to the PLC input). The colour coding is identical to the EE-1006 / EE-1010 harness used with the connector-model EE-SX674 — so if you migrate between the connector and pre-wired variants, the wiring is the same.
How long can the cable be on the EE-SX674-WR?
The EE-SX674-WR is available in four standard cable lengths: 1 m (this SKU), 2 m, 5 m, and 7 m. The model number changes to EE-SX674-WR 2M, EE-SX674-WR 5M, or EE-SX674-WR 7M.
Can I cut and re-terminate the cable on the EE-SX674-WR?
Yes — the cable can be cut to length and re-terminated with any standard 4-conductor connector (M8, M12, or terminal block) provided the conductor-to-connector mapping is preserved (brown = +V, pink = L, blue = 0 V, black = OUTPUT). The cable is a standard 4-conductor robotic cable, so any M8 / M12 4-pin connector can be attached.
