Omron EE-SX672 — T-Shaped Slot Sensor, 5 mm, NPN
SKU: EE-SX672USD 6.00
T-shaped slot-type photomicrosensor with 5 mm slot width and 7 mm slot center, NPN open-collector output, Dark-ON/Light-ON selectable, 0.17 ms response, EE-1001 connector model.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview

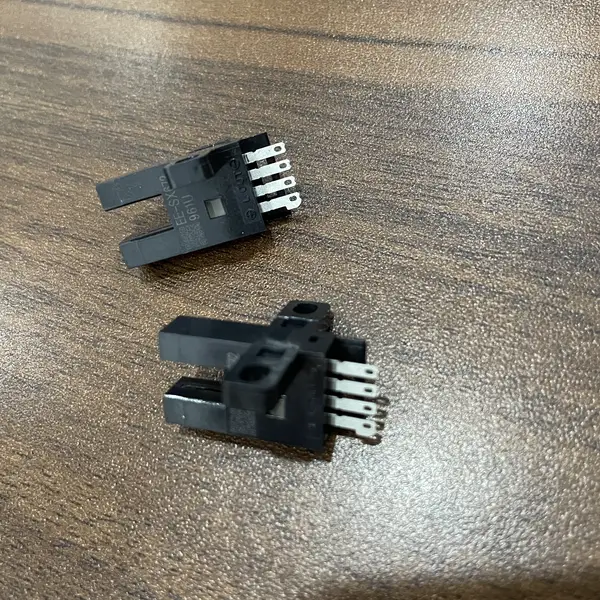

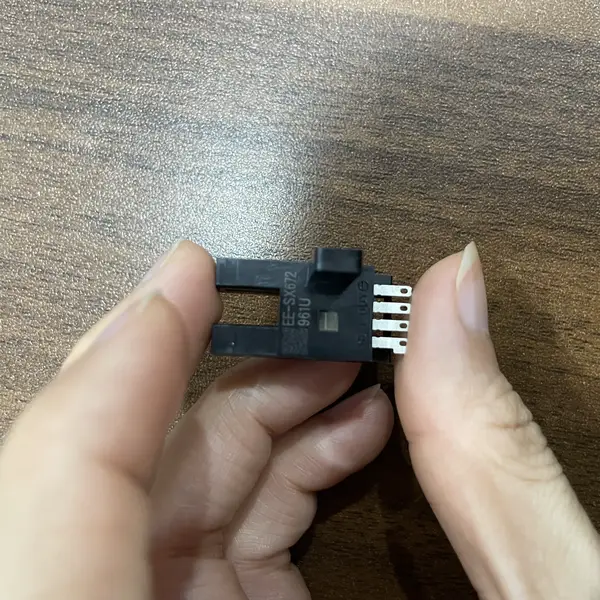

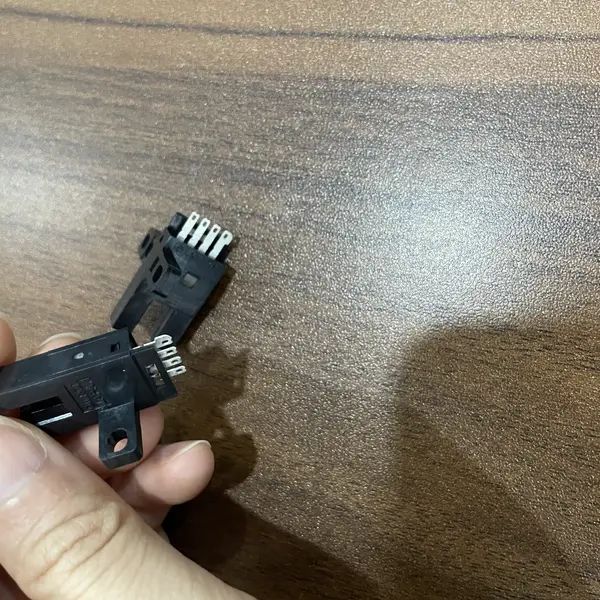

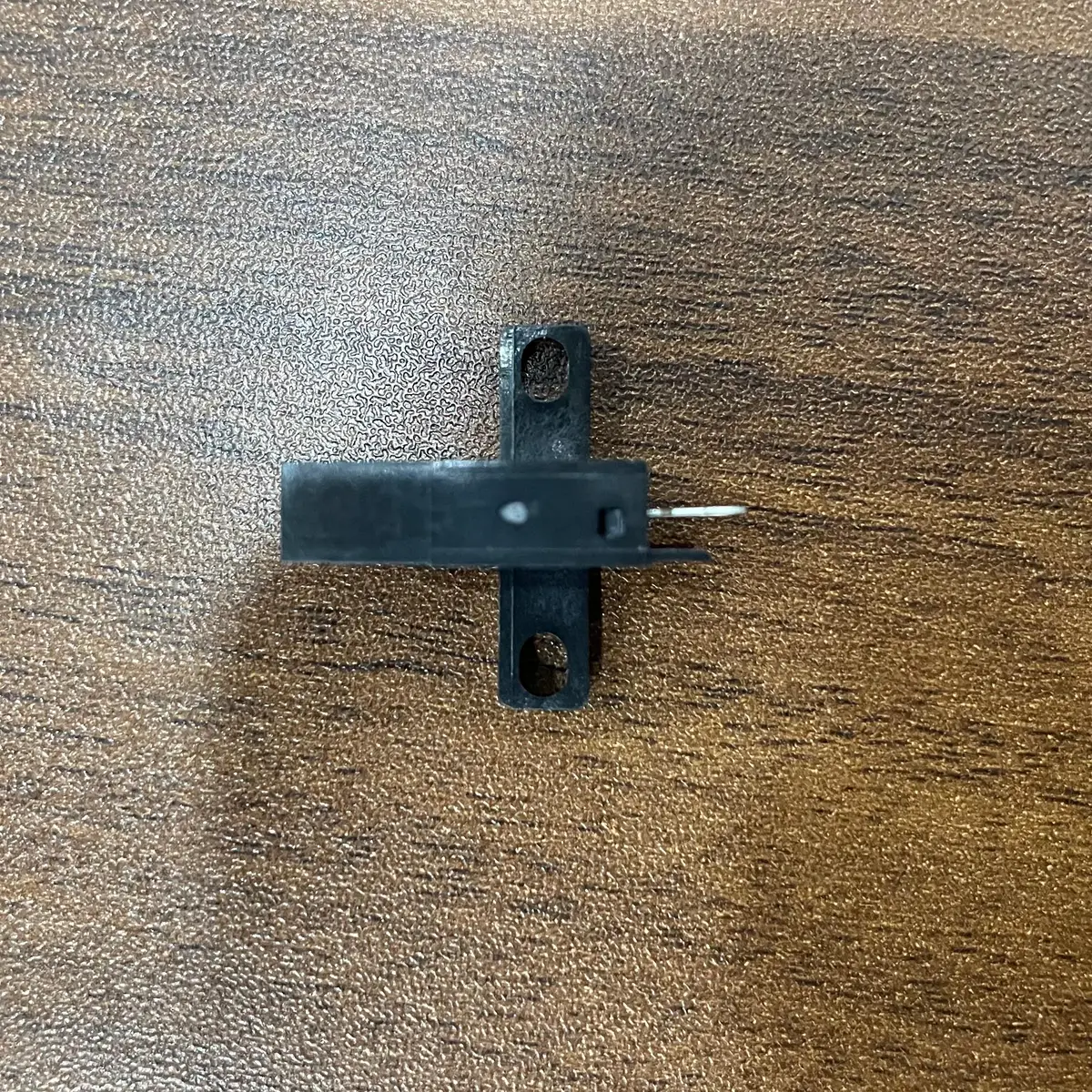

The EE-SX672 is the T-shaped variant of Omron's EE-SX67 family of slot-type photomicrosensors, with a 5 mm slot width centred 7 mm from the mounting face. It uses an infrared through-beam pair — emitter and receiver face each other across the slot — so any opaque object passing through the gap breaks the beam and switches the output. The T-shaped body lets the sensor overhang the edge of a mechanism, useful when the actuator flag passes close to the mounting surface and a standard L-shaped or inline body would collide with the linkage.
Where this SKU fits in the EE-SX67 lineup
The EE-SX67 family splits along three axes: slot width, slot-centre distance, and shape. Within the 5 mm slot-width tier you have EE-SX670 (standard straight body), EE-SX671 (L-shape, slot center 7 mm), EE-SX672 (T-shape, slot center 7 mm, this SKU), and EE-SX673 (close-mounting variant for tight pitch). The 10 mm slot-centre variants are EE-SX674 and EE-SX675. On the output axis: the plain EE-SX672 is NPN with Dark-ON/Light-ON selectable; the -A suffix is Light-ON fixed; the -R suffix is Dark-ON fixed; the -P suffix is PNP selectable.
Wiring and the EE-1001 connector
The connector version requires the Omron EE-1001 (or EE-1001-1, with L-terminal shorted to positive for fixed Light-ON) connector with cable. Standard harness lengths are 1 m and 2 m; a robotic-flex cable version EE-1010-R is available for cable-track installations. Pin assignments: brown = Vcc (5 to 24 VDC), black = output, blue = 0 V, and the white L terminal selects Dark-ON (leave open) or Light-ON (tie to Vcc). Supply range is 5 to 24 VDC ± 10%; the sensor draws about 15 mA. The output transistor sinks up to 100 mA at 30 VDC, enough to drive a PLC input, a small relay coil, or a counter directly.
Application in a packaging or assembly line
The most common application for the EE-SX672 is end-of-stroke detection on a small pneumatic slide — a flag attached to the moving part passes through the 5 mm slot and gives a clean position pulse to the PLC without contact wear. It is also used for counting small parts on a feeder bowl: parts drop one at a time through the slot, each one producing a count pulse. On a label applicator, the label web passes through the slot and the sensor detects the gap between labels.
Key Features
- T-shaped body with 5 mm slot width and 7 mm slot centre distance
- Through-beam infrared sensing, 0.17 ms response time
- NPN open-collector output, 100 mA at 30 VDC switching capacity
- Dark-ON / Light-ON selectable via the L terminal
- 5 to 24 VDC ± 10% supply, ~15 mA current draw
- EE-1001 connector with cable harness required
- PBT housing, IP50 protection, weight ~2.4 g
- Slot depth 9 mm, body ~13.7 × 26 × 10.8 mm
- SKU: EE-SX672
- Series: EE-SX67
- Voltage: 5 TO 24 VDC
Best-Fit Applications
- End-of-stroke detection on a small pneumatic slide in a pick-and-place station
- Counting small parts as they drop one-by-one through the slot on a vibratory feeder
- Label-web gap detection on a labelling machine — flag missing means label missing
- Index-drum position pulse on a rotary indexing table in an assembly line
Buying Checklist
- Pick EE-SX672 when you need a 5 mm slot in a T-shape with NPN selectable output
- Pick EE-SX672-WR 1M if you want a 1 m pre-attached cable instead of buying the EE-1001 connector separately
- Pick EE-SX672A or EE-SX672R if you do not want to use the L terminal and reduce wiring risk
- Pick EE-SX674 when the flag path is wider than 7 mm and the T overhang is not needed
- Order EE-1001 connector with cable separately — the sensor ships without a harness
- For washdown environments, switch to the IP67/IP69K E3Z-T61 in an M8 connector body
Technical Specifications
| Model | EE-SX672 |
|---|---|
| Series | EE-SX67 |
| Type | Slot-type photomicrosensor (through-beam with slot) |
| Shape | T-shaped (slot center 7 mm) |
| Slot Width | 5 mm |
| Slot Depth | 9 mm |
| Slot Center | 7 mm from mounting face |
| Light Source | Infrared LED |
| Sensing Method | Through-beam with slot |
| Output Type | NPN open collector |
| Supply Voltage | 5 to 24 VDC ± 10% |
| Current Consumption | ~15 mA |
| Switching Capacity | 100 mA at 30 VDC max |
| Dimensions (W×H×D) | ~13.7 × 26 × 10.8 mm |
| Operating Temperature | −25 to +55 °C |
Resources & Downloads
FAQ for EE-SX672
What is the difference between EE-SX672 and EE-SX672-WR?
The plain EE-SX672 is the connector model — it requires an Omron EE-1001 connector with cable (sold separately, available in 1 m and 2 m lengths). The EE-SX672-WR ships with a 1 m pre-attached cable, so no extra connector is needed. Both have the same T-shaped body, 5 mm slot, NPN selectable output, 0.17 ms response, and IP50 housing.
How do I select Dark-ON or Light-ON on the EE-SX672?
The sensor has a fourth white 'L' terminal that toggles the operation mode. Leave the L terminal open for Dark-ON (output transistor turns ON when the beam is interrupted). Connect L to Vcc (+5 to +24 VDC) for Light-ON (output transistor turns ON when the beam reaches the receiver uninterrupted). The Omron EE-1001-1 connector has the L terminal shorted to the brown Vcc wire internally, giving fixed Light-ON without an extra wire.
What is the difference between EE-SX670, EE-SX671, EE-SX672, EE-SX673, and EE-SX674?
All are 5 mm slot-width slot sensors in the EE-SX67 family. EE-SX670 is the standard straight body. EE-SX671 is L-shaped with slot center 7 mm. EE-SX672 is T-shaped with slot center 7 mm. EE-SX673 is the close-mounting variant for tight sensor pitch. EE-SX674 is T-shaped with slot center 10 mm (deeper flag path). Pick the shape that fits your mechanical layout and the slot-centre distance that matches your flag travel.
Can the EE-SX672 be used outdoors or in washdown?
No — the EE-SX672 is IP50, meaning it is dust-protected but not sealed against water jets or immersion. For outdoor installations, food-processing washdown, or any environment where water splashes on the sensor, move to a sealed IP67/IP69K family such as the E3Z-T61 (M8 connector body) or the EE-SX67-WR1A sealed-cable variants. The EE-SX672 is for indoor dry panels.
