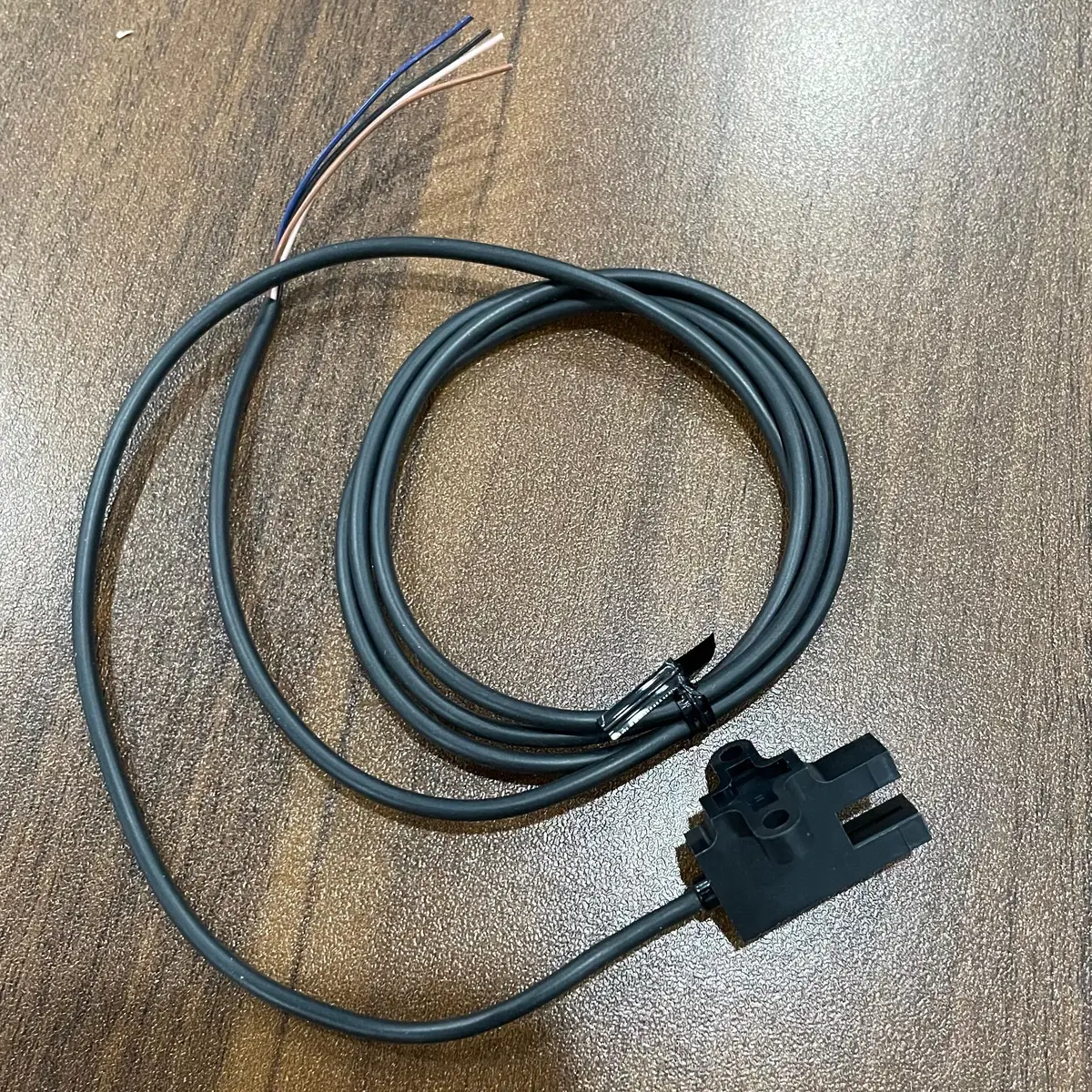

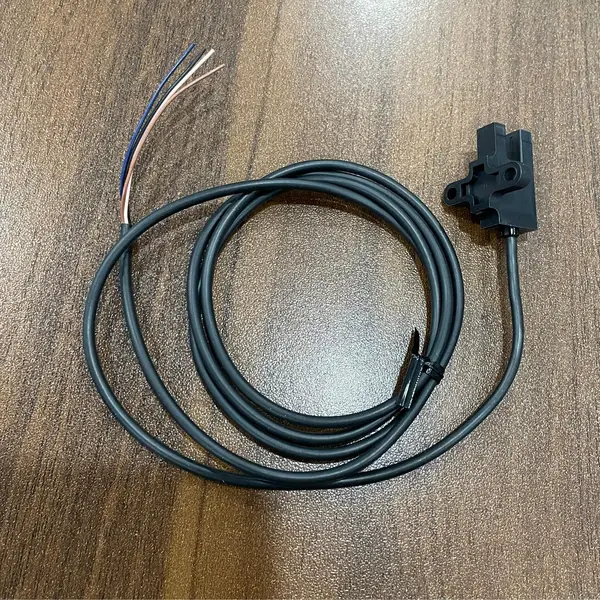

Omron EE-SX675-WR 1M — Slot Sensor, T, 5 mm, NPN
SKU: EE-SX675-WR 1MUSD 8.00
T-shaped slot photomicrosensor, 5 mm slot, NPN, Light/Dark-ON, 1 m robot cable. In stock.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron EE-SX675-WR 1M is a T-shaped slot photomicrosensor from the EE-SX67 family It is manufactured by Omron Corporation. Hengyixin Automation ships this sensor from our Xiamen warehouse with a 30-day DOA return window and a datasheet PDF included in the box.
The emitter and receiver face each other across a 5 mm slot with the optical axis on a 10 mm centre line. The target passes through the slot and breaks the beam.
For a Dark-ON-only cable version, pick the EE-SX674-WR 1M. Key specs: Sensing Method Through-beam slot, T-shaped; Slot Width 5 mm; Slot Centre 10 mm; Output NPN open-collector, Dark-ON / Light-ON selectable; Response Time 0.17 ms; Supply Voltage 5 to 24 VDC; Load Current 100 mA max; Connection 1 m flexible robot cable.
Key Features
- EE-SX67 T-shaped slot photomicrosensor, 5 mm slot width, 10 mm slot centre
- NPN open-collector output, Dark-ON / Light-ON selectable, 0.17 ms response
- 5-24 VDC supply, 100 mA max load, 1 m flexible robot cable
- PBT case with PC emitter / receiver cover, 28.2 x 26 x 16.7 mm, 17 g
- SKU: EE-SX675-WR 1M
- Series: Omron EE-SX67-series photomicrosensor (slot type)
- Voltage: 5 TO 24 VDC
Best-Fit Applications
- Label-edge detection on a labelling machine where the 5 mm slot and 0.17 ms response catch the printed edge as the label feeds through
- Parts counter on a feeder track where the target passes through the slot every cycle and the NPN output drives a CP1W high-speed input
- Tab-position check on a packaging machine where the 5 mm slot fits the existing bracket and the robot cable survives the moving head
Buying Checklist
- Pick the EE-SX675-WR 1M for a T-shaped 5 mm slot photomicrosensor with NPN output and a 1 m robot cable.
- Pick the EE-SX677-WR instead when the bracket needs an L-shaped slot on the same electrical spec.
- Pick the EE-SX675 instead when the panel needs a connector-style (no cable) version with a separate harness.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron EE-SX67-series photomicrosensor (slot type) |
| Model / SKU | EE-SX675-WR 1M |
| Sensing Method | Through-beam slot, T-shaped |
| Slot Width | 5 mm |
| Slot Centre | 10 mm |
| Output | NPN open-collector, Dark-ON / Light-ON selectable |
| Response Time | 0.17 ms |
| Supply Voltage | 5 to 24 VDC |
| Load Current | 100 mA max |
| Connection | 1 m flexible robot cable |
| Protection / Material | IP50; PBT case, PC cover; -25 to +55 degC; 17 g |
FAQ for EE-SX675-WR 1M
What does the WR suffix mean on the EE-SX675?
WR marks the robot-grade flexible cable. The standard EE-SX675 ships with a PVC cable; the WR variant uses a more flexible conductor bundle for moving-cable carriers on pick-and-place heads and feeders.
Can the EE-SX675-WR 1M run on 5 VDC?
Yes. The unit runs on 5 to 24 VDC, so it can sit directly on a 5 V logic supply or a 24 V PLC input. Residual voltage is 0.4 V max at 40 mA load and 0.8 V max at 100 mA load.
How small a target can the EE-SX675-WR 1M detect?
Down to 0.5 mm opaque at the optical centre. The slot width is 5 mm so the target only needs to block the 1 mm emitter beam at the centre of the slot. Thin wires and transparent objects will not trigger the sensor.
