Omron EE-SX677-WR — Slot Photomicrosensor, 5 mm, NPN, Cable
SKU: EE-SX677-WRUSD 10.00
Close-mount slot photomicrosensor, 5 mm slot, NPN open collector, light/dark switchable, DC 5-24 V, 1 m pre-wired cable.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview

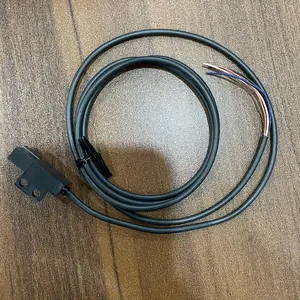

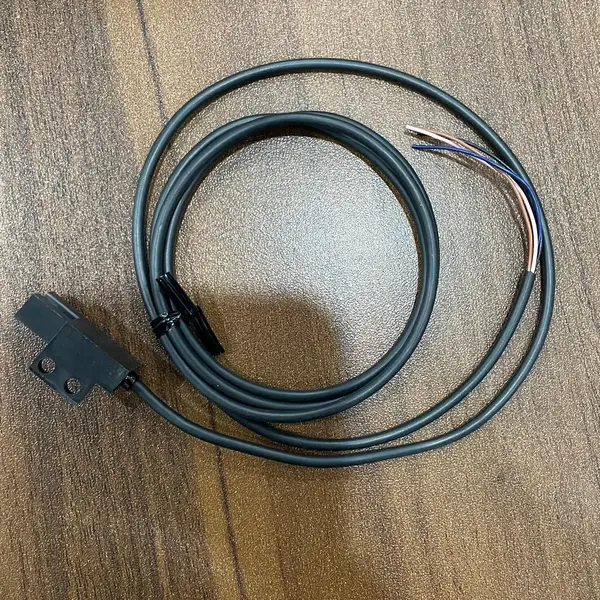

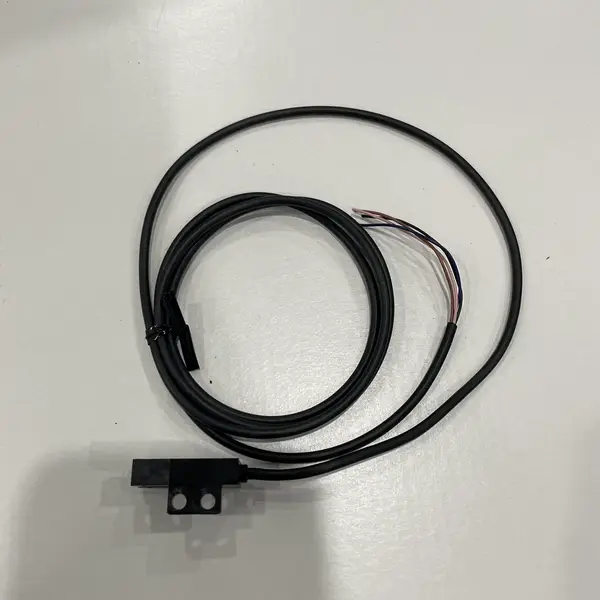

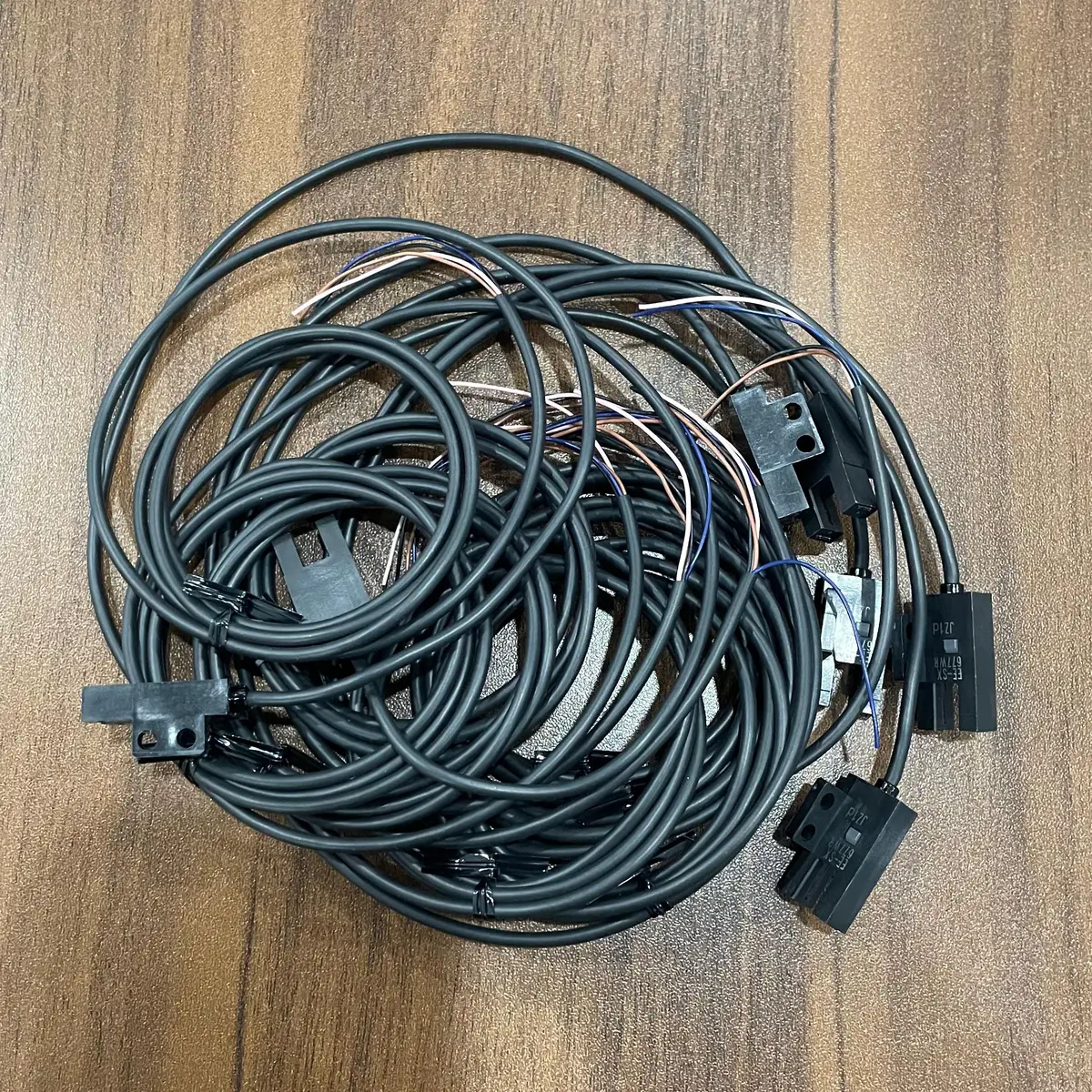

The Omron EE-SX677-WR is a slot-type photomicrosensor in the EE-SX67 series: a U-shaped emitter and receiver molded into a small black PBT body with a 5 mm slot between them. Any opaque flag, tab, or part at least 2 x 0.8 mm that passes through the slot breaks the beam and triggers the output. It is the right pick when the moving part is small, the installation has to fit in a tight panel, and the controller side wants a clean ON / OFF pulse instead of an analog reading.
The -WR suffix marks this variant as pre-wired with a 1 m oil-resistant cable end, distinct from the connector-based EE-SX677 base which uses an EE-1001 / EE-1006 harness. Pre-wired fits fixed-cabinet builds where the cable routes straight into a wire duct; the connector version fits modular builds where the harness is pre-built and pulled through conduit. The output is NPN open-collector — use the EE-SX677P-WR 1M for a PNP sourcing version. Mode selection is via the L terminal: leave open for Dark-ON (beam broken = ON); short to +V for Light-ON (beam clear = ON).
Where it fits
Common uses are label-edge detection on a dispenser, paper-presence sensing in a printer or copier, cam-flag index confirmation on a small assembly dial, coin or token validation, and tab-position checks on a feeder track. Anywhere a thin interrupter fits through a 5 mm gap and the system needs a single digital pulse per passage, this sensor fits.
Before ordering
The EE-SX677-WR is rated IP50 — sealed against dust and light touch, but not designed for direct water spray. For an IP67 slot microsensor in the same 5 mm class, look at the EE-SX95 family instead. Confirm the supply is a regulated 5 to 24 VDC; voltage spikes above 26 VDC will damage the output transistor.
Key Features
- EE-SX67-series slot photomicrosensor with 5 mm slot
- R-type close-mount body (right-side mounting tab)
- IR LED 940 nm source, IR-receiver phototransistor
- NPN open-collector output, 100 mA max load
- Light-ON / Dark-ON selectable via L terminal wiring
- DC 5 to 24 V supply ±10%, 35 mA current draw
- 1 m pre-wired oil-resistant cable (-WR suffix)
- Response frequency 1 kHz min, 3 kHz typical
- Standard target 2 x 0.8 mm opaque, differential 0.025 mm
- Black PBT housing, polycarbonate optical window
- IP50 protection (splash-resistant, not water-submersible)
- SKU: EE-SX677-WR
- Series: EE-SX67 (slot photomicrosensor)
- Voltage: 5 TO 24 V
- I/O: 100 I/O
Best-Fit Applications
- Label-edge and registration-mark sensing on a label dispenser or printer
- Cam-flag index confirmation on a small assembly dial or indexing table
- Tab-position check on a feeder track for small parts
- Coin or token validation in a vending or parking machine
- Paper or sheet presence detection in a copier or document feeder
- Beam-interrupt pulse on a packaging counter or counting wheel
Buying Checklist
- Choose EE-SX677-WR for the pre-wired 1 m cable version — pick the bare EE-SX677 if the cabinet uses EE-1001 connector harnessing instead.
- Choose EE-SX677P-WR 1M for a PNP (sourcing) output instead of NPN.
- Choose EE-SX674-WR for the same family with a different body shape (close-mount T-tab).
- Choose EE-SX676-WR for an F-shape top-mount flat body in the same family.
- Verify the supply is regulated 5 to 24 VDC — overvoltage damages the output transistor.
- Use the EE-SX95 family if the install needs IP67 water-jet protection; the EE-SX67 family is IP50 only.
Technical Specifications
| Series | EE-SX67 (slot photomicrosensor) |
|---|---|
| Slot Width | 5 mm |
| Output Type | NPN open collector, 100 mA max load |
| Operating Mode | Light-ON / Dark-ON selectable via L terminal |
| Light Source | Infrared LED 940 nm |
| Supply Voltage | DC 5 to 24 V ±10%, ripple 10% max |
| Current Consumption | 35 mA max |
| Response Frequency | 1 kHz min, 3 kHz typical |
| Connection | Pre-wired 1 m oil-resistant cable (-WR suffix) |
| Indicator | Red LED lit when light is received |
| Operating Temperature | -25 to +55 degC |
| Protection Rating | IP50 |
Resources & Downloads
FAQ for EE-SX677-WR
What does the -WR suffix mean?
The -WR suffix on any EE-SX67 sensor marks it as a pre-wired lead-out version with a 1 m oil-resistant cable, rather than the connector version that uses a separate EE-1001 / EE-1006 harness. So EE-SX677 base = connector, EE-SX677-WR = pre-wired cable. Same sensor, different cable exit.
What is the difference between EE-SX674-WR and EE-SX677-WR?
Both are pre-wired 5 mm NPN cable sensors in the EE-SX67 family. The difference is the body shape: EE-SX674-WR is the close-mount body with the mounting tabs at the standard top position; the EE-SX677 is the R-type with the mounting tab configured for a right-side cable exit. Pick the body that matches the panel cutout and cable-routing direction — the electrical specs are otherwise the same.
Can this sensor detect a transparent object?
No. The EE-SX677-WR is a through-beam slot sensor that needs an opaque target to break the beam. For thin transparent film or clear-glass detection, look at a retro-reflective sensor with a polarized MSR filter (like the E3Z-R61 family) or a through-beam sensor specifically tuned for thin films.
How do I switch between Light-ON and Dark-ON?
The L (mode) terminal controls the operating mode. Leave it open or floating for Dark-ON (output ON when the beam is broken). Short the L terminal to the +V supply to switch to Light-ON (output ON when the beam is clear). Confirm the connection before powering up the first time.
Similar Products
Explore related Omron models often viewed alongside this product.
