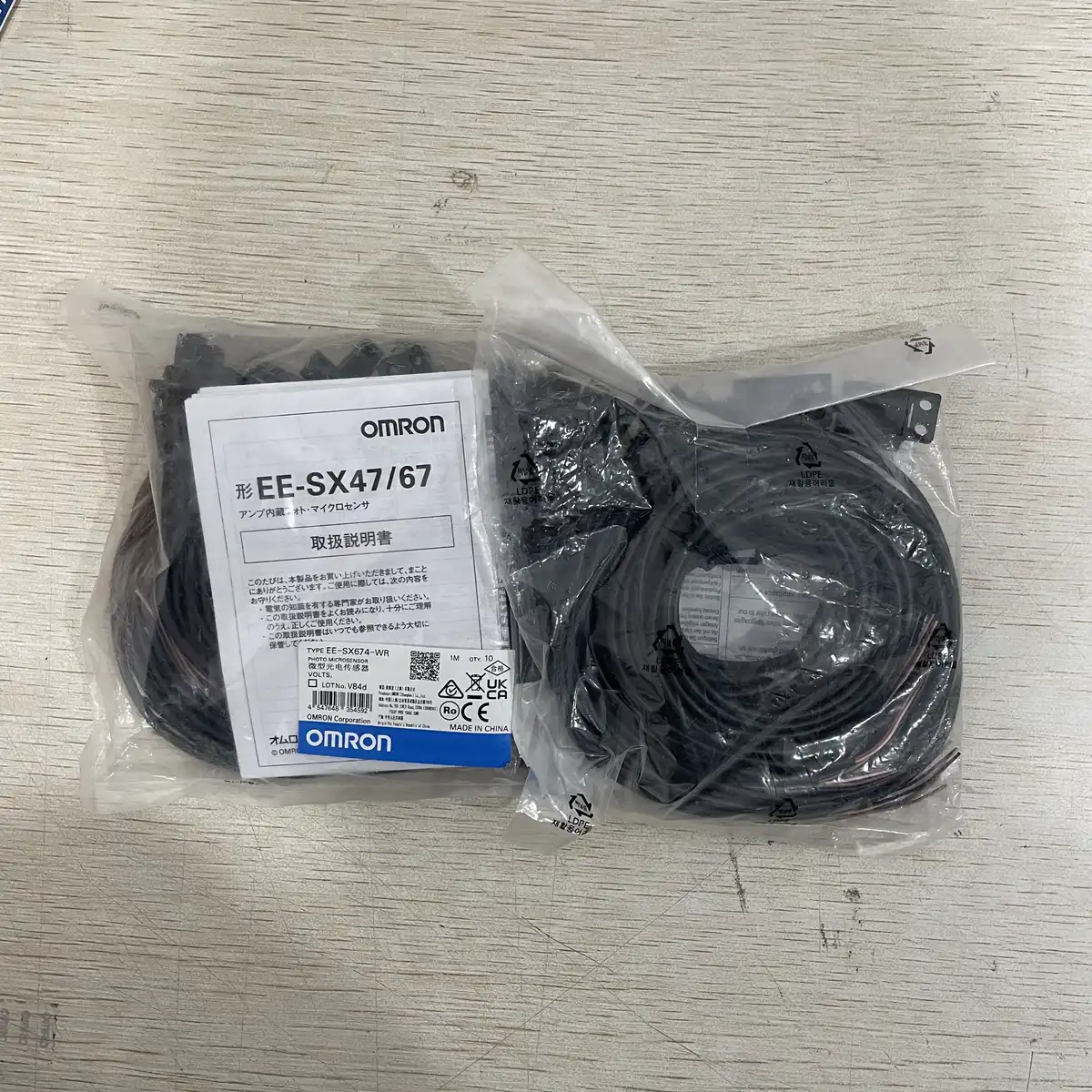

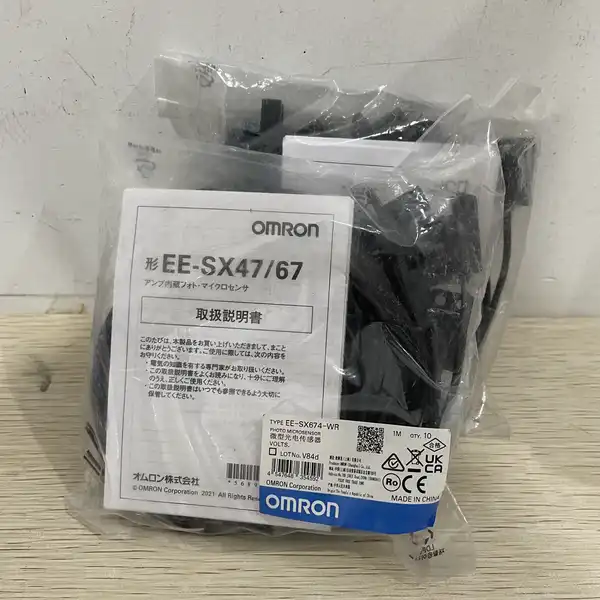

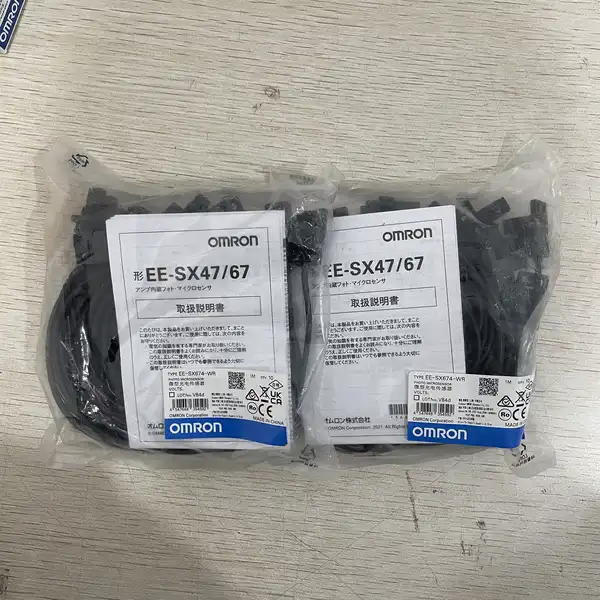

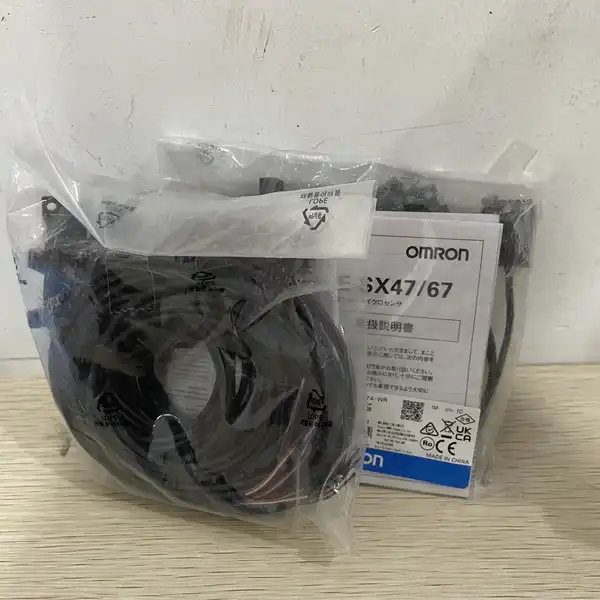

Omron EE-SX674-WR 1M — 5 mm Slot Sensor, NPN, 1 m Cable
SKU: EE-SX674-WR 1MUSD 5.00
Omron EE-SX674-WR 1M L-shaped slot photomicrosensor, 5 mm slot width, NPN open-collector, 1 m robotic cable. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron EE-SX674-WR 1M is a slot-type photomicrosensor from the EE-SX67 series, manufactured by Omron Corporation. Hengyixin Automation ships this sensor from our Xiamen warehouse with a 30-day DOA return window and a datasheet PDF included in the box.
The sensor has an L-shaped close-mounting body with a 5 mm slot that runs through-beam with an infrared LED on one side and the phototransistor on the other. Output is NPN open-collector rated 100 mA, switching Dark-ON or Light-ON via the L terminal. Supply is 5 to 24 VDC; response frequency is 1 kHz, giving 0.17 ms per detection.
The 1 m cable is a flexible robotic cable with bare-end flying leads. Body size is 13.6 x 27.2 x 15.5 mm in a PBT thermoplastic case, IP50, -25 to +55 degC operating. For the same sensor with a 4-pin connector, pick the EE-SX674. For the R-shaped sibling, pick the EE-SX677-WR.
Key Features
- L-shaped close-mounting slot photomicrosensor with 5 mm slot width and infrared LED
- NPN open-collector output, Dark-ON / Light-ON selectable, 100 mA load, 0.17 ms response
- Pre-wired with 1 m flexible robotic cable terminated with bare-end flying leads
- 5 to 24 VDC supply, 35 mA current, PBT housing, IP50, -25 to +55 degC operating
- SKU: EE-SX674-WR 1M
- Series: Omron EE-SX67 slot-type photomicrosensor
- Voltage: 5 TO 24 VDC
Best-Fit Applications
- End-of-stroke detection on a pneumatic cylinder where the rod flag breaks the 5 mm beam at home
- Label-edge detection on a packaging line where the label interrupts the beam at the peel roller
- Pulse counting from a small slotted disc encoder at one pulse per rev up to 6000 rpm
Buying Checklist
- Pick the EE-SX674-WR 1M for a 5 mm L-shaped slot sensor with NPN output and a 1 m robotic cable.
- Pick the EE-SX674 instead when the panel needs a 4-pin connector and a separate harness.
- Pick the EE-SX677-WR instead when the bracket geometry calls for an R-shaped body rather than L-shaped.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron EE-SX67 slot-type photomicrosensor |
| Model / SKU | EE-SX674-WR 1M |
| Sensing Method | Through-beam with 5 mm slot, infrared LED 940 nm |
| Body / Mounting | L-shaped close-mounting, surface with through-holes |
| Output Type | NPN open-collector, Dark-ON / Light-ON selectable |
| Load Current | 100 mA max |
| Response Time | 0.17 ms (1 kHz) |
| Supply Voltage | 5 to 24 VDC +/-10 % |
| Connection | Pre-wired 1 m flexible robotic cable, bare-end flying leads |
| Dimensions / Material | 13.6 (W) x 27.2 (H) x 15.5 (D) mm; PBT thermoplastic |
| Protection / Climate | IP50; -25 to +55 degC operating; CE marked |
FAQ for EE-SX674-WR 1M
What is the Omron EE-SX674-WR 1M used for?
It detects when an object breaks the 5 mm slot on a machine. Typical fits are end-of-stroke detection on a cylinder, label-presence detection on a packaging line, and pulse counting from a slotted disc on a small encoder.
What is the difference between EE-SX674-WR 1M and EE-SX674-WR?
Functionally the same product. EE-SX674-WR 1M is the form some distributors carry to spell out the 1 m cable length. The EE-SX674-WR datasheet lists 1 m of robotic cable as standard.
Does the EE-SX674-WR 1M work with both NPN and PNP PLC inputs?
No. It is NPN open-collector only. For a PNP sibling in the same EE-SX67 series with the same body shape, pick the EE-SX674P-WR.
How do I select Dark-ON vs Light-ON on the EE-SX674-WR 1M?
The four wires are brown (supply +), blue (0V), black (OUT) and pink (L select). Leave pink floating for Dark-ON, or tie it to brown for Light-ON. Do not connect pink to 0 V.
