Omron EE-SX676-WR — 5 mm Slot Sensor, NPN, Pre-Wired
SKU: EE-SX676-WRUSD 9.00
EE-SX67-series close-mount slot photomicrosensor, 5 mm slot width, NPN open-collector, 1 m pre-wired cable, DC 5-24 V.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview

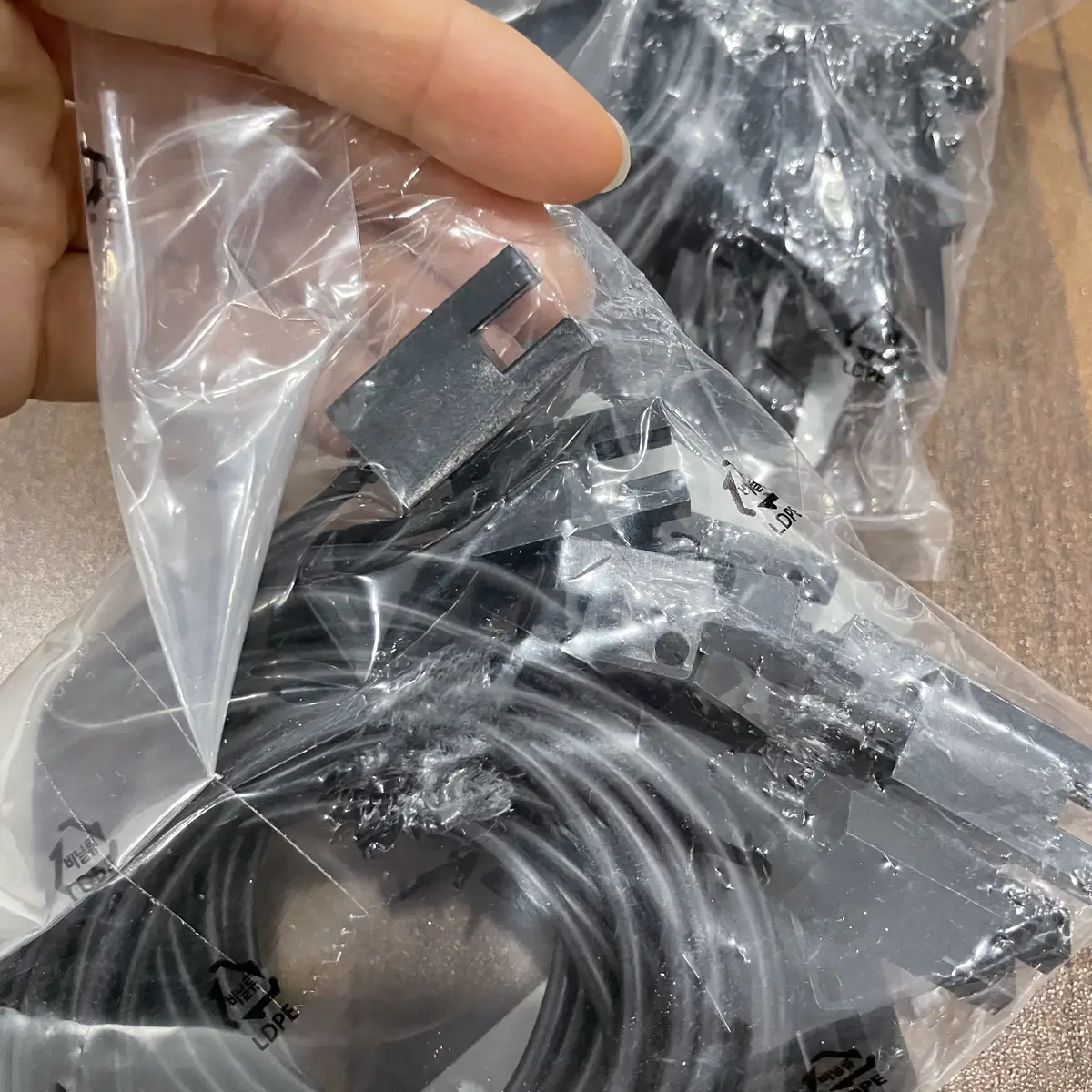

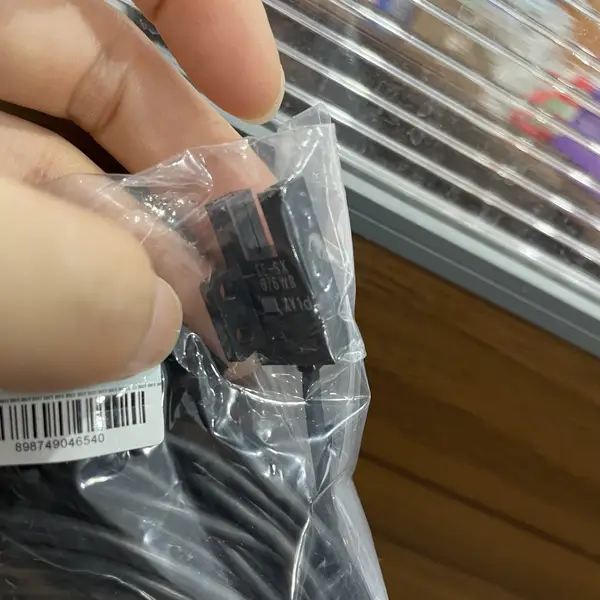

The Omron EE-SX676-WR is a slot-type photomicrosensor in the EE-SX67 family: emitter and receiver face each other across a 5 mm gap inside one molded black PBT body, with the "close-mount" (tight-mount) footprint that lets it sit close to the actuator bracket. The "-WR" suffix means it ships with a 1 m pre-wired cable instead of the 4-pin connector on the body of the plain EE-SX676.
Choosing this variant
Within the EE-SX67 lineup, the differences are body style, output polarity, and wiring. EE-SX670/671/672/673 is the original body style; EE-SX674/675/676/677 is the close-mount body. The "2" suffix is NPN; the "P" suffix is PNP. The "-WR" suffix on the end is the pre-wired 1 m lead-out cable. EE-SX676-WR puts all of that together: close-mount body, NPN, pre-wired.
Where it fits
Slot sensors shine where the target passes through the gap — index flags on a rotating disk, tabs and labels on a feeder, end-of-stroke flags on a pneumatic cylinder. The 5 mm slot accepts targets down to 2 × 0.8 mm opaque. The Light-ON / Dark-ON switch lets you invert the output without rewiring.
Before ordering
Confirm the load side: the open-collector transistor pulls to 0 V, so the PLC input or relay coil must sit between +V and the output. If your PLC expects a sourcing (PNP) signal, pick EE-SX676P-WR instead.
Key Features
- EE-SX67 close-mount slot photomicrosensor
- 5 mm slot width, accepts 2 × 0.8 mm opaque minimum
- NPN open-collector output, Dark-ON / Light-ON switchable
- Pre-wired 1 m 4-conductor cable ("-WR" suffix)
- Supply voltage DC 5 to 24 V ±10 %
- Load current 100 mA max
- Infrared 940 nm LED source
- Black PBT housing, IP50
- SKU: EE-SX676-WR
- Series: EE-SX67 (slot photomicrosensor, close-mount)
- Voltage: 8 V
Best-Fit Applications
- Index-flags on rotating disks and timing wheels
- Edge detection on labels in print-and-apply systems
- End-of-stroke flag detection on pneumatic cylinders
- Counting small parts on vibratory feeders
- Tab and pin presence checks on assembly conveyors
Buying Checklist
- Choose EE-SX676-WR for an NPN close-mount sensor with a 1 m pre-wired cable.
- Choose EE-SX676 (no -WR) if your harness already carries the EE-SX67 4-pin connector.
- Choose EE-SX672-WR for the standard T-style body in the same NPN pre-wired format.
- Choose EE-SX670P-WR or EE-SX674P-WR for PNP output to a sourcing PLC.
- Verify the target fits within the 2 × 0.8 mm opaque minimum for reliable detection.
- Use the Light-ON / Dark-ON switch to invert the output rather than rewiring the PLC.
Technical Specifications
| Series | EE-SX67 (slot photomicrosensor, close-mount) |
|---|---|
| Slot Width | 5 mm |
| Standard Target | Opaque, 2 × 0.8 mm minimum |
| Output | NPN open collector, Dark-ON / Light-ON switchable |
| Load Current | 100 mA max |
| Residual Voltage | 0.8 V max at 100 mA load |
| Supply Voltage | DC 5 to 24 V ±10 % |
| Current Consumption | 35 mA max (pre-wired version) |
| Response Frequency | 1 kHz min, 3 kHz typical |
| Light Source | Infrared LED, 940 nm peak wavelength |
| Indicator | Red LED, lights when light is received |
| Wiring | Pre-wired 1 m, 4-conductor |
| Operating Temperature | -25 to +55 °C |
| Protection | IP50 |
| Material | PBT housing, PC optical window |
Resources & Downloads
FAQ for EE-SX676-WR
What is the difference between EE-SX672-WR and EE-SX676-WR?
Both are 5 mm slot, NPN, 1 m pre-wired sensors. The EE-SX672-WR is the standard T-style body; the EE-SX676-WR is the close-mount body, which fits where the bracket is tight against the actuator. Pick the 72 for typical mounting, pick the 76 for shallow brackets.
Can the EE-SX676-WR drive a 24 V PLC input directly?
Yes, if the PLC expects a sinking (NPN) input. The sensor's open-collector transistor switches the input to 0 V; the PLC's input circuit must be between +24 V and the sensor output. For a sourcing PLC, choose the EE-SX676P-WR (PNP).
Is the EE-SX676-WR still in production?
Yes. The EE-SX670 series has been in active production since the late 1990s and remains widely stocked.
