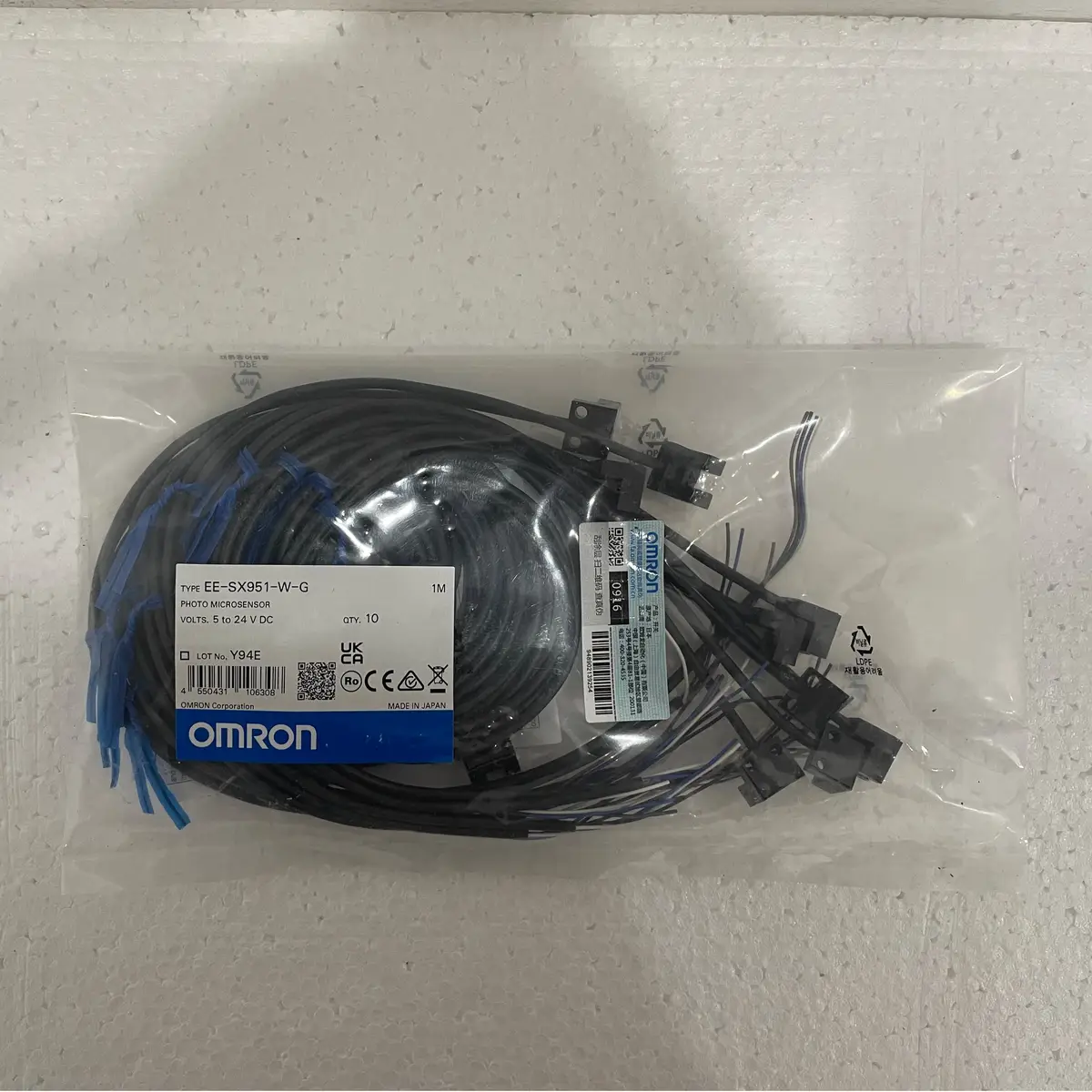

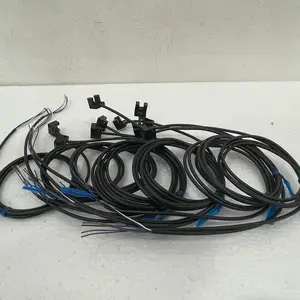

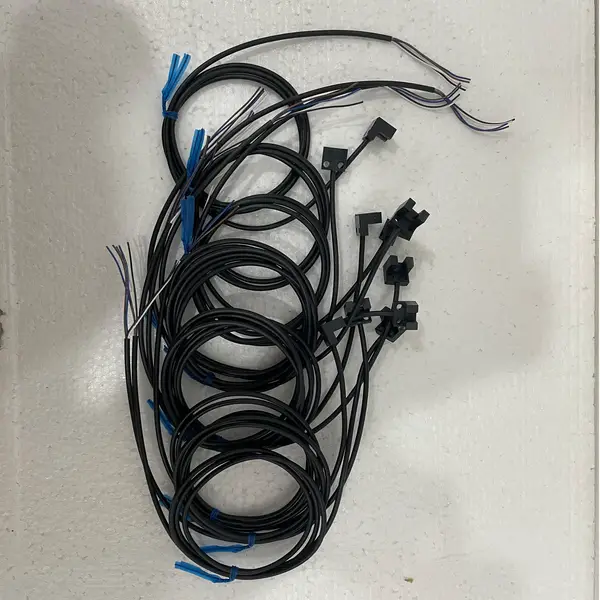

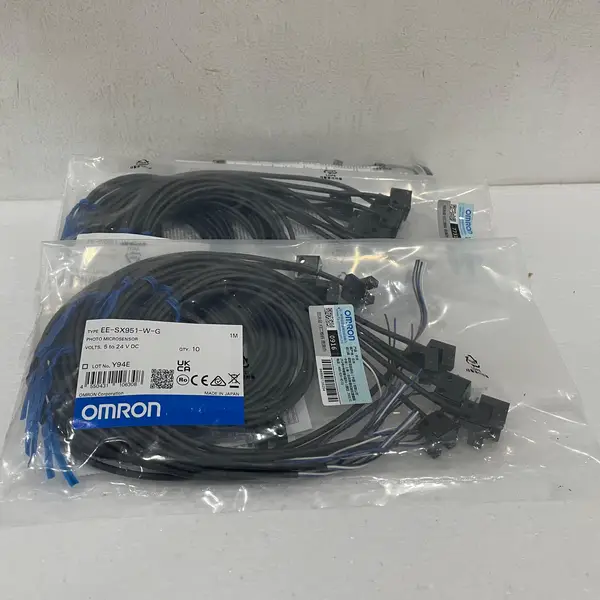

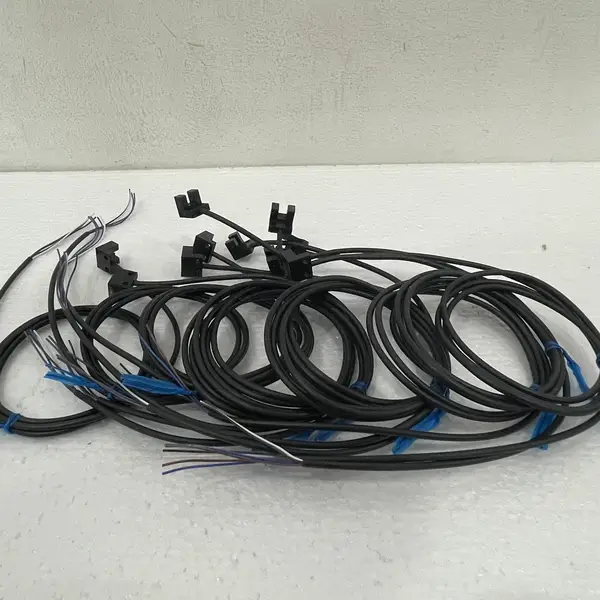

Omron EE-SX951-W-G — L-Slot Sensor, 5 mm, NPN
SKU: EE-SX951-W-GUSD 5.00
Omron EE-SX951-W-G L-shape slot photomicrosensor, 5 mm slot width, NPN output, 5-24 VDC. In stock.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron EE-SX951-W-G is a miniature L-shape slot photomicrosensor from the EE-SX95 family, manufactured by Omron Corporation. Hengyixin Automation ships this sensor from our Xiamen warehouse with a 30-day DOA return window and a datasheet PDF included in the box.
The emitter and receiver face each other across a 5 mm slot with a 6.5 mm sensing depth. The L-shape keeps the cable exit parallel to the mounting surface so the body fits where the standard T-shape cannot. The output is NPN, switchable between Dark-ON and Light-ON on the lead wire.
Supply is 5 to 24 VDC, collector current 15 mA max, forward current 50 mA max. Response is 0.5 ms. The PBT body is 13.4 x 12 x 12 mm. The pre-wired cable carries the brown (+V), blue (0 V), black (output) and pink (mode) leads. The -G suffix marks the gold-tinned lead finish for corrosion-sensitive panels. Operating temperature -25 to 55 degC. For a T-shape body on the same spec, pick the EE-SX870.
Key Features
- EE-SX95 L-shape slot photomicrosensor, 5 mm slot width, 6.5 mm depth
- NPN open-collector output, Dark-ON / Light-ON selectable, 0.5 ms response
- 5 to 24 VDC supply, 15 mA collector, pre-wired cable, gold-tinned leads (-G)
- PBT housing, 13.4 x 12 x 12 mm, -25 to 55 degC
- SKU: EE-SX951-W-G
- Series: Omron EE-SX95-series photomicrosensor (slot, L-shape)
- Voltage: 5 TO 24 VDC
Best-Fit Applications
- Label-edge detection on a print-and-apply head where the 5 mm slot accepts the label web and the 0.5 ms response catches the printed edge
- Tab-presence check on a feeder track where the L-shape body sits inside the bracket and the NPN output drives a CP1W high-speed input
- Spare replacement on a packaging line where the old EE-SX951 slot sensor failed and the new EE-SX951-W-G drops onto the same bracket and cable
Buying Checklist
- Pick the EE-SX951-W-G for an L-shape 5 mm slot sensor with NPN output, gold-tinned leads and a pre-wired cable.
- Pick the EE-SX951-W 1M instead when the standard tinned-lead version is fine on the same body.
- Pick the EE-SX870 instead when the bracket needs a T-shape body with Dark-ON on the same electrical spec.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron EE-SX95-series photomicrosensor (slot, L-shape) |
| Model / SKU | EE-SX951-W-G |
| Sensing Method | Through-beam slot, L-shape body |
| Slot Width | 5 mm |
| Sensing Depth | 6.5 mm into the slot |
| Output | NPN open-collector, Dark-ON / Light-ON selectable |
| Response Time | 0.5 ms |
| Supply Voltage | 5 to 24 VDC |
| Load Current | 15 mA collector max, 50 mA forward max |
| Connection | Pre-wired cable, gold-tinned leads (-G) |
| Protection / Material | PBT case; 13.4 x 12 x 12 mm; -25 to 55 degC |
FAQ for EE-SX951-W-G
What does the -G suffix mean on EE-SX951-W?
G marks the gold-tinned lead finish, which resists oxidation in humid or corrosive panels. The body, electrical spec and slot width are the same as the standard EE-SX951-W with tinned leads.
How is Dark-ON / Light-ON selected?
Wire the mode terminal (pink on the EE-SX951 lead) to +V for Light-ON (output ON when the beam is received) or leave open for Dark-ON (output ON when the beam is broken).
How small a target can the EE-SX951 detect?
Down to 0.8 x 1.5 mm opaque at the centre of the slot. Thin wires and transparent objects will not trigger the sensor. For finer resolution, use a smaller-slot model such as the EE-SX674 family.
Can the EE-SX951-W-G run on 5 V logic?
Yes. The unit runs on 5 to 24 VDC, so it can sit directly on a 5 V logic supply or a 24 V PLC input. Residual voltage is 0.4 V max at 5 mA load.
