Omron G2RV-ST700 DC24 — two slim grey relay modules on a wood surface showing the upper and lower rows of input / output screw terminals, the LED indicator window, the mechanical flag and the orange DIN-rail release lever on the right side

Omron G2RV-ST700 DC24 — Slim I/O Relay, SPDT, 6 A

SKU: G2RV-ST700 DC24

USD 5.00

Omron G2RV-ST700 DC24 slim I/O relay, SPDT 6 A, 24 VDC coil, DIN rail, LED. In stock, China shipping.

1-Year Warranty Full manufacturer warranty
Global Shipping Worldwide delivery available
Genuine Omron 100% authentic product
Ready to Ship Usually ships within 24h
In Stock

This item is available for immediate shipment from our warehouse.

Request Quote

Contact for pricing, bulk discounts, and shipping

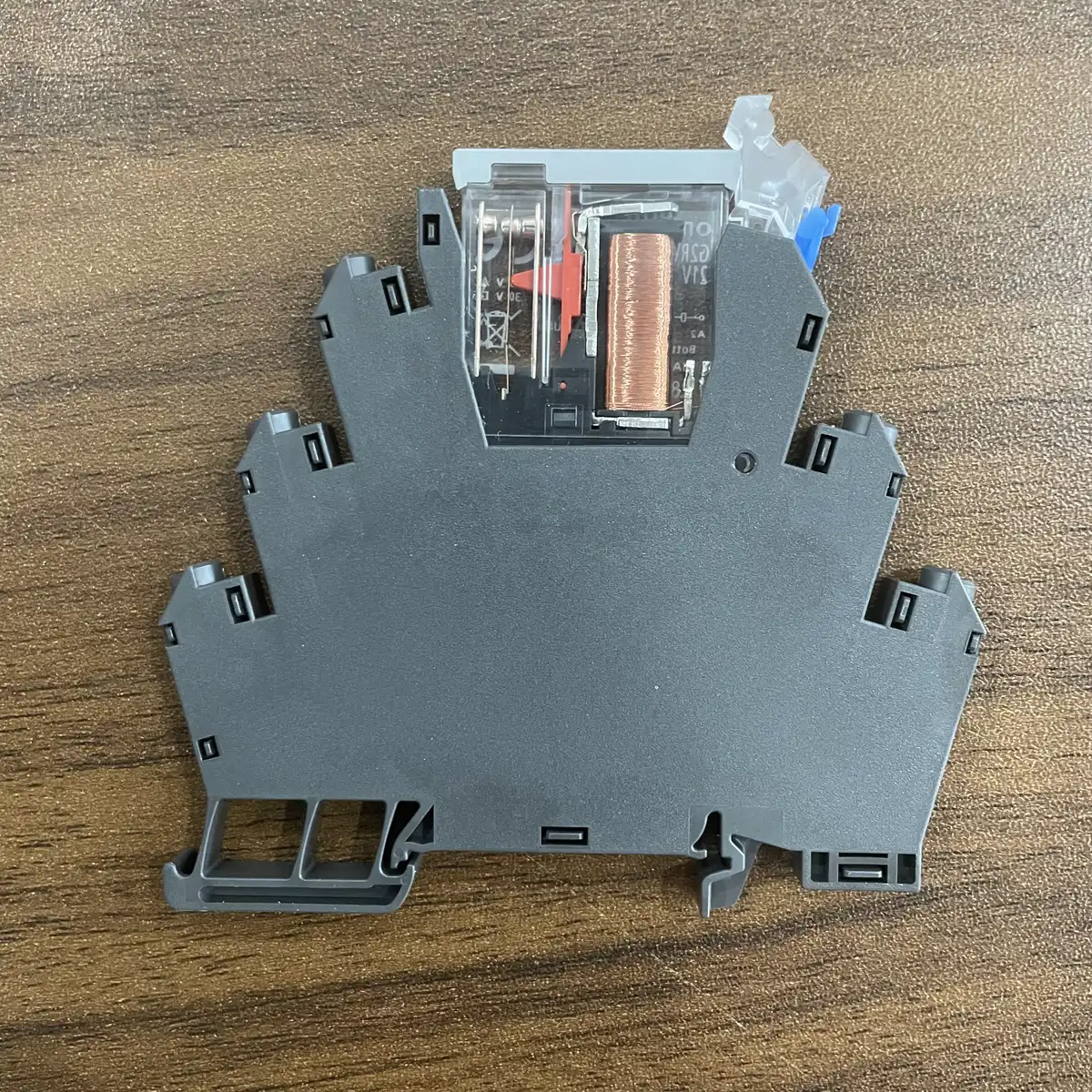

Product Overview

The Omron G2RV-ST700 DC24 is a slim-line SPDT relay from the G2RV-ST family, manufactured by Omron Corporation. Hengyixin Automation stocks this relay in Xiamen and ships within 3-5 business days in original Omron packaging with the lot code visible.

The unit ships on an integrated low-profile socket and is 6.2 mm wide on DIN rail. Coil is 24 VDC at 13.5 mA (~300 mW); must-operate is 19.2 VDC and must-release is 2.4 VDC. Contacts are Ag alloy rated 6 A at 250 VAC or 30 VDC resistive, 2.5 A at 250 VAC or 2 A at 30 VDC inductive.

Maximum switching is 440 VAC / 125 VDC and 1500 VA / 180 W. Operate and release are both 20 ms (DC). A flyback diode, an LED, a transparent case, and a mechanical flag are all integrated. Operating range is -40 to +55 C and the relay is UL, CSA, TUV, and Lloyd approved. The G2RV-ST700 24VAC/DC is the same body with a universal coil.

Key Features

  • Slim 6.2 mm SPDT relay on integrated low-profile socket, screw terminals, DIN rail
  • 24 VDC coil at 13.5 mA (~300 mW), must-operate 19.2 VDC, must-release 2.4 VDC
  • Ag alloy contacts rated 6 A at 250 VAC / 6 A at 30 VDC resistive, 2.5 A / 2 A inductive, 1500 VA / 180 W
  • Integrated flyback diode, LED indicator, transparent case, mechanical flag, UL / CSA / TUV / Lloyd approved
  • SKU: G2RV-ST700 DC24
  • Series: Omron G2RV-ST slim I/O relay family
  • Voltage: 24 VDC

Best-Fit Applications

  • Interface between a CP1L DC output and a 230 VAC field solenoid where four slim relays fit one DIN row of a CP1W-PA202R supply
  • PLC-to-relay amplifier on a packaging line where the LED and mechanical flag give a fast visual on coil state without a meter
  • Replacement for an aging G2R-1-SND on a cabinet retrofitted to G2RV-ST700 sockets where the integrated diode absorbs the 24 VDC kickback

Buying Checklist

  • Pick the G2RV-ST700 DC24 for a slim 6.2 mm SPDT 24 VDC relay with LED, diode, and transparent case.
  • Pick the G2RV-ST700 24VAC/DC instead when the same relay needs to run from a 24 VAC/DC universal coil.
  • Pick the G2RV-ST500 DC24 instead when the panel only needs a single SPDT without the diode suppression circuit.

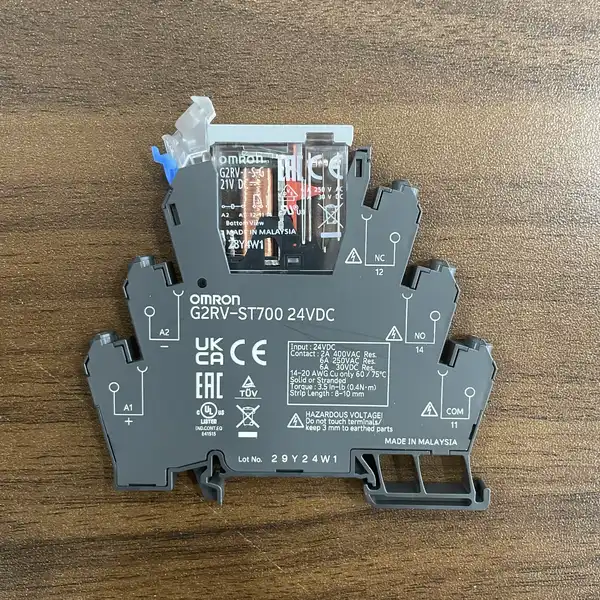

Technical Specifications

Manufacturer Omron Corporation (Japan)
Series Omron G2RV-ST slim I/O relay family
Model / SKU G2RV-ST700 DC24
Contact Form SPDT (1 Form C), Ag alloy contacts
Coil Voltage 24 VDC, 13.5 mA (~300 mW)
Must-Operate / Release 80% max (19.2 VDC), 10% min (2.4 VDC)
Contact Rating 6 A at 250 VAC / 6 A at 30 VDC resistive, 2.5 A / 2 A inductive
Max Switching 440 VAC / 125 VDC, 1500 VA / 180 W
Operate / Release Time 20 ms max operate, 20 ms max release (DC)
Mechanical / Electrical Life 18 000 operations/h mechanical, 1 800/h electrical
Mounting / Features DIN rail, screw terminals, integrated diode + LED + transparent case + mechanical flag
Approvals / Environment UL, CSA, TUV, Lloyd, -40 to +55 C operating, IP20

FAQ for G2RV-ST700 DC24

What does the G2RV-ST700 DC24 do?
It switches a single SPDT load up to 6 A from a 24 VDC control signal. The integrated socket, LED, mechanical flag, and flyback diode mean the panel builder only wires in the screw terminals.
G2RV-ST700 DC24 vs G2RV-ST700 24VAC/DC - what is the difference?
DC24 is a DC-only coil (13.5 mA, ~300 mW). 24VAC/DC is a universal coil that accepts 24 V AC or DC (~0.4 VA / 300 mW). Both share the same 6.2 mm SPDT body and 6 A contact rating.
Does the G2RV-ST700 DC24 need a flyback diode?
No. The relay ships with a flyback diode already wired across the 24 VDC coil. Adding an external diode is unnecessary and may slow release time.
What is the replacement relay for the G2RV-ST700 DC24?
The G2RV-1-S-G 21VDC replacement plug-in relay for the G2RV-SR*00 24DC or 24VAC/DC socket. It matches the SPDT 6 A contact and the original 24 VDC coil footprint.
