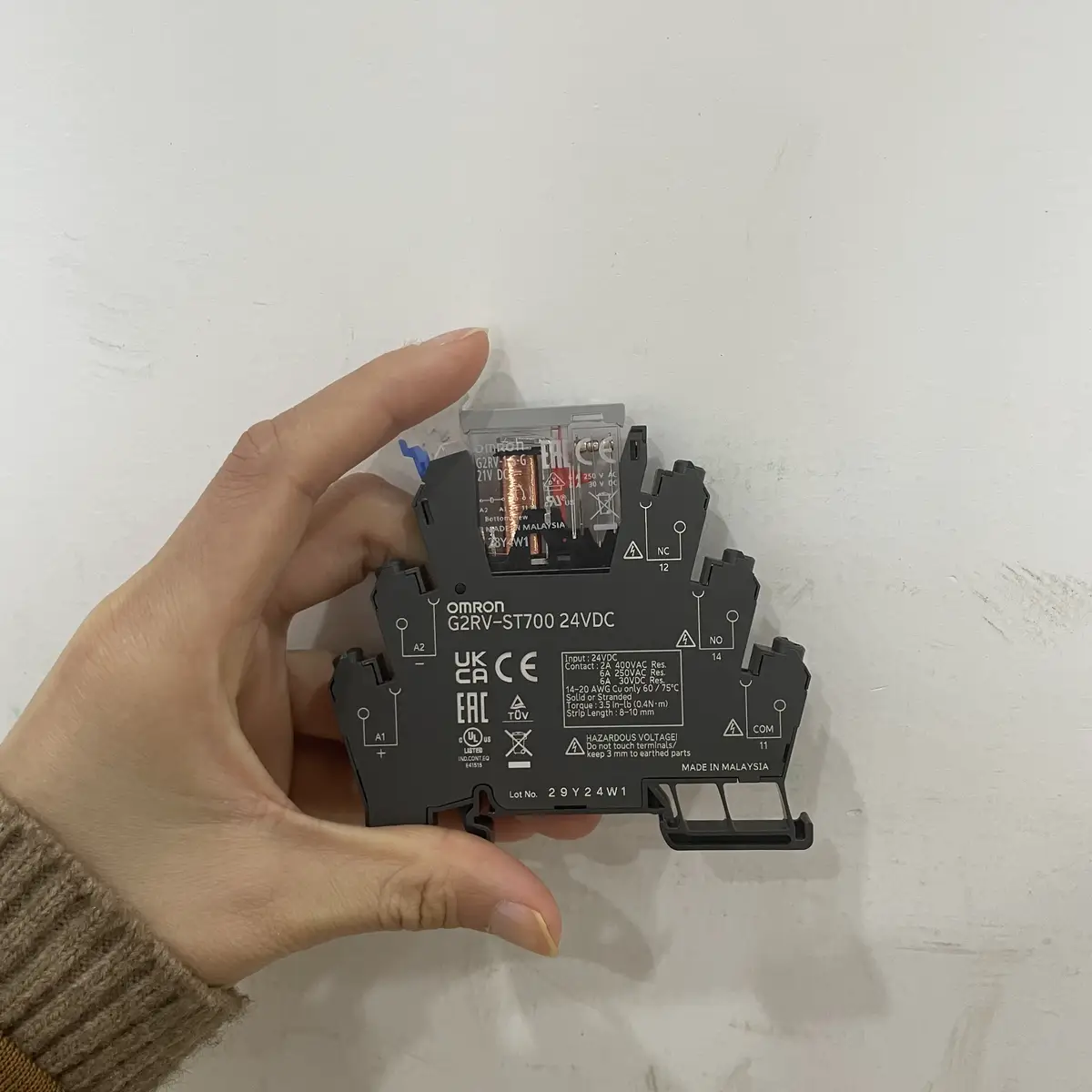

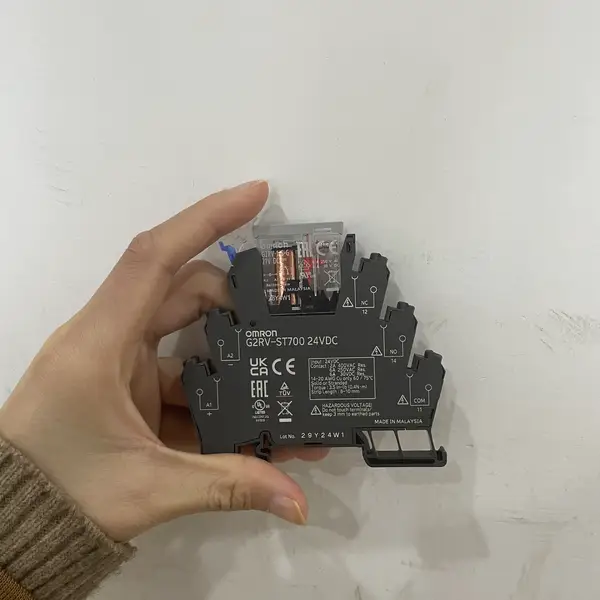

Omron G2RV-ST700 — 6 mm Slim Relay, Screw
SKU: G2RV-ST700USD 8.50
G2RV-ST-series slim I/O relay on integrated socket, SPDT 6 A, screw terminals, 6.2 mm DIN-rail, transparent case.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron G2RV-ST700 is the screw-terminal, no-latching-lever variant of the G2RV-ST slim I/O relay family. It is manufactured by Omron Corporation. Hengyixin Automation stocks this relay in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.
It combines a 6 mm wide SPDT relay with an integrated low-profile socket on a single DIN-rail-mounting assembly, rated 6 A at 250 VAC and 6 A at 30 VDC. The base SKU G2RV-ST700 ships without a specified coil voltage - the coil is selected by a voltage suffix added at order entry: 12 VDC, 24 VDC, 24 VAC/VDC, 48 VAC/VDC, 100 VAC, 110 VAC, 200 VAC, or 230 VAC.
The contact is rated for 100,000 operations at 6 A inductive load (AC-15 / DC-13) and 500,000 operations at 1 A or below.
Key Features
- G2RV-ST-series slim I/O relay with integrated low-profile socket, 6.2 mm wide
- SPDT (Form C) Ag-alloy contacts, 6 A at 250 VAC / 6 A at 30 VDC
- DIN-rail mounting, no latching lever (use ST701 for test switch)
- Push-In Plus terminal variant is G2RV-ST500; microload variant is G2RV-ST700-AP
- SKU: G2RV-ST700
- Series: G2RV-ST slim I/O relay with integrated socket
- Voltage: 12 VDC
Best-Fit Applications
- Signal-level relay switching for fans, solenoid valves, or indicator lamps.
- Interposing relay between 24 VDC PLC output and 230 VAC contactor coil.
- Replacement for legacy G2R-2-S sockets to add relays to the same DIN rail.
Buying Checklist
- Choose G2RV-ST701 when a latching lever (test switch) is needed for commissioning without energising the coil.
- Choose G2RV-ST500 for Push-In Plus terminals when the cabinet build uses ferrules and crimp connectors instead of screw terminals.
- Choose G2RV-ST700-AP for microloads (Au-plated contacts) below 100 mA - standard Ag-alloy contacts can fail to switch low-current signals reliably.
Technical Specifications
| Model | G2RV-ST700 (base SKU; coil voltage by suffix) |
|---|---|
| Series | G2RV-ST slim I/O relay with integrated socket |
| Contact Form | SPDT (Form C), Ag alloy |
| Rated Load | 6 A resistive at 250 VAC, 6 A resistive at 30 VDC |
| Terminal | Screw (M3) on input and output |
| Coil Voltage Options | 12 VDC, 24 VDC, 24 VAC/VDC, 48 VAC/VDC, 100 VAC, 110 VAC, 200 VAC, 230 VAC |
| Indicators | Mechanical flag + LED, transparent case |
| Mounting | DIN rail (35 mm) |
| Width | 6.2 mm |
| Operating Temperature | -40 to +55 degC operating, storage -40 to +85 degC |
| Approvals | UL, CSA, CE, Lloyd |
FAQ for G2RV-ST700
What coil voltages are available for the G2RV-ST700?
The G2RV-ST700 supports eight coil voltages via a trailing suffix: 12 VDC, 24 VDC, 24 VAC/VDC, 48 VAC/VDC, 100 VAC, 110 VAC, 200 VAC, and 230 VAC. The base SKU does not specify a coil - the suffix is added when the order is placed. Verify the suffix before connecting the input terminals, as applying 230 VAC to a 24 VDC coil will burn out the relay in seconds.
What is the difference between G2RV-ST700 and G2RV-ST701?
Both are 6 A SPDT slim relays on integrated sockets with the same coil options. The ST700 has no latching lever (test switch); the ST701 has an orange latching lever that holds the relay in the energised state without power to the coil. Use the ST701 during commissioning to force the relay closed without driving the PLC output; use ST700 in production where the test switch is not needed.
Can the G2RV-ST700 switch a 24 VDC / 6 A solenoid load?
Yes - the SPDT contact is rated 6 A resistive at 30 VDC, which covers most 24 VDC solenoid valves at the rated current. For solenoid valves with high inrush (large DC coils), add a flyback diode across the coil terminals to protect the contact. For AC solenoids above 6 A, use a G2R-2-S on a P2RFZ socket instead.
Is the replacement relay G2RV-1-S-G available separately?
Yes - the G2RV-1-S-G is orderable as a spare replacement relay without the integrated socket, in DC11 / DC21 / DC48 coil options. The integrated socket on the G2RV-ST700 is not sold separately - if the socket is damaged, replace the entire G2RV-ST700 assembly. The latching-lever replacement is G2RV-1-SI-G.
