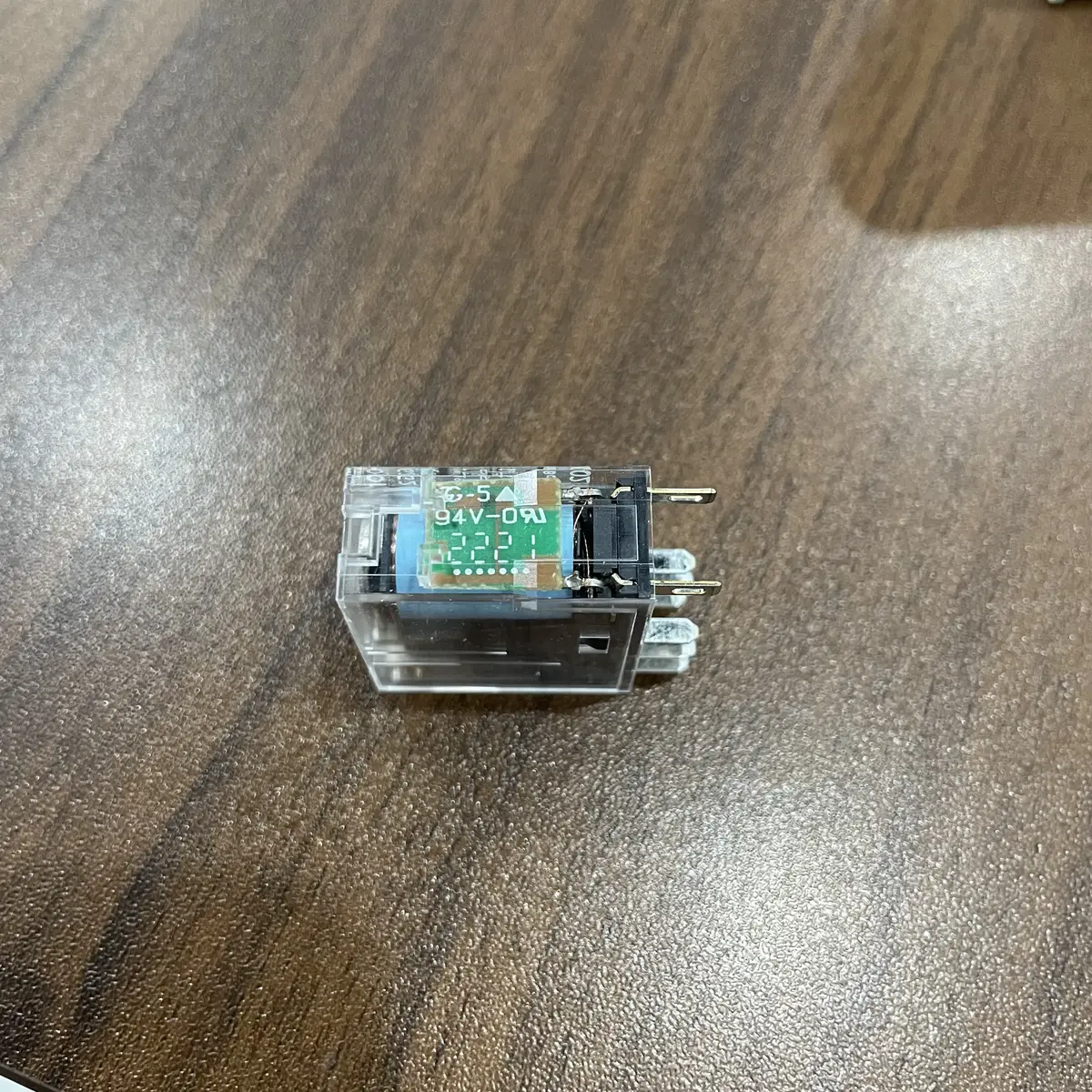

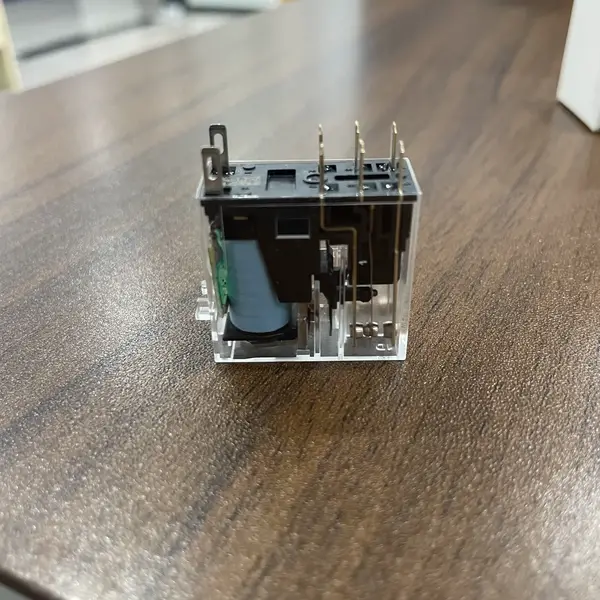

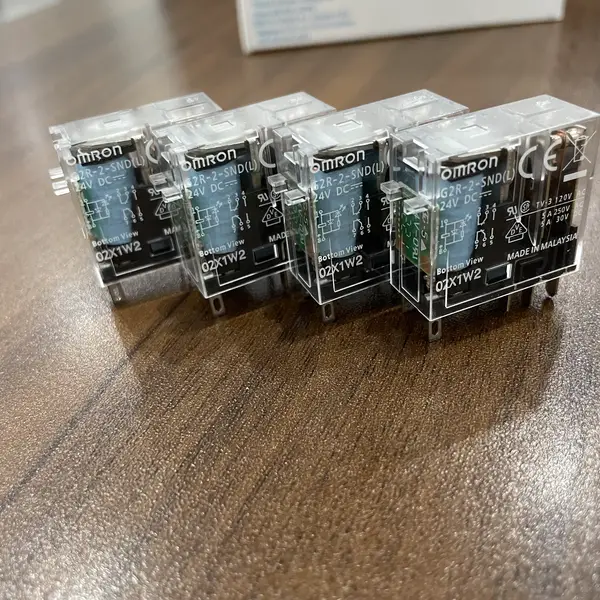

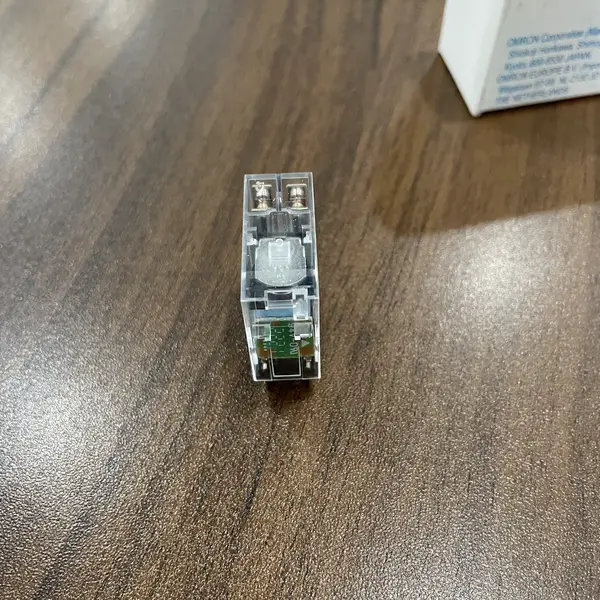

Omron G2R-2-SND DC24V — DPDT 8-Pin Plug-In Relay, 5 A
SKU: G2R-2-SND DC24VUSD 1.80
G2R-series 8-pin DPDT 5 A plug-in relay with 24 VDC coil, LED indicator, coil-suppression diode, and mechanical flag indicator. Pairs with P2RF-08-E or P2RFZ-08-E socket. General-purpose relay for industrial control panels.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The G2R-2-SND DC24V is the LED-indicator + coil-suppression diode variant of Omron's G2R-series 8-pin DPDT (2-pole changeover, also called 2 form C) plug-in power relay. The relay has a single 24 VDC coil, two sets of changeover contacts (each contact: 1 NO + 1 NC with a common terminal = DPDT = 2-pole), and a continuous carry current of 5 A per pole. The 'S' suffix identifies the slim 8-pin form (P2RF-08-E socket) with 6.2 mm mounting pitch — half the width of the G2R standard series without S (which uses the 5-pin or 8-pin P2RF-08 / P2RF-08-E socket, also slim).
Where the G2R-2-SND DC24V sits in the G2R family
The G2R family splits along several axes: pin count (8-pin DPDT vs 14-pin 4PDT), coil voltage (12 VDC, 24 VDC, 48 VDC, 100/110 VAC, 200/220 VAC), output current (5 A standard, 10 A H-series), terminal arrangement (N = NPN / Omron standard, I = IEC), features (LED, mechanical flag, diode, test button, sealed). The G2R-2-SND DC24V (this SKU) is the baseline 24 VDC coil DPDT 5 A plug-in relay with full features (LED + mechanical flag + diode). The 12 VDC coil sibling is the G2R-2-SND DC12V. The 100/110 VAC coil sibling is the G2R-2-SN AC100/110V.
Coil specifications, suppression diode, and switching transients
The 24 VDC coil draws 21.8 mA typical (28 mA max) at 24 VDC, with a coil resistance of 1,100 Ω. The must-operate voltage is 70 % of nominal (16.8 VDC); the must-release voltage is 15 % nominal (3.6 VDC); the maximum continuous voltage is 130 % (31.2 VDC) for 1 minute per IEC 61810. The built-in coil-suppression diode (across the coil terminals, reverse-biased during normal operation) clamps the back-EMF when the coil de-energizes — the diode forward-conducts the inductive kick before it can reach a level that damages surrounding transistors, PLC outputs, or contactors in the same panel.
Socket selection: P2RF-08-E (Push-In Plus) vs P2RFZ-08-E (screw)
The G2R-2-SND DC24V plugs into P2RF-08-E or P2RFZ-08-E sockets, both of which have the 8-pin M2.5 / M3.5 terminal arrangement matching the G2R's pinout. The P2RF-08-E is the Push-In Plus version — wires are inserted by hand and released with a screwdriver, no torque required, and stays tight under vibration. The P2RFZ-08-E is the legacy M3 screw terminal version — wires are clamped with a 0.4 N·m torque screw. Pick the P2RF-08-E for new installations (4× faster wiring, no retightening in vibration environments). Pick the P2RFZ-08-E for retrofit into existing panels with screw terminals, or for CE/UL tight-torque verification.
Key Features
- G2R-series DPDT 8-pin plug-in relay
- Single 24 VDC coil, 21.8 mA at 24 VDC
- Coil suppression diode built in
- Mechanical flag indicator
- LED indicator on front face, lit when coil is energized
- 5 A continuous carry current per pole at 250 VAC / 30 VDC
- Mechanical life 10 million operations min
- Electrical life 100,000 operations at full rated load
- SKU: G2R-2-SND DC24V
- Series: G2R-S (slim 8-pin plug-in industrial relay)
- Voltage: 24 VDC
Best-Fit Applications
- Interface between a CP1L transistor output and a 3-phase motor contactor — CP1L transistor output drives G2R-2-SND DC24V coil, G2R.
- Logic-level to high-current relay bank — 8 × G2R-2-SND DC24V relays on P2RF-08-E sockets with P2RVC-P commoning bridge, providing 16.
- Heater-band switching in a food packaging machine — G2R-2-SND DC24V contacts carrying 24 VDC heating tape at 5 A continuous
- Alarm output isolation for a chemical-mixer panel — CP2E transistor output controls G2R-2-SND DC24V coil, contacts switch a 24 VDC.
Buying Checklist
- Pick G2R-2-SND DC24V for the standard DPDT 24 VDC coil plug-in relay with LED + diode + mechanical flag
- Pick G2R-2-SN DC24V for the lower-cost variant without LED / no-diode
- Pick G2R-2-SND DC12V for a 12 VDC coil variant
- Pick G2R-2-SN AC100/110V for 100/110 VAC coil
- Pick G2R-1-SN DC24V for higher-pole SPDT single-pole 5 A variant when DPDT not needed
- Pick G2R-1-SN DC24V-H for 10 A high-current variant
Technical Specifications
| Model | G2R-2-SND DC24V |
|---|---|
| Series | G2R-S (slim 8-pin plug-in industrial relay) |
| Type | DPDT (2 form C) power relay, 8-pin plug-in |
| Coil Voltage | 24 VDC |
| Coil Resistance | 1,100 Ω (±10 % at 20 °C) |
| Coil Current | 21.8 mA typical at 24 VDC (28 mA max) |
| Coil Power Consumption | Approx. 530 mW at 24 VDC |
| Must-Operate Voltage | 70 % nominal max (≤ 16.8 VDC at 20 °C) |
| Must-Release Voltage | 15 % nominal min (≥ 3.6 VDC at 20 °C) |
| Max Continuous Coil Voltage | 130 % nominal for 1 min (31.2 VDC) |
| Rated Carry Current | 5 A per pole continuous |
| Contact Voltage Rating | 250 VAC max / 30 VDC max |
| Contact Current Rating (Resistive) | 5 A at 250 VAC, 5 A at 30 VDC |
| Contact Current Rating (Inductive) | 2 A at 250 VAC cosφ = 0.4, 3 A at 30 VDC L/R = 7 ms |
| Switching Capacity | 1,250 VA / 150 W max per pole |
Resources & Downloads
FAQ for G2R-2-SND DC24V
Does the G2R-2-SND DC24V have the coil-suppression diode inside?
Yes — the 'D' in the suffix 'SND' stands for Diode. The relay has a coil-suppression diode (a bidirectional Zener / TVS combination, clamped at approximately 27 V) reverse-biased across the coil terminals, designed to absorb the back-EMF that occurs when the coil de-energizes.
What's the difference between P2RF-08-E and P2RFZ-08-E sockets?
Both are 8-pin sockets for the G2R-2-SN family. The P2RFZ-08-E is the legacy M3-screw-terminal socket — wires are clamped by tightening 0.4 N·m torque screws; requires periodic retightening in high-vibration environments and is the recommended socket for CE/UL applications where torque verification is part of the panel commissioning.
Can the G2R-2-SND DC24V switch 230 VAC motor contactor coils?
Yes — this is one of the most common applications for the G2R-2-SN family. The 5 A contact rating covers 230 VAC at any typical motor contactor coil current (typically 10-50 VA, i.e., 50-200 mA coil current at 230 VAC, well within 5 A).
What does the mechanical flag indicator do?
The mechanical flag indicator (a white-and-black flip-bar visible through the clear acrylic case on the front face of the relay) shows the contact state mechanically — even with the panel powered off. When the coil is energized, the flag moves to the 'operated' position; when the coil is de-energized, it returns to the 'released' position.
