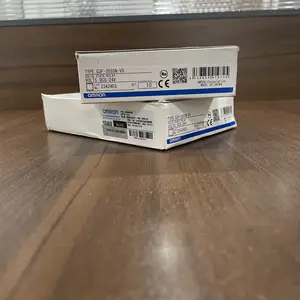

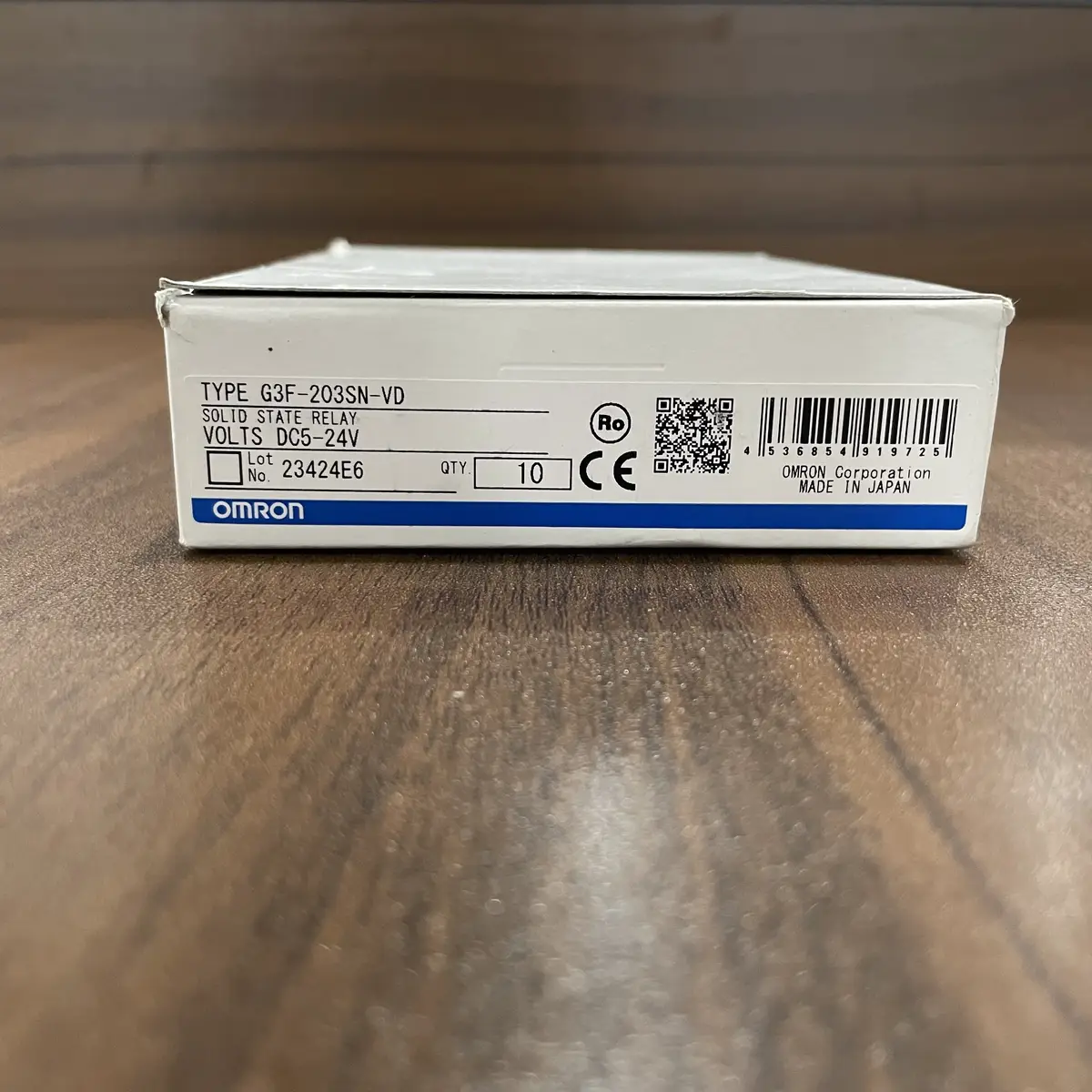

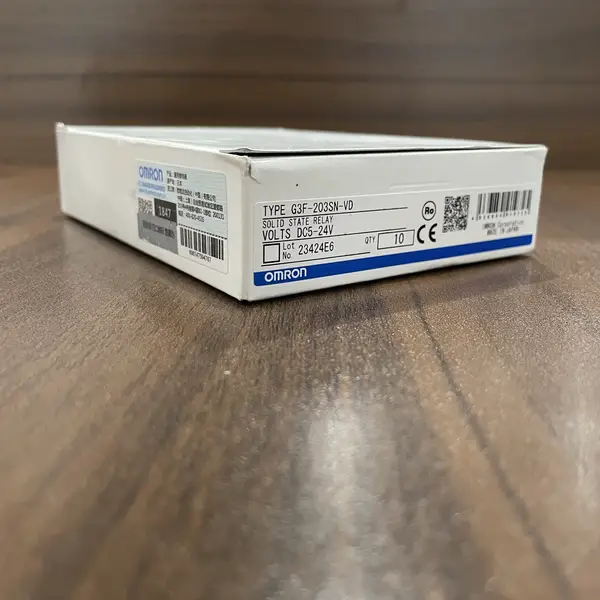

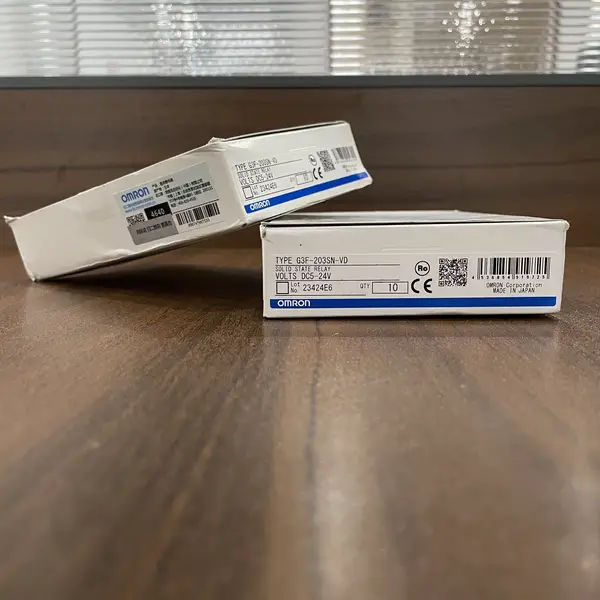

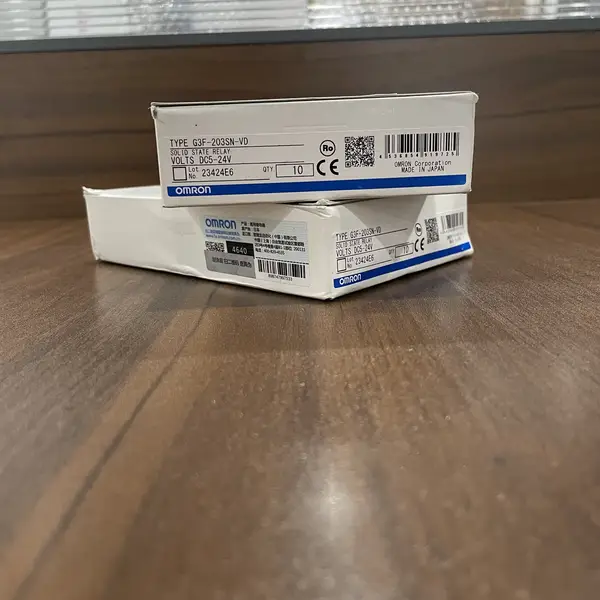

Omron G3F-203SN-VD — 3 A Solid State Relay
SKU: G3F-203SN-VDUSD 15.00
plug-in SSR, 5-24 VDC in, 100-240 VAC out, 3 A, zero-cross, LED. In stock, China.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron G3F-203SN-VD is a plug-in solid state relay in the G3F family with the same 28 x 21.5 x 36.5 mm profile as an MY-series mechanical power relay It is manufactured by Omron Corporation. Hengyixin Automation stocks this solid-state relay in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports. Input is 5 to 24 VDC at 15 mA max; load is 100 to 240 VAC at 0.1 to 3 A. Zero-cross turn-on waits for the AC line to cross 0 V before conducting, eliminating the inrush surge of heater elements and lamps. Note that some G3F(D) variants are scheduled for phase-out in 2023+; the G3NA-210B-UTU is the recommended 10 A replacement for new builds. Key specs: Rated Input Voltage 5 to 24 VDC; must operate 4 V max; must release 1 V min; Input Current 15 mA max (constant-current input); Rated Load Voltage 100 to 240 VAC (operating range 75 to 264 VAC); Load Current 0.1 to 3 A at 40 C; 45 A inrush for 1 cycle; Switching Function Zero-cross turn-on (photocoupler isolation); Dielectric Strength 2,000 VAC, 50/60 Hz for 1 min (input.
Key Features
- G3F-series plug-in solid state relay, 5 to 24 VDC input at 15 mA max
- 100 to 240 VAC output at 0.1 to 3 A, zero-cross turn-on for low-inrush AC switching
- Photocoupler isolation 2,000 VAC for 1 min between input and output, with LED indicator
- Same 28 x 21.5 x 36.5 mm profile as MY-series mechanical relay; mounts on PYFZ-08 / PYF-08-PU socket
- SKU: G3F-203SN-VD
- Series: G3F plug-in solid state relay (MY-size)
- Voltage: 5 TO 24 VDC
Best-Fit Applications
- Industrial lighting array on/off control driven from a 24 VDC CP1W-OD212 output on a small machine
- Spare replacement on a panel originally wired around an MY-series mechanical relay where silent switching is now required
- PLC-to-AC heater switching on a packaging line where the zero-cross turn-on reduces inrush on the 240 VAC heating element
Buying Checklist
- Choose the G3F-203SN-VD when the cabinet already runs MY-size plug-in sockets and 5 to 24 VDC input drives a 3 A AC load.
- Choose the G3NA-210B-UTU DC5-24V instead for new builds needing a panel-mount SSR up to 10 A on the same AC line.
- Choose the G3PE-225B DC12-24V instead when the load is up to 25 A and a built-in heatsink is required.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | G3F plug-in solid state relay (MY-size) |
| Model / SKU | G3F-203SN-VD (DC5-24) |
| Rated Input Voltage | 5 to 24 VDC; must operate 4 V max; must release 1 V min |
| Input Current | 15 mA max (constant-current input) |
| Rated Load Voltage | 100 to 240 VAC (operating range 75 to 264 VAC) |
| Load Current | 0.1 to 3 A at 40 C; 45 A inrush for 1 cycle |
| Switching Function | Zero-cross turn-on (photocoupler isolation) |
| Dielectric Strength | 2,000 VAC, 50/60 Hz for 1 min (input to output) |
| Compatible Sockets | PYFZ-08, PYFZ-08-E, PYF08A-N, PYF-08-PU, PY08-02 |
| Operating Temperature | -30 to +80 C (no icing or condensation) |
| Dimensions / Mounting | 28 (H) x 21.5 (W) x 36.5 (D) mm; plug-in 8-pin socket |
FAQ for G3F-203SN-VD
What does the -VD suffix on G3F-203SN-VD mean?
VD marks the international-standard certified variant of the G3F plug-in SSR. V is the plug-in socket form factor; D marks DC input. The N in 203SN marks the LED indicator on the input side. For an SSR without LED, drop the N and order G3F-203S-VD.
What is zero-cross switching and why does it matter?
Zero-cross turn-on waits for the AC line to cross 0 V before the relay conducts. This eliminates the inrush surge resistive loads (heaters, lamps) draw when switched at the AC peak, reducing contact wear, EMI and nuisance breaker trips upstream. Choose a random-turn-on SSR only when phase-angle control is needed for dimming.
What socket does the G3F-203SN-VD plug into?
The G3F-203SN-VD plugs into PYFZ-08 (DIN-rail screw), PYFZ-08-E (DIN-rail screw, finger-safe), PYF08A-N (screw finger-safe), PYF-08-PU (Push-In Plus terminals) or PY08-02 (PCB-mount). It will not fit a PYF-14 or PYFZ-14 socket - those are 14-pin sockets for the G3R / G3F-D device series only and do not match the G3F 8-pin pinout.
Can the G3F-203SN-VD switch a DC load?
No. The G3F family is rated for AC load voltage only, with an operating range of 75 to 264 VAC. For a DC load, use the G3FD-X03SN-VD (4 to 48 VDC at 3 A) or the G3FD-102SN-VD (5 to 110 VDC at 2 A) instead. Both DC variants share the same 8-pin form factor and pinout so the same PYF-08-PU socket fits all of them.
