Omron G3NA-450B-UTU-2 DC5-24V — SSR, 50 A, 480 VAC
SKU: G3NA-450B-UTU-2 DC5-24VUSD 59.00
Omron G3NA-450B-UTU-2 DC5-24V G3NA solid state relay, 50 A, 200-480 VAC, 5-24 VDC in. In stock.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron G3NA-450B-UTU-2 DC5-24V is a 50 A single-phase solid-state relay from the G3NA panel-mount family, manufactured by Omron Corporation. Hengyixin Automation stocks this solid-state relay in Xiamen and ships within 3-5 business days in original Omron packaging with the lot code visible.

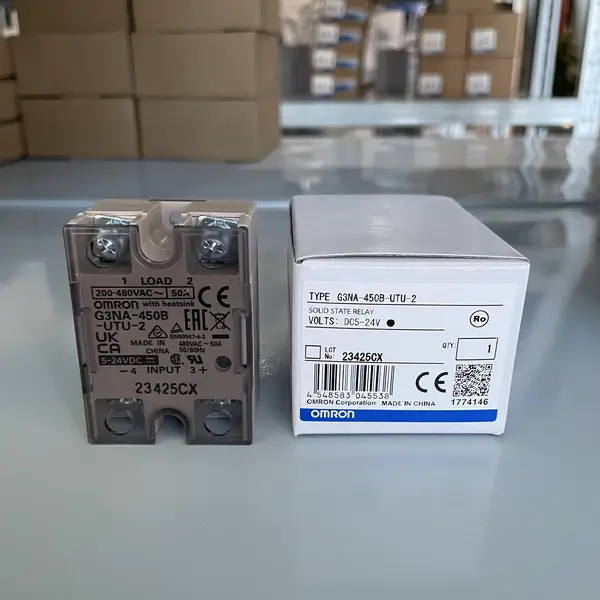

The output switches 200-480 VAC at 50 A continuous, with an M5 screw terminal on each side of the hockey-puck case. Switching is zero-cross, so the triac only fires near the AC zero to cut EMI and inrush on resistive loads. Input is 5 to 24 VDC at 7 mA max.
Phototriac isolation separates input from output. A built-in varistor absorbs external surges on the AC line. Mount the relay on a Y92B-N150 heat sink for the full 50 A rating. The body is 30 x 43 x 58 mm, -30 to +80 degC. For a 40 A alternative, pick the G3NA-240B-UTU DC5-24. For a three-phase SSR, pick the G3NB-240B-1 DC5-24V.
Key Features
- G3NA single-phase solid-state relay, 50 A, 200-480 VAC load
- Zero-cross switching cuts EMI and inrush on resistive loads
- 5 to 24 VDC control input, phototriac isolation, built-in varistor
- M5 screw output terminals, 30 x 43 x 58 mm hockey-puck case, -30 to +80 degC
- SKU: G3NA-450B-UTU-2 DC5-24V
- Series: Omron G3NA-series single-phase panel-mount solid-state relay
- Voltage: 200 TO 480 VAC
Best-Fit Applications
- Industrial heater control on a plastic extruder where the zero-cross switching extends the heater life
- PID temperature loop on a reflow oven where the 24 VDC control reads from a CP1L transistor
- Spare drop-in for an existing G3NA panel where the Y92B-N150 heat sink is already mounted
Buying Checklist
- Pick the G3NA-450B-UTU-2 DC5-24V for a 50 A single-phase SSR on a hockey-puck case with zero-cross switching.
- Pick the G3NA-240B-UTU DC5-24 instead when the load only needs 40 A on the same 480 VAC class.
- Pick the G3NB-240B-1 DC5-24V instead when the cabinet needs a 40 A three-phase SSR on the same control voltage.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron G3NA-series single-phase panel-mount solid-state relay |
| Model / SKU | G3NA-450B-UTU-2 DC5-24V |
| Rated Load Voltage | 200 to 480 VAC (operating range 180-528 VAC) |
| Rated Load Current | 50 A continuous at 40 degC (with proper heat sink) |
| Control Input Voltage | 5 to 24 VDC |
| Control Input Current | 7 mA max at 24 VDC |
| Switching Mode | Zero-cross (triac) |
| Isolation | Phototriac; 4 kV dielectric strength |
| On-State Voltage Drop | 1.6 V (RMS) max at 50 A |
| Surge Protection | Built-in varistor across the AC output |
| Termination / Mounting | M5 screw terminals; panel mount with Y92B-N150 heat sink |
FAQ for G3NA-450B-UTU-2 DC5-24V
What heat sink do I need for the G3NA-450B-UTU-2?
Mount the relay on a Y92B-N150 heat sink for the full 50 A rating. Apply a thin layer of the supplied silicon grease between the relay base and the heat sink. At ambient above 40 degC, add forced-air cooling or step down to the G3NA-240B-UTU DC5-24.
Can the G3NA-450B-UTU-2 switch DC loads?
No. The -450B triac output is for AC loads only. For DC loads up to 200 VDC, use the G3NA-D210B-UTU DC5-24 MOSFET output. For three-phase AC at 40 A, use the G3NB-240B-1 DC5-24V.
Why is zero-cross switching important?
Zero-cross switching fires the triac near the AC zero-crossing point, which cuts the inrush current and EMI on resistive loads like heaters and lamps. For phase-angle control of inductive loads, switch to the G3NA-450B-UTU-1 (random-fire) variant.
