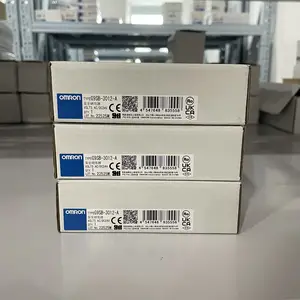

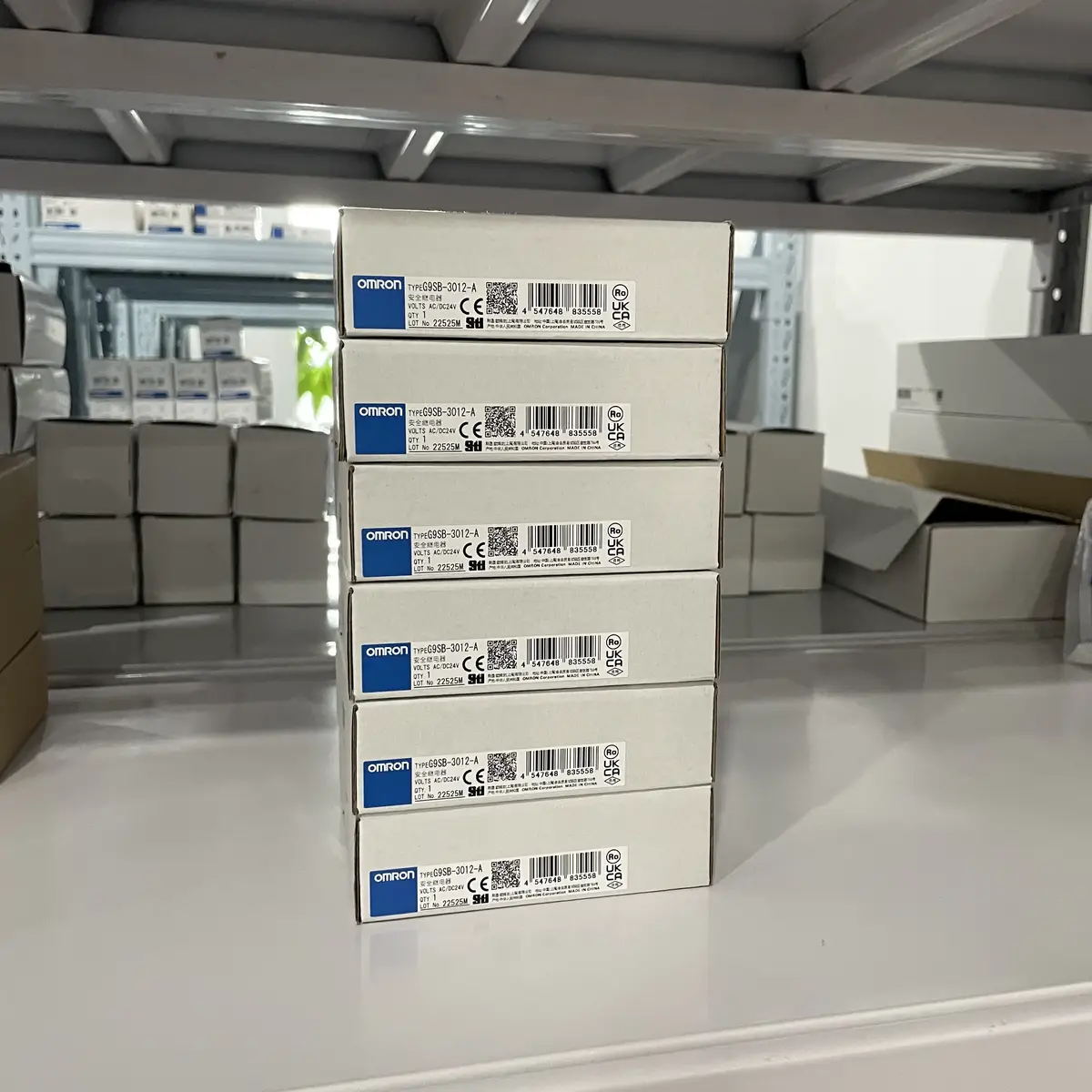

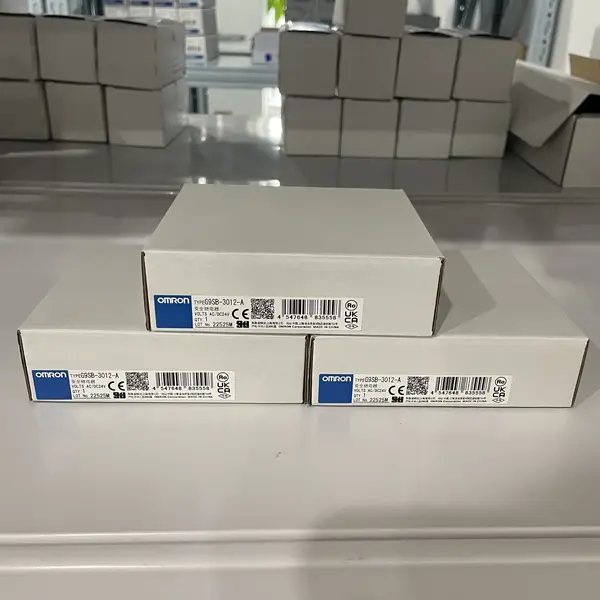

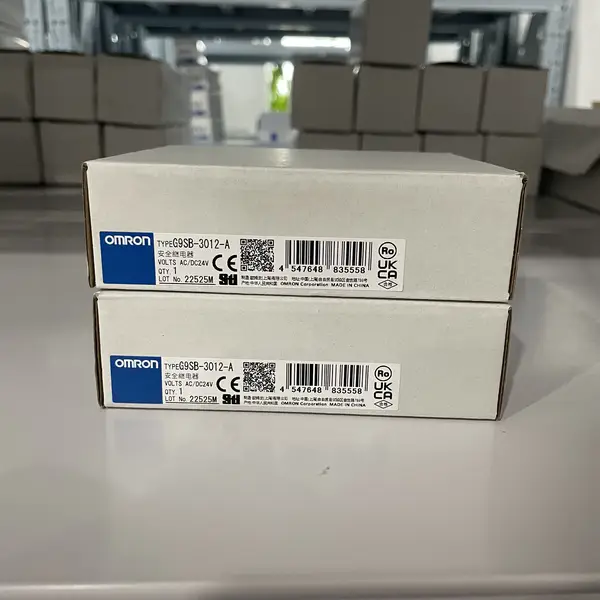

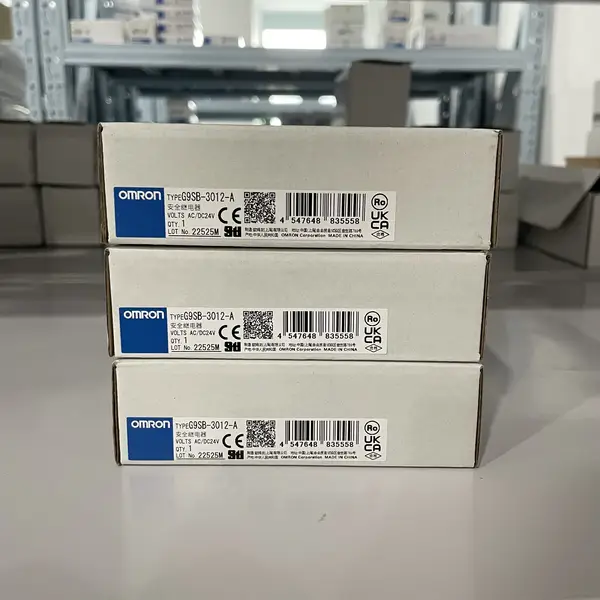

Omron G9SB-3012-A — Slim Safety Relay, 24 VAC/VDC
SKU: G9SB-3012-AUSD 105.00
ultra-slim 22.5 mm safety relay, 3PST-NO + SPST-NC, 5 A, 24 VAC/VDC, auto-reset. In stock.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron G9SB-3012-A is an ultra-slim safety relay unit for emergency-stop and guard-door monitoring It is manufactured by Omron Corporation. Hengyixin Automation stocks this relay in Xiamen and ships within 3-5 business days; safety-rated components ship with a batch-trace certificate.
The unit is 22.5 mm wide on a DIN rail and combines 3 PST-NO safety contacts with 1 SPST-NC auxiliary feedback contact, all rated 5 A at 250 VAC. The supply is 24 VAC or 24 VDC and the input side accepts two inverse (mechanical switch) channels with auto-reset.
For a 45 mm wide safety relay with more contacts, pick the G9SA-301 AC-DC24. Key specs: Safety Output 3PST-NO (3 safety contacts, NO); Auxiliary Output SPST-NC (1 auxiliary feedback contact); Contact Rating 5 A at 250 VAC / 30 VDC, resistive; Supply Voltage 24 VAC (50/60 Hz) or 24 VDC; Power Consumption 1.7 VA / 1.7 W max; Input Channels / Reset 2 channels, inverse input, auto-reset; Time Operating 30 ms max; response 10 ms max; Standards EN ISO 13849-1 PLe / Cat.4, TUV, UL listed.
Key Features
- G9SB ultra-slim 22.5 mm safety relay unit, DIN-rail mount
- 3PST-NO safety contacts plus 1 SPST-NC auxiliary, all rated 5 A at 250 VAC
- 24 VAC / 24 VDC supply, 2-channel inverse input, auto-reset, 30 ms operate / 10 ms response
- EN ISO 13849-1 PLe / Safety Category 4 when wired per the datasheet; TUV approved
- SKU: G9SB-3012-A
- Series: Omron G9SB-series ultra-slim safety relay unit
- Voltage: 24 VAC
Best-Fit Applications
- Emergency-stop monitoring on a packaging line where the G9SB-3012-A sits between the E-stop pushbutton and the contactors driving the hazard
- Guard-door interlock on a CNC cell where two safety limit switches feed the inverse inputs and the SPST-NC contact feeds the PLC
- Spare drop-in for an existing safety relay panel where the previous G9SB-3012-A failed and the cabinet is wired for inverse auto-reset
Buying Checklist
- Pick the G9SB-3012-A for a slim 22.5 mm safety relay with 3 safety contacts and auto-reset.
- Pick the G9SB-3012-C instead when manual reset is required by the risk assessment.
- Pick the G9SA-301 AC-DC24 instead when a wider 45 mm safety relay with the same 3PST-NO output fits the cabinet better.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron G9SB-series ultra-slim safety relay unit |
| Model / SKU | G9SB-3012-A |
| Safety Output | 3PST-NO (3 safety contacts, NO) |
| Auxiliary Output | SPST-NC (1 auxiliary feedback contact) |
| Contact Rating | 5 A at 250 VAC / 30 VDC, resistive |
| Supply Voltage | 24 VAC (50/60 Hz) or 24 VDC |
| Power Consumption | 1.7 VA / 1.7 W max |
| Input Channels / Reset | 2 channels, inverse input, auto-reset |
| Time | Operating 30 ms max; response 10 ms max |
| Standards | EN ISO 13849-1 PLe / Cat.4, TUV, UL listed |
| Dimensions / Weight | 100 (H) x 22.5 (W) x 112 (D) mm; approx. 209 g |
FAQ for G9SB-3012-A
What safety category does the G9SB-3012-A meet?
When wired per the datasheet examples (two-channel inverse input, auto-reset, monitored contactors), the G9SB-3012-A meets EN ISO 13849-1 Performance Level e and Safety Category 4. The exact category of the complete safety function is determined by the whole system, not just the relay.
What is the difference between the G9SB-3012-A and the G9SB-3012-C?
The G9SB-3012-A is auto-reset; the G9SB-3012-C is manual reset. Both share the same 3PST-NO + SPST-NC contact set and the same 22.5 mm housing.
Does the G9SB-3012-A work with safety light curtains?
Yes. The 2-channel inverse input accepts either mechanical limit switches, E-stop pushbuttons, or the OSSD outputs of a safety light curtain. Wire the curtain outputs to T11/T12 and T21/T22 as shown in the G9SB datasheet.
How is the G9SB-3012-A reset after an E-stop?
On auto-reset the safety contacts close again as soon as both inverse input channels are closed and the internal logic has cycled. For applications that require a deliberate manual reset, swap to the G9SB-3012-C.
