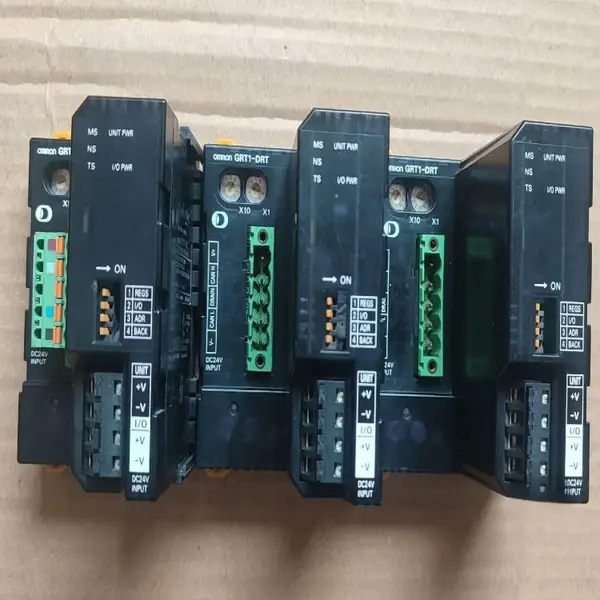

Omron GRT1-DRT — front face of the GRT1 SmartSlice DeviceNet Communications Unit showing the pale grey housing with the MS green/red and NS green/red network status indicators on the upper left, the TS indicator on the upper right, the two rotary switches for DeviceNet node address below the indicators, the 4-pole DIP switch for I/O allocation mode and the unit/IO power supply screw terminals at the bottom

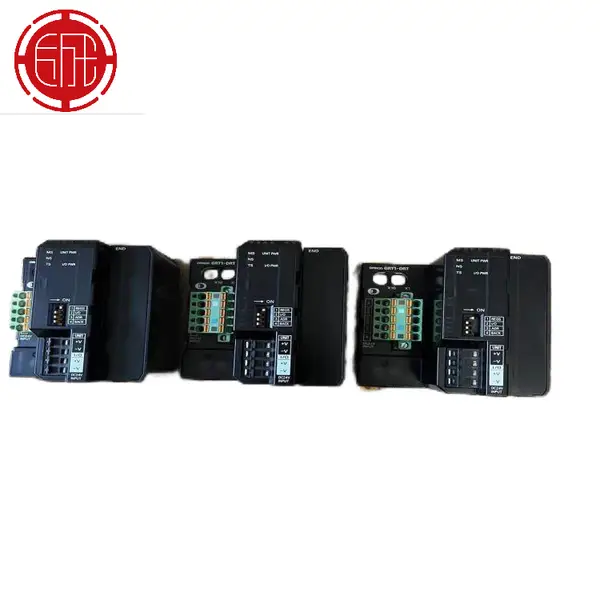

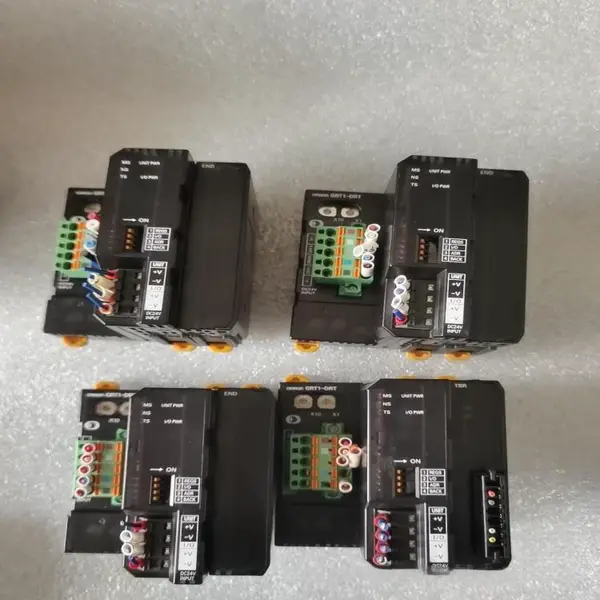

Omron GRT1-DRT — SmartSlice DeviceNet Coupler

SKU: GRT1-DRT

USD 230.00

SmartSlice DeviceNet communications coupler, up to 64 I/O units, 1024 I/O points. In stock, China shipping.

1-Year Warranty Full manufacturer warranty
Global Shipping Worldwide delivery available
Genuine Omron 100% authentic product
Ready to Ship Usually ships within 24h
In Stock

This item is available for immediate shipment from our warehouse.

Request Quote

Contact for pricing, bulk discounts, and shipping

Product Overview

The Omron GRT1-DRT is the GRT1 SmartSlice DeviceNet Communications Unit It is manufactured by Omron Corporation. Hengyixin Automation stocks this controller in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports. It acts as the DeviceNet slave for a SmartSlice I/O rack, exposing up to 1024 I/O points (128 bytes input + 128 bytes output) on one node. Up to 64 SmartSlice I/O units stack to its right. The 84 x 58 x 70 mm housing weighs 137 g. Key specs: Network DeviceNet slave, Group 2 Only Slave, predefined master/slave connection set; baud rate auto-detected 125 / 250 / 500 kbps; I/O Capacity 1024 I/O points max (128 bytes input + 128 bytes output); up to 64 SmartSlice I/O units connect to one coupler; Network Power 11 to 25 VDC supplied from the DeviceNet communications connector; Unit Power 20.4 to 26.4 VDC (24 VDC +10 percent / -15 percent); 2 terminals; I/O Power 20.4 to 26.4 VDC (24 VDC +10 percent / -15 percent); 2 terminals; 80 W max per block; 4 A max I/O supply current; Slice Data 0, 2 or 4 bits per.

Key Features

  • GRT1 SmartSlice DeviceNet Communications Unit, exposes up to 1024 I/O points (128 bytes input + 128 bytes output) on one node
  • Up to 64 SmartSlice I/O units stack on the coupler, 80 W max per block, 4 A max I/O supply current
  • Two rotary switches for DeviceNet node address 0 to 63, automatic baud rate detection at 125 / 250 / 500 kbps
  • 4-pole DIP switch for I/O allocation mode, registered table, backup trigger, message communications, 2 KB parameter backup per unit
  • SKU: GRT1-DRT
  • Series: GRT1-series SmartSlice distributed I/O, DeviceNet Communications Unit
  • I/O: 1024 points

Best-Fit Applications

  • DeviceNet drop on a bottling line where the GRT1-DRT stacks up to 64 SmartSlice I/O units for valve banks, level switches and stack lights
  • Retrofit of a hardwired DeviceNet panel where the GRT1-DRT replaces a marshalling panel with a 137 g coupler that does parameter backup via CX-Integrator
  • Spare replacement on a CJ1W-DRM21 DeviceNet master where the GRT1-DRT continues the legacy SmartSlice rack until migration to NX-ECC201 EtherCAT

Buying Checklist

  • Pick the GRT1-DRT for a SmartSlice DeviceNet node that hosts up to 64 I/O units and 1024 I/O points with parameter backup and message communications.
  • Pick the GRT1-CRT instead when the network is CompoNet rather than DeviceNet (CompoNet master units on a CS1W or CJ1W).
  • Pick the NX-ECC201 instead for new builds on EtherCAT with the same SmartSlice-style mounting on the NX-series I/O system.

Technical Specifications

Manufacturer Omron Corporation (Japan)
Series GRT1-series SmartSlice distributed I/O, DeviceNet Communications Unit
Model / SKU GRT1-DRT
Network DeviceNet slave, Group 2 Only Slave, predefined master/slave connection set; baud rate auto-detected 125 / 250 / 500 kbps
I/O Capacity 1024 I/O points max (128 bytes input + 128 bytes output); up to 64 SmartSlice I/O units connect to one coupler
Network Power 11 to 25 VDC supplied from the DeviceNet communications connector
Unit Power 20.4 to 26.4 VDC (24 VDC +10 percent / -15 percent); 2 terminals
I/O Power 20.4 to 26.4 VDC (24 VDC +10 percent / -15 percent); 2 terminals; 80 W max per block; 4 A max I/O supply current
Slice Data 0, 2 or 4 bits per slice; 0 to 16 words in word increments; status flags 1 word; parameter backup/restore 2 KB per unit
Switches Two rotary switches for DeviceNet node address 0 to 63; 4-pole DIP switch for REGS, I/O allocation mode, automatic restore, backup trigger
Environment -10 to 55 C operating, 25 to 85 percent humidity (no condensation); -25 to 65 C storage; noise immunity IEC 61000-4-4 2 kV; vibration 10 to 60 Hz 0.7 mm / 60 to 150 Hz 50 m/s2; shock 150 m/s2; dielectric 500 VAC; insulation 20 MOhm min
Form Factor 84 (H) x 58 (W) x 70 (D) mm, 137 g; DIN 35 mm track mount; 1 DeviceNet connector with screws; CE, cULus, Lloyd approvals; discontinued 2024-03-31 with support through 2031

FAQ for GRT1-DRT

What is the Omron GRT1-DRT used for?
It is the GRT1 SmartSlice DeviceNet Communications Unit. It acts as the DeviceNet slave for a SmartSlice I/O rack and exposes up to 1024 I/O points on one node. Typical uses are DeviceNet drops on bottling lines, retrofit of hardwired marshalling panels, and spare replacement on legacy CJ1W-DRM21 DeviceNet masters.
How many SmartSlice I/O units can the GRT1-DRT serve?
Up to 64 SmartSlice I/O units stack to the right of the GRT1-DRT, exposing up to 1024 I/O points (128 bytes input plus 128 bytes output). The total current budget is 80 W per block at 4 A I/O supply max. Use GRT1-TBR and GRT1-TBL turnback units to extend the rack.
Is the GRT1-DRT still in production?
No. The GRT1-DRT was discontinued on 2024-03-31 per the GRT1-series discontinuation notice and is supported through March 2031. Hengyixin stocks it for the existing install base. For new projects, migrate to the NX-series NX-ECC201 EtherCAT Coupler and NX-OD or NX-ID slice units.
