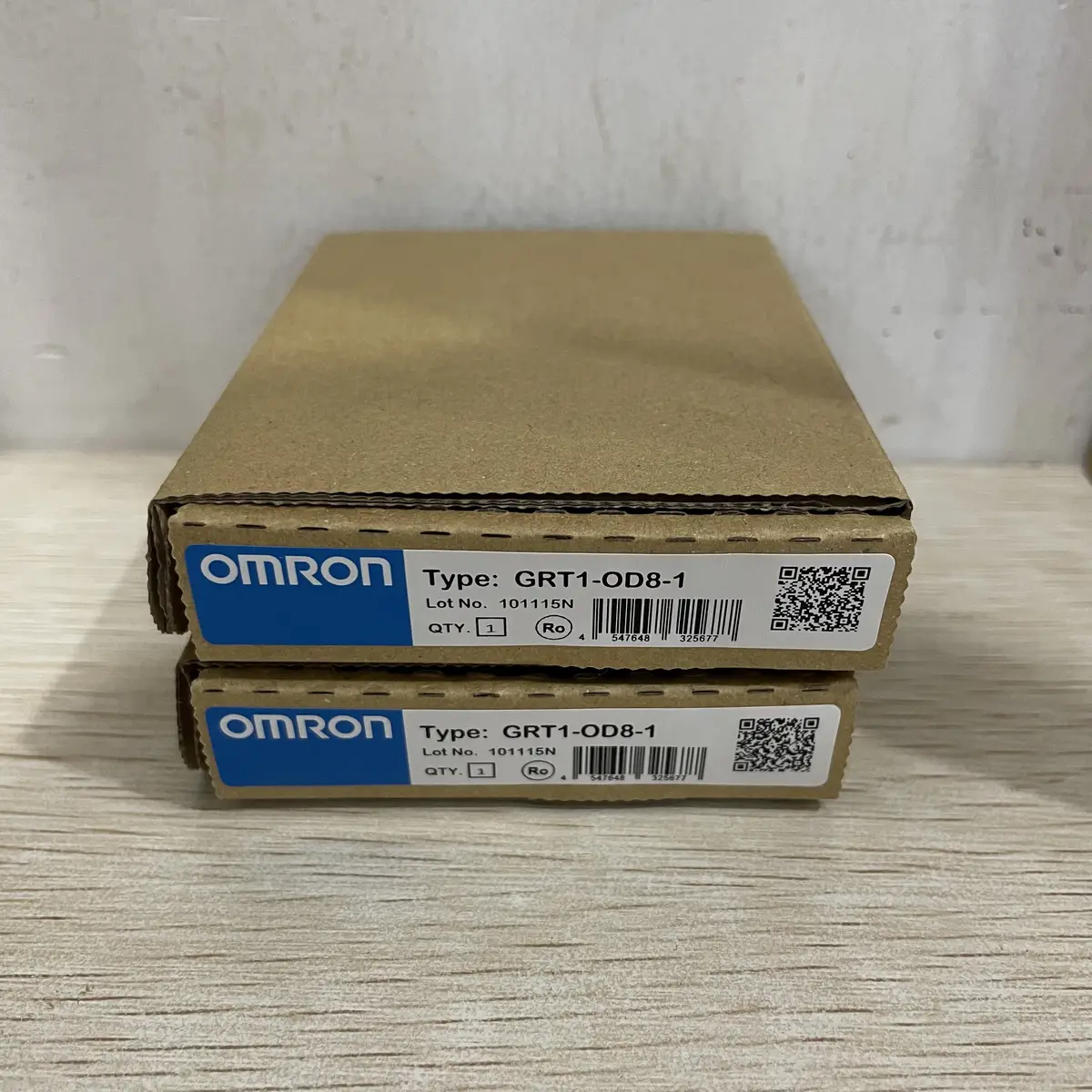

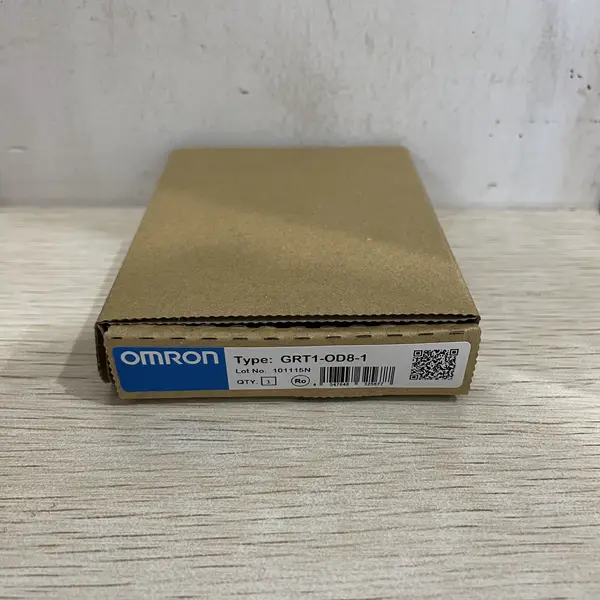

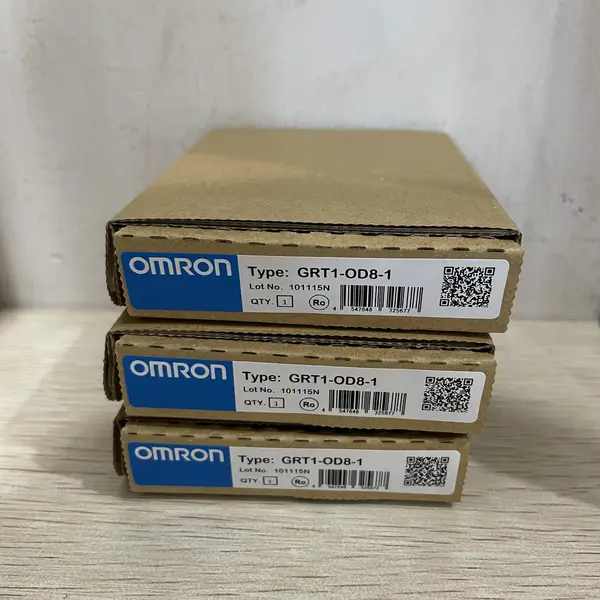

Omron GRT1-OD8-1 — SmartSlice 8-Pt PNP Output
SKU: GRT1-OD8-1USD 108.00
Omron GRT1-OD8-1 SmartSlice 8-point PNP output module, 24 VDC, 0.5 A/point, DeviceNet / PROFIBUS / EtherCAT. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview

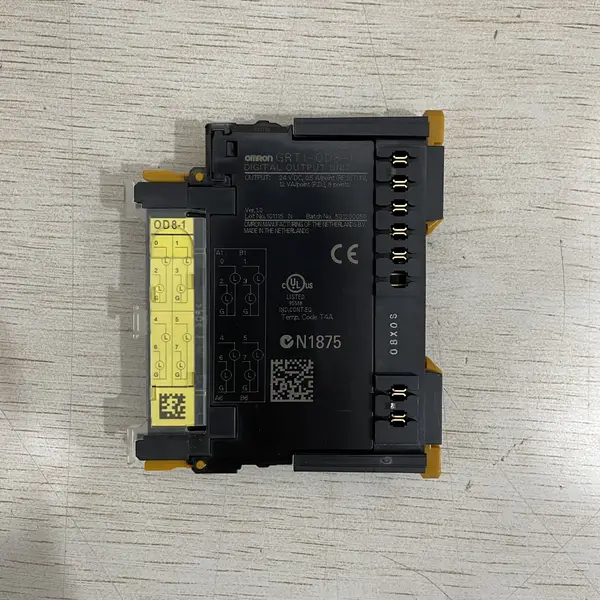

The Omron GRT1-OD8-1 is the SmartSlice 8-point PNP transistor output module for the GRT1 modular I/O system, manufactured by Omron Corporation. Hengyixin Automation stocks this controller option board in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.
It switches eight 24 VDC outputs at 0.5 A per point (4 A common) from a 20.4 to 26.4 VDC I/O supply, with 0.5 ms ON delay and 1.5 ms OFF delay. Residual voltage is 1.2 VDC max at 500 mA. The terminal block is push-in cage-clamp with four IOG (V-) terminals and no IOV (V+) terminals.
The 84 x 15 x 74.4 mm IP20 housing clips to a 35 mm DIN rail and connects to a GRT1 bus coupler such as GRT1-DRT (PROFIBUS-DP), GRT1-PRT (PROFINET IO), or GRT1-ECT (EtherCAT). Up to 64 I/O units (63 for PROFINET) attach to one coupler. The product is discontinued with end-of-production 2024-03-31. The NPN sibling is the GRT1-OD8. The short-circuit-protected PNP version is the GRT1-OD8G-1.
Key Features
- GRT1 SmartSlice 8-point PNP transistor output module, 24 VDC, 0.5 A per point, 4 A common
- Push-in cage-clamp terminal, four IOG (V-) terminals, no IOV (V+) terminals, 1-wire / 2-wire connection
- 84 x 15 x 74.4 mm DIN rail housing, IP20, 88 g, plug-and-work with GRT1-DRT / GRT1-PRT / GRT1-ECT bus couplers
- Smart features: total hours counter, operations counter, supply voltage monitoring, last maintenance date
- SKU: GRT1-OD8-1
- Series: GRT1 SmartSlice modular remote I/O system
- Voltage: 24 VDC
- I/O: 8 I/O
Best-Fit Applications
- Solenoid bank on a bottling line where the GRT1-OD8-1 drives 8 valve solenoids through a GRT1-DRT PROFIBUS-DP coupler instead of running 8 home-run cables
- Indicator and stack-light cluster on a packaging machine where the GRT1-OD8-1 outputs feed 24 VDC LED drivers to a Sysmac NJ5 over EtherCAT
- Spare replacement on an automotive line where the older GRT1-OD8 NPN module is upgraded to the GRT1-OD8-1 PNP version to match the PNP sensor wiring
Buying Checklist
- Pick the GRT1-OD8-1 for 8 PNP sourcing points at 0.5 A each on a SmartSlice bus coupler (DeviceNet / PROFIBUS-DP / EtherCAT / PROFINET IO).
- Pick the GRT1-OD8 instead when the cabinet needs NPN sinking outputs and the PNP version is not compatible with the sensor wiring.
- Pick the GRT1-OD8G-1 instead when the panel needs 8 PNP outputs with built-in short-circuit and overcurrent protection per point.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | GRT1 SmartSlice modular remote I/O system |
| Model / SKU | GRT1-OD8-1 |
| I/O Configuration | 8 PNP transistor outputs (sourcing), 1-wire / 2-wire connection |
| Rated Voltage | 24 VDC (20.4 to 26.4 VDC) I/O supply via the front terminal block |
| Rated Current | 0.5 A per point, 4 A per common; residual voltage 1.2 VDC max at 500 mA; leakage 0.1 mA max |
| Response Time | 0.5 ms ON delay, 1.5 ms OFF delay |
| Terminal | Push-in cage-clamp, detachable; 4 x IOG (V-) terminals, 0 x IOV (V+) terminals |
| Network Protocols | DeviceNet (GRT1-DRT coupler), PROFIBUS-DP (GRT1-DRT coupler), PROFINET IO (GRT1-PRT coupler), EtherCAT (GRT1-ECT coupler), CompoNet, MECHATROLINK-II |
| Smart Features | Counter for total hours and operations, volt meter for supply monitoring, calendar for last maintenance date, hot-swap without rewiring |
| Protection | No short-circuit protection on this variant; see GRT1-OD8G-1 for short-circuit protection |
| Environment / Wiring | 0 to 55 C operating, IP20, 35 mm DIN rail; 84 (H) x 15 (W) x 74.4 (D) mm; 88 g unpacked; product discontinued 2024-03-31 |
FAQ for GRT1-OD8-1
What is the Omron GRT1-OD8-1 used for?
It is the GRT1 SmartSlice 8-point PNP transistor output module. It switches eight 24 VDC loads at 0.5 A each from a SmartSlice bus coupler such as the GRT1-DRT (PROFIBUS-DP), GRT1-PRT (PROFINET IO), or GRT1-ECT (EtherCAT). Typical uses are solenoid banks on bottling lines, indicator clusters on packaging machines, and any 24 VDC load where running 8 home-run wires back to a master PLC is too expensive.
GRT1-OD8-1 vs GRT1-OD8 - what is the difference?
Both are SmartSlice 8-point 24 VDC transistor output modules in the same 84 x 15 x 74.4 mm housing. The GRT1-OD8-1 is PNP sourcing (switches the load to +24 V); the GRT1-OD8 is NPN sinking (switches the load to 0 V). Pick the -OD8-1 for European-style PNP wiring and the -OD8 for Japanese-style NPN wiring.
Does the GRT1-OD8-1 need a coupler?
Yes. The GRT1-OD8-1 is a SmartSlice I/O unit and does not have its own network port. It must plug into a GRT1-DRT (DeviceNet / PROFIBUS-DP coupler), GRT1-PRT (PROFINET IO coupler), or GRT1-ECT (EtherCAT coupler). The coupler manages the network protocol and exchanges I/O data with the master PLC; the GRT1-OD8-1 only exposes the 8 outputs.
Is the GRT1-OD8-1 still in production?
No. The GRT1-OD8-1 was discontinued on 2024-03-31 per the Omron GRT1-series discontinuation notice. Hengyixin stocks it for the existing install base. For new projects, the modern replacement is the NX-series NX-OD4256 (16-point PNP output) on an NX-ECC201 EtherCAT Coupler.
