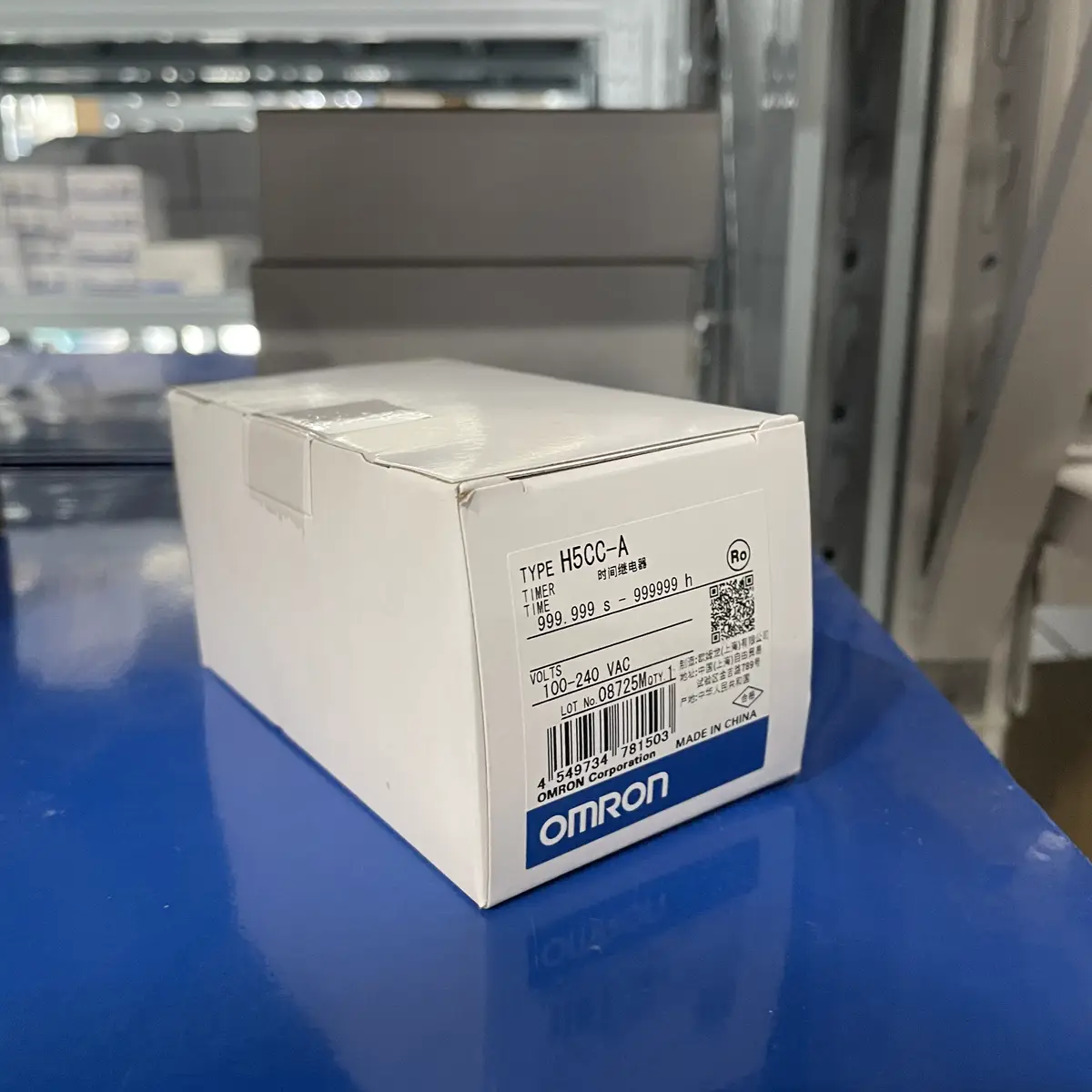

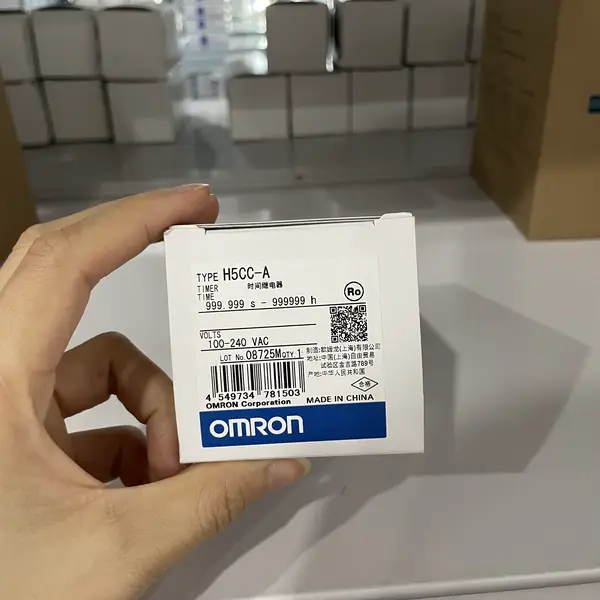

Omron H5CC-A — 48 mm Multi Mode Timer, AC 100 240
SKU: H5CC-AUSD 73.00
H5CC flush-mount digital timer, AC 100-240 V, 15 timing modes, 6-digit LCD, SPDT 5 A output, 48 x 48 mm DIN panel with IP66 face.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron H5CC-A is the standard 48 x 48 mm flush-mount digital timer with screw terminals and a single time-limit SPDT contact output. It is manufactured by Omron Corporation. Hengyixin Automation stocks this timer in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.
AC 100-240 V 50/60 Hz supply at approximately 6.5 VA Approx. 100 g weight, 11-pin / 8-pin socket variants available
H5CC-series standard 48 x 48 mm flush-mount multi-mode digital timer AC 100-240 V 50/60 Hz supply at approximately 6.5 VA
Approvals are UL 508, cULus, CCC, RCM, UKCA, and EN 61812-1.
Key Features
- H5CC-series standard 48 x 48 mm flush-mount multi-mode digital timer
- AC 100-240 V 50/60 Hz supply at approximately 6.5 VA
- Approx. 100 g weight, 11-pin / 8-pin socket variants available
- Screw-terminal block wiring on the bare H5CC-A (11-pin socket on the H5CC-A11)
- SKU: H5CC-A
- Series: Omron H5CC Digital Timer, standard type
Best-Fit Applications
- Flicker (oscillator) duty timer on a panel where the PLC scan is too slow
- ON-delay / OFF-delay relay timing on a packaging-line heat-seal station
- Star-delta or sequential-load startup timing on a pump bank controller
Buying Checklist
- Pick the H5CC-A11 instead when the panel uses an 11-pin round socket (P2CF-11-E base) rather than screw terminals.
- Pick the H5CC-A when the cabinet is on 100-240 VAC and the panel needs a flush-mount 15-mode timer with one SPDT relay output.

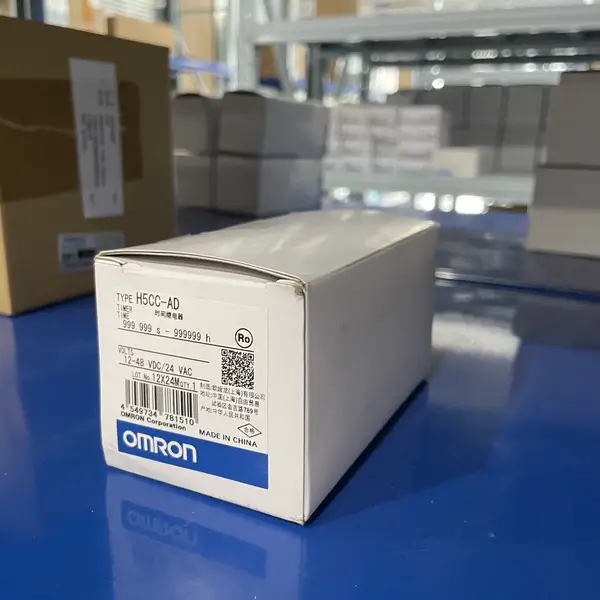

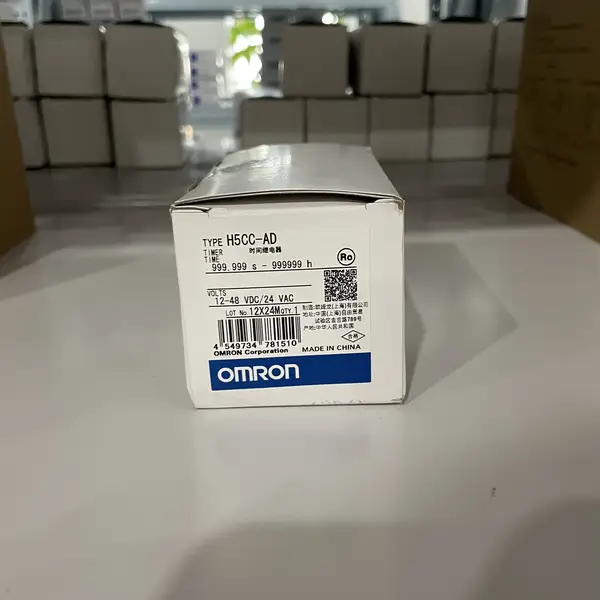

- Pick the H5CC-AD instead when the cabinet supply is 12-48 VDC or 24 VAC and the same SPDT 5 A output is wanted.
Technical Specifications
| Series | Omron H5CC Digital Timer, standard type |
|---|---|
| Model | H5CC-A |
| Function | Multi-mode timer only (NOT counter); 15 timing modes + 4 twin-timer modes |
| Timing Range | 0.001 s to 999,999 h over 10 selectable ranges |
| Display | 6-digit white LCD with up / down keys |
| Output | 1 x SPDT time-limit contact, 5 A 250 VAC / 5 A 30 VDC resistive |
| Supply | AC 100-240 V 50/60 Hz at approx. 6.5 VA |
| Inputs | Signal, Reset, Gate -- NPN no-voltage / PNP voltage switchable |
| Connections | Screw terminal blocks (11-pin socket on H5CC-A11 variant) |
| Panel Cutout | 45 x 45 mm, flush mount, 48 x 48 x 59 mm body |
| Protection | IP66 panel face with Y92S-P6 packing; IP54 without |
| Approvals | UL 508, cULus, CSA C22.2 No.14, CCC, RCM, UKCA, EN 61812-1, VDE 0106/P100 |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for H5CC-A
What is the difference between H5CC-A and H5CC-L8?
Function. The H5CC-A is a timer with 15 timing modes and an SPDT relay output. The H5CC-L8 is a 1-stage preset counter that counts incoming pulses and trips its relay when the count reaches the setpoint. Both share the same 48 x 48 mm panel footprint and the same IP66 face, but the A family times an interval while the L8 family counts pulses -- pick the one that matches the application.
How many timing modes does the H5CC-A have?
15 single-timer modes (Signal / Power ON Delay, Flicker I / II, One-Shot Flicker, Signal ON / OFF Delay, Signal OFF Delay I / II, Interval, Cumulative, Stopwatch, ON/OFF-Duty Flicker) plus four twin-timer modes (Flicker OFF / ON start, Flicker OFF / ON start II) on the AWSD suffix variant. Each mode is selectable from the front-panel keys without need for a PC.
Can the H5CC-A run on 24 VDC?
No -- the H5CC-A is AC 100-240 V only. For 12-48 VDC / 24 VAC use, pick the H5CC-AD (same body, same modes, same 5 A SPDT output, different supply). The H5CC-A cannot be powered from a 24 VDC rail.
What is the front-panel IP rating?
IP66 on the panel face ONLY when seated with the Y92S-P6 waterproof packing (sold separately). Without the packing the front face is IP54. The terminals and rear of the unit remain IP20 in all cases -- the timer is panel-mount only, not a sealed enclosure.
