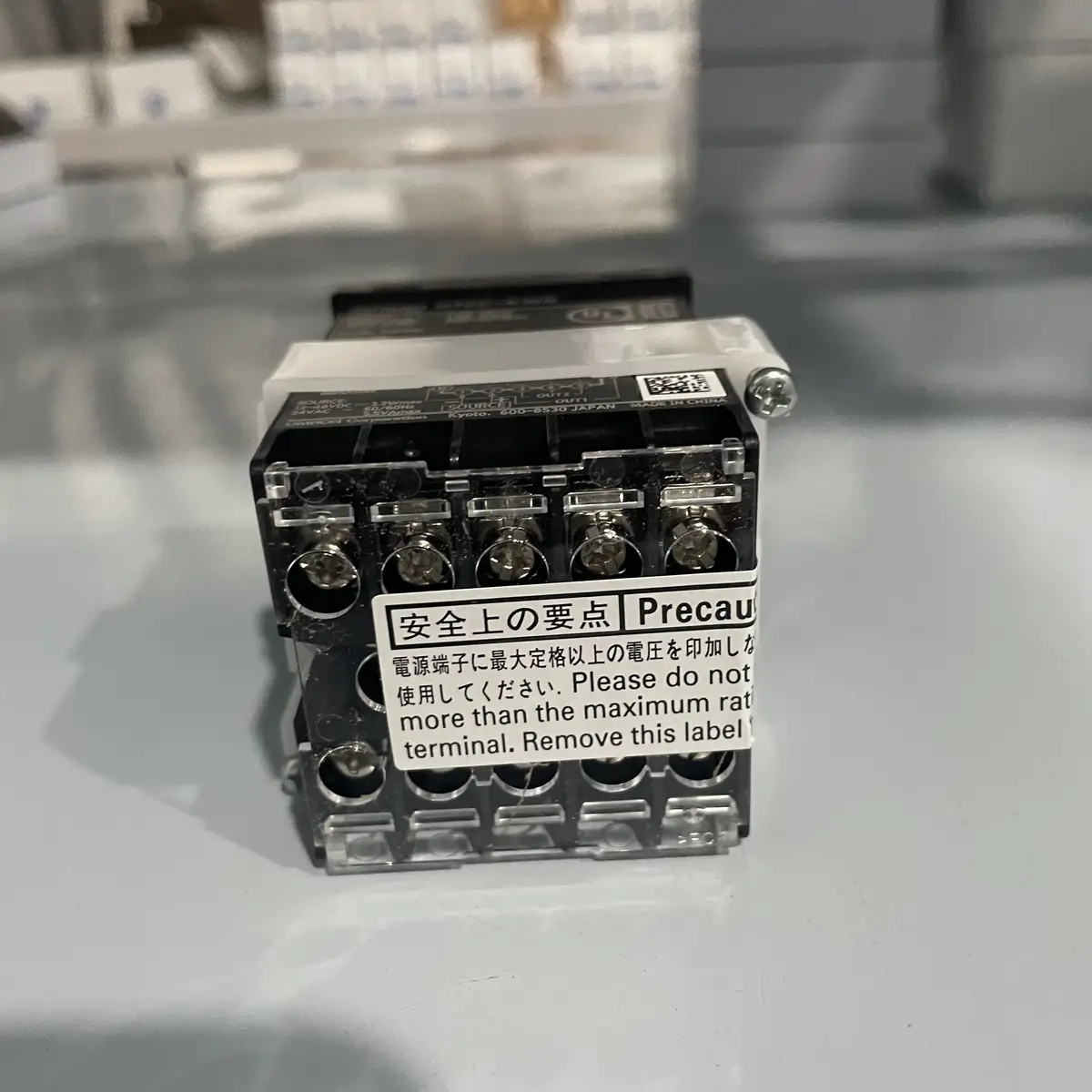

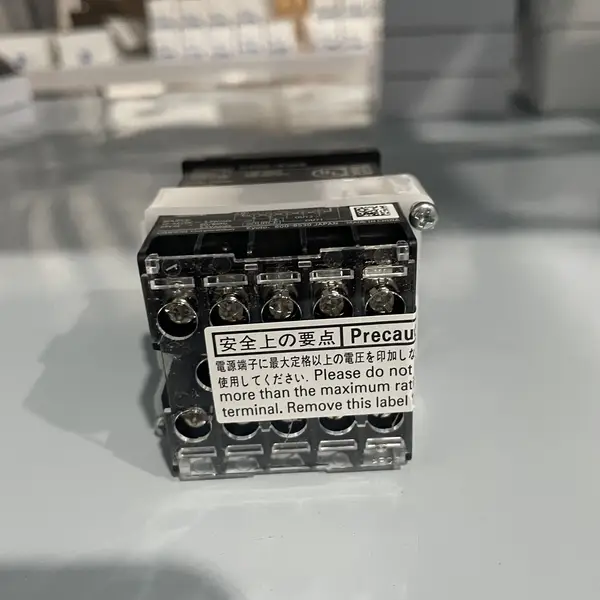

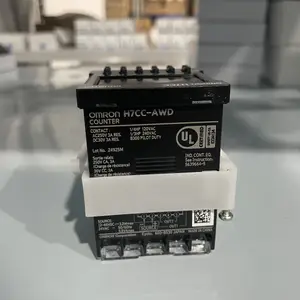

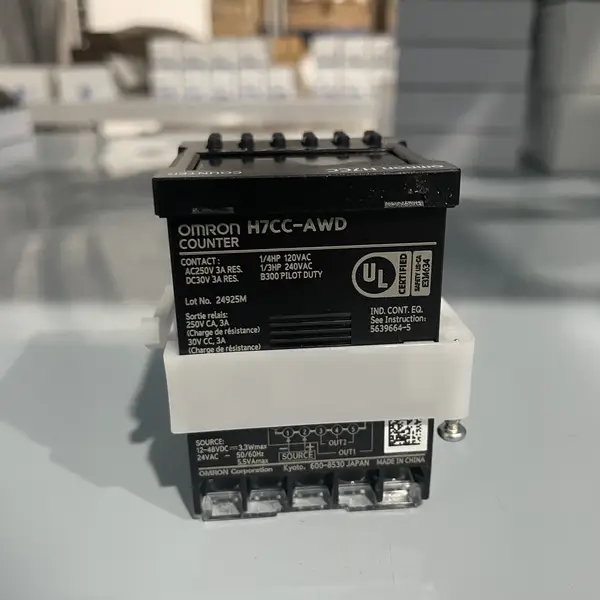

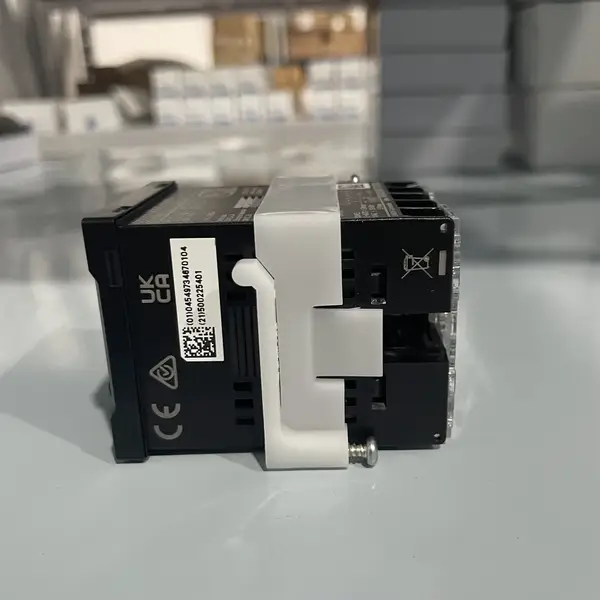

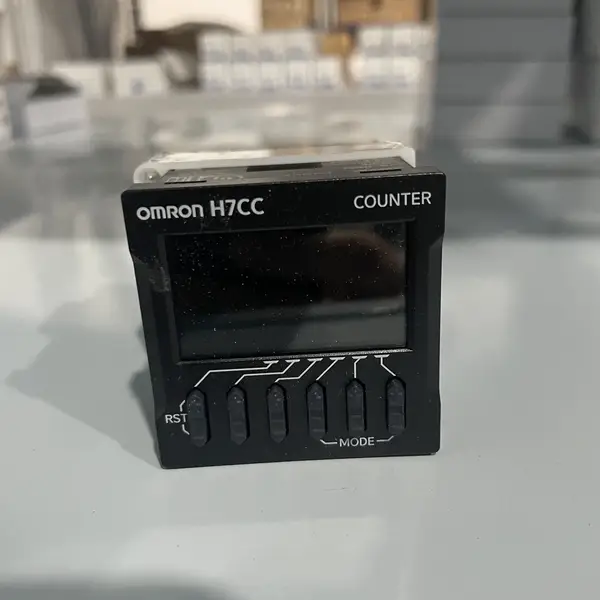

Omron H7CC-AWD — Multifunction Counter, 48x48 mm
SKU: H7CC-AWDUSD 126.00
Omron H7CC-AWD 48x48 mm digital counter, 6 digits, relay out, 12-48 VDC / 24 VAC supply. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron H7CC-AWD is a 48x48 mm multifunction digital counter, manufactured by Omron Corporation. Hengyixin Automation stocks this timer in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.
The counter shows 6 digits over a -99999 to 999999 range. Seven counting modes are selectable from the front panel: 1-stage, 2-stage, total, batch, dual, twin counter, and tachometer. Inputs accept both voltage and no-voltage signals, PNP or NPN, with a 10 kHz maximum count on each input.
Outputs are two relays: one SPST rated 30 VDC 100 mA and one SPDT rated 240 VAC 3 A. Power supply is 12-48 VDC or 24 VAC. Panel cutout is 45 x 45 mm. Front-panel protection is IP66. Inputs accept both PNP and NPN signals at the same terminals, which matters when the cabinet has a mix of sensor types. For a 100-240 VAC supply with relay outputs, pick the H7CC-AW.
Key Features
- 48x48 mm multifunction counter, 6 digits, -99999 to 999999 range
- Seven counting modes: 1-stage, 2-stage, total, batch, dual, twin, tachometer
- Two relay outputs (SPST + SPDT), 12-48 VDC / 24 VAC supply, 10 kHz max count
- Panel mount with 45 x 45 mm cutout, IP66 front face, screw terminals
- SKU: H7CC-AWD
- Series: Omron H7CC-series digital counter
- Voltage: 12-48 VDC
Best-Fit Applications
- Bottle-counting station on a beverage line where the 1-stage preset counts bottles per case and the SPDT relay trips the case-stop solenoid at 24
- Two-stage cut-to-length on a converting line where stage 1 counts encoder pulses and stage 2 fires the cut relay at the second preset
- Spare replacement for an H7CC-AW where the cabinet has 24 VDC only and no 100-240 VAC supply is available at the panel
Buying Checklist
- Pick the H7CC-AWD for a multifunction counter on a 12-48 VDC or 24 VAC supply with two relay outputs.
- Pick the H7CC-AW instead when the panel has a 100-240 VAC supply and only relay outputs are needed.
- Pick the H7CC-AWS instead when the cabinet needs transistor outputs and a 100-240 VAC supply.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron H7CC-series digital counter |
| Model / SKU | H7CC-AWD |
| Type | Pre-set counter, 1/16 DIN |
| Display | 6-digit LCD with backlight, 10 mm character |
| Counting Range | -99999 to 999999 |
| Counting Functions | 1-stage, 2-stage, total, batch, dual, twin, tachometer |
| Maximum Count Speed | 10 kHz |
| Outputs | 1 SPST relay (30 VDC 100 mA) + 1 SPDT relay (240 VAC 3 A) |
| Supply Voltage | 12-48 VDC or 24 VAC |
| Sensor Power Supply | 12 VDC, 100 mA |
| Protection / Size | IP66 front, 48 (H) x 48 (W) x 78 (D) mm, panel cutout 45 x 45 mm |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for H7CC-AWD
What supply voltage does the H7CC-AWD need?
12-48 VDC or 24 VAC. The D suffix at the end of the SKU marks the low-voltage DC version. For a 100-240 VAC supply, use the H7CC-AW or H7CC-AWS in the same H7CC family.
How many counting modes does the H7CC-AWD support?
Seven: 1-stage counter, 2-stage counter, total counter, batch counter, dual counter, twin counter, and tachometer. Mode is selected from the front panel.
Can the H7CC-AWD power a 2-wire proximity sensor?
Yes. The H7CC supplies 12 VDC at 100 mA from the sensor power terminal, enough to run a standard 2-wire NPN or PNP proximity sensor.
