Omron H8PS-8BF DC24V — 8-Out Cam Positioner, NPN
SKU: H8PS-8BF DC24VUSD 230.00
cam positioner, 8 NPN outputs, 96 x 96 mm 1/4 DIN, 24 VDC, surface / track mount. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron H8PS-8BF DC24V is an 8-output cam positioner for rotary-machine indexing It is manufactured by Omron Corporation. Hengyixin Automation stocks this controller in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports. It reads an E6CP or E6F absolute encoder and switches 8 NPN open-collector cam outputs (plus 1 RUN output and 1 pulse output) at 0.5 degree increments on a 720-resolution encoder, or 1 degree on a 256 / 360 encoder. Up to 10 ON/OFF steps per cam. The unit is discontinued; for current-production counter / timer duty in the same 1/4 DIN body the H7CC-AU is a typical drop-in. Key specs: Supply Voltage 24 VDC (operating range 85 to 110 percent of rated, 20.4 to 26.4 VDC), 4.5 W max consumption at 26.4 VDC; Encoder Input Connects to an Omron E6CP or E6F dedicated absolute encoder (sold separately), cable distance 100 m max at 330 r/min or less on 256 / 360 resolution; Cam Outputs 8 NPN open-collector, 30 VDC max, 100 mA max per output, residual voltage 2 VDC max (1.6 A total limit for cam + RUN outputs); Other.
Key Features
- H8PS-series 8-output cam positioner, 96 x 96 mm 1/4 DIN, surface or track mount (-BF suffix)
- Reads an E6CP or E6F absolute encoder at 256 / 360 / 720 resolution, 0.5 degree or 1 degree step setting
- 8 NPN open-collector cam outputs + 1 RUN output + 1 pulse output, 100 mA max at 30 VDC, 1.6 A total limit
- Response rotation speed 1,600 r/min max, EEPROM backup (100,000 overwrites min), 10-year data retention
- SKU: H8PS-8BF DC24V
- Series: Omron H8PS-series cam positioner (8-output variant)
- Voltage: 24 VDC
Best-Fit Applications
- Rotary-table indexing on a small bottling line where the H8PS-8BF reads an E6CP-AG5C encoder and switches 8 solenoid valves at fixed angles
- Cut-to-length control on a packaging conveyor where the cam outputs trip a knife actuator at 0.5 degree increments on the encoder shaft
- Spare replacement on a label applicator where the previous H8PS-8BP (PNP outputs) is swapped for the NPN-output -BF variant to match a sinking PLC
Buying Checklist
- Pick the H8PS-8BF DC24V for an 8-output NPN cam positioner on a 96 x 96 mm 1/4 DIN body with surface or track mounting.
- Pick the H8PS-8B instead when the cabinet needs the same 8-output NPN CPU on a flush-mount front-panel cutout.
- Pick the H8PS-8BP instead when the field wiring expects PNP sourcing outputs at the same 24 VDC supply on the surface-mount body.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron H8PS-series cam positioner (8-output variant) |
| Model / SKU | H8PS-8BF DC24V |
| Supply Voltage | 24 VDC (operating range 85 to 110 percent of rated, 20.4 to 26.4 VDC), 4.5 W max consumption at 26.4 VDC |
| Encoder Input | Connects to an Omron E6CP or E6F dedicated absolute encoder (sold separately), cable distance 100 m max at 330 r/min or less on 256 / 360 resolution |

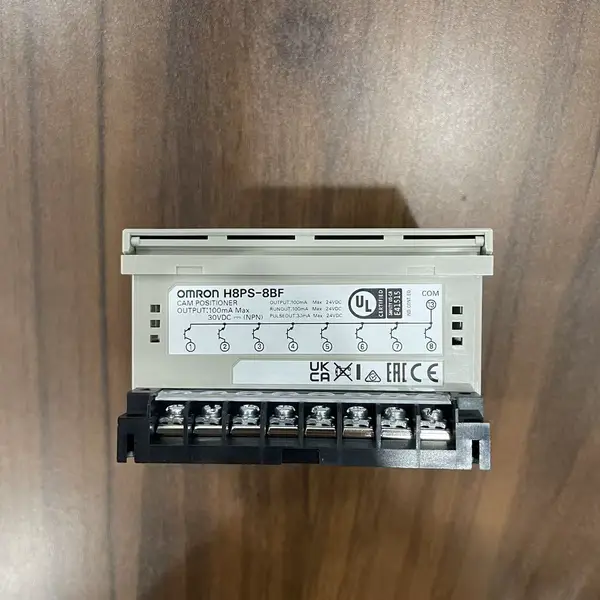

| Cam Outputs | 8 NPN open-collector, 30 VDC max, 100 mA max per output, residual voltage 2 VDC max (1.6 A total limit for cam + RUN outputs) |

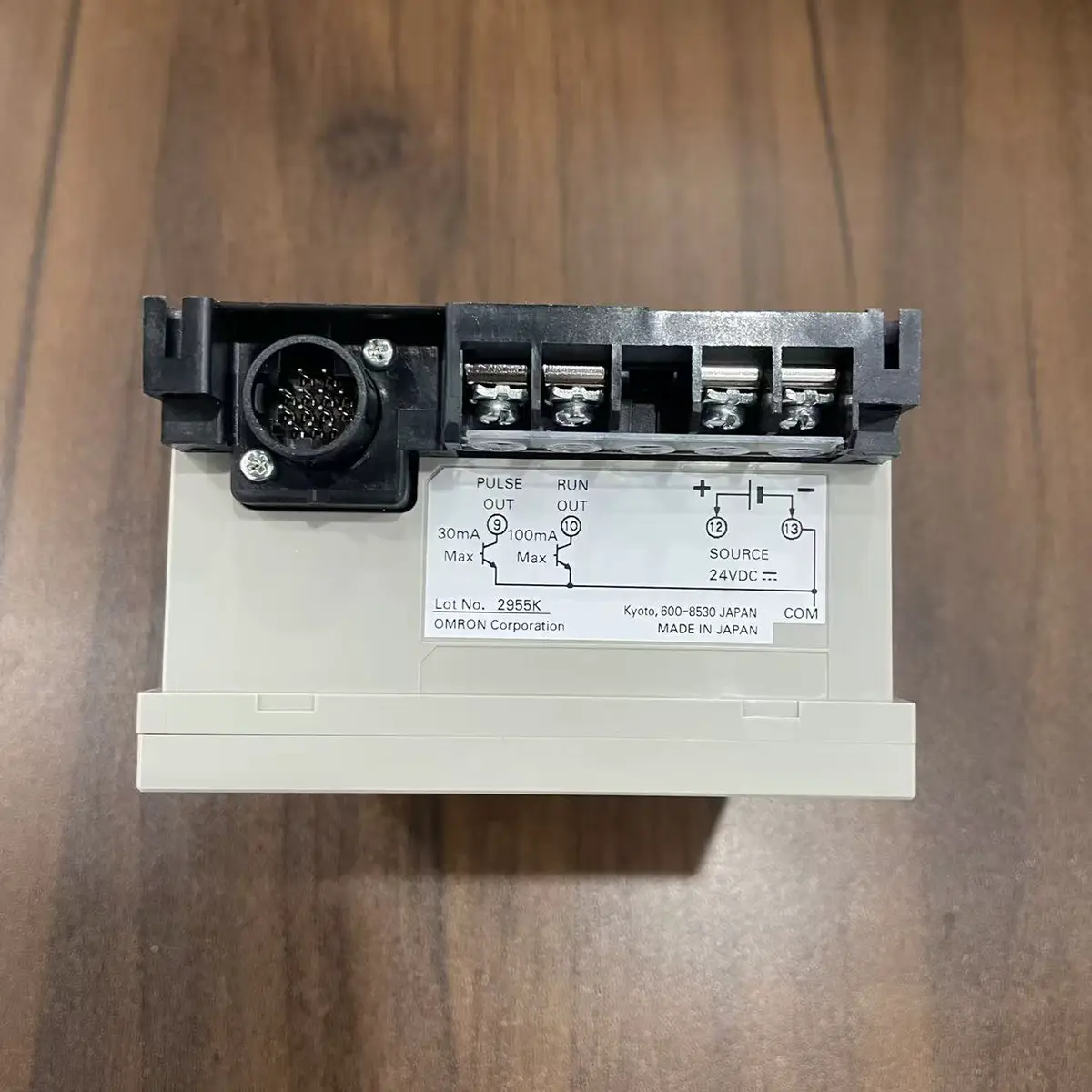

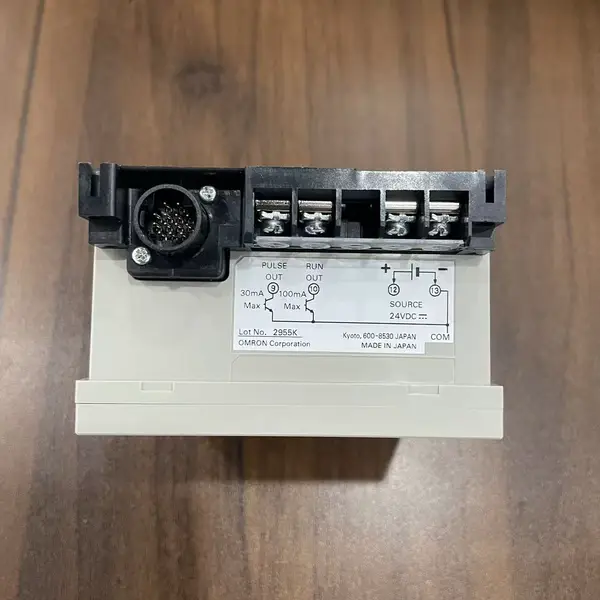

| Other Outputs | 1 RUN output (NPN open-collector, 100 mA max), 1 pulse output (NPN open-collector, 30 mA max, residual 0.5 VDC max) |
| Setting Resolution | 0.5 degree increments at 720 resolution, 1 degree increments at 256 or 360 resolution, up to 10 ON/OFF steps per cam |
| Response Speed | 1,600 r/min max at 256 / 360 resolution (1,200 r/min max with ADV function on 4 or more cams); 800 r/min max at 720 resolution |

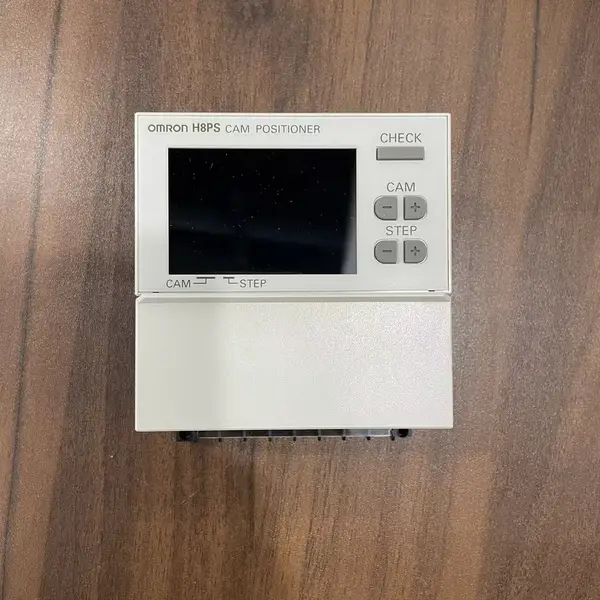

| Display | Backlit negative-transmissive LCD, 11 mm red main display, 5.5 mm green sub-display |
| Memory Backup | EEPROM, 100,000 overwrites min, 10-year data retention at 25 C |

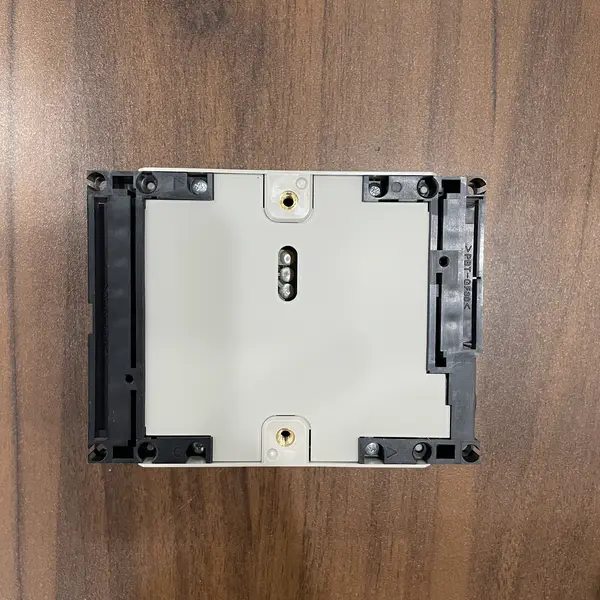

| Mounting / Environment | Surface or track mounting (-BF suffix), 96 to 121.2 H x 96 W x 60.6 to 67.5 D mm, approx. 300 g, IP40 panel face, IP20 rear case, -10 to +55 C operating, 25 to 85 percent humidity, discontinued |
FAQ for H8PS-8BF DC24V
What is the Omron H8PS-8BF DC24V used for?
It is the H8PS-series 8-output cam positioner for rotary-table indexing, cut-to-length, and packaging machines. It reads a dedicated Omron absolute encoder (E6CP or E6F) and switches 8 NPN outputs plus a RUN output and a pulse output at 0.5 degree or 1 degree step setting. The operator sets the ON / OFF angles for each cam on the front-panel keys and reads the current angle on the backlit LCD.
H8PS-8BF vs H8PS-8B - what is the difference?
Both share the same 8-output NPN CPU, 24 VDC supply, and 96 x 96 mm body. The -BF is the surface / track-mount variant with the panel screws on the rear. The -B flush-mounts into a 92 x 92 mm panel cutout with the front bezel flush with the cabinet face. Pick the -BF for retrofit installs on a back panel; pick the -B for new cabinets with a front-panel cutout.
What encoder does the H8PS-8BF need?
A dedicated Omron E6CP or E6F absolute encoder (sold separately). The H8PS does not accept an incremental encoder. The matching 50 mm body E6CP-AG5C 256-P/R resolver encoder is the typical low-cost pair; the E6F-AB3C is a higher-resolution 60 mm body. Encoder cable distance is 100 m max at 330 r/min or less.
Can the H8PS-8BF do 1 degree steps?
Yes. With an E6CP-AG5C 256-resolution or E6CP-AG5C 360-resolution absolute encoder, the H8PS sets each cam in 1 degree increments at 0 to 359 degrees. With a 720-resolution E6CP-AG5C 720P/R or E6F encoder, the H8PS sets in 0.5 degree increments. Up to 10 ON/OFF steps per cam, so each output can have 10 transitions per revolution.
