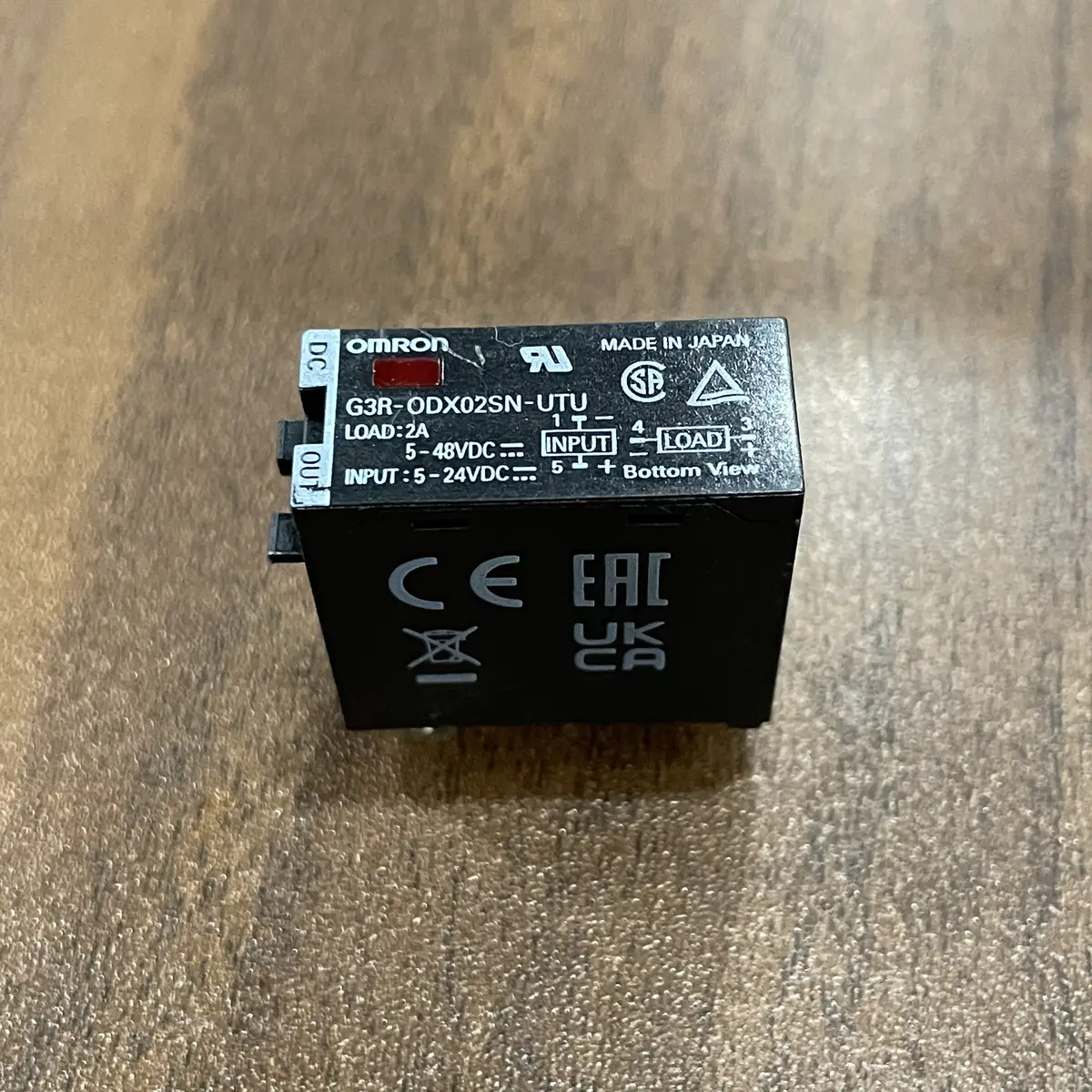

Omron G3R-ODX02SN-UTU DC5-24 — SSR Output, 4-60 VDC
SKU: G3R-ODX02SN-UTU DC5-24USD 15.50
G3R solid-state output module, 5-24 VDC in, 4-60 VDC / 2 A out, P2RF-05 socket. In stock.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping

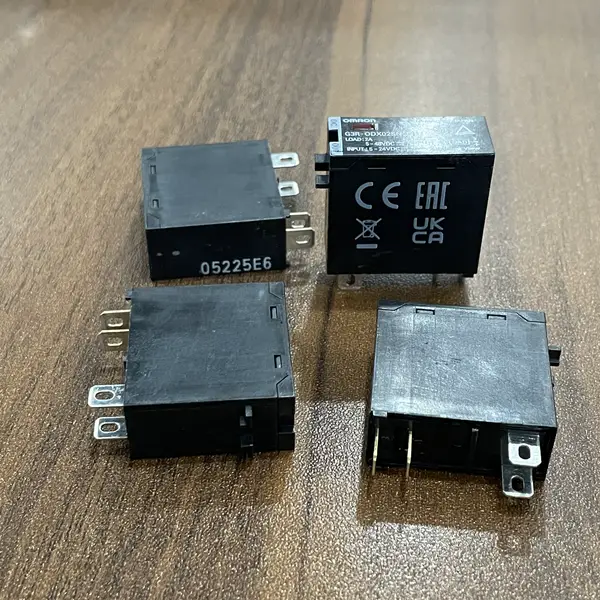

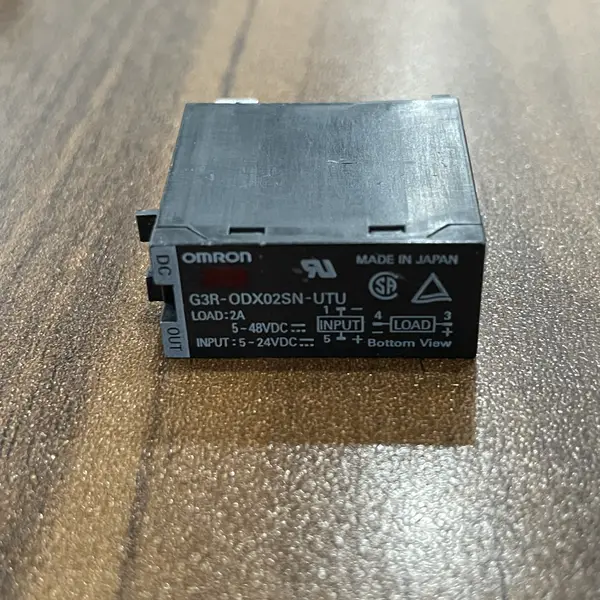

Product Overview
The Omron G3R-ODX02SN-UTU DC5-24 is a DC-output solid-state relay module from the G3R I/O series It is manufactured by Omron Corporation. Hengyixin Automation stocks this solid-state relay in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.
The module accepts a 5 to 24 VDC control input and switches a 4 to 60 VDC load up to 2 A continuous (3 A max). Inrush current is 8 A for 10 ms.
For an electromechanical alternative on the same socket, pick the G2R-2-SND DC24V. Key specs: Input Voltage 5 to 24 VDC (operate 4 V max, release 1 V min); Input Current / Impedance 8 mA at 5 VDC; 1.5 kohm +/-20%; Output (Load) Voltage 4 to 60 VDC; Output (Load) Current 0.1 to 2 A continuous; 3 A max; Inrush Current 8 A for 10 ms; Operate / Release Time 1 ms max operate; 2 ms max release; Isolation Photoupler, 4000 VAC dielectric strength; Socket / Mounting P2RF-05-E (DIN-rail); 31 x 35 x 68 mm.
Key Features
- G3R solid-state output module, 5 to 24 VDC control input, NPN-driven
- DC MOSFET output, 4 to 60 VDC load, 2 A continuous (3 A max), 8 A inrush 10 ms
- Photoupler isolation 4000 VAC, operate 1 ms / release 2 ms, LED indicator
- P2RF-05 socket (G2R pin compatible), DIN-rail mount, 31 x 35 x 68 mm, 18 g
- SKU: G3R-ODX02SN-UTU DC5-24
- Series: Omron G3R I/O-series solid-state relay module
- Voltage: 5 TO 24 VDC
Best-Fit Applications
- Heater control on a small reflow oven where the SSR switches a 48 VDC heating element and the 1 ms response handles fast PWM
- Solenoid driver on a 24 VDC valve bank where the SSR replaces an electromechanical relay to extend cycle life beyond 100,000 operations
- Spare drop-in for an existing G3R panel where the previous G3R-ODX02SN-UTU failed and the socket is a P2RF-05-E with the same pin-out
Buying Checklist
- Pick the G3R-ODX02SN-UTU DC5-24 for a DC-output solid-state module on a G2R-pin socket with 5 to 24 VDC control.
- Pick the G3R-OA202SZN-UTU instead when the load is AC and the same 5 to 24 VDC control is needed.
- Pick the G2R-2-SND DC24V instead when an electromechanical relay on the same P2RF-05 socket is acceptable.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron G3R I/O-series solid-state relay module |
| Model / SKU | G3R-ODX02SN-UTU DC5-24 |
| Input Voltage | 5 to 24 VDC (operate 4 V max, release 1 V min) |
| Input Current / Impedance | 8 mA at 5 VDC; 1.5 kohm +/-20% |
| Output (Load) Voltage | 4 to 60 VDC |
| Output (Load) Current | 0.1 to 2 A continuous; 3 A max |
| Inrush Current | 8 A for 10 ms |
| Operate / Release Time | 1 ms max operate; 2 ms max release |
| Isolation | Photoupler, 4000 VAC dielectric strength |
| Socket / Mounting | P2RF-05-E (DIN-rail); 31 x 35 x 68 mm |
| Approvals / Weight | UL, CSA, TUV; approx. 18 g |
FAQ for G3R-ODX02SN-UTU DC5-24
What socket does the G3R-ODX02SN-UTU DC5-24 use?
The P2RF-05-E socket on a 35 mm DIN rail. The pin-out matches the G2R electromechanical relay, so the module drops into an existing G2R panel without rewiring the socket.
Does the G3R-ODX02SN-UTU have an LED indicator?
Yes. A red LED on the front of the module lights when the input is energised, giving a visual confirmation of state at a glance.
Can the G3R-ODX02SN-UTU switch AC loads?
No. The ODX module is DC output only (MOSFET). For AC loads on the same socket, use the G3R-OA202SZN-UTU triac output module.
