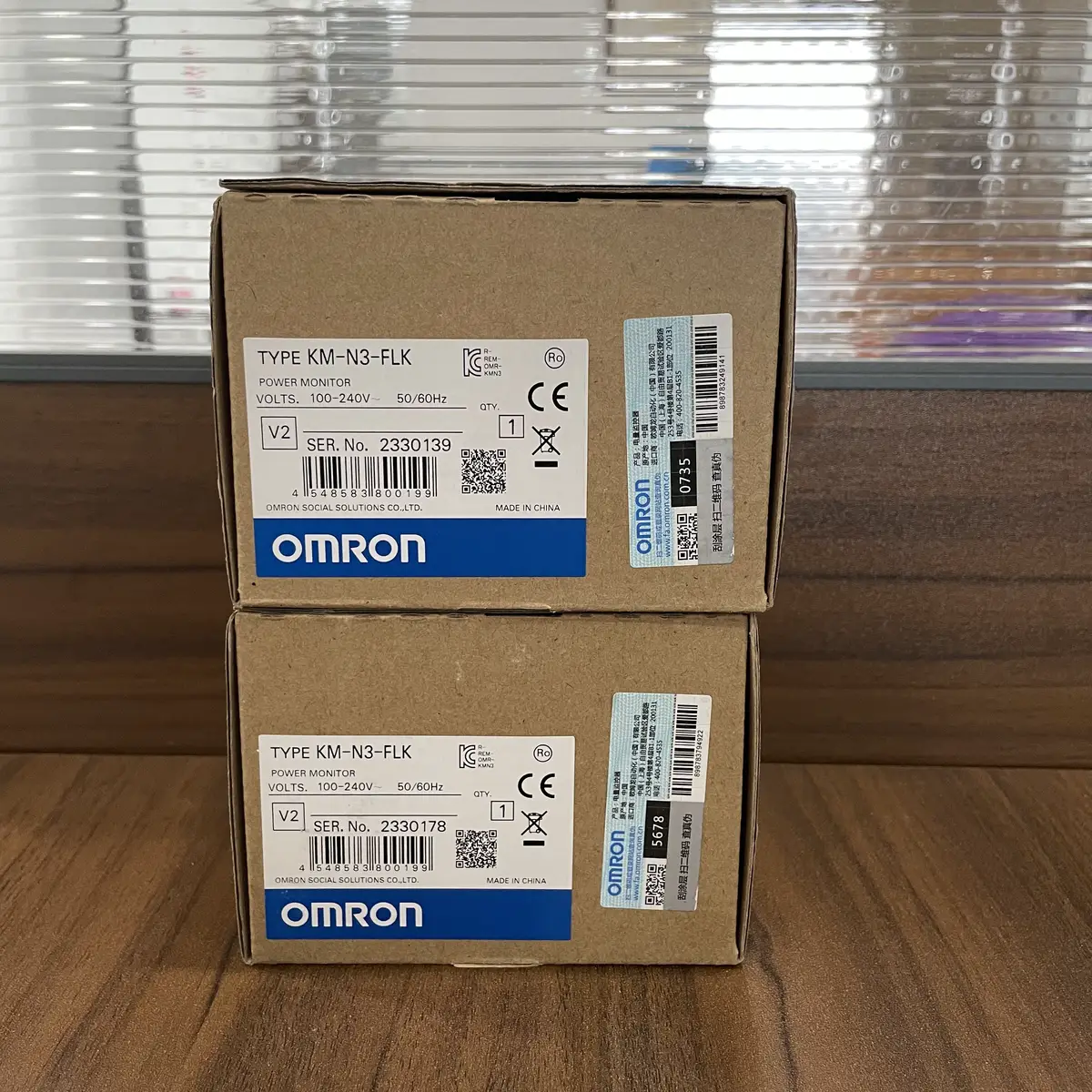

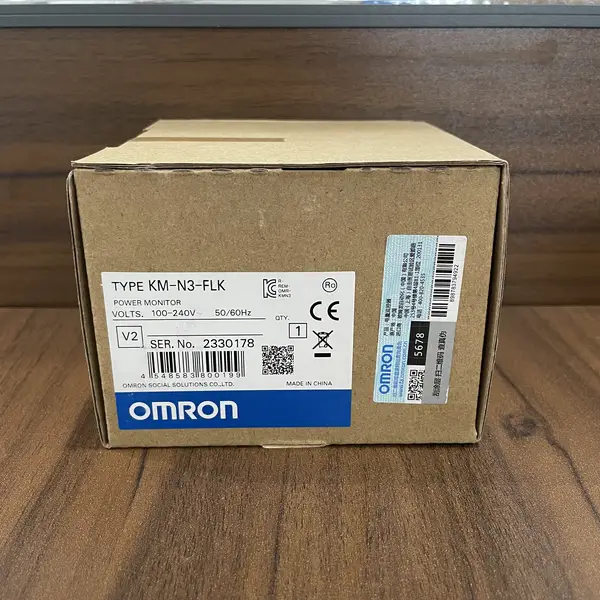

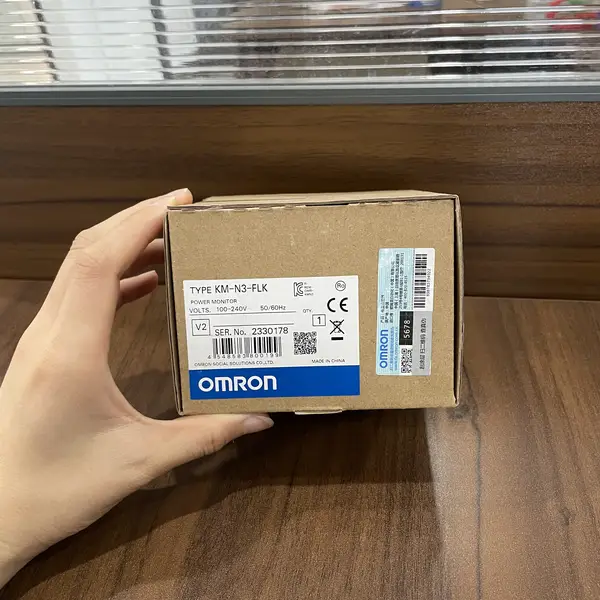

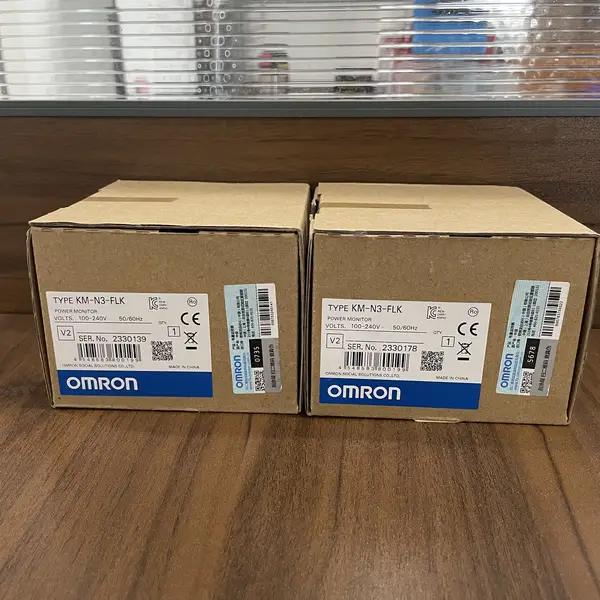

Omron KM-N3-FLK — On Panel Power Monitor, 96x96
SKU: KM-N3-FLKUSD 180.00
Omron KM-N3-FLK KM-N3 on-panel power monitor, 96x96 mm, 100-240 VAC, RS-485, IEC 0.5S. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron KM-N3-FLK is a global on-panel power monitor, manufactured by Omron Corporation. Hengyixin Automation stocks this power supply in Xiamen and ships within 3-5 business days in original Omron packaging.
The unit fits a 96 (H) x 96 (W) x 64 (D) mm panel cutout (1/4 DIN). Power supply is 100-240 VAC at 50/60 Hz, drawing 7 VA. It measures single-phase 2-wire circuits (up to 4 circuits), single-phase 3-wire, three-phase 3-wire, and three-phase 4-wire systems, with active power accuracy at IEC 62053-22 class 0.5S.
RS-485 carries Modbus RTU or CompoWay/F to up to 99 or 31 slaves respectively across 1200 m. Four PhotoMOS pulse outputs report active energy at 1, 10, 100, 1k, 5k, 10k, 50k, or 100k Wh. Current transformers are general-purpose 1 A or 5 A secondary -- pair with the KM-NCT-E100A, KM-NCT-E250A, or KM-NCT-E500A split-type CT. The 24 VDC supply for the panel can come from a S8VK-G06024. For a 24 VDC supply version, use the KM-N2-FLK sibling.
Key Features
- On-panel 1/4 DIN power monitor, 96 x 96 x 64 mm, 100-240 VAC supply
- Measures up to 4 single-phase 2-wire circuits, or 1 three-phase 4-wire circuit
- Active power IEC 62053-22 class 0.5S, sampling 80 ms (50 Hz) / 66.7 ms (60 Hz)
- RS-485 Modbus RTU or CompoWay/F, 1200 m, 4 PhotoMOS pulse outputs for active energy
- SKU: KM-N3-FLK
- Series: Omron KM-N3-series on-panel power monitor
- Voltage: 100-240 VAC
Best-Fit Applications
- Multi-circuit energy logging on a factory floor where the monitor reads four 1-phase 2-wire feeders and pushes totals over RS-485 to an NJ PLC
- Spare replacement for a third-party kWh meter on a tenant sub-billing cabinet where the Omron unit has standard Modbus RTU polling
- Three-phase 4-wire panel instrumentation where the monitor reports active / reactive power and frequency into an NB-series HMI screen on the same RS-485 trunk
Buying Checklist
- Pick the KM-N3-FLK for an on-panel 1/4 DIN power monitor with RS-485 Modbus RTU and four pulse outputs.
- Pick the KM-N2-FLK instead when the cabinet has a 24 VDC supply only and no 100-240 VAC source is available at the panel.
- Pick the S8VK-G06024 instead when the panel only needs a 60 W 24 VDC supply for the KM-N3 output signals, not a full power monitor.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron KM-N3-series on-panel power monitor |
| Model / SKU | KM-N3-FLK |
| Mounting | On-panel, 96 x 96 mm cutout (1/4 DIN) |
| Power Supply | 100-240 VAC, 50/60 Hz, 7 VA max |
| Measured Circuits | 1-phase 2-wire x4, 1-phase 3-wire x2, 3-phase 3-wire x2, 3-phase 4-wire x1 |
| Active Power Accuracy | IEC 62053-22 class 0.5S |
| Sampling Period | 80 ms (50 Hz) / 66.7 ms (60 Hz) |
| Communication | RS-485 Modbus RTU (up to 99 slaves) or CompoWay/F (up to 31) |
| Pulse Outputs | 4 PhotoMOS, 40 VDC 50 mA, 1/10/100/1k/5k/10k/50k/100k Wh |
| CT Input | General-purpose 1 A or 5 A secondary CT |
| Protection / Environment | IP65 front, IP20 rear, 0 to 55 degC operating |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for KM-N3-FLK
Is the KM-N3-FLK a serial option for the H7C or H7E counter?
No. The KM-N3-FLK is a global on-panel power monitor with its own 96 x 96 mm body and 100-240 VAC supply. It is not an option board for the H7C / H7E counter family.
How many circuits can the KM-N3-FLK measure?
Up to four single-phase 2-wire circuits, or two single-phase 3-wire / three-phase 3-wire circuits, or one three-phase 4-wire circuit. Each circuit reads through an external CT with 1 A or 5 A secondary output.
Which split CTs work with the KM-N3-FLK?
The KM-NCT-E100A (100 A), KM-NCT-E250A (250 A), and KM-NCT-E500A (500 A). The CT cable does not exceed 1 VA total load and the wire gauge is AWG18-14 with an M3 Y-terminal at the CT end.
Can the KM-N3-FLK export data over Ethernet?
No. The KM-N3-FLK has RS-485 only (Modbus RTU or CompoWay/F). For Ethernet, bridge the RS-485 trunk through an external Modbus-to-Ethernet gateway or use a CP1W-CIF41 option board on a CP1L PLC.
Does the KM-N3-FLK need a separate 24 VDC supply?
No. The KM-N3-FLK is powered directly from the 100-240 VAC mains. The four pulse outputs draw their signal power from the monitored circuit, not from a separate DC rail.
