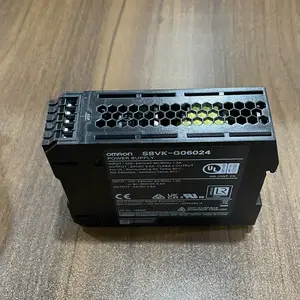

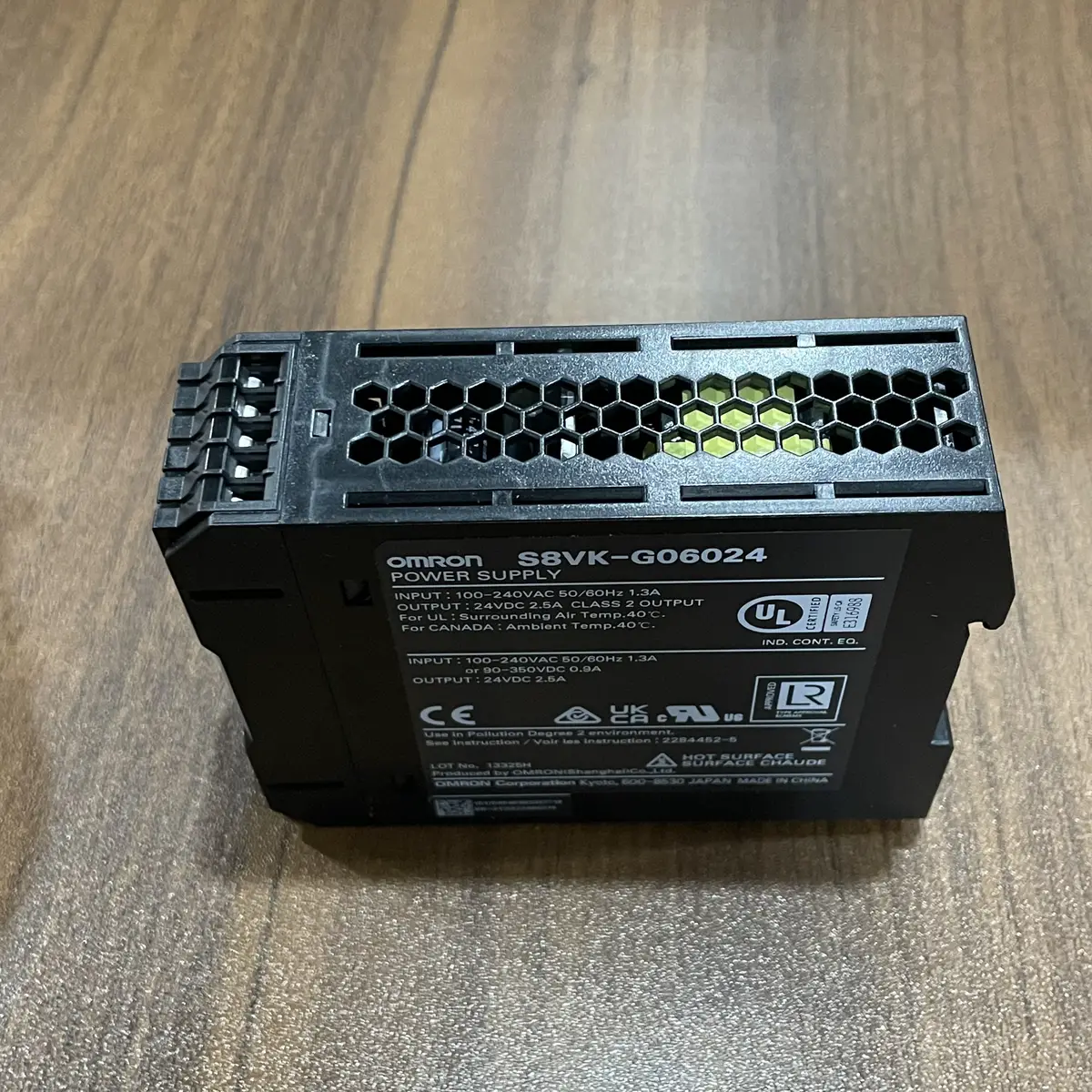

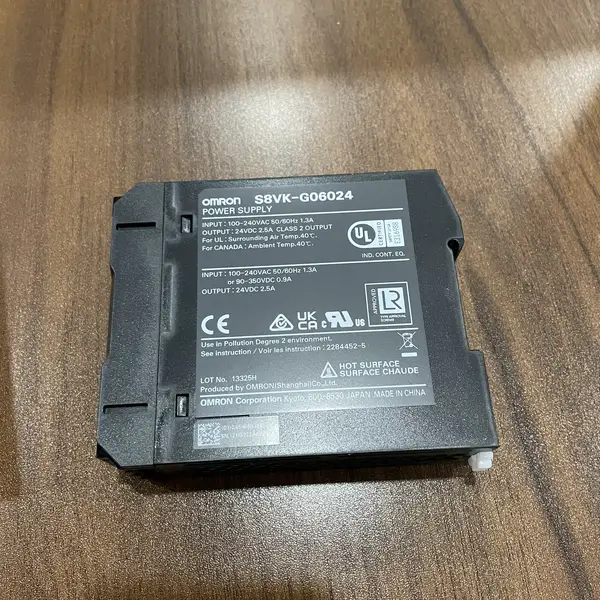

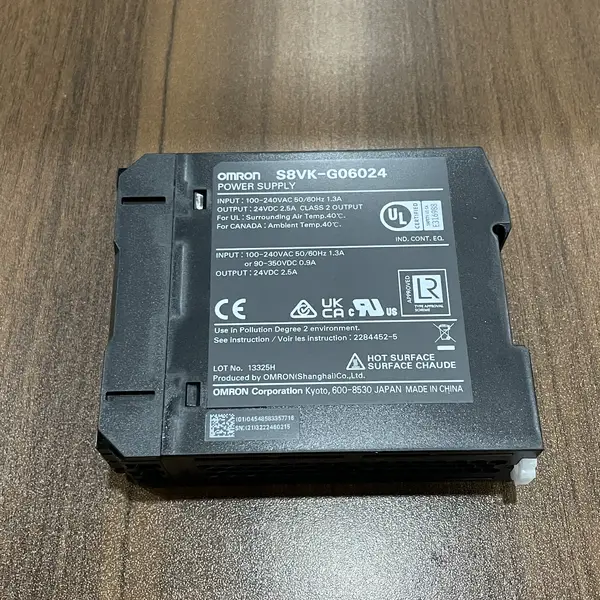

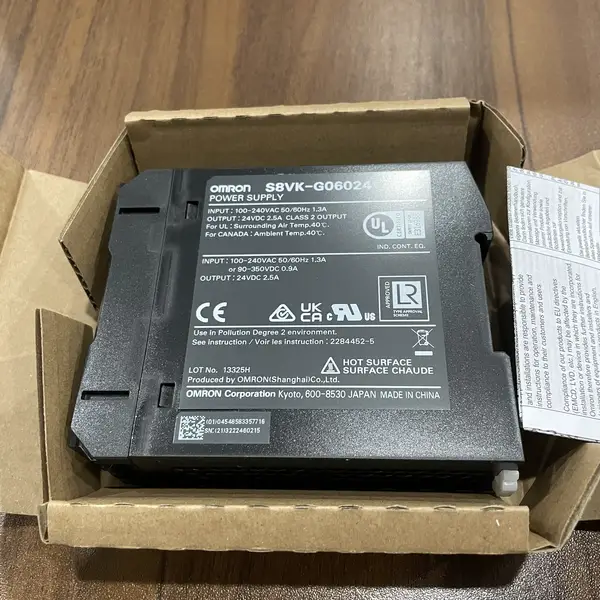

Omron S8VK-G06024 — 60 W 24 VDC 2.5 A PSU, 5-Year Warranty
SKU: S8VK-G06024USD 37.00
S8VK-G series 60 W 24 VDC / 2.5 A DIN-rail switch-mode PSU with 5-year warranty, 88% efficiency, 120% power boost (3 A for 5 s), -40 to +70 C operating range, UL Class 2 output, parallel operation support, screw terminals, slim 32 mm wide form factor. The modern replacement for S8VS-06024.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The S8VK-G06024 is Omron's 60 W 24 VDC / 2.5 A DIN-rail switch-mode power supply in the S8VK-G series — the modern global-harmonized successor to the S8VS series, distinguished by the 5-year warranty (vs S8VS's 1-year), the -40 to +70 C operating range (vs S8VS's -10 to +60 C), and the 120% power boost (3 A for 5 s) for momentary high-load startup like motor starting or capacitor charging. The S8VK-G series is the strategic PSU line for new Omron installations — recommended replacement for the legacy S8VS series — with globally harmonized specifications, UL Class 2 output (for 60 W and below), parallel operation support via S8VK-R10 redundancy module, and 88% efficiency.
Decoding S8VK-G06024 within the S8VK-G family
The S8VK-@@@@@ model code has multiple positional segments that encode series, power rating, and output voltage. The 'S8VK' = S8VK family of DIN-rail switch-mode PSUs. The 'G' = the premium global-harmonized series (vs 'C' = lower-cost basic series with 3-year warranty, vs 'T' = triple-output series, vs 'S' = slim-line series). The '060' = 60 W power rating (vs '015' = 15 W, '030' = 30 W, '120' = 120 W, '240' = 240 W, '480' = 480 W). The '24' = 24 VDC output (vs '05' = 5 VDC, '12' = 12 VDC, '48' = 48 VDC).
Why the 5-year warranty matters for industrial installations
The S8VK-G06024's 5-year warranty (vs S8VS's 1-year) is a significant differentiator for industrial installations. Industrial control panels typically have a 10-15 year design life; with a 1-year warranty, the PSU is the weak link that requires replacement every 5-7 years (typical electrolytic capacitor aging at 25 C ambient and 80% load). With a 5-year warranty, the PSU is guaranteed for the first half of the panel's design life, reducing maintenance costs and unplanned downtime. The S8VK-G also uses higher-quality electrolytic capacitors rated for -40 to +85 C storage (vs S8VS's -25 to +65 C), giving more margin for hot industrial cabinets.
120% power boost and parallel operation
The S8VK-G06024's 120% power boost (3 A for 5 s) handles momentary high-load startup conditions that would otherwise require oversizing the PSU. Typical applications: (a) Motor starting — a 24 VDC motor draws 2-3x its rated current during the first 100 ms of startup; the S8VK-G06024's 3 A boost handles this without tripping the overcurrent protection. (b) Capacitor charging — large filter capacitors on the load side draw high inrush current when the system is first powered up; the 3 A boost handles the inrush without tripping.
Key Features
- S8VK-G series premium global-harmonized 60 W 24 VDC / 2.5 A DIN-rail switch-mode PSU
- Output: 24 VDC +/-2%, 2.5 A continuous, 60 W
- Output voltage adjustable range: -10 to +15% via V.ADJ trimmer
- Power boost: 120% for momentary high-load startup
- Input: 100-240 VAC single-phase, 50/60 Hz
- Also accepts 90-350 VDC input
- Efficiency: 88% typ at 100 VAC, 88% typ at 200 VAC
- Power factor: 0.9 min
- SKU: S8VK-G06024
- Series: S8VK-G Premium Global-Harmonized Switch-Mode Power Supplies
- Voltage: 24 VDC
- I/O: 24 I/O
Best-Fit Applications
- Small PLC control panel - power supply for a CP1L-EM40DT1-D PLC plus 4-5 expansion I/O modules plus a 5.7-inch NB5Q-TW01B.
- Sensor junction box on a packaging line - 24 VDC / 2.5 A power for 16-20 photoelectric sensors plus 4.
- DeviceNet sub-network power - 24 VDC power for a 16-30 DeviceNet slave network; the S8VK-G06024's 2.5 A is sufficient for.
- Small HMI station - 24 VDC power for an NB3Q-TW01B plus 8-16 digital I/O plus indicator lights; the slim 32.
Buying Checklist
- Pick S8VK-G06024 for 60 W 24 VDC premium PSU with 5-year warranty - new installations, harsh environments, long-life applications
- Pick S8VK-C06024 for 60 W 24 VDC basic PSU with 3-year warranty - lower-cost basic series for non-critical installations
- Pick S8VK-S06024 for 60 W 24 VDC slim-line PSU - very compact, less expensive
- Pick S8VS-06024A for 60 W 24 VDC with maintenance-forecast display - industrial 4.0 / predictive maintenance applications
- Pick S8VS-06024 for 60 W 24 VDC without monitor - lowest cost, 1-year warranty
- Pick S8VK-G12024 for 120 W 24 VDC - medium panels with more 24 VDC load
Technical Specifications
| Model | S8VK-G06024 |
|---|---|
| Series | S8VK-G Premium Global-Harmonized Switch-Mode Power Supplies |
| Type | 60 W 24 VDC / 2.5 A DIN-rail switch-mode PSU with 5-year warranty |
| Power Rating | 60 W continuous |
| Output Voltage | 24 VDC (adjustable -10 to +15% via V.ADJ trimmer) |
| Output Voltage Tolerance | +/-2% (24 VDC +/-0.48 V at rated load) |
| Output Current | 2.5 A continuous |
| Power Boost | 120% (3 A for 5 s) for momentary high-load startup |
| Rated Input Voltage | 100 to 240 VAC (single-phase) |
| Operating Input Voltage Range | 85 to 264 VAC; 90 to 350 VDC |
| Input Frequency | 50/60 Hz (47 to 450 Hz) |
| Inrush Current | 16 A typ at 100 VAC, 32 A typ at 200 VAC (cold start at 25 C) |
| Temperature Coefficient | 0.05%/C max |
| Overcurrent Protection | 121 to 160% of rated (auto-recovery, intermittent operation) |
| Overvoltage Protection | 130% min of rated (latch, re-cycle input to reset) |
Resources & Downloads
FAQ for S8VK-G06024
What's the difference between S8VK-G06024 and S8VS-06024A?
Both are 60 W 24 VDC / 2.5 A DIN-rail switch-mode power supplies with similar electrical specifications (100-240 VAC input, 88% efficiency, screw terminals, 24 VDC output). The differences: (a) Series generation - S8VS-06024A (already done) is the older S8VS series (now in legacy status), S8VK-G06024 (this SKU) is the modern S8VK-G series (active production). (b) Warranty - S8VS has 1-year warranty, S8VK-G has 5-year warranty.
Why is the S8VK-G06024's efficiency higher than S8VS-06024?
The S8VK-G06024's 88% efficiency (vs S8VS-06024's 85%) is achieved through several design improvements: (a) Active PFC (Power Factor Correction) - the S8VK-G includes active PFC circuitry that maintains near-unity power factor (0.9 min) across the input range, reducing harmonic current and improving overall efficiency. The S8VS series uses passive PFC for some models. (b) Modern semiconductors - the S8VK-G uses the latest-generation MOSFETs and rectifier diodes with lower conduction losses and faster switching.
Can I parallel two S8VK-G06024 power supplies for redundancy?
Yes - the S8VK-G06024 supports parallel operation up to 2 units with the S8VK-R10 redundancy module (sold separately) for true 1+1 redundancy. The S8VK-R10 is a diode OR'ing module that combines the outputs of two PSUs and provides a relay output that signals 'PSU failure' if either PSU drops out. Each PSU operates at <50% load in normal operation, so a single PSU failure doesn't cause any disruption to the load.
Is the S8VK-G06024 UL Class 2 compliant?
Yes - the S8VK-G06024 is UL 1310 Class 2 compliant, meaning the output is power-limited to 100 VA / 5 A. For 60 W at 24 VDC, the output is 2.5 A - well under the Class 2 limit. The Class 2 compliance allows the wiring to be Class 2 cable (lower cost than non-Class 2) and exempts the installation from some NEC requirements.
