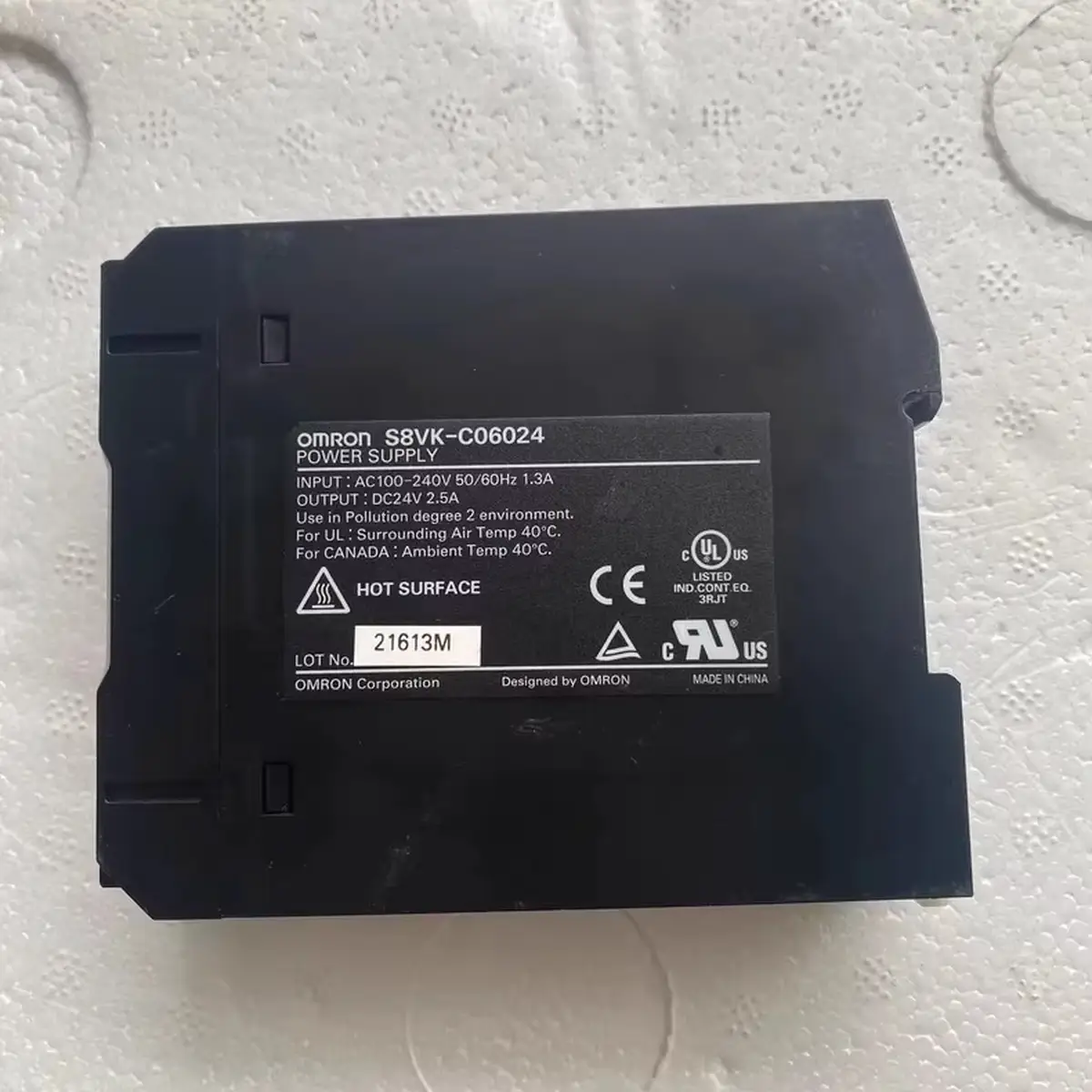

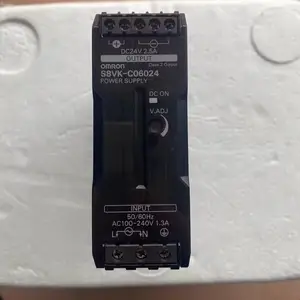

Omron S8VK-C06024 — 60 W 24 VDC 2.5 A Economy PSU
SKU: S8VK-C06024USD 17.00
Cost-effective 60 W / 24 VDC / 2.5 A DIN-rail PSU, 88% efficient, 100-240 VAC input, screw terminals, 3-year warranty.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron S8VK-C06024 is the 60 W member of the S8VK-C line — the cost-effective tier of Omron's S8VK family of DIN-rail switch-mode power supplies. It delivers 24 VDC at 2.5 A from a single-phase 100 to 240 VAC (or 90 to 350 VDC) input, with 88% typical efficiency and a 3-year warranty. The C line is the right pick for budget-sensitive indoor panels where the G line's 5-year warranty and the S line's harsh-environment rating are not required.
Choosing between the S8VK-C, S8VK-G, and S8VK-S 60 W models
All three deliver the same 60 W / 24 VDC / 2.5 A from the same 100 to 240 VAC input. The differences are in the extras. S8VK-C06024 (this SKU) uses screw terminals, runs from -25 to 60 °C, and carries a 3-year warranty — the cost-effective pick. S8VK-G06024 is the global-harmonized general-purpose line: screw terminals, -40 to 70 °C, 5-year warranty, and a 120% power boost (3 A for 5 s) for starting capacitive loads. S8VK-S06024 is the slim environmental-resistant line: Push-In Plus tool-free terminals, coated PCBs, -40 to 70 °C, 5-year warranty — the right pick for outdoor, washdown, or marine panels. Pick the C06024 when the cabinet is climate-controlled and warranty length is not a project requirement; pick the G06024 for most new indoor installations; pick the S06024 for harsh environments.
Before ordering or installing

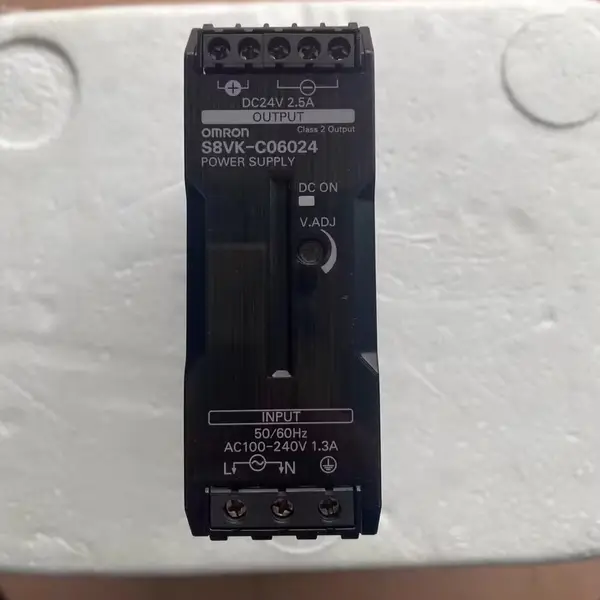

Check the derating curve before specifying: standard mounting delivers 100% output at 40 °C and derates linearly to about 75% at 60 °C. If your panel runs above 40 °C, size up to the next power class. Tighten the screw terminals to 0.5 to 0.6 N·m — a loose terminal is the most common field failure on this family. The S8VK-C line does not support direct parallel operation; for 1+1 redundancy, add an S8VK-R10 redundancy unit between two supplies. Series operation (stacking two for ±24 V or 48 V) is supported with an external diode on each output. The output voltage is adjustable from -10% to +15% via the V.ADJ trimmer on the front face.
Key Features
- 60 W / 24 VDC / 2.5 A DIN-rail switch-mode power supply
- S8VK-C cost-effective line, 3-year warranty
- Universal input: 100 to 240 VAC (85 to 264 VAC operating), 90 to 350 VDC
- 88% typical efficiency at 230 VAC
- Screw terminals, 0.5 to 0.6 N·m torque
- Output voltage adjustable -10% to +15% via V.ADJ trimmer
- Series operation supported (with external diode); parallel via S8VK-R10
- Green DC ON LED on front face
- Conforms to UL 508 / 62368-1, cUR, EN 62477-1, EN 62368-1
- SKU: S8VK-C06024
- Series: S8VK-C cost-effective DIN-rail power supply
- Voltage: 24 VDC
- I/O: 24 I/O
Best-Fit Applications
- 24 VDC supply for a small CP1L or CP2E PLC panel
- Power for sensors, indicators, and small relay coils on a packaging machine
- Cost-down 24 VDC supply in an OEM machine control cabinet
- Replacement supply for legacy S8VS-06024 installations
- General-purpose 24 VDC rail for non-industrial building-automation panels
Buying Checklist
- Pick S8VK-C06024 (this SKU) for a cost-effective 60 W / 24 VDC / 2.5 A DIN-rail PSU
- Pick S8VK-G06024 for the general-purpose 5-year-warranty pick with power boost
- Pick S8VK-S06024 for harsh environments, Push-In Plus terminals, and coated PCBs
- Pick S8VK-C12024 when the load exceeds 2 A continuous
- Add an S8VK-R10 redundancy unit for 1+1 parallel/redundancy
- Tighten screw terminals to 0.5 to 0.6 N·m — a loose terminal is the most common failure
Technical Specifications
| Model | S8VK-C06024 |
|---|---|
| Series | S8VK-C cost-effective DIN-rail power supply |
| Power Rating | 60 W continuous |
| Output Voltage | 24 VDC (adjustable -10% to +15%) |
| Output Current | 2.5 A continuous |
| Rated Input Voltage | 100 to 240 VAC (single phase) |
| Operating Input Range | 85 to 264 VAC; 90 to 350 VDC |
| Efficiency | 88% typical at 230 VAC |
| Operating Temperature | -25 to 60 °C (derate above 40 °C) |
| Parallel / Series | Parallel via S8VK-R10; series up to 2 with external diode |
| Dimensions (W x H x D) | 32 x 90 x 110 mm |
| Certifications | UL 508 / 62368-1, cUR, EN 62477-1, EN 62368-1; EN 55011 Class A |
Resources & Downloads
FAQ for S8VK-C06024
How do I choose between S8VK-C06024, S8VK-G06024, and S8VK-S06024?
All three are 60 W / 24 VDC / 2.5 A DIN-rail PSUs. S8VK-C06024 (this SKU) is the cost-effective tier: screw terminals, -25 to 60 °C, 3-year warranty. S8VK-G06024 is the general-purpose tier: -40 to 70 °C, 5-year warranty, 120% power boost (3 A for 5 s) for capacitive loads. S8VK-S06024 is the slim environmental tier: -40 to 70 °C, 5-year warranty, Push-In Plus terminals, coated PCBs. Pick C for budget, G for most new installs, S for harsh environments.
Can I parallel two S8VK-C06024 units for redundancy?
Not directly. The S8VK-C line does not support internal current sharing between units, so paralleling two C06024 supplies output-to-output will fight each other. For 1+1 redundancy, add an S8VK-R10 redundancy unit between the two supplies and the load — it isolates the supplies, decouples the output, and gives you a redundancy OK signal. Series operation (stacking for ±24 V or 48 V) is supported with an external diode on each output.
What fuse or circuit breaker do I need on the AC input?
The internal fuse is 250 VAC 6.3 A HBC (high breaking capacity), not user-replaceable. For external protection, fit a 6 A or 8 A slow-blow MCB on the AC feed — fast-blow breakers will nuisance-trip on the 16 A peak inrush at 115 VAC or 32 A peak at 230 VAC (cold start at 25 °C). Allow at least 1.5 mm² (AWG 16) wire for the input and 2.5 mm² (AWG 14) for the output.
What happens if the panel temperature runs above 50 °C?
Above 40 °C the S8VK-C06024 derates linearly: about 90% of rated load at 50 °C and about 75% at 60 °C (standard mounting). For a panel that runs above 50 °C continuously, step up to the S8VK-C12024 (5 A) to keep the load at 50% of rating, or to the S8VK-G06024 which runs to 70 °C without derating. Side-by-side mounting derates further; check the datasheet derating curve for your exact layout.
