Part of the Omron Power Supplies series — see the full model table, lifecycle status and replacement parts.
Omron S8FS-G03024CD — 30 W 24 VDC, Coated
SKU: S8FS-G03024CDUSD 38.00
Omron S8FS-G03024CD coated DIN-rail PSU, 30 W 24 VDC 1.3 A, 100-240 VAC. In stock.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview

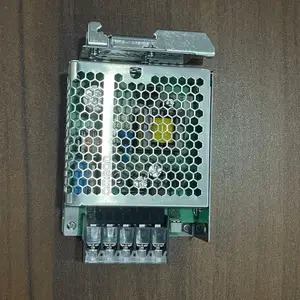

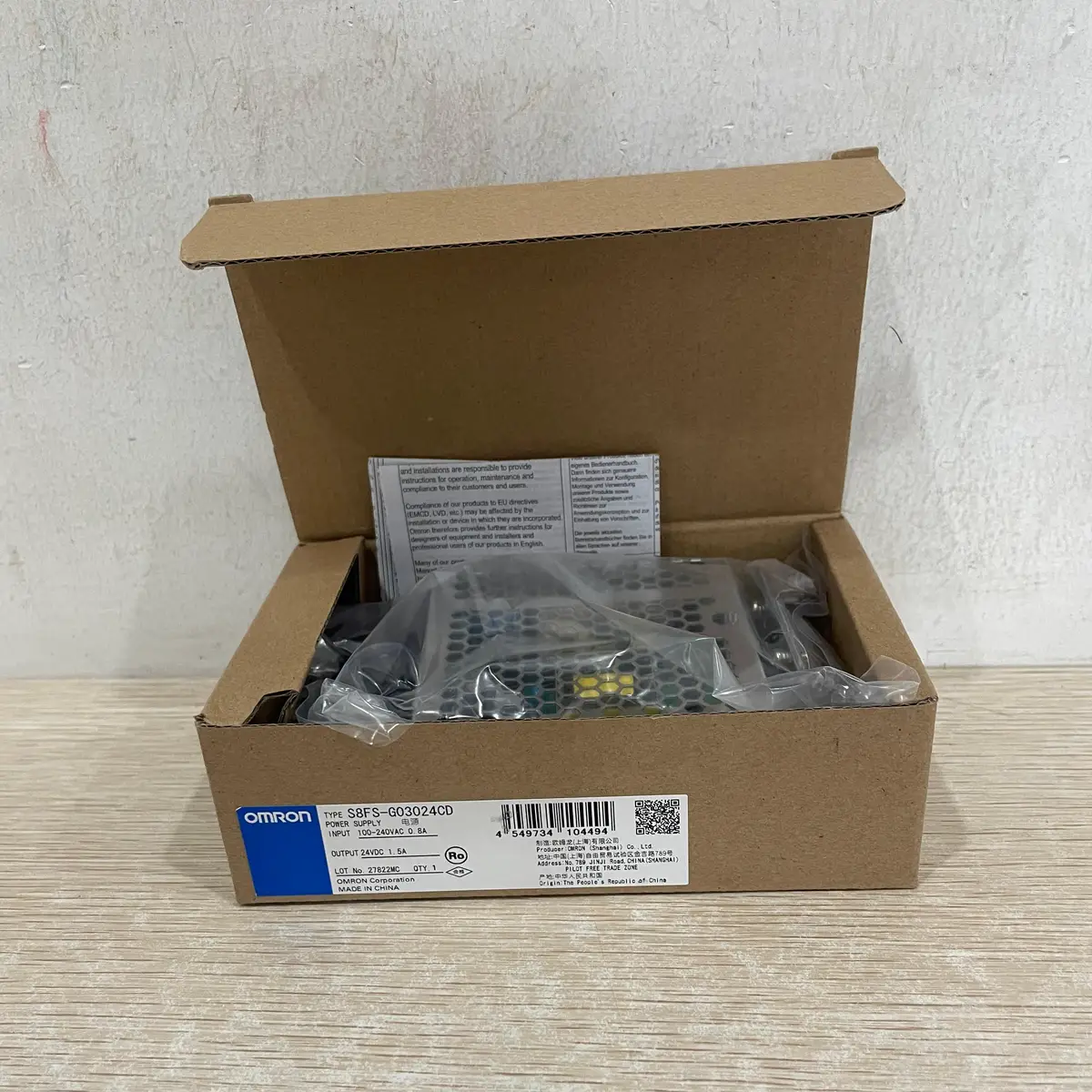

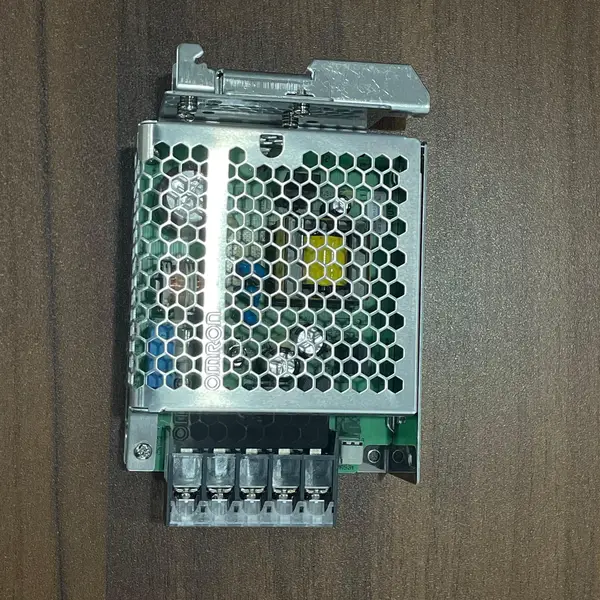

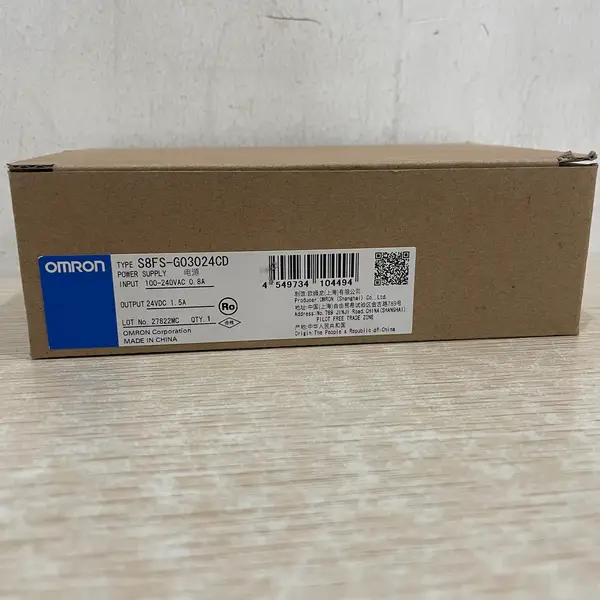

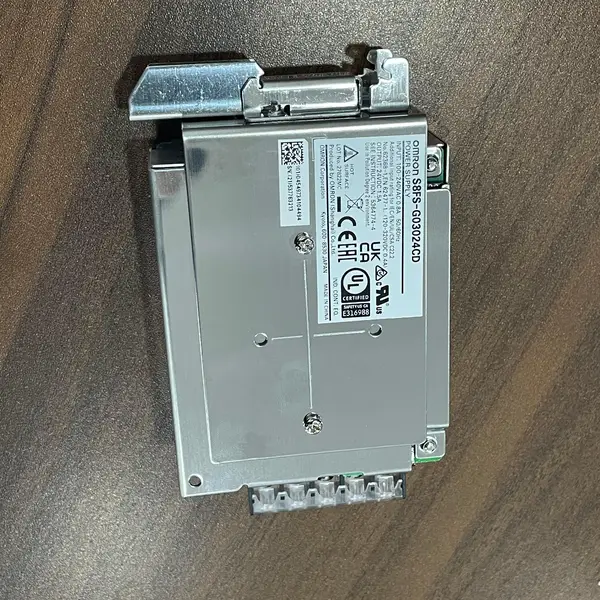

The Omron S8FS-G03024CD is a 30 W coated DIN-rail switch-mode power supply in the S8FS family, manufactured by Omron Corporation. Hengyixin Automation stocks this controller option board in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.
The CD suffix marks the PCB coating that protects the supply from condensation, sulfur gas, and dust in harsh environments such as food processing, outdoor panels, and wastewater treatment. The supply accepts single-phase 100-240 VAC at 50/60 Hz and delivers a regulated 24 VDC at 1.3 A continuous.
The covered enclosure measures 36 mm W x 90 mm H x 110 mm D and weighs 200 g. Screw terminal block for input and output. Compliance covers UL 508, EN 61204-3, CE, and RoHS. The S8FS-G05024CD is the next-step-up coated PSU at 50 W / 2.1 A.
Key Features
- Single-phase 100-240 VAC DIN-rail PSU with PCB coating for harsh environments
- 30 W output, 24 VDC at 1.3 A continuous
- Operates from -20 to 60 C ambient, screw terminal block for input and output
- 36 mm W x 90 mm H x 110 mm D, 200 g, UL 508 EN 61204-3 CE RoHS
- SKU: S8FS-G03024CD
- Series: S8FS coated DIN-rail power supply
- Voltage: 24 VDC
Best-Fit Applications
- Outdoor cabinet on a small wastewater sensor where the PCB coating protects the supply from condensation and sulfur gas
- Food-processing line where the cabinet washes down daily and the coated PSU survives the moisture exposure
- Spare replacement on a packaging line in a humid environment where the original uncoated PSU corroded and the CD variant is now required
Buying Checklist
- Choose the S8FS-G03024CD when the cabinet needs 30 W / 1.3 A at 24 VDC and the environment has condensation or corrosive gas.
- Choose the S8VK-G03024 instead when the cabinet needs the same 30 W output in a normal indoor environment without the PCB coating.
- Choose the S8FS-G05024CD instead when the cabinet needs a larger 50 W / 2.1 A output with the same coating.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | S8FS coated DIN-rail power supply |
| Model / SKU | S8FS-G03024CD (PCB coated) |
| Output Power | 30 W |
| Output Voltage / Current | 24 VDC at 1.3 A continuous |
| Input Voltage | Single-phase 100-240 VAC, 50/60 Hz; 90-350 VDC |
| Coating | PCB conformal coating for condensation and corrosive atmospheres |
| Operating Temperature | -20 to 60 C ambient |
| Mounting | DIN rail (TS35/7.5 or TS35/15), covered enclosed case |
| Protection | Overload, overvoltage, input surge, output short-circuit |
| Certifications | UL 508 listed, EN 61204-3, CE, RoHS |
| Dimensions / Weight | 36 mm W x 90 mm H x 110 mm D, 200 g |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for S8FS-G03024CD
What does the CD suffix mean on the S8FS-G03024CD?
The CD suffix marks the PCB conformal coating that protects the supply from condensation, dust, and corrosive gases. Use the CD variant in harsh-environment cabinets such as outdoor, food processing, or wastewater treatment. The coating is a silicone-based conformal layer applied to the populated PCB, which protects components from condensation dripping, sulfur gas from wastewater plants, and dust in food-processing plants.
Does the S8FS-G03024CD accept DC input?
Yes. The supply accepts 90-350 VDC at the input terminals, which lets it ride on a DC bus or backup-battery system. The 24 VDC output remains regulated and isolated. The supply accepts 90-350 VDC at the input terminals, which lets it ride on a DC bus or backup-battery system for short-term ride-through during AC mains dropouts.
What environments is the S8FS-G03024CD rated for?
Outdoor panels, food processing, wastewater treatment, and other harsh-environment cabinets where condensation, sulfur gas, or dust would corrode an uncoated supply. Operating temperature is -20 to 60 C ambient. The CD variant is recommended for outdoor panels, food processing lines with daily washdown, and wastewater treatment cabinets where condensation and corrosive gases would shorten the life of an uncoated supply.
What is the difference between S8FS-G03024CD and S8VK-G03024?
The S8FS-G03024CD is a 30 W PCB-coated supply for harsh environments; the S8VK-G03024 is a 30 W general-purpose supply without coating. Choose S8FS for harsh-environment cabinets, S8VK-G for indoor where the coating is not needed. Compliance covers UL 508 for industrial control equipment, EN 61204-3 for DC output performance, CE marking for the European market, and RoHS for hazardous-substance restriction.
