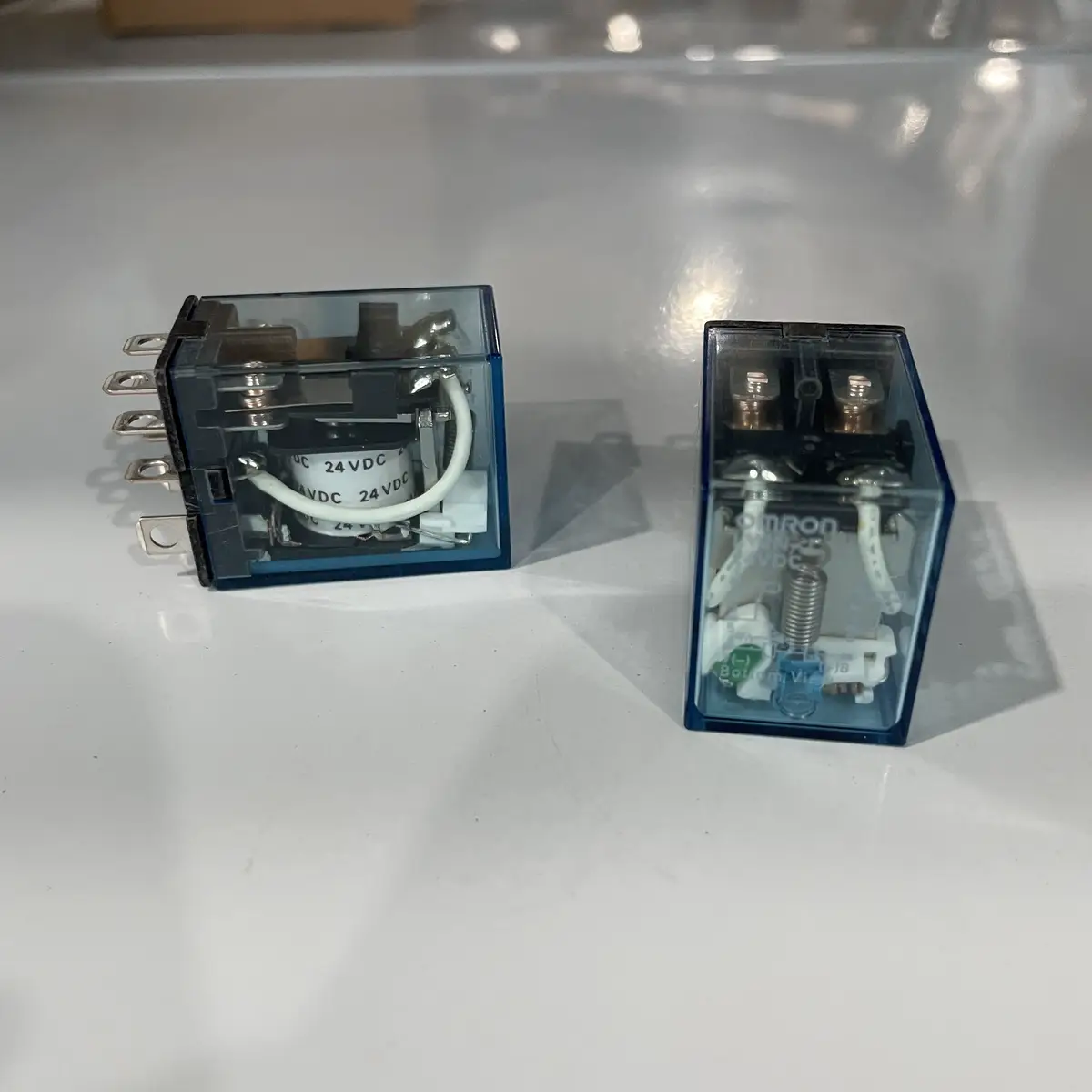

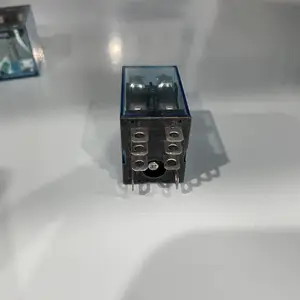

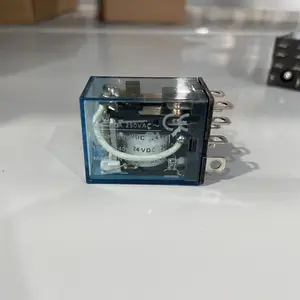

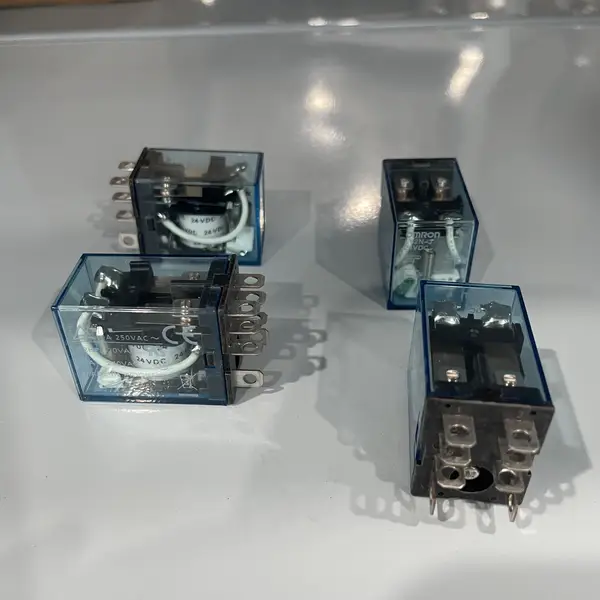

Omron LY2N-J DC24 — LY Relay, DPDT, 24 VDC, 10 A
SKU: LY2N-J DC24USD 2.50
general-purpose DPDT relay, 24 VDC coil, 10 A contact, LED + mechanical flag. In stock.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron LY2N-J DC24 is a double-pole double-throw (DPDT, 2 Form C) general-purpose plug-in relay from the LY series It is manufactured by Omron Corporation. Hengyixin Automation stocks this relay in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.
The coil runs on 24 VDC, draws 36.9 mA through 650 ohm and dissipates 0.9 W. The DPDT contacts switch up to 10 A at 250 VAC or 30 VDC resistive (7 A inductive at cos phi = 0.4).
For a modern square DPDT relay, pick the G2R-2-SND DC24(S). Key specs: Contact Configuration DPDT (2 Form C); 2 NO + 2 NC; Coil Voltage 24 VDC; Coil Resistance / Power 650 ohm; 36.9 mA; 0.9 W; Contact Rating 10 A at 250 VAC or 30 VDC resistive; 7 A inductive (cos phi = 0.4); Max Switching Capacity 1100 VA AC; 240 W DC; Operate / Release Time 25 ms max each; Mechanical Life 100 million operations (DC coil); Electrical Life 100,000 operations at rated load.
Key Features
- LY-series DPDT (2 Form C) general-purpose plug-in relay with 24 VDC coil
- 10 A contact rating at 250 VAC / 30 VDC resistive, 1100 VA / 240 W max switching
- J suffix adds LED indicator + transparent case with mechanical flag
- PYF-08-E socket mount, 50 million mechanical operations, 100,000 electrical
- SKU: LY2N-J DC24
- Series: Omron LY-series general-purpose plug-in relay
- Voltage: 24 VDC
Best-Fit Applications
- Interposing relay between a CP1L transistor output and a 240 VAC contactor coil on a packaging line
- Alarm and indicator relay panel where the LED indicator confirms the coil is hot from the control-room HMI
- Spare drop-in for an existing LY relay panel where the PYF-08-E socket stays in place and the relay is replaced coil-out
Buying Checklist
- Pick the LY2N-J DC24 for a 24 VDC DPDT general-purpose relay with 10 A contacts, LED and mechanical flag.
- Pick the LY2N-J AC220 instead when the coil runs on 230 VAC mains on the same 10 A DPDT body.
- Pick the G2R-2-SND DC24(S) instead when the panel uses the modern P2RFZ-08-E square socket and needs a finger-safe terminal.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron LY-series general-purpose plug-in relay |
| Model / SKU | LY2N-J DC24 |
| Contact Configuration | DPDT (2 Form C); 2 NO + 2 NC |
| Coil Voltage | 24 VDC |
| Coil Resistance / Power | 650 ohm; 36.9 mA; 0.9 W |
| Contact Rating | 10 A at 250 VAC or 30 VDC resistive; 7 A inductive (cos phi = 0.4) |
| Max Switching Capacity | 1100 VA AC; 240 W DC |
| Operate / Release Time | 25 ms max each |
| Mechanical Life | 100 million operations (DC coil) |
| Electrical Life | 100,000 operations at rated load |
| Dimensions / Weight | 36 (H) x 28 (W) x 21.5 (D) mm; 40 g |
FAQ for LY2N-J DC24
Which socket fits the LY2N-J DC24?
The PYF-08-E 8-pin octal front-connecting socket (DIN-rail or screw surface mount) or the PTF-08-E PCB-mount socket. Both are rated 6 A at 250 VAC. The socket is sold separately; the relay clips straight in.
What does the J suffix mean on the LY2N?
The J suffix adds a mechanical operation flag and a transparent dust cover so the contact state is visible without opening the panel. The N suffix marks the LED coil indicator (red on the standard LY2N).
Can the LY2N-J DC24 switch 24 VDC at 10 A?
Yes on resistive loads (heaters, indicator lamps). On inductive DC loads (solenoids, contactor coils) the rating drops to 5 A at 24 VDC with L/R = 7 ms. Always add a flyback diode across an inductive DC load.
