Omron NB3Q-TW01B — 3.5" TFT HMI, Ethernet + USB Host
SKU: NB3Q-TW01BUSD 170.00
NB-series 3.5-inch QVGA 320x240 TFT LCD color HMI with built-in Ethernet, USB Host, USB mini-B, RS-232C, RS-422/485. Black bezel, 65,536 colors, 128 MB flash. NB-Designer programming. The compact HMI for small machines.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview

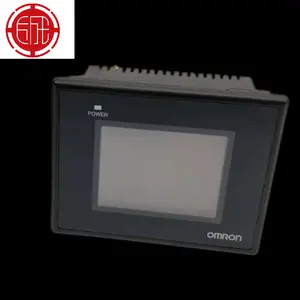

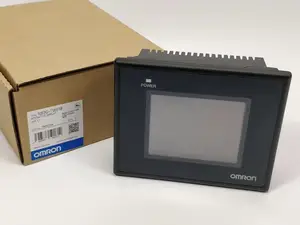

The NB3Q-TW01B is Omron's 3.5-inch TFT LCD color HMI in the NB-series programmable terminal family — the compact, value-tier HMI for small machines where 3.5 inches is sufficient for the operator interface. The 'TW01B' model code encodes Ethernet + USB Host connectivity plus a black bezel (the 'TW00B' sibling has no Ethernet or USB Host; the 'TW01B-V1' designation is reserved for NB5Q+ hardware revisions). With 320x240 pixel QVGA resolution, 65,536-color TFT LCD, analog resistive touch panel, and a compact 103.8x129.8 mm bezel, the NB3Q-TW01B is the right pick for small machines, compact operator stations, and remote I/O enclosures where a larger HMI (5.6, 7, or 10.1 inch) would be too big.
Decoding NB3Q-TW01B within the NB family
The NB-@@@@ model code has multiple positional segments that encode screen size, generation, and connectivity. The 'NB3Q' = NB-series 3.5-inch class display (vs 'NB5Q' = 5.6-inch, 'NB7W' = 7-inch, 'NB10W' = 10.1-inch). The 'TW' = TFT LCD color display (vs 'SQ' = STN monochrome for older NB series, not in our catalog). The '01' = Ethernet + USB Host variant (vs '00' = RS-232/485 only, no Ethernet, no USB Host). The 'B' = Black bezel (the standard offering; some older NB models had ivory/grey). The NB3Q codepoint thus decodes as 3.5-inch TFT Ethernet HMI with black bezel.

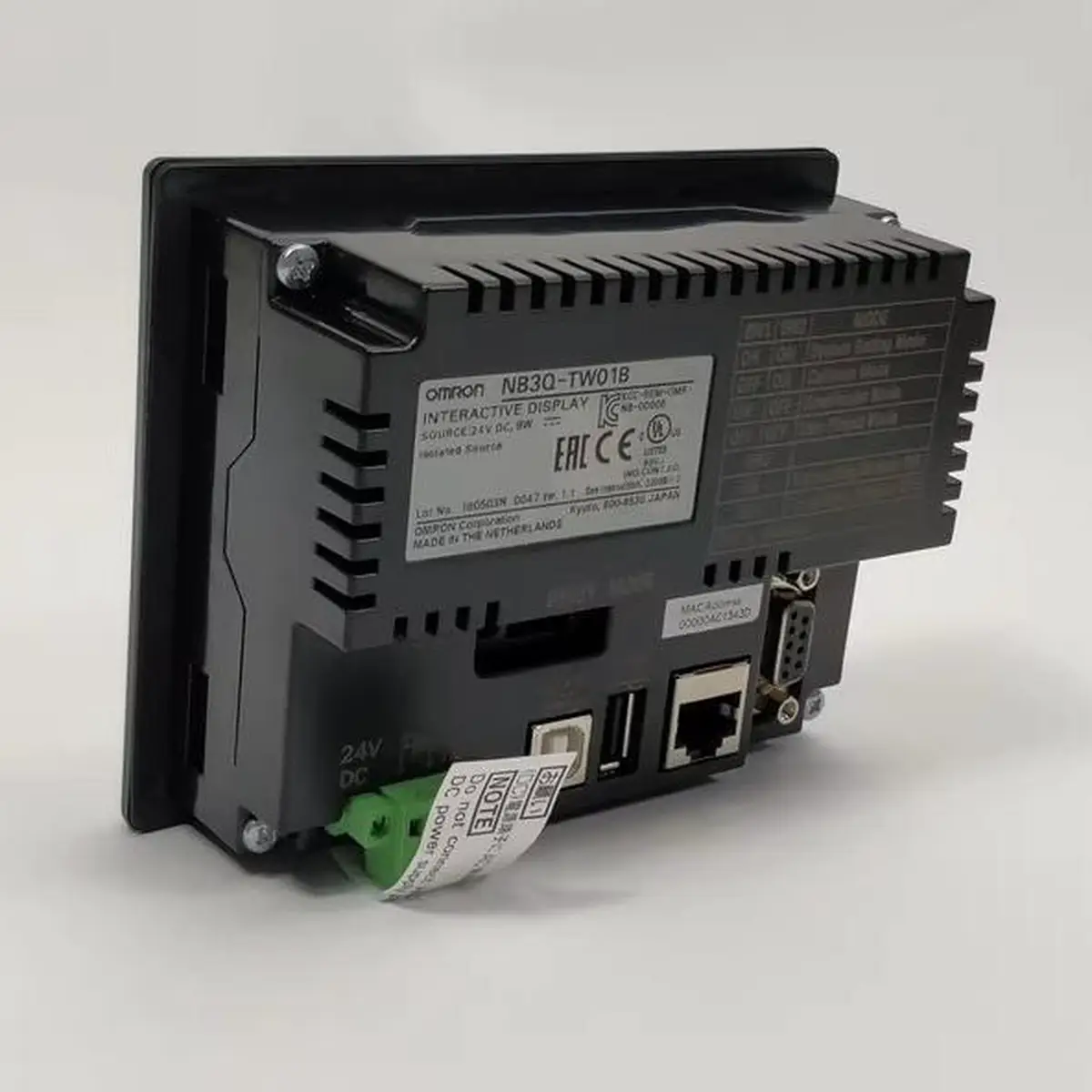

Communication ports — Ethernet + USB Host + RS-232/485 + USB mini-B
The NB3Q-TW01B has five built-in communication interfaces: (a) Ethernet 10/100 Base-T (RJ45) — supports Host Link (serial over Ethernet), FINS, Modbus TCP server, and EtherNet/IP slave. Direct connection to CP1L, CP1H, CJ1M, CJ2M (already done), NJ-series, and NX-series PLCs without a separate Ethernet module. (b) USB Host (USB Type-A) — accepts a USB flash drive for project upload/download, recipe storage, and data logging. The flash drive can hold the project file for transfer between HMIs (clone multiple HMIs with the same project) or for recipe files (operator-loadable product recipes).
NB-Designer programming — drag-and-drop screen design
The NB3Q-TW01B is programmed with NB-Designer, Omron's free HMI development software (downloadable from Omron's website, version 1.6.7 or later supports the NB3Q family). NB-Designer provides a drag-and-drop library of buttons, indicators, numeric input/output, text displays, lamps, meters, charts, and recipes — all linked to PLC memory addresses via Omron's standard tag database. The typical workflow: (1) Create a new project, select NB3Q-TW01B as the target model. (2) Add the PLC protocol (Host Link / FINS / Modbus / EtherNet-IP) and configure the IP address / serial port. (3) Define tags (PLC memory addresses) in the tag database.
Key Features
- NB-series 3.5-inch TFT LCD color programmable terminal
- Display resolution: 320 x 240 pixels
- Display colors: 65,536
- Backlight: LED, 50,000 hours lifetime at 25 C normal temperature
- Touch panel: Analog resistive membrane
- Built-in Ethernet 10/100 Base-T - Host Link, FINS, Modbus TCP, EtherNet/IP slave
- Built-in USB Host - USB flash drive for project transfer, recipe, data logging
- Built-in USB mini-B port - NB-Designer programming connection
- SKU: NB3Q-TW01B
- Series: NB-series Programmable Terminals
Best-Fit Applications
- Small packaging machine operator interface - NB3Q-TW01B mounted on the machine's operator console displays run/stop status, fault messages, recipe selection.
- Conveyor control panel HMI - NB3Q-TW01B mounted in a conveyor control panel displays zone status, VFD speed, current product in.
- Compact machine tool HMI - NB3Q-TW01B on a small lathe or mill displays spindle RPM, feed rate, tool position, and.
- Remote I/O enclosure indicator panel - NB3Q-TW01B at a remote junction box displays local I/O status, fault history, and maintenance.
Buying Checklist
- Pick NB3Q-TW01B for 3.5-inch QVGA HMI with Ethernet + USB Host - compact HMI for small machines
- Pick NB3Q-TW00B for 3.5-inch QVGA HMI without Ethernet/USB Host - RS-232/485 only, lower cost
- Pick NB5Q-TW01B-V1 for 5.6-inch QVGA HMI with Ethernet + USB Host - larger screen for medium machines
- Pick NB7W-TW01B for 7-inch WVGA HMI - for medium machines
- Pick NB10W-TW01B for 10.1-inch WVGA HMI - for large machines
- Pick NA5-7W001B-V1 for 7-inch WXGA Sysmac-family HMI - the active production replacement for the NB series
Technical Specifications
| Model | NB3Q-TW01B |
|---|---|
| Series | NB-series Programmable Terminals |
| Type | 3.5-inch QVGA TFT LCD color HMI with Ethernet + USB Host |
| Display Type | TFT LCD color |
| Display Size | 3.5 inch diagonal |
| Display Resolution | 320 x 240 pixels (QVGA) |
| Display Colors | 65,536 colors (16-bit color) |
| Backlight | LED (50,000 hours lifetime at 25 C) |
| Dimensions (W x H x D) | 103.8 x 129.8 x 52.8 mm |
| Operating Temperature | 0 to +50 C |
| Storage Temperature | -20 to +60 C |
| Certifications | CE, cULus listed (UL 508), KC, Lloyd's Register |
Resources & Downloads
FAQ for NB3Q-TW01B
What's the difference between NB3Q-TW01B and NB3Q-TW00B?
Both are 3.5-inch QVGA TFT LCD color HMIs in the NB-series with the same 320x240 resolution, 65,536 colors, 128 MB flash memory, analog resistive touch, RS-232C, RS-422/485, and USB mini-B programming port. The differences: (a) Ethernet port - TW01B (this SKU) has a built-in 10/100 Base-T Ethernet port (RJ45) supporting Host Link, FINS, Modbus TCP, and EtherNet/IP slave; TW00B (NOT in catalog) has no Ethernet.
Is the NB3Q-TW01B discontinued?
Yes - per Omron's product discontinuation notice, the NB-series (including NB3Q-TW01B) is being discontinued, with last-order date around March 2025. The NB3Q-TW01B continues to be supported as a legacy spare-parts product through approximately 2030 (Omron's standard 10-year parts-and-repair commitment). For new installations, the recommended replacement is the NA5-series Sysmac-family HMI (NA5-7W001B-V1, 7-inch WXGA — NOT in catalog).
What PLCs can the NB3Q-TW01B connect to?
The NB3Q-TW01B supports multiple PLC communication protocols and is compatible with most Omron PLC families: (a) CP1E (NOT in catalog) via RS-232C (Host Link) or RS-422/485 (multi-drop Host Link, requires CP1W-CIF11/CIF12 option on CP1E). (b) CP1L via RS-232C, RS-422/485, or Ethernet (the CP1L-EM variants have built-in Ethernet, the CP1L-M/CP1L-J need CP1W-CIF41 Ethernet option). (c) CP1H via RS-232C, RS-422/485, or Ethernet (CP1W-CIF41 option).
Can the NB3Q-TW01B log data to a USB flash drive?
Yes - the NB3Q-TW01B's USB Host port accepts a USB flash drive (FAT32 formatted, up to 32 GB typical) for three functions: (a) Project transfer - store the HMI project file on the flash drive and load it into the HMI on boot (useful for cloning multiple HMIs with the same project). (b) Historical data logging - log PLC tag values at scheduled intervals (e.g., every 10 seconds) to CSV files on the flash drive.
