Omron NJ-PD3001 — 30 W 24 VDC Power Supply for NJ
SKU: NJ-PD3001USD 95.00
DC power supply for NJ/DX-series controller racks. 24 VDC input, 5 VDC at 6 A and 24 VDC at 1 A, 30 W, RUN output.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview

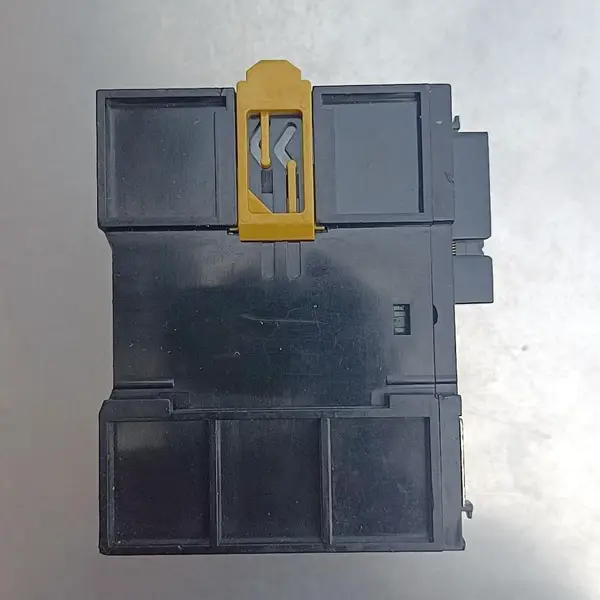

The Omron NJ-PD3001 is the 24 VDC-input power supply for the NJ/DX-series machine controllers. It accepts a regulated 19.2-28.8 VDC feed and produces 5 VDC at 6.0 A and 24 VDC at 1.0 A, for 30 W total. The unit sits in the supply slot of the CPU rack and powers the controller and the I/O units on the bus. It includes a green PWR LED and a RUN output contact that closes while the CPU is in RUN status.
When a 24 VDC rack is the right call
Use the PD3001 in cabinets that already have a stable 24 VDC rail from another supply, or in mobile or vehicle systems where 24 VDC is the available source. It pairs with a separate DIN-rail power supply that handles the rest of the cabinet's 24 VDC loads, so a fault on one branch does not pull the controller down. In a pure AC-fed panel, the NJ-PA3001 is usually the simpler choice because it does not need an upstream 24 VDC supply.
Choose the right supply for the cabinet feed
NJ-PD3001 takes 24 VDC and uses 60 W at full output. NJ-PA3001 takes 100-240 VAC and uses 120 VA. Both feed the same 5 VDC and 24 VDC rails to the rack, so the controller and I/O side see no difference. Pick by the cabinet feed and the size of the upstream protection.
Before ordering

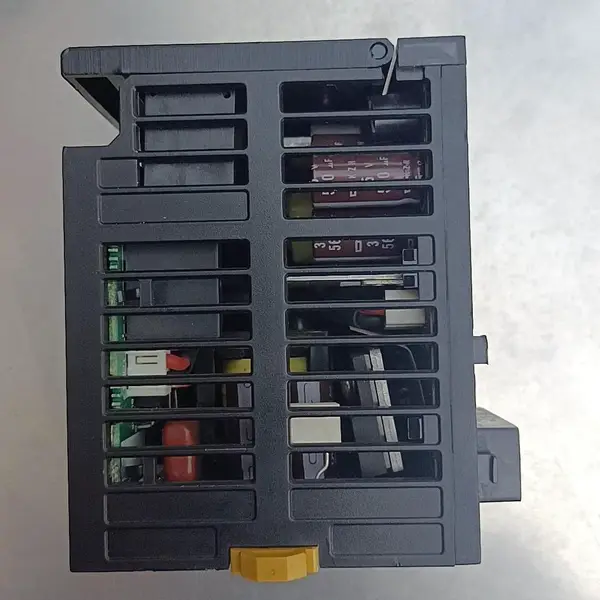

Confirm the 24 VDC source is regulated, inrush-capable, and within the 19.2-28.8 VDC range at the supply terminals. Size the upstream supply for the controller plus all other 24 VDC loads on the same rail, with margin. The RUN output is a contact, not a solid-state signal; check the receiving input is suitable for a dry contact. Allow airflow around the vented housing and follow the derating curve for cabinet temperature.
Key Features
- Dedicated 24 VDC supply for NJ/DX-series CPU racks
- 19.2-28.8 VDC input range
- 5 VDC at 6 A and 24 VDC at 1 A outputs
- 30 W total output
- RUN output contact that mirrors CPU status
- Green PWR indicator on the front

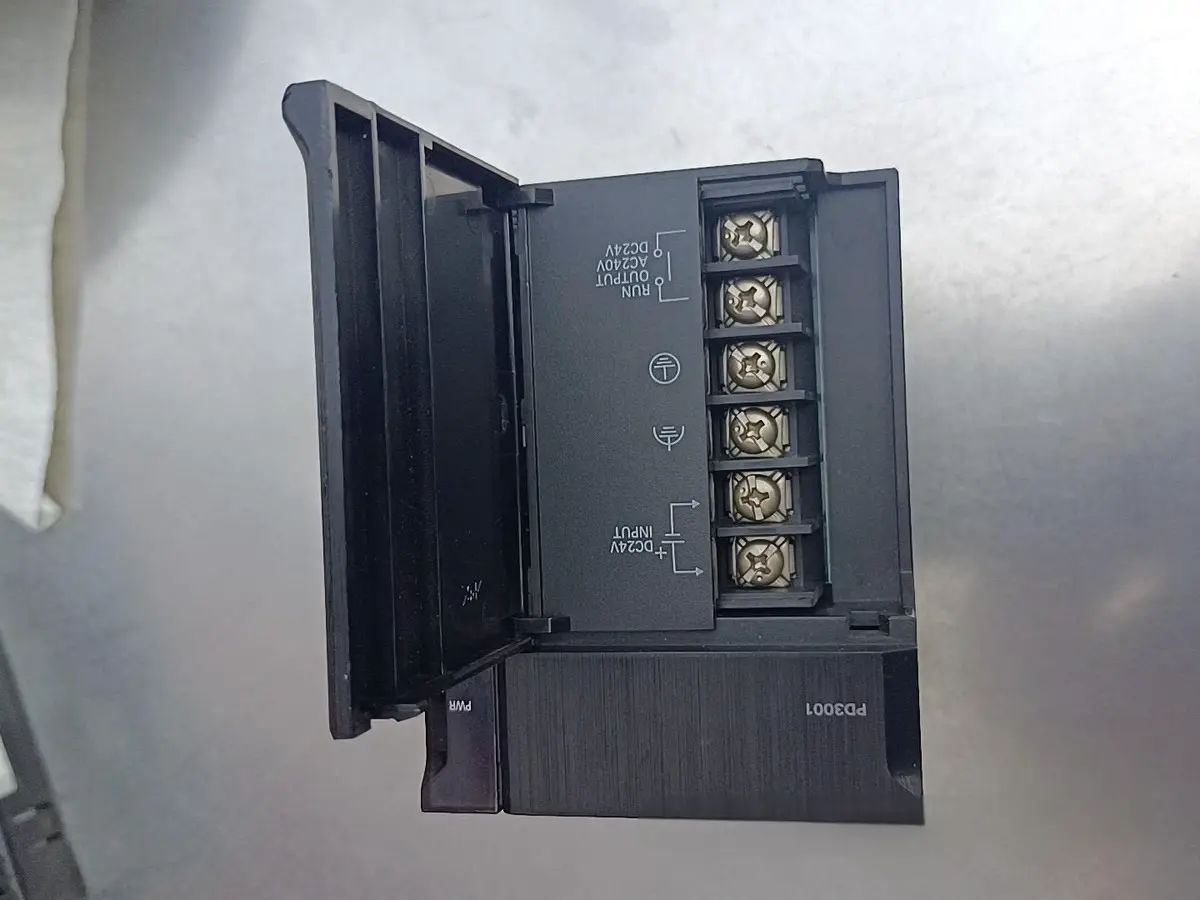

- Screw-terminal connection on M4 self-raising posts
- SKU: NJ-PD3001
- Series: NJ / DX
- Voltage: 24 VDC
- I/O: 24 I/O
Best-Fit Applications
- Main supply for NJ-series CPU racks in 24 VDC-fed control cabinets
- Power source for DX-series controller racks in mobile equipment
- Pairing with a DIN-rail 24 VDC supply in a partitioned control panel
- Replacement for failed DC supplies on installed NJ platforms
- Service spare for NJ/DX lines that share a 24 VDC rail
Buying Checklist
- Confirm the cabinet has a regulated 24 VDC rail within 19.2-28.8 VDC.
- Check the planned 5 VDC and 24 VDC loads against 6 A and 1 A limits.
- Choose NJ-PA3001 instead for a direct AC-fed cabinet.
- Confirm the RUN output wiring before energising the controller.
- Check the upstream 24 VDC supply size covers the controller plus branch loads.
- Allow for airflow space around the vented housing and derate for high temperature.
Technical Specifications
| Series | NJ / DX |
|---|---|
| Compatible Controller | NJ-series CPU and expansion racks |
| Input Voltage | 24 VDC (allowable 19.2-28.8 VDC) |
| Power Consumption | 60 W max. |
| Inrush Current | 30 A / 20 ms at 24 VDC, cold start |
| Output Voltage (Logic) | 5 VDC, 6.0 A |
| Output Voltage (Service) | 24 VDC, 1.0 A |
| Total Output Power | 30 W max. |
| RUN Output | SPST-NO contact; 250 VAC 2 A resistive, 24 VDC 2 A resistive |
| Connection | M4 screw terminals |
| Operating Temperature | 0 to 55 °C |
| Dimensions (W × H × D) | 70 × 90 × 90 mm |
Resources & Downloads
FAQ for NJ-PD3001
What is the difference between NJ-PD3001 and NJ-PA3001?
NJ-PD3001 takes 24 VDC and uses 60 W at full load. NJ-PA3001 takes 100-240 VAC and uses 120 VA. Both deliver the same 5 VDC at 6 A and 24 VDC at 1 A to the rack. Choose NJ-PD3001 when the cabinet has a clean 24 VDC rail; otherwise NJ-PA3001 is simpler.
Can a single 24 VDC supply feed both the NJ-PD3001 and other cabinet loads?
Yes, as long as that supply can deliver 60 W to the NJ-PD3001 plus the steady current of every other load on the same rail. Use a separate branch fuse for the controller so a downstream fault cannot pull the CPU down. Check the inrush of the NJ-PD3001 (about 30 A for 20 ms) when sizing the upstream supply and fuse.
Does the NJ-PD3001 have a maintenance forecast or remote alarm?
No. The unit has a green PWR LED and a RUN output contact that closes while the CPU is running. There is no display, no maintenance-forecast monitor, and no separate low-voltage or pre-alarm output. For a maintenance forecast, consider an S8VS-series supply on the same panel.
