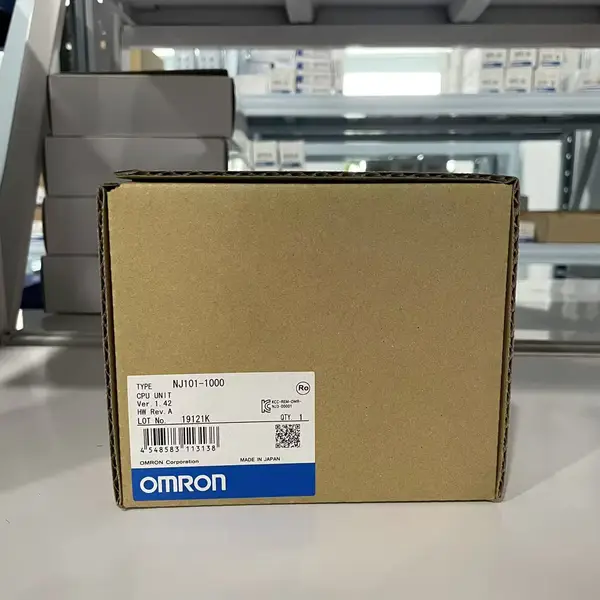

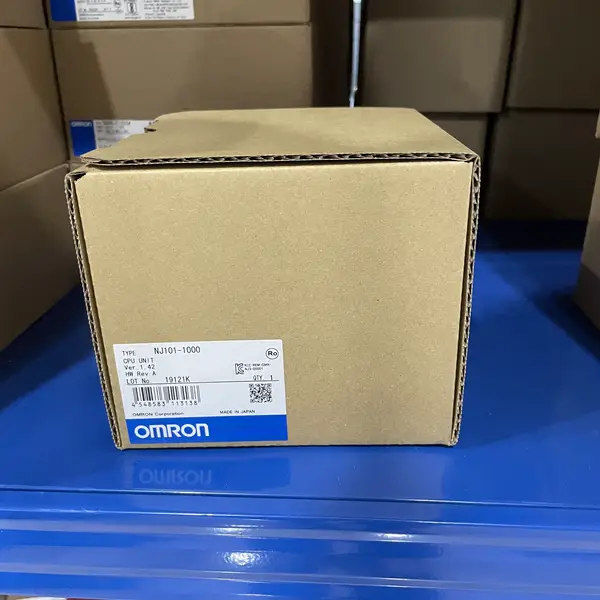

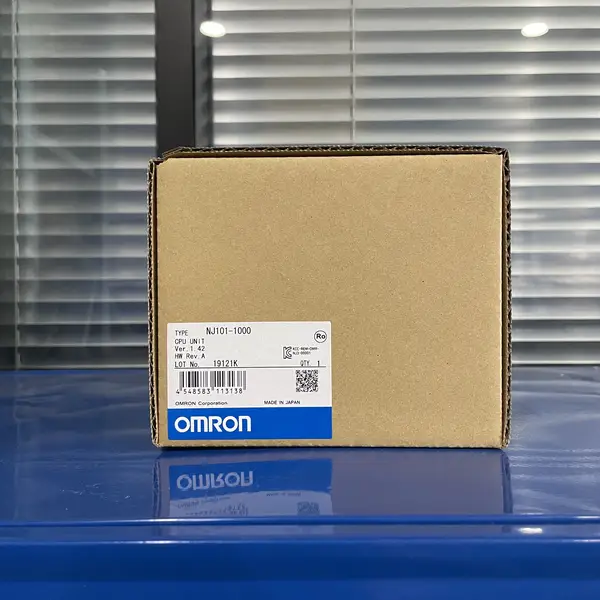

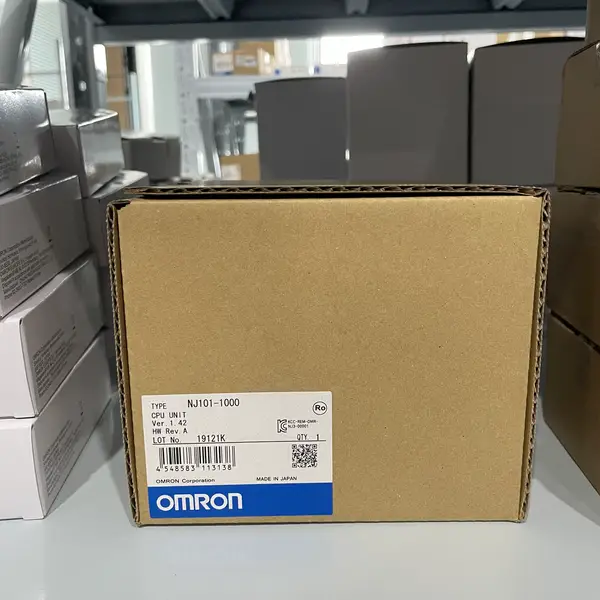

Omron NJ101-1000 — Sysmac NJ1 CPU, 2 Servo Axes, 3 MB
SKU: NJ101-1000USD 775.00
Omron NJ101-1000 Sysmac NJ1 CPU, 3 MB program, 2 servo axes, built-in EtherCAT + EtherNet/IP + USB, 2560 I/O, Sysmac Studio.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron NJ101-1000 is a Sysmac NJ1 machine-automation controller CPU unit, manufactured by Omron Corporation. Hengyixin Automation stocks this controller in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports.
The CPU runs a 3 MB program with 0.5 MB retained plus 2 MB non-retained variable memory on a 1 ms primary task cycle. Built-in ports cover EtherCAT master for up to 64 nodes and 2 servo axes, EtherNet/IP for up to 32 connections, and a USB programming port. An SD memory card slot sits on the front face for project and recipe backup.
Up to 40 CJ-series units mount across the CPU rack plus three expansion racks; local I/O capacity is 2560 points. Programming runs in Sysmac Studio Standard Edition under IEC 61131-3 (Ladder, Structured Text, Function Block, Sequential Function Chart). For the no-motion sibling, pick the NJ101-9000. For more program and 8 servo axes, pick the NJ301-1200.
Key Features
- Sysmac NJ1 machine-automation CPU with 3 MB program memory and 0.5 MB retained variables
- Built-in EtherCAT master (up to 64 nodes / 2 servo axes) plus EtherNet/IP (up to 32 connections) and USB
- 1 ms primary task cycle, 2560 local I/O points (8960 with NX I/O), 40 units / 3 expansion racks
- IEC 61131-3 programming in Sysmac Studio (LD, ST, FBD, SFC); SD card slot for project and recipe backup
- SKU: NJ101-1000
- Series: Omron NJ-series Sysmac NJ1 CPU
- I/O: 2560 points
Best-Fit Applications
- Small packaging line where the NJ101-1000 runs sequence logic on EtherNet IP and runs two servo axes over EtherCAT for a 2-axis pick-and-place
- Benchtop test rig where the SD card slot holds the recipe set and the USB port programs from a laptop running Sysmac Studio
- Compact filling machine where 2560 local I/O points cover three CJ-series expansion racks and 6 virtual axes handle auxiliary tracking
Buying Checklist
- Pick the NJ101-1000 for a 3 MB Sysmac NJ1 CPU with 2 servo axes on EtherCAT and no DB / SECS functionality.
- Pick the NJ101-9000 instead when the machine only needs sequence control with zero servo axes.
- Pick the NJ301-1200 instead when the cabinet needs 8 servo axes and a larger 5 MB program on the same Sysmac tool chain.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron NJ-series Sysmac NJ1 CPU |
| Model / SKU | NJ101-1000 |
| Program / Variable Memory | 3 MB program; 0.5 MB retained + 2 MB non-retained |
| Motion Axes | 2 synchronous servo axes (6 max incl. virtual) |
| Primary Task Cycle | 1 ms |
| Built-in Ports | EtherCAT master, EtherNet/IP, USB programming, SD card slot |
| Local I/O Points | 2560 points (8960 with NX-series I/O), 40 units, 3 expansion racks |
| Programming Software | Sysmac Studio Standard Edition (SYSMAC-SE200D / SYSMAC-SE201L), IEC 61131-3 |
| Current Consumption | 5 VDC, 1.90 A (including SD card and end cover) |
| Dimensions / Weight | 90 x 90 x 90 mm; 550 g with end cover |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for NJ101-1000
What is the Omron NJ101-1000 used for?
It is the CPU for a small Sysmac NJ1 machine. It runs the sequence program, executes up to 2 synchronous servo axes on EtherCAT, and exposes EtherNet/IP for HMI and remote I/O traffic. Typical fit is a single-machine line with one operator station.
NJ101-1000 vs NJ301-1200 — what is the difference?
The NJ301-1200 doubles the program memory to 5 MB, raises the synchronous motion axes to 8, and supports more connected units. The NJ101-1000 is the smaller and lower-cost fit when 3 MB of program and 2 servo axes are enough.
Does the NJ101-1000 have built-in EtherNet/IP?
Yes. It has one EtherNet/IP port that handles up to 32 connections, plus a separate EtherCAT master port for servo and remote I/O, plus a USB port on the front face for programming.
What software programs the NJ101-1000?
Sysmac Studio Standard Edition, sold as the SYSMAC-SE200D DVD or the SYSMAC-SE201L single-seat licence. The software covers ladder, structured text, function block and SFC, plus EtherCAT and EtherNet/IP network configuration.
What power supply does the NJ101-1000 need?
Either the NJ-PA3001 AC power supply (100 to 240 VAC in, 5 VDC 6 A + 24 VDC 1 A out, 30 W total) or the NJ-PD3001 24 VDC supply. The CJ-series PSUs cannot power an NJ CPU rack.
