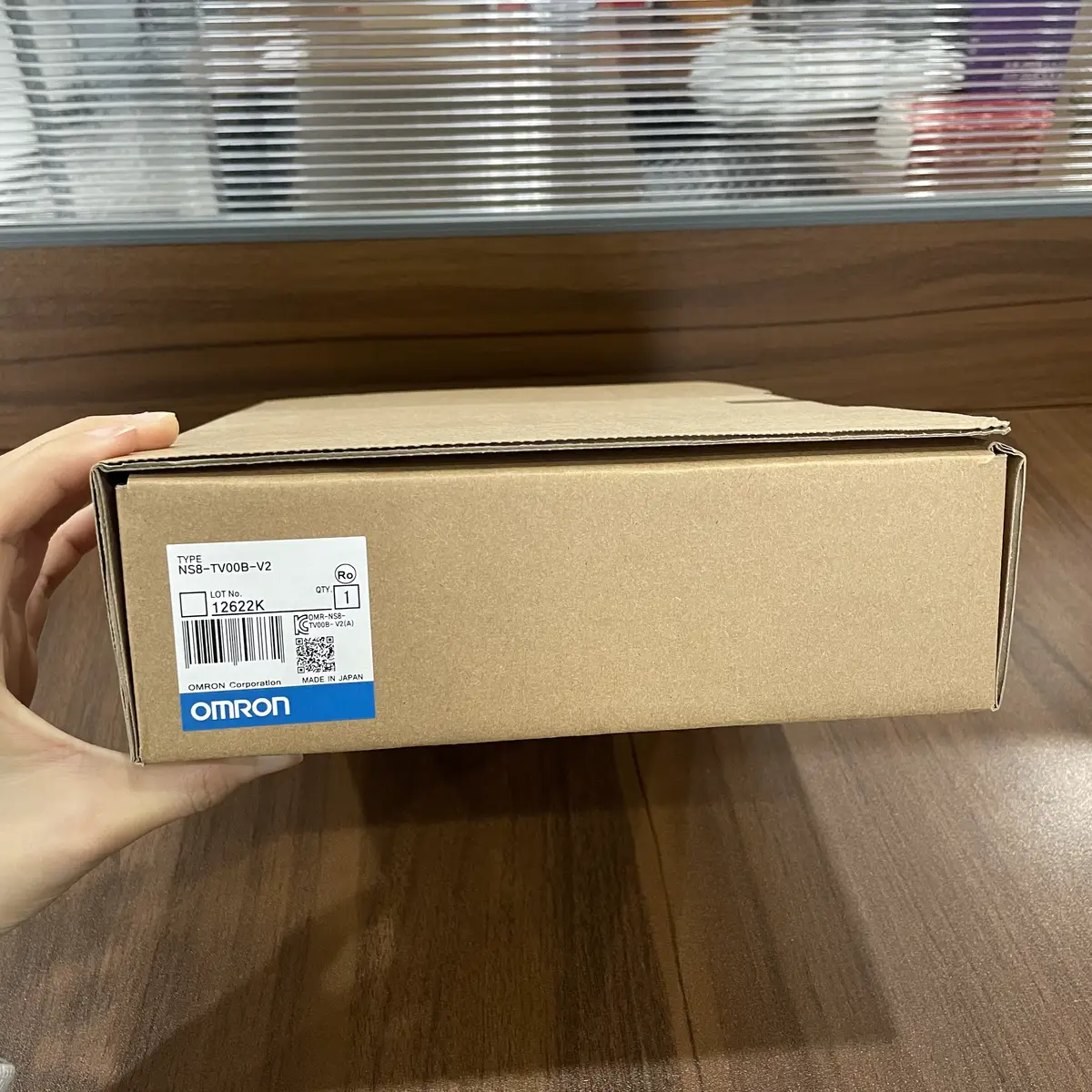

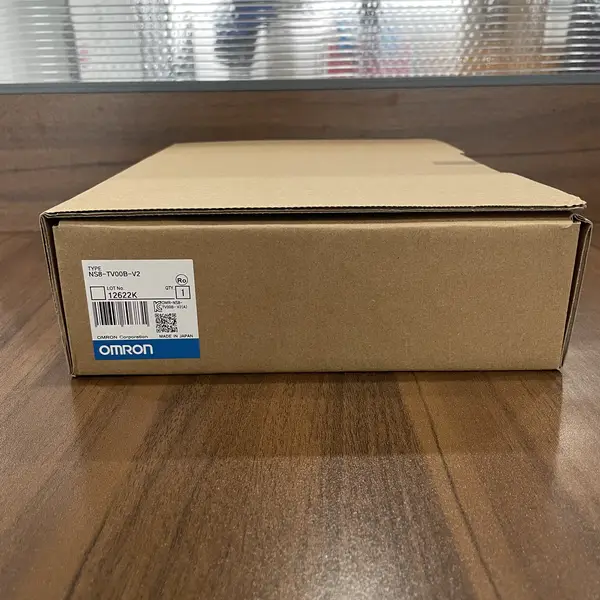

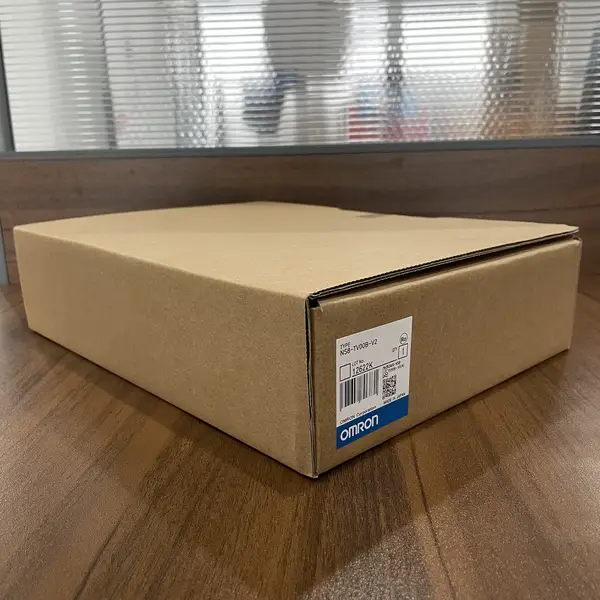

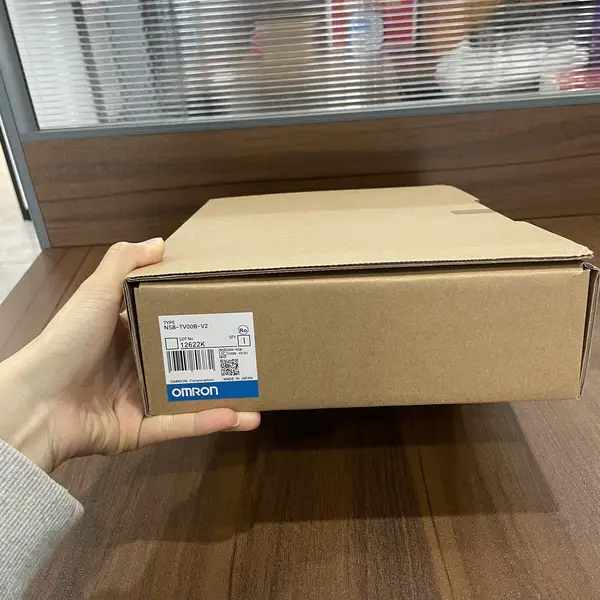

Omron NS8-TV00B-V2 — 8.4" HMI, RS-232C, Black
SKU: NS8-TV00B-V2USD 722.00
8.1-inch TFT HMI, 640x480, RS-232C + USB, IP65 front panel. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron NS8-TV00B-V2 is an 8.1-inch NS-series touch HMI in a black bezel It is manufactured by Omron Corporation. Hengyixin Automation ships this HMI panel from Xiamen with the NB-Designer project file on a USB drive included.
The TFT LCD delivers 640 x 480 resolution with 32,768 colors. Two RS-232C serial ports (Serial A and Serial B) connect to a CP / CJ / NJ PLC and a barcode reader or second controller.
For Ethernet and a USB host, step up to the NS8-TV01B-V2. Key specs: Display 8.1-inch TFT color LCD, 640 x 480 dots, 32,768 colors; Memory 60 MB project memory; Touch Panel Analog resistive; Serial Ports 2x RS-232C (Serial A + Serial B); USB Port 1x USB Type-B slave (for CX-Designer); Programming CX-Designer drag-and-drop, part of CX-One suite; Supply Voltage 24 VDC (20.4 to 27.6 VDC); Front Protection IP65 / NEMA 4 (front), IP20 (rear).
Key Features
- NS-series 8.1-inch TFT color HMI, 640 x 480 resolution, 32,768 colors
- 60 MB project memory, resistive touch panel
- 2x RS-232C serial + USB Type-B slave (no Ethernet)
- IP65 front panel, 24 VDC, CX-Designer programming
- SKU: NS8-TV00B-V2
- Series: NS-series programmable terminal (PT / HMI)
- Voltage: 24 VDC
Best-Fit Applications
- Service terminal that reads recipes and alarms from a CP1L or CP2E PLC over RS-232C.
- Replacement for an older NS8 in a retrofit where the cabinet still uses serial wiring only.
- Operator panel on a packaging line where one HMI talks to a CJ2 PLC over Serial A only.
Buying Checklist
- Choose the NS8-TV01B-V2 instead when Ethernet or a USB host port is needed.
- Choose the NS8-TV00B-V2 for an 8.1-inch HMI in black with serial and USB only.
- Choose the NS8-TV00-V2 instead when the cabinet calls for an ivory bezel instead of black.
Technical Specifications
| Series | NS-series programmable terminal (PT / HMI) |
|---|---|
| Display | 8.1-inch TFT color LCD, 640 x 480 dots, 32,768 colors |
| Memory | 60 MB project memory |
| Touch Panel | Analog resistive |
| Serial Ports | 2x RS-232C (Serial A + Serial B) |
| USB Port | 1x USB Type-B slave (for CX-Designer) |
| Programming | CX-Designer drag-and-drop, part of CX-One suite |
| Supply Voltage | 24 VDC (20.4 to 27.6 VDC) |
| Front Protection | IP65 / NEMA 4 (front), IP20 (rear) |
| Panel Cutout | 220.5 x 165.5 mm, body 232 x 177 x 42 mm |
| Weight | 1.55 kg, bezel black |
| Approvals | CE, UL, CSA, NK, ABS, DNV |
FAQ for NS8-TV00B-V2
Does the NS8-TV00B-V2 have Ethernet?
No - the TV00 suffix means RS-232C and USB only. For Ethernet and a USB host port, pick the NS8-TV01B-V2. The TV01B adds a 100 Mbps port that talks to NJ / NX PLCs over EtherNet/IP or to other HMIs over UDP / TCP.
What PLCs does the NS8-TV00B-V2 connect to?
Any Omron PLC with an RS-232C port: CP1E, CP1L, CP2E, CP1H, CJ1, CJ2 and NJ series. Use Host Link (SYSWAY) for the older CP1 line, FINS for CJ / NJ, or Modbus RTU for non-Omron PLCs. Serial A is usually the PLC link; Serial B can carry a barcode reader or inverter.
How do I upload a project to the NS8-TV00B-V2?
Connect a USB cable from a PC running CX-Designer to the USB Type-B slave port on the back of the HMI. The USB host port on the TV00B side is not present; only the TV01B has a USB-A host port for memory-stick upload. Upload takes 30-60 seconds for a typical project.
Is the NS8-TV00B-V2 still in production?
The NS-series is in active production. For a newer modern alternative with Sysmac Studio and built-in Ethernet, the NA5-9W001B-V1 is the recommended modern replacement for new machine designs. Existing NS8 installations keep working with the same CX-Designer projects and the same serial cables already in the cabinet.
