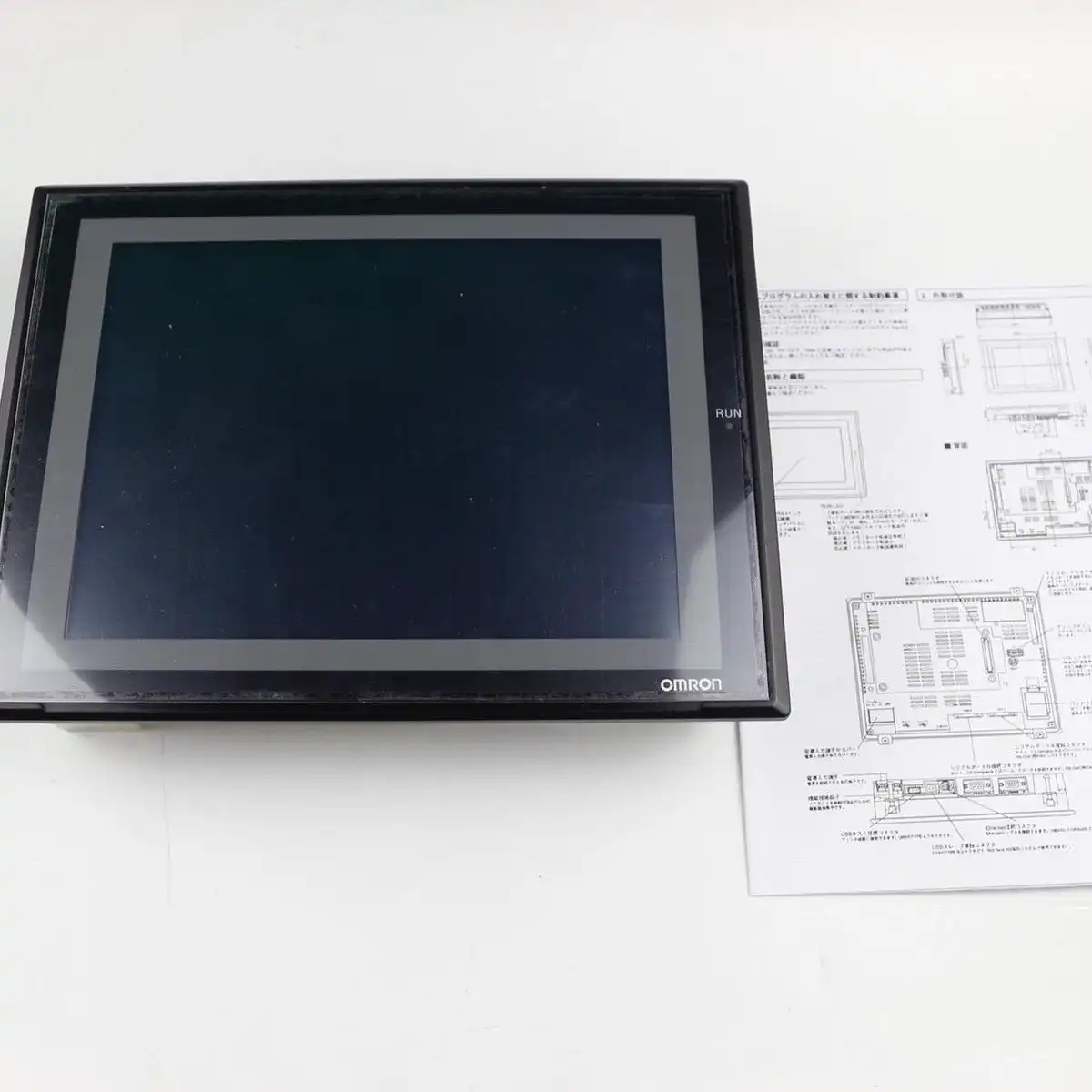

Omron NS8-TV01B-V2 — 8.4" NS HMI, Ethernet, 60 MB
SKU: NS8-TV01B-V2USD 720.00
Omron NS8-TV01B-V2 NS-series 8.4-inch TFT HMI, Ethernet + 2x RS-232C, 60 MB project memory. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron NS8-TV01B-V2 is the NS-series 8.4-inch TFT color LCD touchscreen HMI in the black bezel, manufactured by Omron Corporation. Hengyixin Automation ships this HMI panel from Xiamen with the Sysmac Studio or NB-Designer project file on a USB drive included.
It runs CX-Designer projects on an 8.4-inch TFT color LCD with 640 x 480 VGA resolution and an analog resistive touch panel. 60 MB of project memory fits dense process pages, alarm logs, and recipe lists. The built-in ports are one Ethernet (10 / 100 BASE-TX), two RS-232C serial, and one USB.
Front-panel protection is IP65 when the unit is panel-mounted with the included gasket. Power is 24 VDC at 20.4 to 27.6 V, approximately 25 W. The 8.4-inch no-Ethernet sibling is the NS8-TV00B-V2. The 10.4-inch Ethernet version is the NS10-TV01B-V2. The NS8-TV01B-V2 is discontinued; the modern Sysmac replacement is the NA5-9W001B-V1.
Key Features
- NS-series 8.4-inch TFT color LCD HMI, 640 x 480 VGA, 256 on-screen colors with 32,768 colors for BMP / JPG
- Built-in Ethernet (10 / 100 BASE-TX), 2 x RS-232C serial, 1 x USB
- 60 MB project memory for dense process pages, alarm logs, and recipe lists
- Resistive-touch analog panel, IP65 front face when panel-mounted, 24 VDC supply, CX-Designer software
- SKU: NS8-TV01B-V2
- Series: NS-series programmable terminal (PT) touchscreen HMI
- Voltage: 24 VDC
Best-Fit Applications
- Operator dashboard on a mid-size packaging line where the Ethernet port feeds the NS8-TV01B-V2 from a CJ2H-CPU65-EIP and the 60 MB memory holds recipe lists
- Process panel on a water-treatment skid where the NS8-TV01B-V2 displays trend graphs over EtherNet/IP and the 8.4-inch LCD replaces the older NS5-TQ10B-V2
- Spare replacement on a CNC retrofit where the older NS8-TV00B-V2 is upgraded for the Ethernet-enabled NS8-TV01B-V2 to add remote SCADA access
Buying Checklist
- Pick the NS8-TV01B-V2 for an 8.4-inch NS-series HMI with built-in Ethernet and 60 MB project memory in a black bezel.
- Pick the NS8-TV00B-V2 instead when the cabinet only needs RS-232C and USB on the same 8.4-inch body without Ethernet.
- Pick the NA5-9W001B-V1 instead when the panel needs a current-production Sysmac Studio HMI as the long-term replacement.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | NS-series programmable terminal (PT) touchscreen HMI |
| Model / SKU | NS8-TV01B-V2 |
| Display | 8.4-inch TFT color LCD, 640 x 480 VGA, 256 on-screen colors, LED backlight, analog resistive touch |
| Memory | 60 MB project memory, CF card slot on rear for project transfer and data logging |
| Built-in Ports | 1 x Ethernet (10 / 100 BASE-TX), 2 x RS-232C serial, 1 x USB |
| Communication Protocols | EtherNet/IP, TCP / IP, Modbus TCP, NT-Link 1:1, Host Link, serial RS-232C |
| Software | CX-Designer (also called NS-Designer) for project development; supports ladder tag import from CX-Programmer |
| Supply Voltage | 24 VDC at 20.4 to 27.6 V, power consumption approximately 25 W |
| Front Face / Cut-out | Front face IP65 / NEMA 4 when panel-mounted with included gasket; front dimensions 232 (W) x 177 (H) mm; panel cut-out 220.5 x 165.5 mm; built-in depth 42 mm |
| Environment | 0 to 50 C operating, -20 to 60 C storage, 35 to 85 percent humidity (no condensation) |
| Approvals / Status | CE, UL, cUL, NK, Lloyd, EC Directives, NEMA 4; discontinued product; modern Sysmac replacement is the NA5-9W001B-V1 |
FAQ for NS8-TV01B-V2
What is the Omron NS8-TV01B-V2 used for?
It is the NS-series 8.4-inch TFT color LCD touchscreen HMI with built-in Ethernet. It runs CX-Designer projects and connects to Omron CJ1, CJ2, and NJ PLCs over Ethernet or RS-232C. Typical uses are operator dashboards on packaging lines, process-skid panels, and any 8.4-inch operator interface where Ethernet is required.
NS8-TV01B-V2 vs NS8-TV00B-V2 - what is the difference?
Both share the same 8.4-inch 640 x 480 TFT color LCD body, black bezel, and 60 MB project memory. The -TV01B-V2 has built-in Ethernet plus two RS-232C serial ports and USB; the -TV00B-V2 has RS-232C plus USB only. Pick the -TV01B-V2 when the panel needs Ethernet for a Sysmac NJ or remote SCADA tie-in; pick the -TV00B-V2 for serial-only legacy installs.
Can the NS8-TV01B-V2 connect to a non-Omron PLC?
Yes, over Modbus TCP on the Ethernet port or Host Link / NT-Link on the RS-232C serial ports. CX-Designer supports a wide list of third-party drivers, including Modbus RTU / TCP master and a generic Ethernet driver. For best results on Omron CPUs, use EtherNet/IP or Host Link.
Is the NS8-TV01B-V2 still in production?
No. The NS8-TV01B-V2 is a discontinued product. Hengyixin stocks it for the existing install base and ships the modern Sysmac replacement NA5-9W001B-V1 for new projects. Both screens are 8.1 inches, so the panel cut-out is unchanged.
