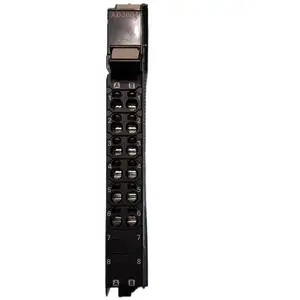

Omron NX-AD3604 — front face of the 4-channel -10 to +10 V differential analog input unit showing the screwless push-in 12-terminal block, the TS indicator and the NX-AD3604 type label

Omron NX-AD3604 — 4-Ch -10 V -20 V Analog Input

SKU: NX-AD3604

USD 170.00

NX 4-ch -10 to +10 V differential analog input, 1:8000, 250 us/ch, 12 mm wide. In stock, China.

1-Year Warranty Full manufacturer warranty
Global Shipping Worldwide delivery available
Genuine Omron 100% authentic product
Ready to Ship Usually ships within 24h
In Stock

This item is available for immediate shipment from our warehouse.

Request Quote

Contact for pricing, bulk discounts, and shipping

Product Overview

The Omron NX-AD3604 is an NX-series 4-channel -10 to +10 V differential analog input unit with a 1/8000 resolution It is manufactured by Omron Corporation. Hengyixin Automation stocks this I/O expansion unit in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports. Specifications on this page were checked against Omron's NX-series I/O System brochure (R183).

Each of the four channels accepts a -10 to +10 V signal in differential mode and converts it to a 13-bit value at 250 us per channel. Absolute maximum rating is +/-15 V and input impedance is 1 Mohm minimum.

Mount on any NX-ECC201 / ECC202 / ECC203 EtherCAT Coupler. Key specs: Number of Inputs 4 channels; Input Type -10 to +10 V differential; Input Conversion Range -5 to 105 percent of full scale; Absolute Maximum Rating +/-15 V; Input Impedance 1 Mohm minimum; Resolution / Accuracy 1/8000 (13-bit); +/-0.2 percent FS at 25 degC, +/-0.4 percent FS at 0 to 55 degC; Conversion Time / Refreshing 250 us per channel; Free-Run only; 1.10 W NX-bus max; External Connection Screwless push-in 12-terminal block (removable).

Key Features

  • NX-series 4-channel -10 to +10 V differential analog input
  • 1/8000 (13-bit) resolution, 250 us per channel conversion, Free-Run refreshing only
  • Absolute maximum +/-15 V, 1 Mohm input impedance, +/-0.2 percent full-scale accuracy at 25 degC
  • Screwless push-in 12-terminal block, 12 x 100 x 80 mm, 70 g, IP20, 1.10 W NX-bus max
  • SKU: NX-AD3604
  • Series: NX-series Analog Input Unit (voltage)

Best-Fit Applications

  • Reading four voltage-output pressure transducers on a hydraulic press and scaling them to bar in the NJ501 PLC every cycle
  • Retrofit camera where the cabinet already runs voltage scales and the FCN62 Nautilus card survives in the same 12 mm slice as older NX-AD3603
  • Vibration monitoring panel where four differential channels reject common-mode noise from VFD-bearing accelerometers at 1 Mohm input impedance

Buying Checklist

  • Choose the NX-AD3608 instead when 1/30000 resolution or Synchronous I/O refreshing is required for higher-precision weighing.
  • Choose the NX-AD3204 instead when the sensors are 4-20 mA current loops instead of -10 to +10 V voltage.
  • Choose the NX-AD3603 instead when the sensors share a common ground and single-ended wiring is acceptable on the same 12 mm body.

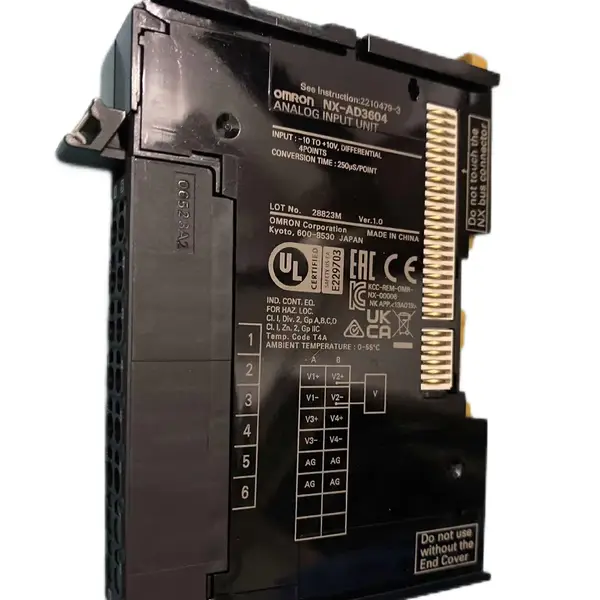

Technical Specifications

Manufacturer Omron Corporation (Japan)
Series NX-series Analog Input Unit (voltage)
Model / SKU NX-AD3604
Number of Inputs 4 channels
Input Type -10 to +10 V differential
Input Conversion Range -5 to 105 percent of full scale
Absolute Maximum Rating +/-15 V
Input Impedance 1 Mohm minimum
Resolution / Accuracy 1/8000 (13-bit); +/-0.2 percent FS at 25 degC, +/-0.4 percent FS at 0 to 55 degC
Conversion Time / Refreshing 250 us per channel; Free-Run only; 1.10 W NX-bus max
External Connection Screwless push-in 12-terminal block (removable)
Dimensions / Approvals 12 (W) x 100 (H) x 80 (D) mm; 70 g; IP20; cULus, CE, RCM

Manufacturer documentation

Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.

FAQ for NX-AD3604

What is the difference between NX-AD3603 and NX-AD3604?
Both are 4-channel -10 to +10 V voltage inputs on the same 12 mm slice. The AD3603 is single-ended and supports both 0-10 V and +/-10 V ranges with lower noise rejection. The AD3604 is differential and gives better common-mode noise rejection in noisy industrial cabinets. Both use the screwless push-in 12-terminal block.
Does the NX-AD3604 support Synchronous I/O refreshing?
No. The NX-AD3604 supports Free-Run refreshing only. For Synchronous I/O at 1/8000 resolution with EtherCAT cycle timing, pick the higher-resolution NX-AD3608 (1/30000, Synchronous I/O selectable) on the same 12 mm slice at a different price point.
What is the maximum cable length for -10 to +10 V signals?
Up to 10 m with shielded twisted-pair cable in a typical industrial cabinet. The differential input rejects common-mode interference well above 30 V peak. Use individually shielded pairs where multiple channels run in the same cable tray to avoid crosstalk on long runs.
Can the NX-AD3604 mount on an EtherCAT coupler?
Yes. The NX-AD3604 mounts on the NX-ECC201, ECC202 or ECC203 EtherCAT Coupler, on the NX-EIC202 EtherNet/IP Coupler, or directly on the NX102 modular CPU bus. The 12 mm width keeps four slices under 50 mm of DIN rail space.
