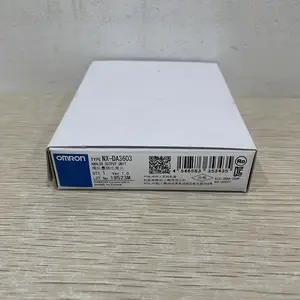

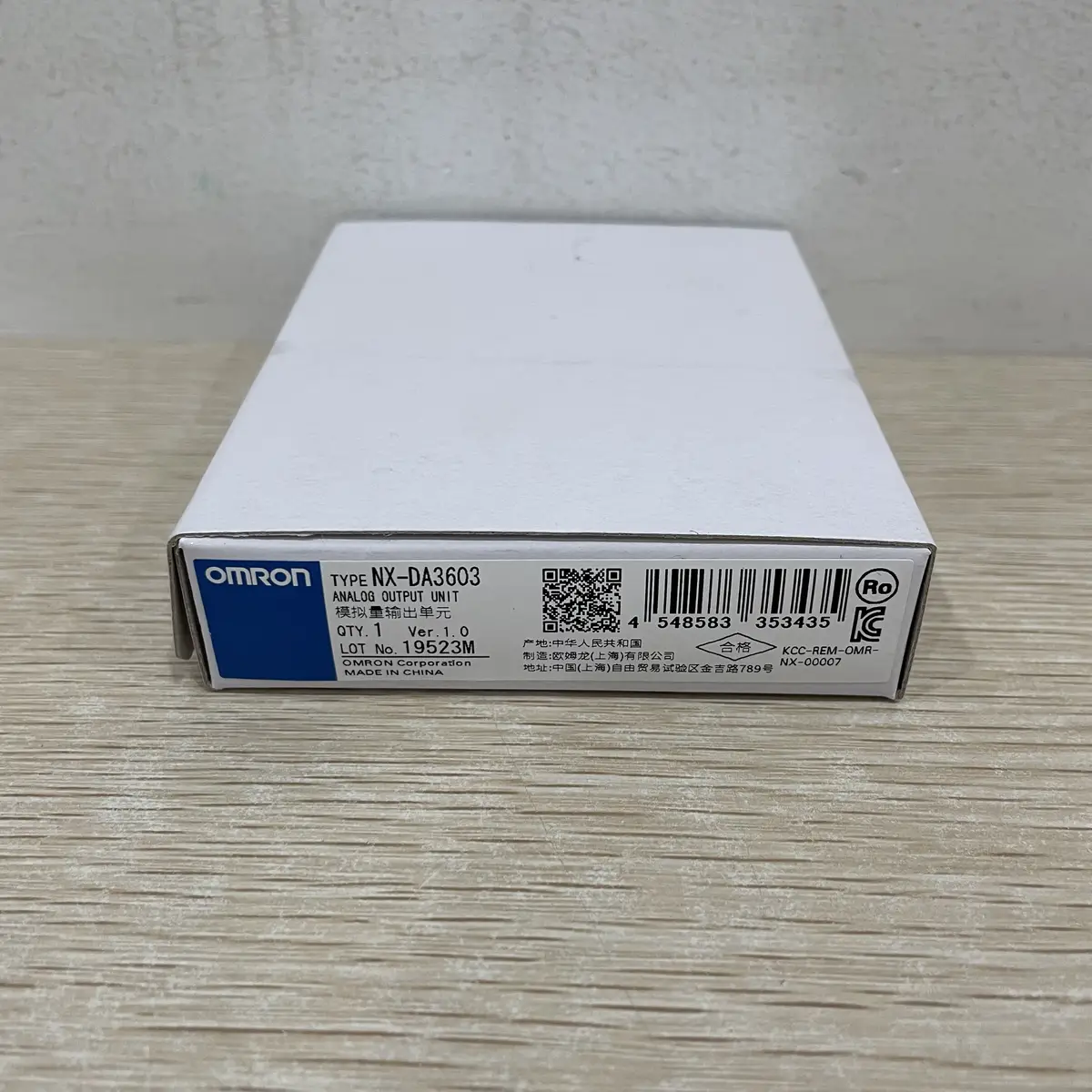

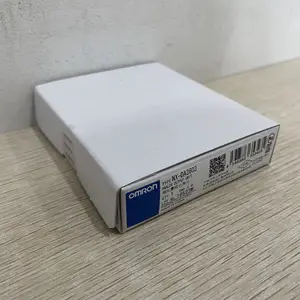

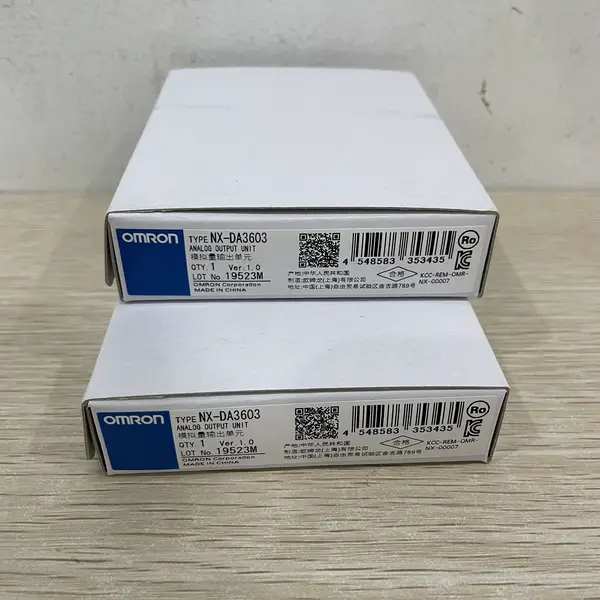

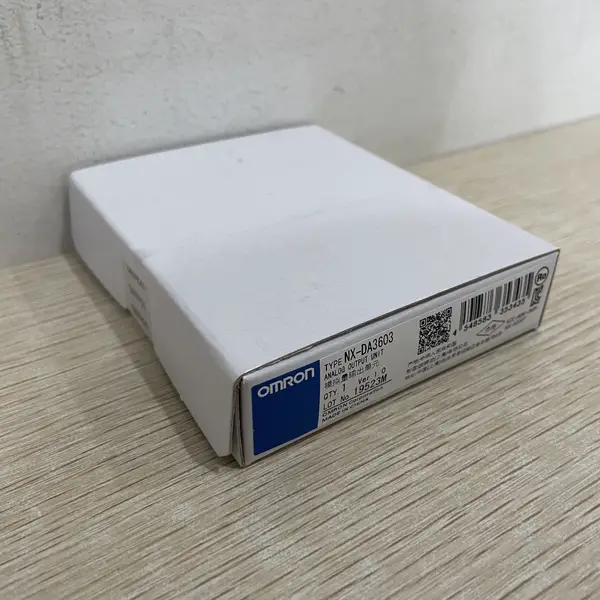

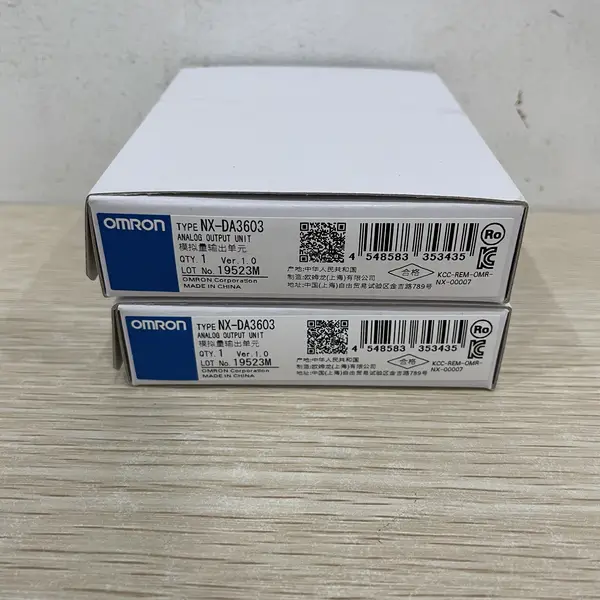

Omron NX-DA3603 — NX 4-Ch Voltage Output, -10 to +10 V
SKU: NX-DA3603USD 182.00
Omron NX-DA3603 NX-series 4-channel analog output, -10 to +10 V, 1/8000 resolution, 12 mm wide. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron NX-DA3603 is a 4-channel analog voltage output unit for the NX-series I/O platform, manufactured by Omron Corporation. Hengyixin Automation stocks this controller option board in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports. Specifications on this page were checked against Omron's NX-series I/O System brochure (R183).
The unit outputs -10 to +10 V on four channels at 1/8000 (13-bit) resolution and 250 us per point conversion. Output impedance is 0.5 ohm max, minimum load resistance 5 k ohm. I/O refresh is Free-Run only. The screwless push-in 8-terminal block lands the four outputs plus 24 VDC supplies on a removable connector.
The 12 mm wide housing mounts on any NX-series coupler: NX-EIC202 for EtherNet/IP, NX-ECC202 or NX-ECC203 for EtherCAT. Power consumption is 1.10 W max from the NX bus. Dimensions 12 x 100 x 71 mm, 70 g, IP20. The NX-DA2205 sibling is the 2-channel 4-20 mA current output; the NX-DA2603 is the 2-channel voltage output; the NX-DA3203 is the 4-channel 4-20 mA current output.
Key Features
- NX-series 4-channel analog voltage output unit, -10 to +10 V per channel, 1/8000 (13-bit) resolution, 250 us per point conversion
- Free-Run I/O refresh only (no synchronous refresh), 0.5 ohm max output impedance, 5 k ohm minimum load resistance
- Screwless push-in 12-terminal removable connector (NX-TBA122) on the 12 mm wide NX housing, IP20, no field wiring tools needed
- 1.10 W max power consumption from the NX bus, 12 x 100 x 71 mm, 70 g, 0 to +55 C operating, cULus / CE / KC listed
- SKU: NX-DA3603
- Series: Omron NX-series I/O platform (NX-DA analog output family)
Best-Fit Applications
- Speed-reference output on a conveyor where the -10 to +10 V signal drives an analog-input variable-frequency drive via the EtherCAT coupler
- Proportional-valve position command on a hydraulic press where the NX-DA3603 outputs a -10 to +10 V reference at 1/8000 over Free-Run refresh
- Bias and span output on a multi-zone oven where four channels drive damper actuators and trim-heater SSR controls from a single 12 mm NX unit
Buying Checklist
- Pick the NX-DA3603 for a 4-channel NX-series voltage output unit at -10 to +10 V with 1/8000 resolution on a 12 mm wide housing.
- Pick the NX-DA2205 instead when the application only needs 2 channels and the load expects a 4-20 mA current loop rather than a voltage signal.
- Pick the NX-DA2603 instead when the cabinet only needs 2 channels of voltage output on the same 12 mm NX body.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | Omron NX-series I/O platform (NX-DA analog output family) |
| Model / SKU | NX-DA3603 |
| Number of Channels | 4 voltage outputs |
| Output Range | -10 to +10 V (output conversion range -5 to +105 percent of full scale) |
| Resolution / Conversion | 1/8000 (13-bit), 250 us per point conversion time, Free-Run refresh only |
| Accuracy | Plus or minus 0.3 percent full scale at 25 C; plus or minus 0.5 percent full scale at 0 to +55 C |
| Load / Output Impedance | Allowable load resistance 5 k ohm min, output impedance 0.5 ohm max |
| Isolation | Between output and NX bus: power = transformer, signal = digital isolator (no isolation between output channels) |
| I/O Connection | Screwless push-in terminal block, 12 terminals, removable for maintenance (NX-TBA122) |
| I/O Power | Supplied from the NX bus; no I/O power supply terminals on this output unit |
| Power / Dimensions | 1.10 W max from NX bus, 12 (W) x 100 (H) x 71 (D) mm, 70 g, IP20, 0 to +55 C operating, cULus / CE / KC listed |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for NX-DA3603
What is the Omron NX-DA3603 used for?
It is the NX-series 4-channel analog voltage output unit that converts digital values from the NX CPU into -10 to +10 V signals at 1/8000 (13-bit) resolution. It mounts on the NX backplane and drives analog-input variable-frequency drives, proportional valves, damper actuators, and similar analog loads on machines that already use the NX-series I/O platform.
NX-DA3603 vs NX-DA2205 - what is the difference?
Both are 4-channel NX analog output units on the same 12 mm wide housing. The DA3603 has four -10 to +10 V voltage outputs at 1/8000 resolution. The DA2205 has two 4-20 mA current outputs (despite the model number). Pick the DA3603 for VFD speed reference; pick the DA2205 for current-loop valves and transmitters.
Does the NX-DA3603 support synchronous I/O refresh?
No. The NX-DA3603 only supports Free-Run refreshing; the analog output updates asynchronously from the EtherCAT cycle. For synchronous I/O refreshing matched to the EtherCAT cycle, pick the NX-DA3605 or NX-DA2605 high-resolution variants.
What NX coupler works with the NX-DA3603?
Any of the NX-series communication couplers. For EtherNet/IP, use the NX-EIC202. For EtherCAT, use the NX-ECC202 or NX-ECC203. Up to 63 NX-DA3603 units (252 analog output channels) can sit on one NX-ECC203, limited by the coupler's power budget.
