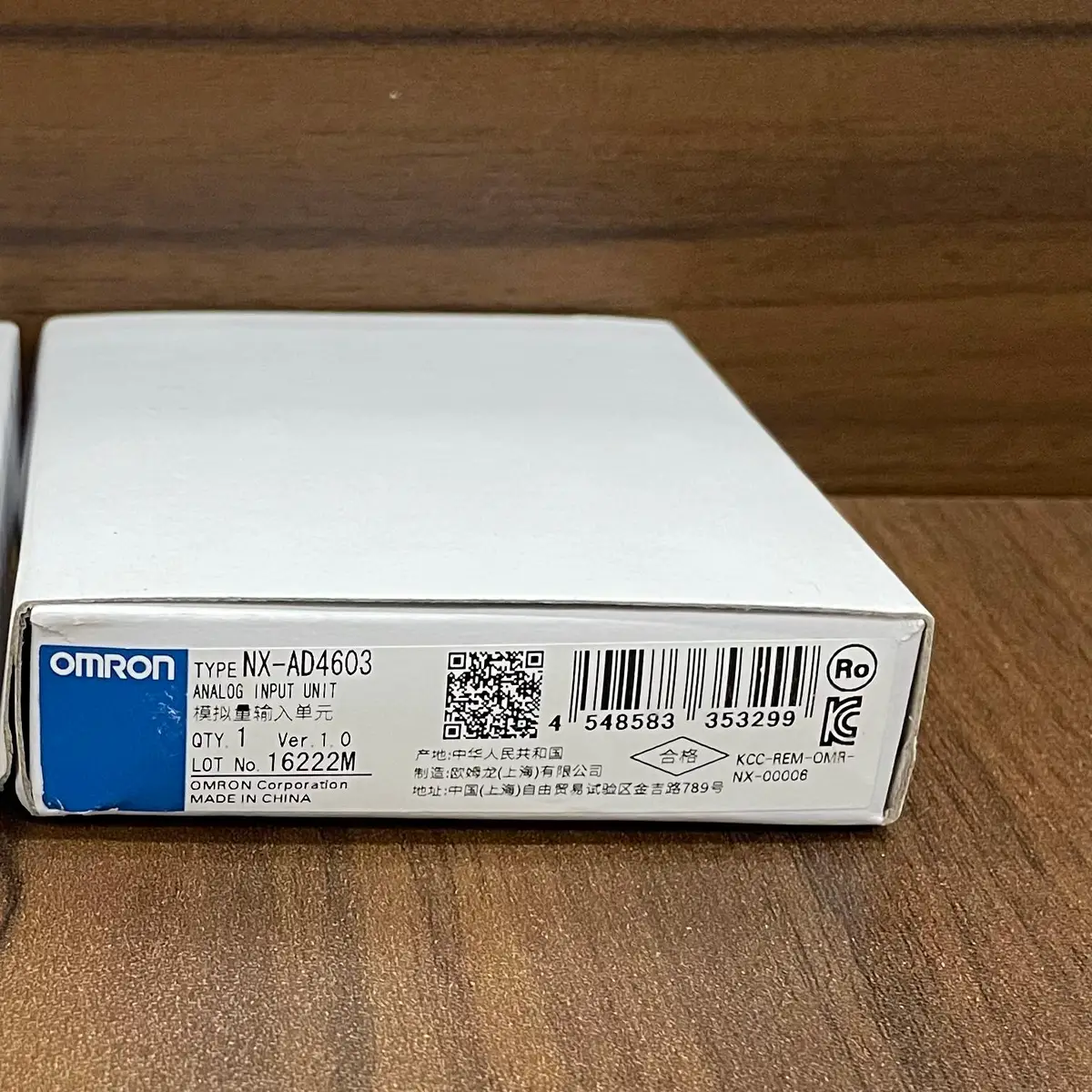

Omron NX-AD4603 — 8-Ch Analog Input, -10 to +10 V
SKU: NX-AD4603USD 195.00
Omron NX-AD4603 NX-series 8-channel analog voltage input, -10 to +10 V single-ended, 1/8000, 12 mm wide. In stock, China shipping.
1-Year Warranty
Full manufacturer warranty
Global Shipping
Worldwide delivery available
Genuine Omron
100% authentic product
Ready to Ship
Usually ships within 24h
In Stock
This item is available for immediate shipment from our warehouse.
Contact for pricing, bulk discounts, and shipping
Product Overview
The Omron NX-AD4603 is the NX-series 8-ch analog voltage input unit, manufactured by Omron Corporation. Hengyixin Automation stocks this I/O expansion unit in Xiamen and ships within 3-5 business days to most Asian, European, and North American ports. Specifications on this page were checked against Omron's NX-series I/O System brochure (R183).
It sits on the NX I/O bus behind an NX-ECC201 EtherCAT Coupler or on the right of an NX102 / NX1P2 CPU and reads 8 single-ended voltage signals at -10 to +10 V. Resolution 1/8000 (13-bit) and 250 microseconds per point conversion time cover most general-purpose analog needs - process transmitters, panel meters, load cells through an external amplifier.
Free-Run refreshing only - no synchronous sampling against the EtherCAT cycle. The slice is fed from the NX bus, no separate 24 VDC supply. Input impedance 1 MOhm min, absolute max +/-15 V. 12 mm wide, 70 g. Not for safety (SIL None). The 4-ch differential higher-speed version is NX-AD3603. The 4-20 mA version is NX-AD4203. The differential-equalized 8-ch is NX-AD4604.
Key Features
- NX-series 8-channel analog input unit, voltage type, single-ended input, -10 to +10 V range
- Resolution 1/8000 (13-bit full scale), 250 microseconds per point conversion, accuracy 0.2 percent at 25 C and 0.4 percent at 0-55 C
- Free-Run refreshing only (no synchronous sampling); input impedance 1 MOhm min; absolute max +/-15 V
- Screwless push-in 16-terminal connector, NX bus-powered, 12 (W) x 100 (H) x 71 (D) mm, 70 g, IP20
- SKU: NX-AD4603
- Series: NX-series Analog I/O Unit (NX-AD family) on NX I/O Bus
- I/O: 8 I/O
Best-Fit Applications
- Multi-zone oven temperature control where the NX-AD4603 reads four 4-20 mA transmitters via 250 ohm shunts and four -10 to +10 V pressure transducers
- Tank farm level monitoring where eight pressure transmitters on -10 to +10 V scale to engineer units in Sysmac Studio
- Spare replacement on a process skid where the original NX-AD4603 was lost and Sysmac Studio holds the I/O map and channel scaling
Buying Checklist
- Pick the NX-AD4603 when you need 8 single-ended -10 to +10 V inputs on a 12 mm NX slice with Free-Run refreshing.
- Pick the NX-AD3603 instead when 4 differential inputs at 1/30000 resolution with 10 microsecond sampling and synchronous refreshing are required.
- Pick the NX-AD4203 instead when the field devices are 4-20 mA current loops instead of -10 to +10 V voltage signals.
Technical Specifications
| Manufacturer | Omron Corporation (Japan) |
|---|---|
| Series | NX-series Analog I/O Unit (NX-AD family) on NX I/O Bus |
| Model / SKU | NX-AD4603 |
| Number of Points | 8 single-ended analog inputs |
| Input Range | -10 to +10 V (input conversion range -5 to +105 percent of full scale) |
| Resolution / Conversion | 1/8000 (13-bit) full scale; 250 microseconds per point; 2 ms per unit conversion |
| Accuracy | 25 C +/-0.2 percent full scale; 0 to 55 C +/-0.4 percent full scale |
| Input Impedance / Max | 1 MOhm min; absolute maximum +/-15 V |
| Refreshing | Free-Run refreshing only |
| Isolation | Transformer (power) + digital isolator (signal) between input and NX bus; no isolation between inputs; dielectric 510 VAC for 1 minute |
| Connection / Power | Screwless push-in 16-terminal connector; IOG 0.1 A per terminal; NX unit power 1.45 W max on CPU / 1.15 W max on Coupler |
| Dimensions / Approvals | 12 (W) x 100 (H) x 71 (D) mm; 70 g; IP20; 0 to 55 C ambient; SIL None; CE, cULus, RCM, KC |
Manufacturer documentation
Omron's own product page, where the manufacturer's current specification and lifecycle information are published. We are an independent distributor and cannot mirror those documents; the link goes to Omron's site.
FAQ for NX-AD4603
What is the Omron NX-AD4603 used for?
It is the NX-series 8-channel analog voltage input unit for -10 to +10 V signals. Typical uses are multi-zone oven temperature control with 4-20 mA transmitters, tank farm level monitoring with hydrostatic pressure transmitters, and spare replacement on a process skid where Sysmac Studio holds the channel scaling.
NX-AD4603 vs NX-AD3603 - what is the difference?
Both are NX-series analog voltage input units. The AD4603 has 8 single-ended inputs at 1/8000 (13-bit) with 250 microsecond conversion and Free-Run refreshing only. The AD3603 has 4 differential inputs at 1/30000 with 10 microsecond conversion and synchronous refreshing against the EtherCAT cycle. Pick the AD4603 for general-purpose 8-ch voltage at moderate speed; pick the AD3603 for high-speed 4-ch differential.
Does the NX-AD4603 need a 24 VDC supply?
No separate 24 VDC supply. The slice draws NX unit power from the NX bus (1.45 W max on a CPU, 1.15 W max on a Coupler) and supplies the IOG terminal for shielded cable termination. For transmitter excitation, the field device still needs its own 24 VDC loop power.
How do I configure the NX-AD4603 in Sysmac Studio?
Add it under Configurations - CPU Rack or EtherCAT Slave Terminal, drag the slice in, and set the channel scaling (percent to engineer units) and moving-average filter under the slice's Analog I/O tab. The I/O map exposes 8 input words. Save and download to the controller.
